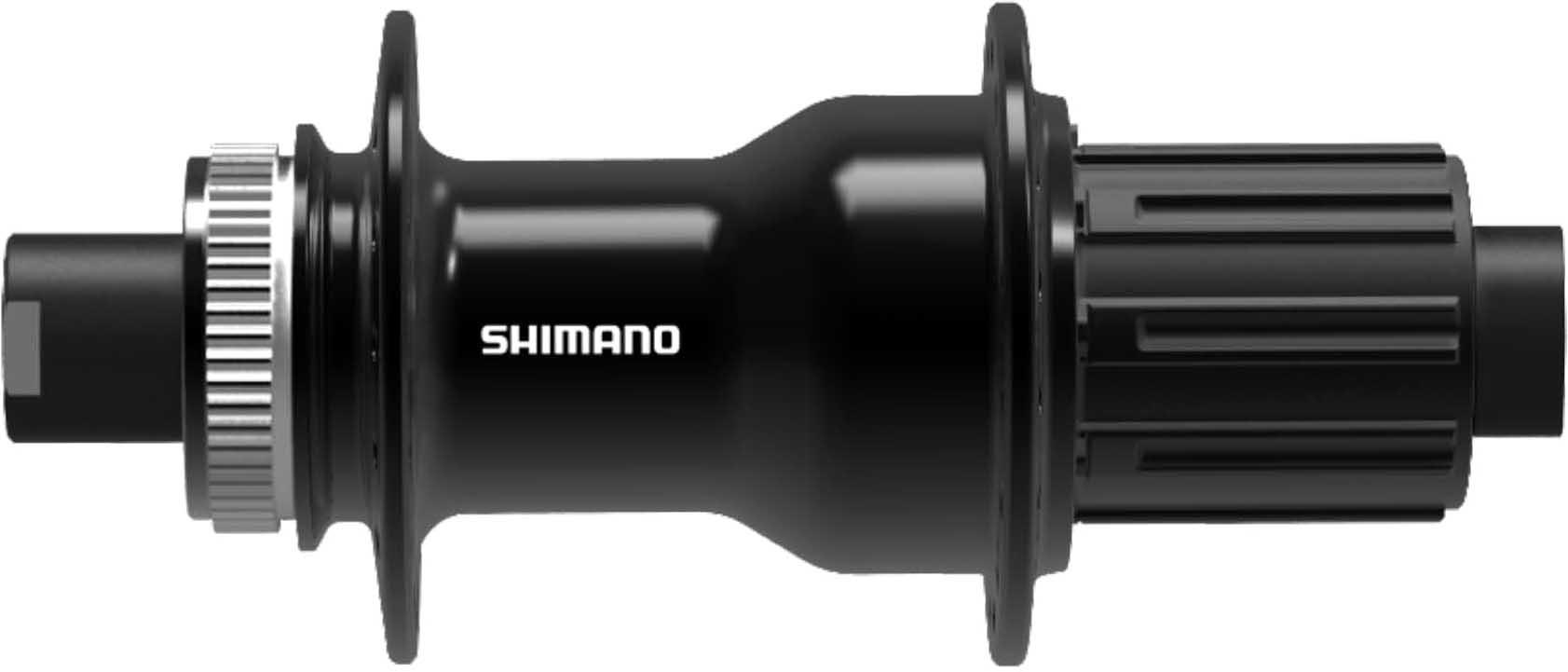

Shimano Cues TC500 Center Lock 32H Rear Hub

Features:

• Simple setup and reliable trail performance
• Easy disc brake rotor installation with spline mount and lock ring
• Stiff and lightweight 12 mm E-THRU skewer system
• Labyrinth & Contact Sealing
• Hub spacing: 12x142mm or 12x148mm
• Freehub options: HG Spline (8,9,10,11 speed) or Micro Spline (12 speed MTB)
• Disc brake compatible
• Disc type: Center Lock
• Spoke holes: 32

Reliable Shimano disc brake rear hub with high-quality sealing for long-lasting performance. Available with 12x142mm or 12x148mm boost spacing and in 2 freehub options, either HG Spline compatible with 8-11 speed Shimano cassettes or Micro Spline compatible with 12 speed Shimano MTB cassettes starting with a 10T sprocket.

TECHNOLOGY
CENTER LOCK
The Center Lock system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
E-THRU AXLE
The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. The 15 mm thru-axle system is 15% stiffer torsionally and 25% stiffer in transverse shear than a traditional 9 mm quick release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-THRU axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed.

Manufacturer part codes:
FH-TC500-HM : 12x142mm E-Thru axle/HG Spline - 8-11 speed compatible
FH-TC500-HM-B : 12x148mm E-Thru axle/HG Spline - 8-11 speed compatible
FH-TC500-MS : 12x142mm E-Thru axle/ Micro Spline - 12 speed compatible
FH-TC500-MS-B : 12x148mm E-Thru axle/Micro Spline - 12 speed compatible
