DMR V8 V2 Pedal Servicing Tool

Fits:

• DMR V8 V2 pedals

*Please note: This tool is only compatible with the newer V8 V2 pedals that use the Dual Bushing bearing system which can be identified by the grey plastic end caps, it will not work with the older V8 Classic pedals, if you require the tool for the V8 classic pedals please search for Halfords article 236995.

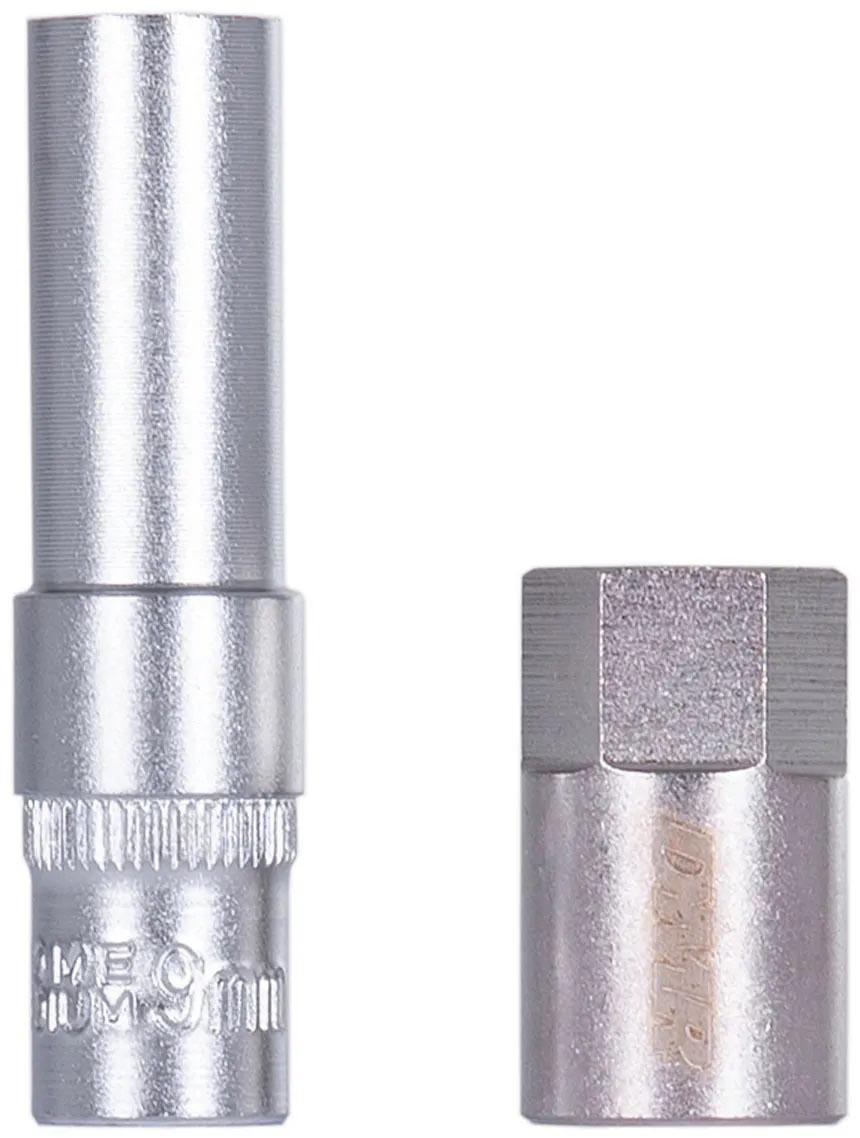

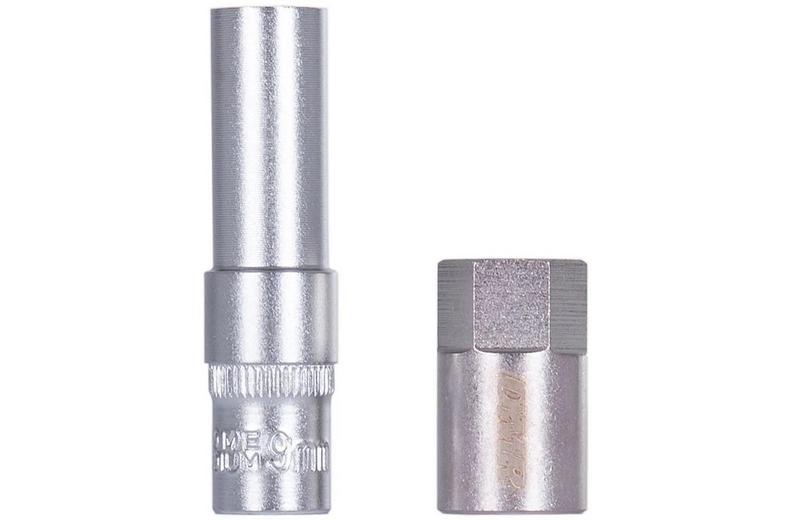

The DMR V8 V2 Service Tool is designed for servicing the Dual Bushing bearing system found on the current V8 pedal with grey plastic end caps.

This tool now includes a 9mm socket. Use this thin wall Cro-Moly Steel socket with a 13mm spanner to ‘back off’ the 11mm base nut against the 9mm lock nut on the end of the axle to adjust the pre-load on the bearings.

Tools required to service or adjust V8 Dual Bushing pedal:

• 15mm spanner or 6mm allen wrench – to remove pedal from crank arm
• Pick - to pop off end cap
• 9mm Socket - to adjust lock nut
• 13mm Spanner - to adjust V8 service tool
• DMR V8 Service Tool - to adjust 11mm base nut on axle against lock nut
• Small Flat Blade Screwdriver - to hold/jam 9mm lock nut when adjusting base nut
