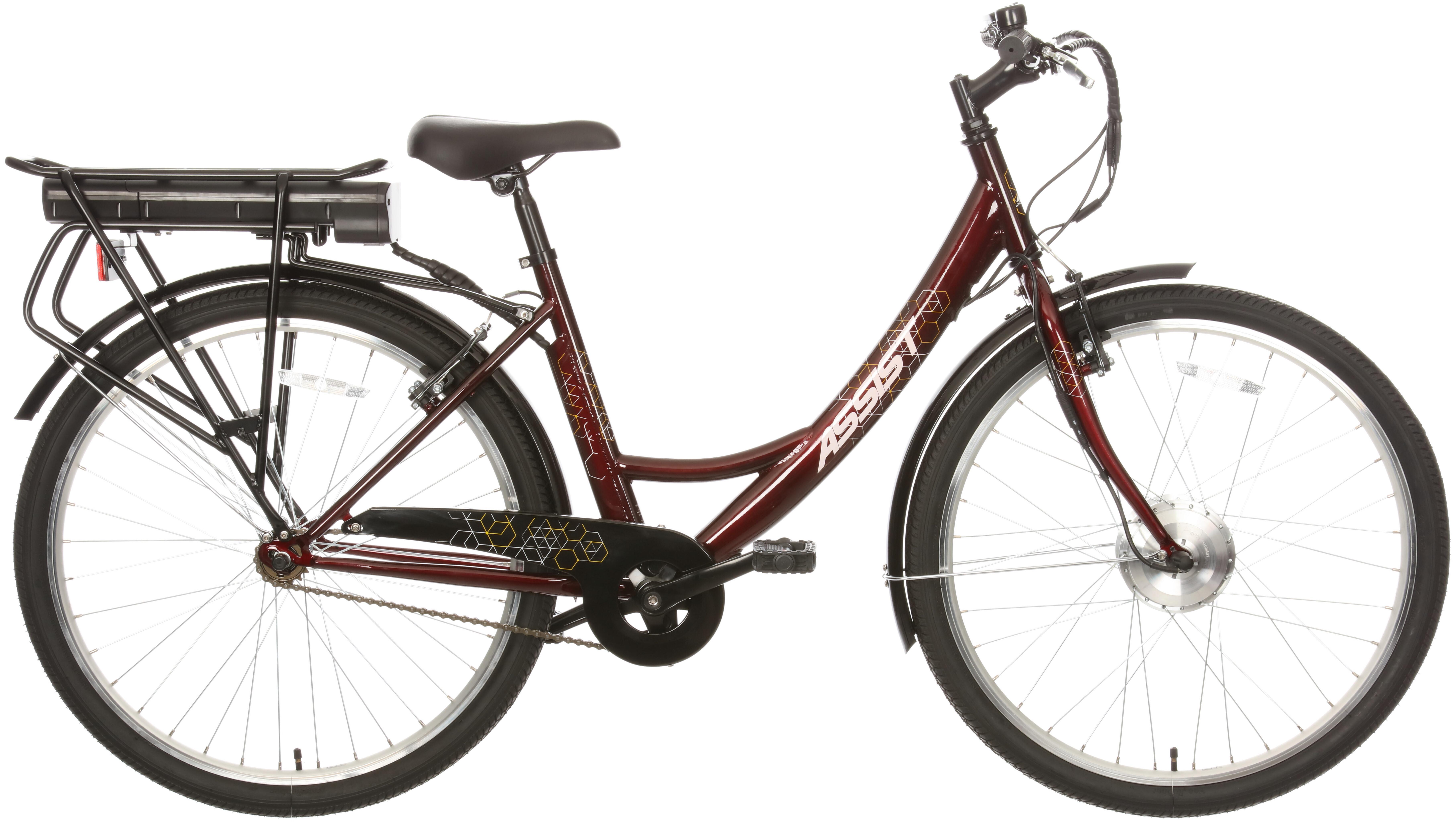

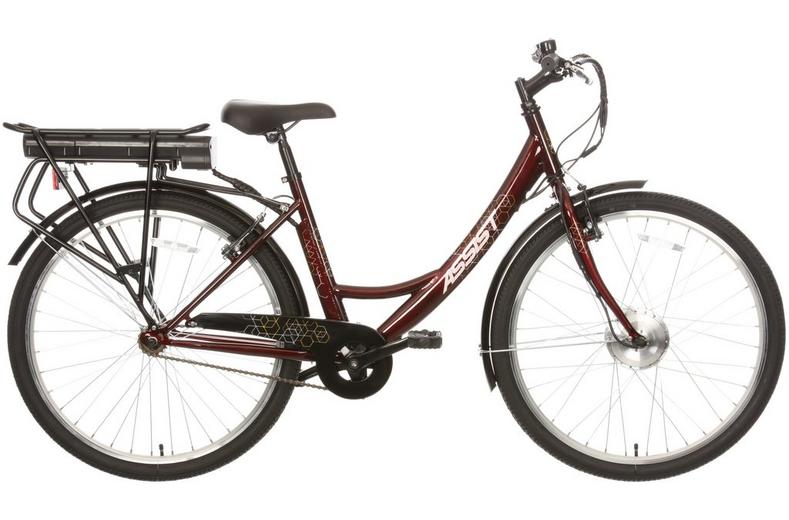

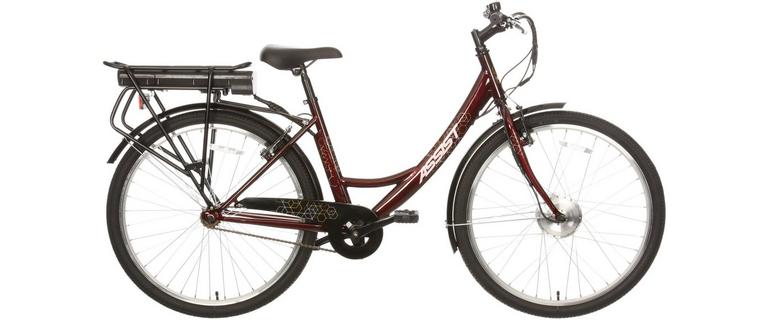

Assist Step-Thru, Electric Hybrid Bike
Payment options available
Gender | Unisex |
|---|---|
Type | Electric Hybrid Bikes |
SEO Widget Short Description Text | ASSIST STEP-THRU AT A GLANCE. - Frame: Lightweight Alloy Frame - Fork: Durable Steel Fork - Motor: Front Hub, 250w, 24v - Battery: Samsung Cells, 209Wh, 8.7Ah - Range: Up To 20 miles* (see 'Range' for details) - Gears: Single Speed - Fitted: Full Length Mudguards, Chainguard & Pannier Rack Timeless Style. The Assist Step-Thru Electric Hybrid Bike combines timeless style with everyday practicality. Its low step-through frame offers an easy mount and dismount, while the upright riding position inspires confidence and comfort on every journey. Powered by a 209Wh battery, it provides up to 20 miles* of assistance -… |

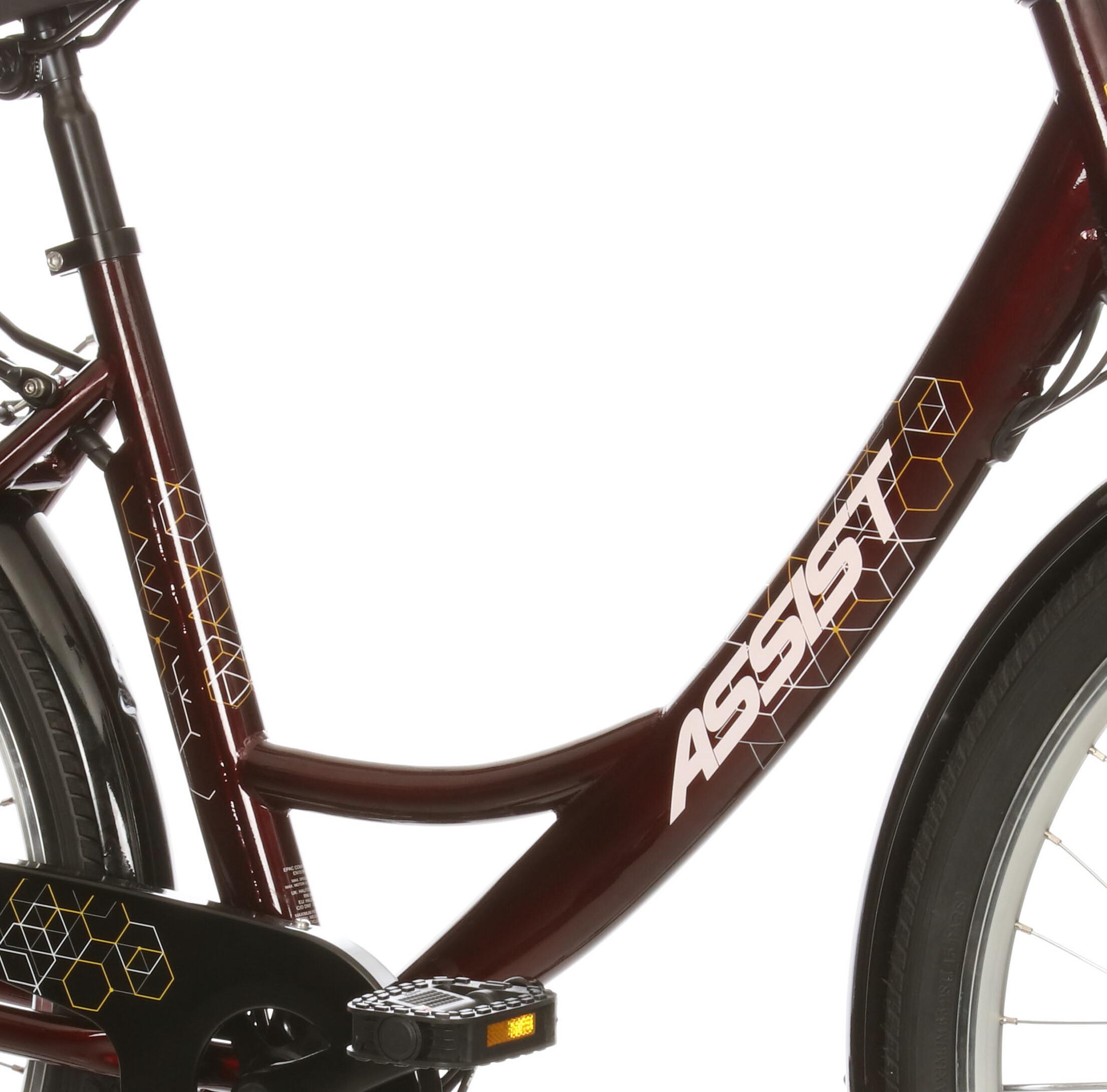

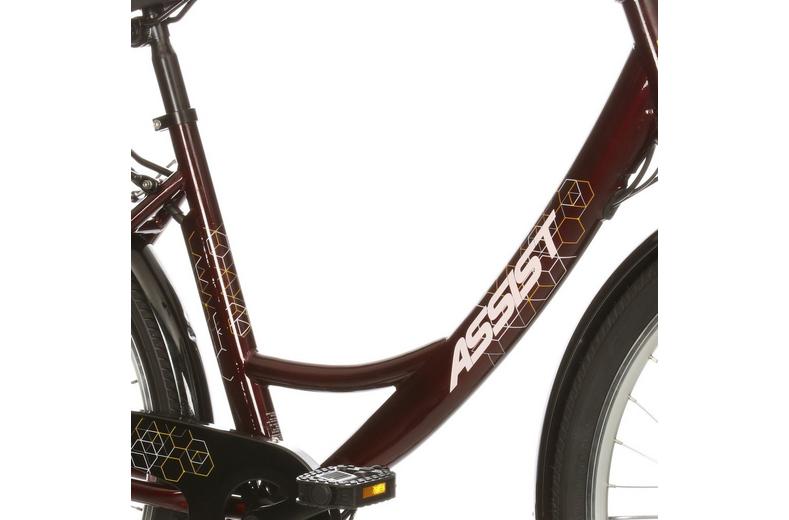

Frame | Alloy |
Forks | Rigid Steel |
Headset | Threaded, 1 1/8" |
Stem | Assist alloy |

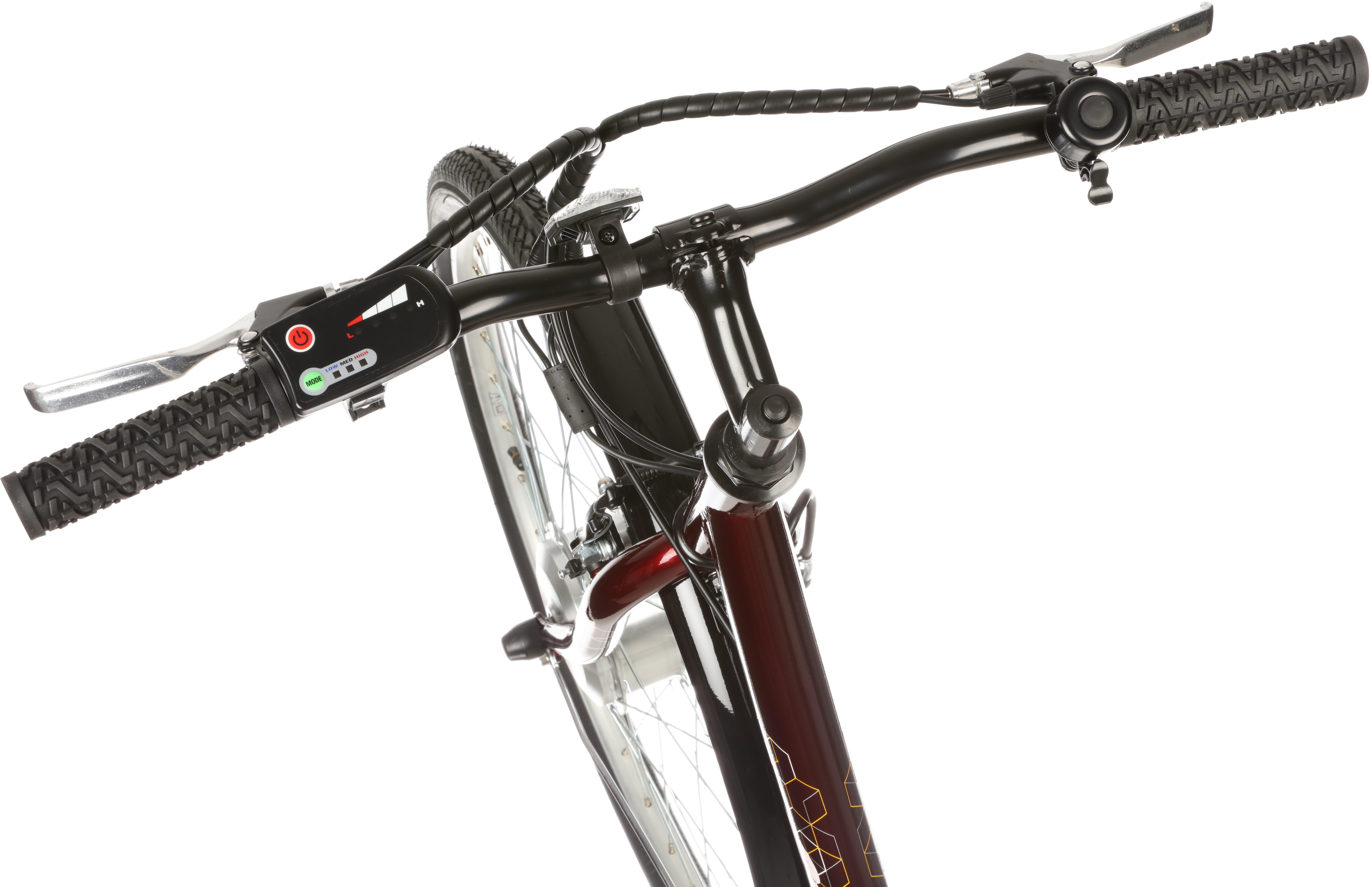

Handlebars | Alloy, 620mm width |
Grips | Black Comfort Grips |
Seatpost | Apollo alloy, 27.2mm x 350mm |

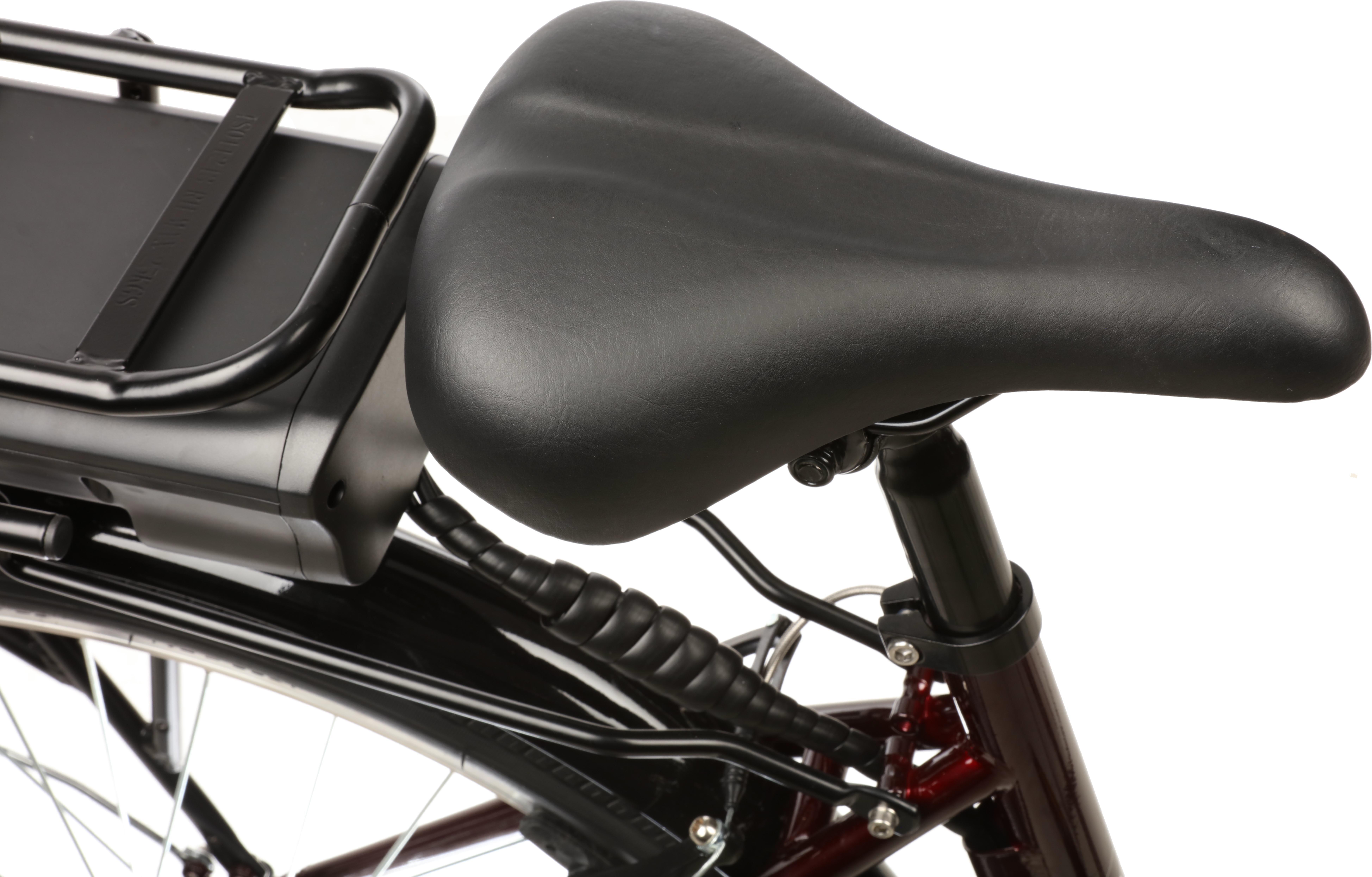

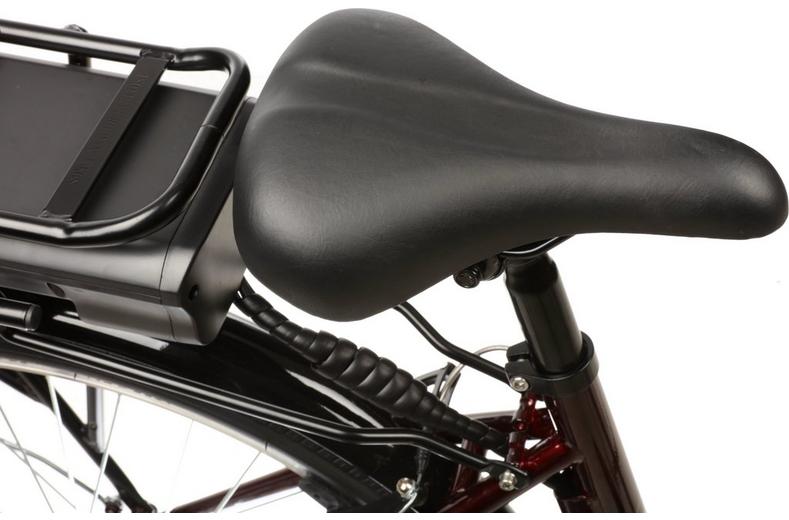

Saddle | Memory Foam saddle |
Brake Type | Rim Brakes |
Front Brake | V-Brake |
Rear Brake | V-Brake |
Number of Gears | 1 |
Gear Shifters | Single Speed |
Rear Derailleur | Single Speed |
Suspension | No Suspension |
Chain | KMC, single speed |
Chainset | Steel, single 36T |
Cassette/Freewheel | Single speed freewheel |
Bottom Bracket | Semi-sealed, square taper |
Front Wheel | Assist alloy, double wall, 26", front hub motor, nutted |

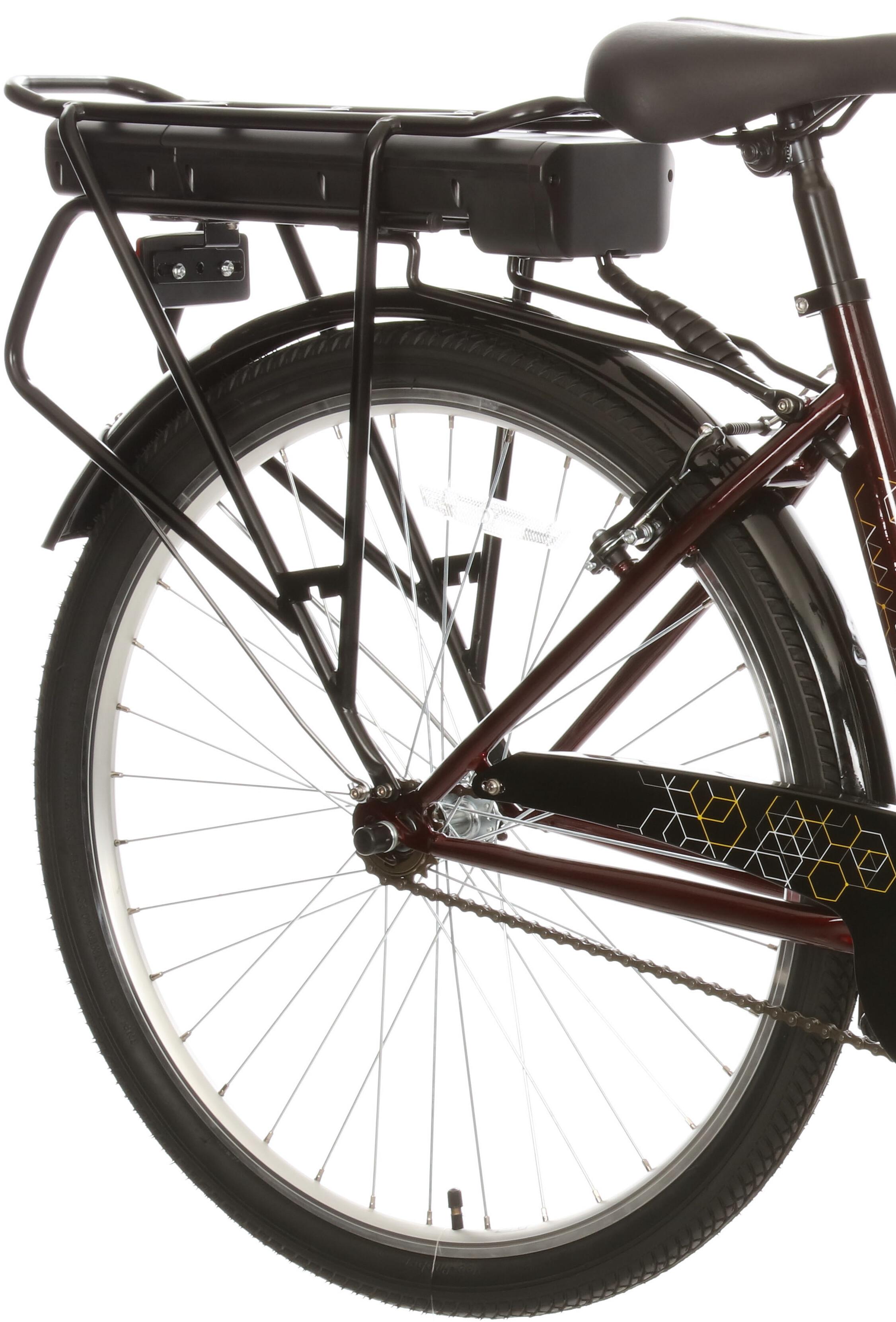

Rear Wheel | Assist alloy, double wall, 26", nutted axle |
Tyres | Vee Rubber 26" |
Mudguard Mounts | Yes |
Pannier Mounts | yes |
Built In Kickstand | No |
Approximate Weight (KG) | 25Kg |

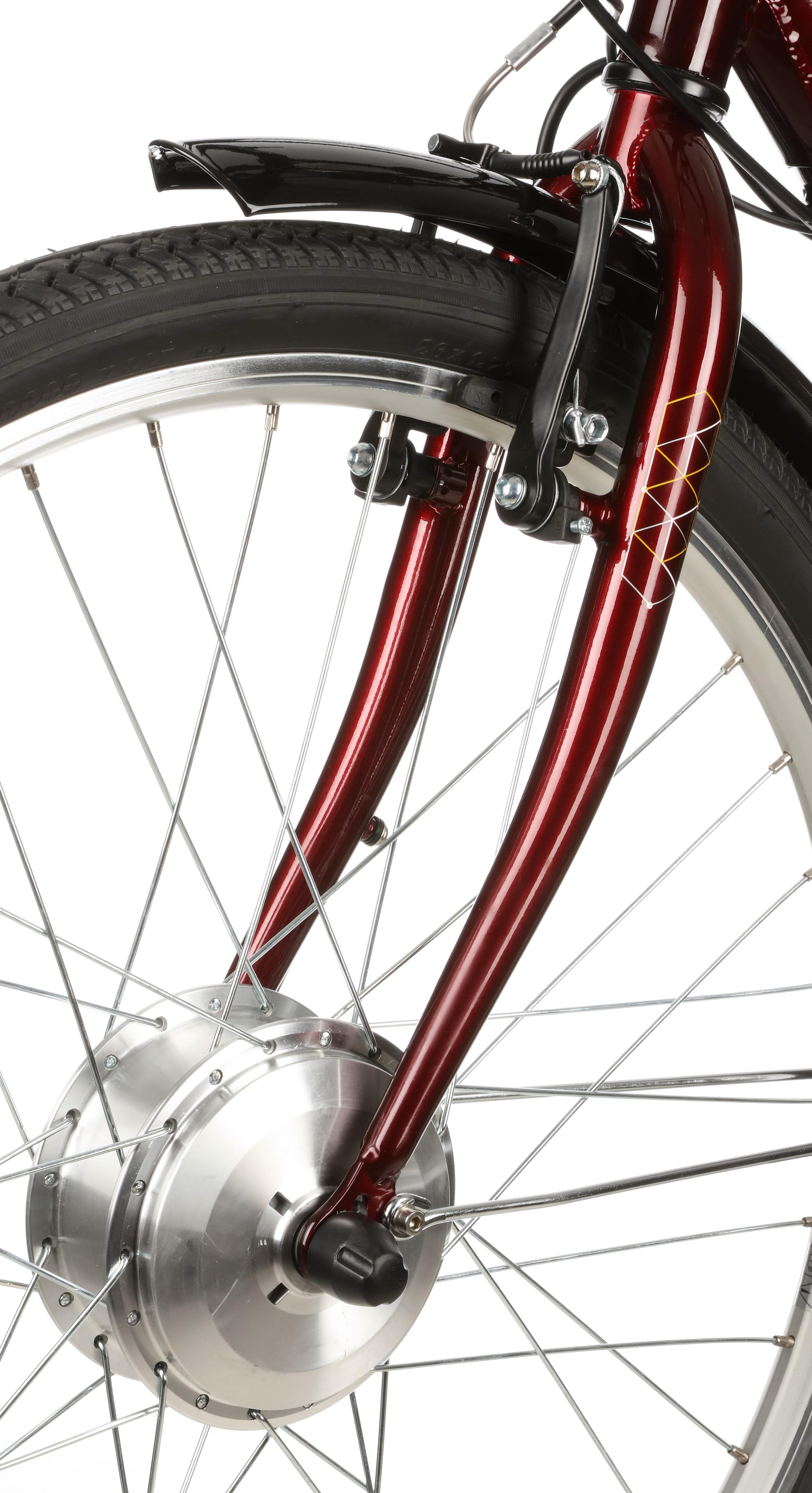

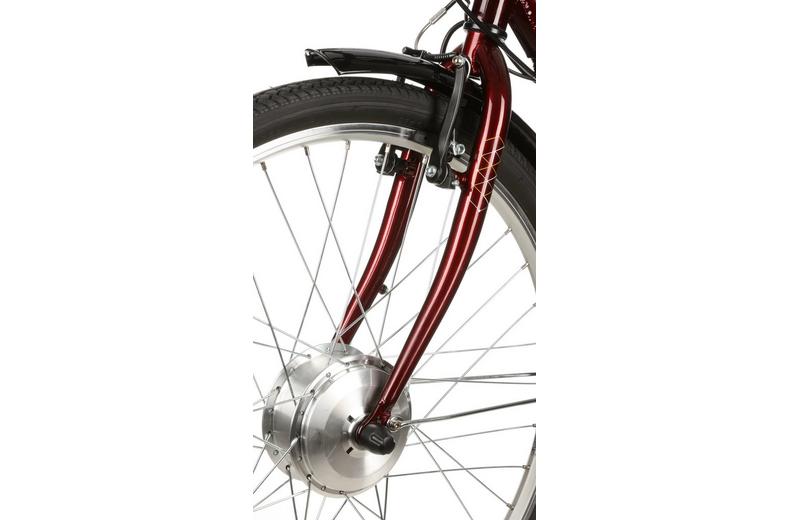

Motor | Shengyi, front wheel motor, 40Nm |

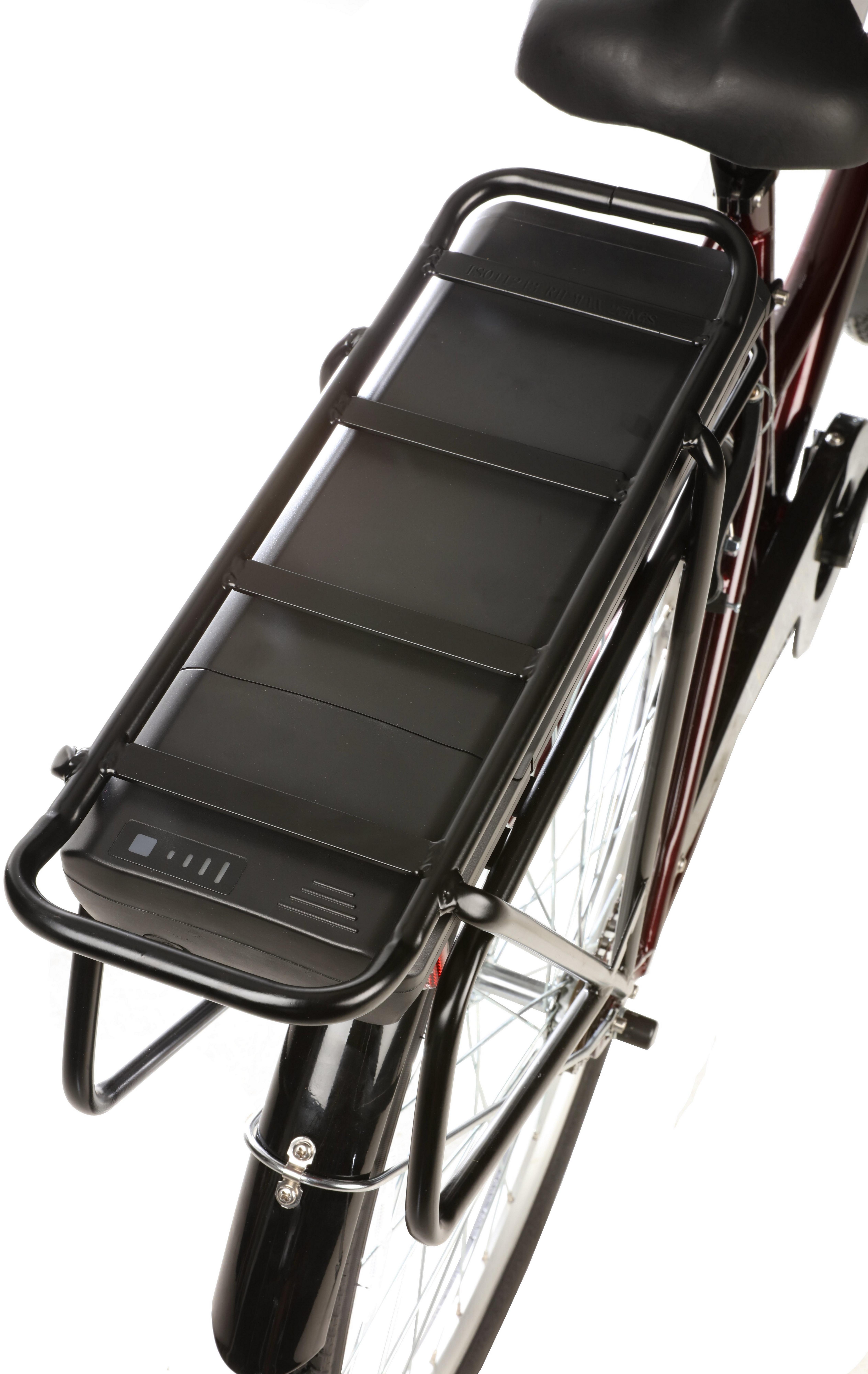

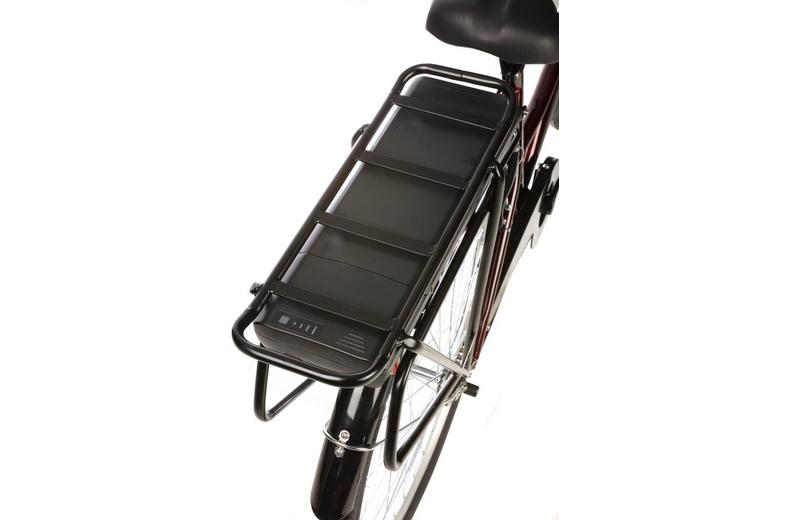

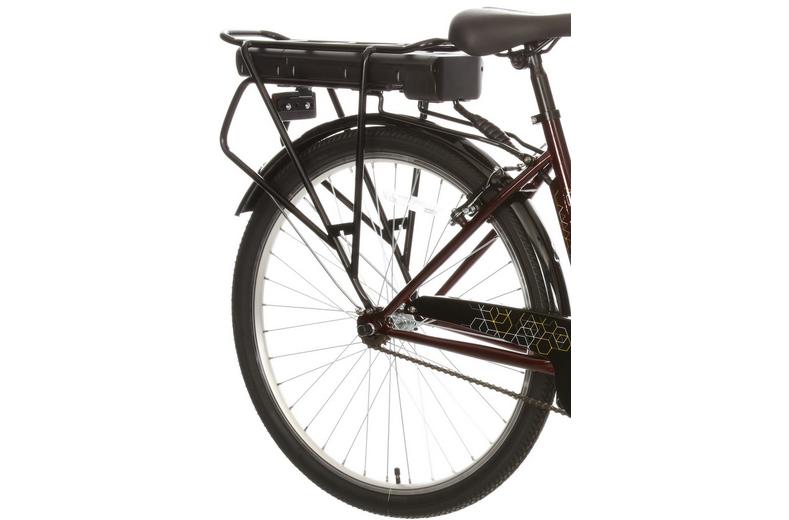

Battery | Samsung, 209Wh, 8.7Ah |
Battery warranty | 2 Years |
Removable Battery | Yes |
Battery Charger | Manufacturer supplied |
Recharge time | Up to 3 hours |
Maximum Range | 20 miles |
Maximum Speed | Assistance to 15.5mph |
Maximum Rider Weight | 120Kg |

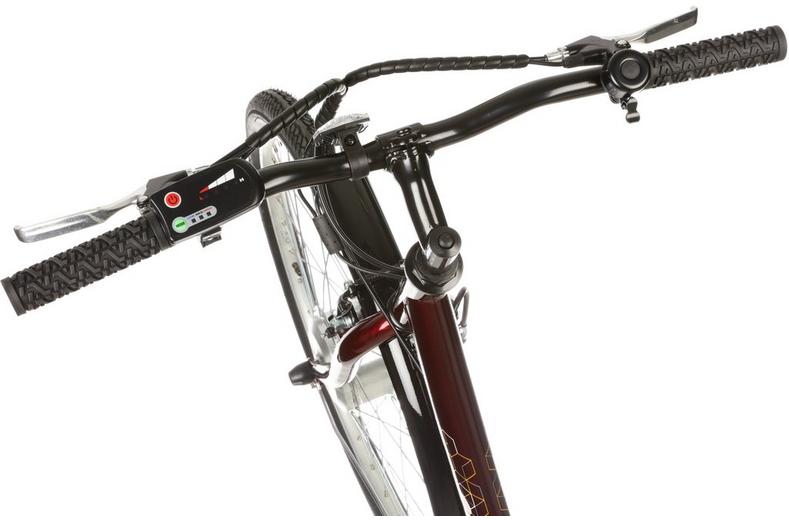

Display | Kingmeter LED Display, 3 assistance modes |
Sensor type | Speed Sensor |
Wheel Size | 26" |
SKU | 425699 |
