Boardman ADV 8.9E Mens Adventure Electric Bike - M 136230

  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 0ms
  • reviews, product

Interest free credit available over 12 months

Terms and conditions apply

  • Max range : Up to 60 miles
  • Motor Type : Fazua Evation Mid Drive
  • Approx Weight : 16kg

Step 1: Select Product Options

Size: M
Need help choosing?
View our size guide
Need help choosing?
For fitting, please change quantity to 1 and add each item and fit separately

Step 2: Would You Like It Built?


You can either collect your built bike in store or have it delivered. Learn more

  • FREE - Bike Built and Collected In-store (per bike)
  • £30.00 - Bike Built and Delivered (per bike)

Please note: If you select a Bike Built for collection in-store you'll book a collection day and time. Once chosen, this date and time is unable to be amended.

Step 3: Select Buying Option

Check stock in your location
Use my Location
Booking system unavailable, please try again later.
FREE Click & Collect
Home Delivery

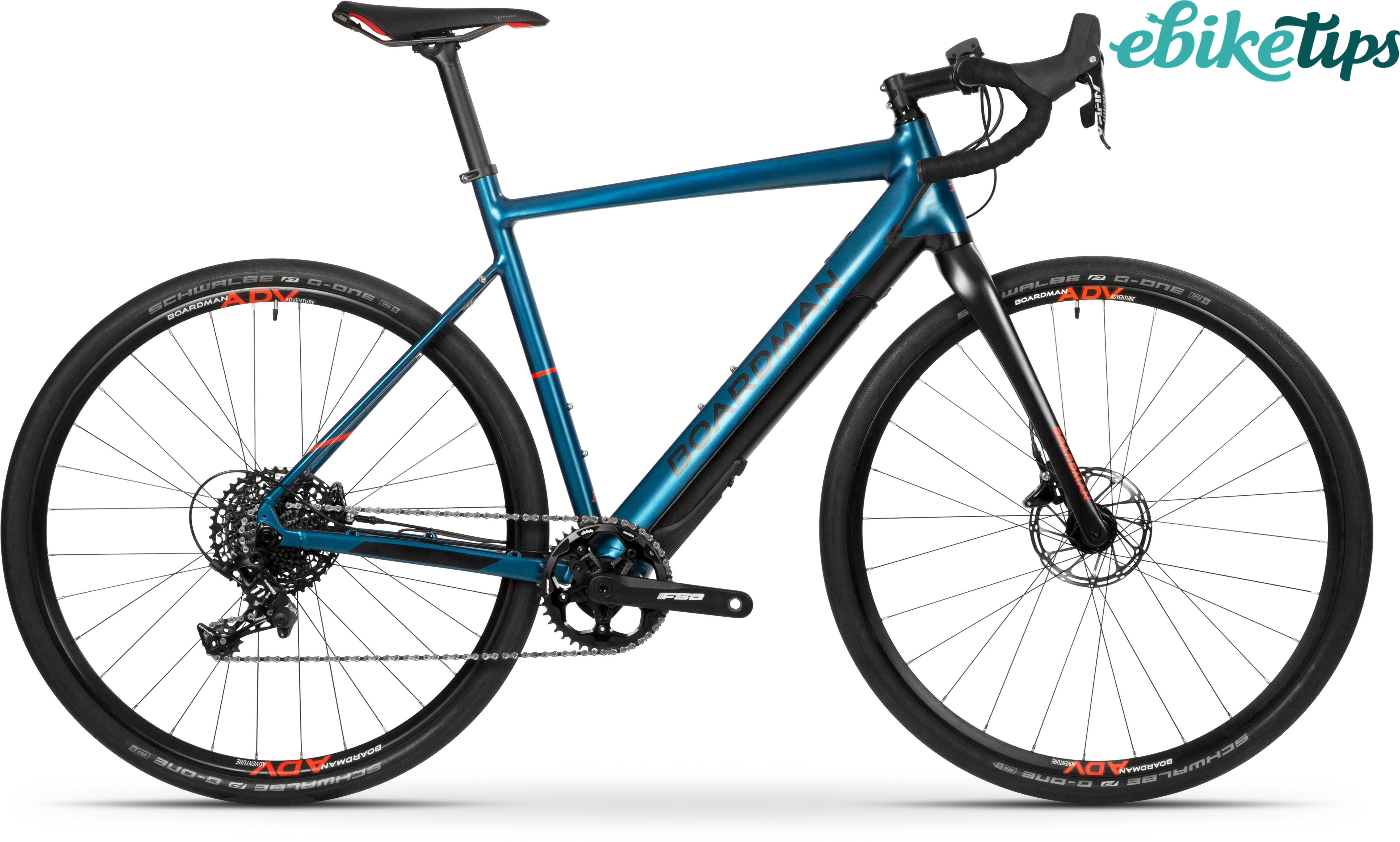

Boardman ADV 8.9E Mens Adventure Electric Bike

  • Removable Battery - Yes
  • Maximum Range - Up To 60 Miles
  • Recharge Time - 3 Hours
Whether you want to ride further or faster, or just want a bit of help up the hills, the Boardman ADV 8.9E Men’s Adventure Electric Bike is a great option. Designed to offer maximum versatility for UK riding adventures, the Boardman ADV 8.9E Men’s Adventure Electric Bike can turn its hand to almost anything, thanks to its perfect blend of road bike speed with a more relaxed position, and off-road focussed geometry. This fast and practical Electric Adventure bike uses the sophisticated, German engineered Fazua Evation drive system to offer smooth and powerful electric assistance as you pedal. With the smooth power of the Fazua motor driving you onwards, you can explore further and faster than ever before, confident that you can tackle any hidden hills.
Weighing in at just 4.6kg for the whole system, the Fazua Evation system keeps the Boardman ADV 8.9E Mens Adventure Electric Bike lightweight and practical to live with. The battery and motor can also be removed and replaced with a lightweight cover (sold separately), meaning you can ride your e-bike just like a normal bike with barely any weight penalty and no extra drivetrain resistance if you decide you don’t need any assistance. Pannier rack and mudguard ready, this bike is also a brilliant commuting option. Be rest assured, this model also comes with a 2-year warranty on all electrical components.
Fazua offers you a connected journey…
By using the FAZUA app which is compatible with all Boardman eBikes, you can get access to all of the below that will assist your journey and will help you learn more about your training and your bike.
The app includes the following features and is available on the Apple App Store and Google Play Store:
  • GPS navigation and tracking
  • Speedometer
  • Technical overview, state of battery
  • Support, direct access to Fazua Service
  • Interact, share your rides with friends
  • Summary, analyze the collected data after your ride in detail

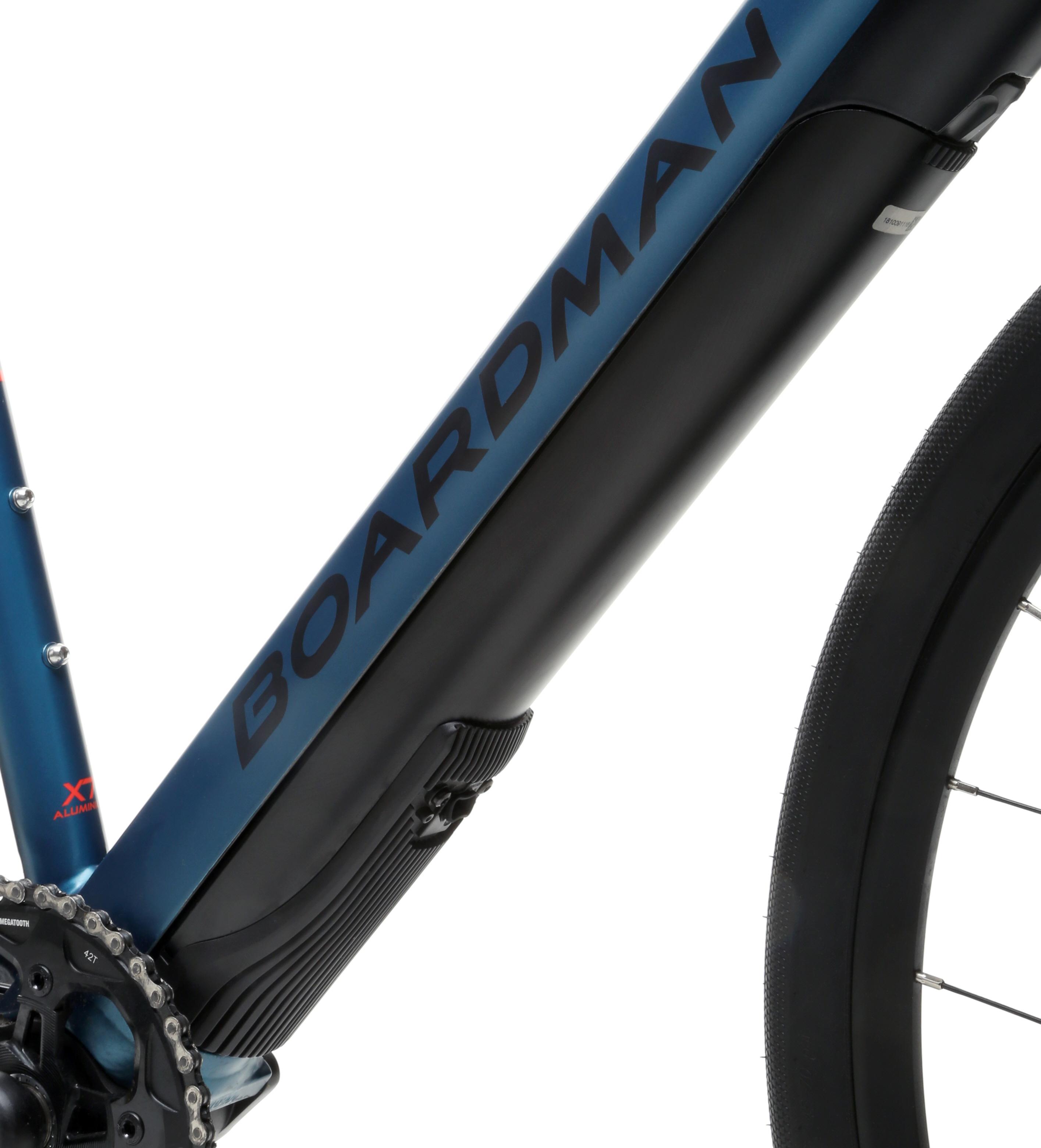

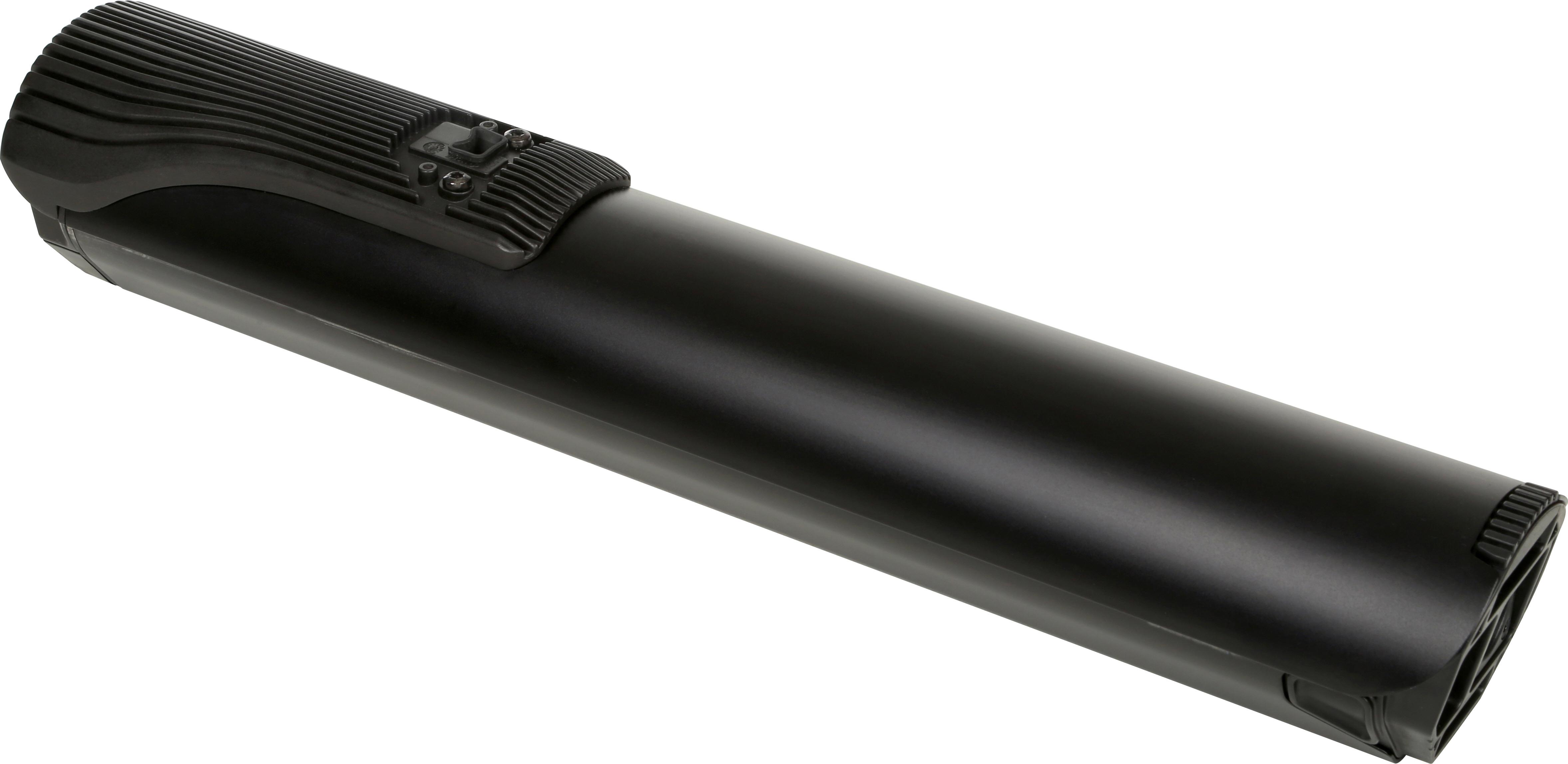

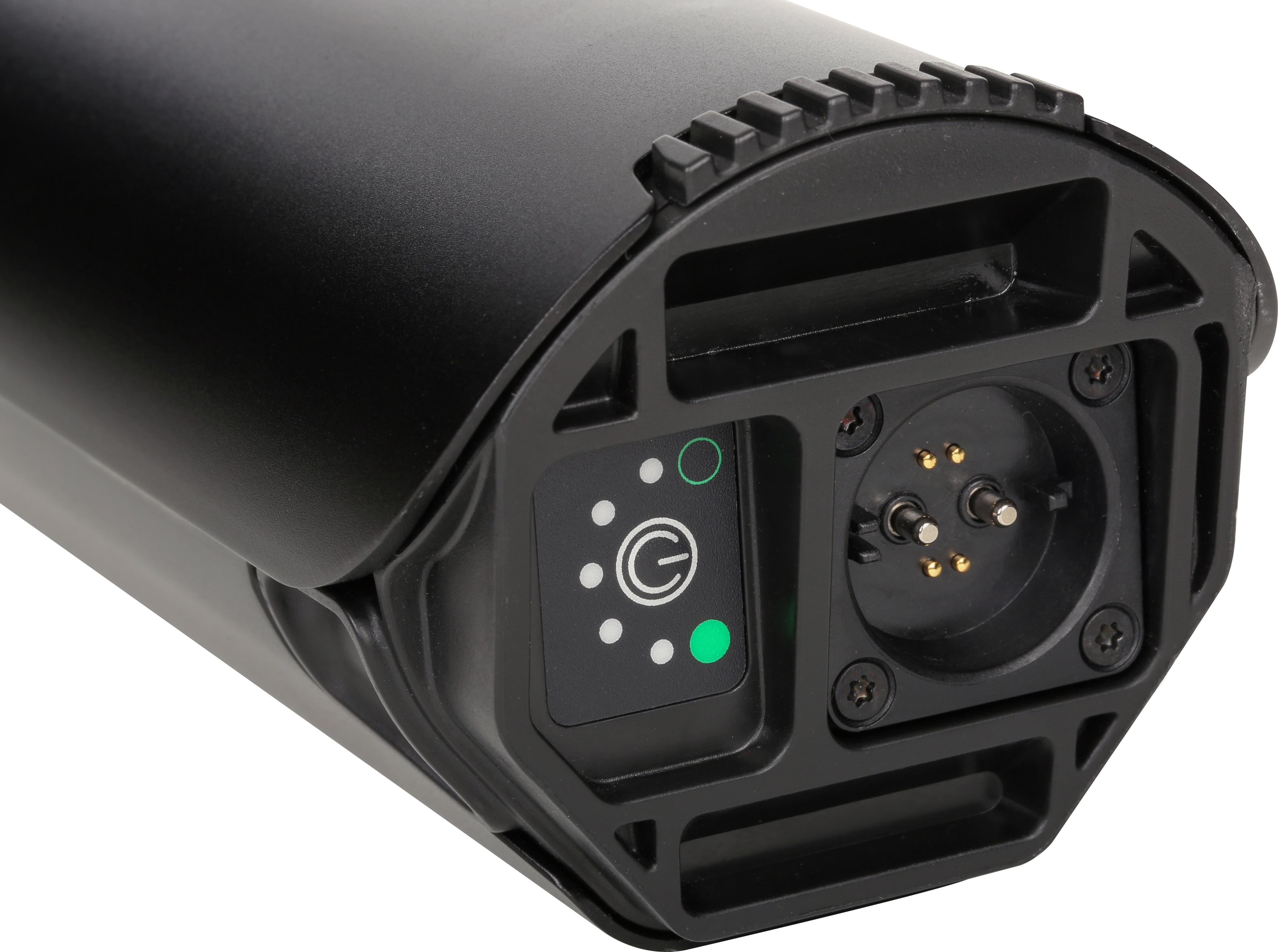

The 250Wh integrated battery is removable, which makes for easy charging without needing a plug where you store your bike. Long rides are handled easily thanks to a range of up to 56 miles* on the 'Breeze Mode' setting. To support the sophisticated motor and battery system, the ADV comes with a smart control system (BMS) that protects the battery from overheating, short circuiting or overcharging.
Note - the total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.

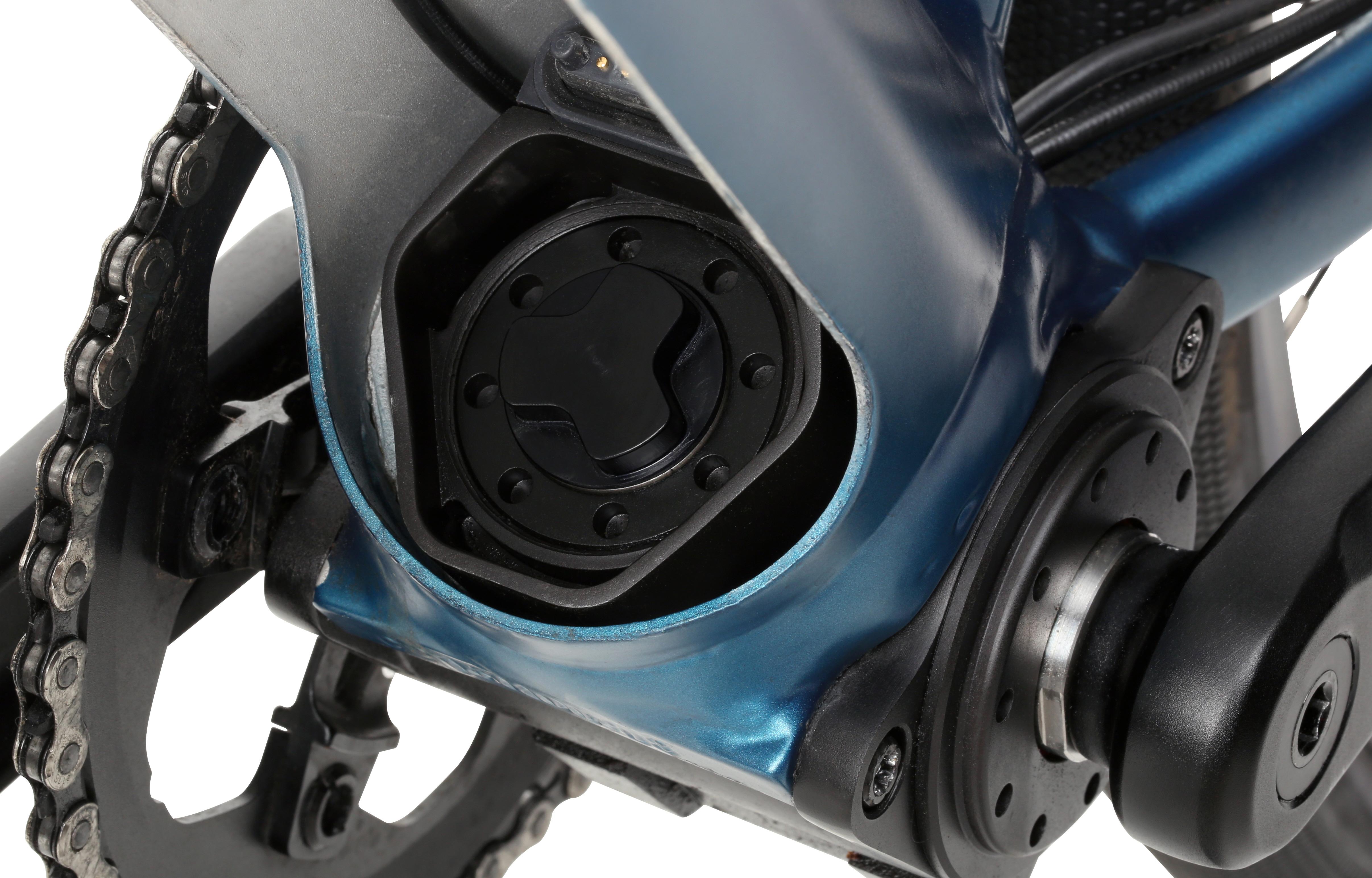

The Fazua Evation e-bike drive system features a hidden, integrated motor capable of producing 250W of power assistance, and 60Nm of torque.

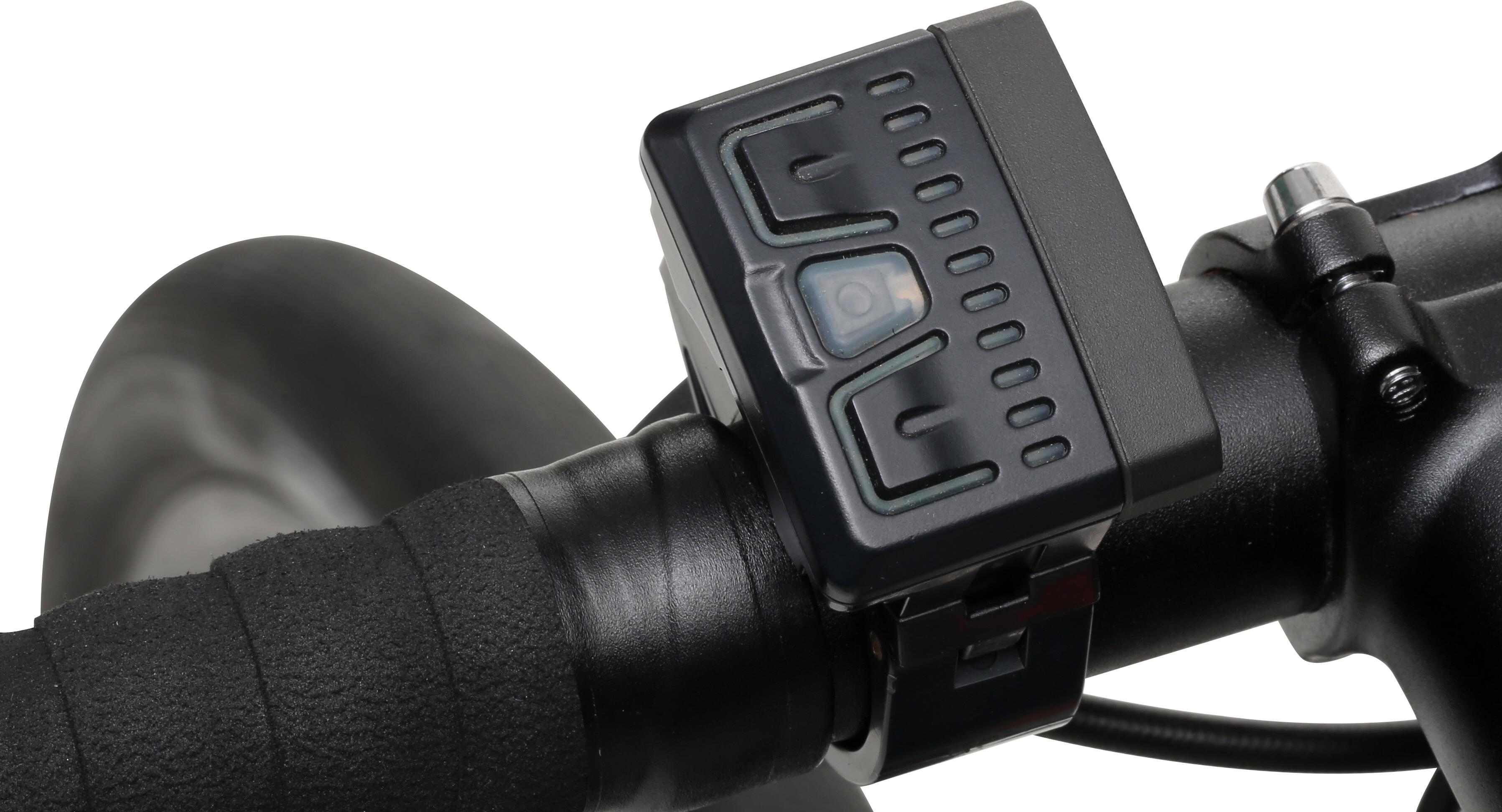

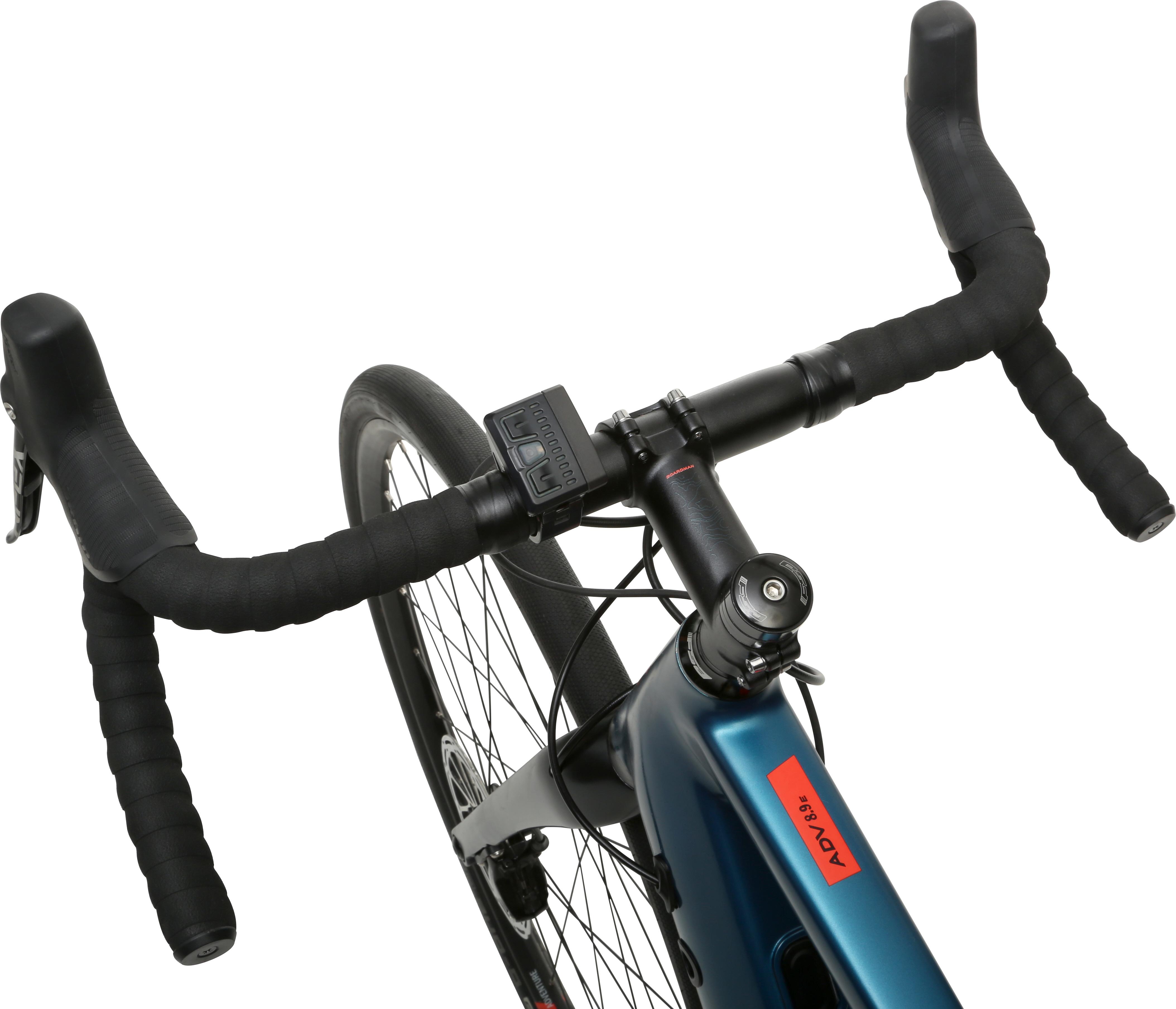

Using a sophisticated combination of Torque, Speed, and Cadence sensors, the Fazua system closely monitors your pedalling and feeds in power smoothly when you need it. It stops instantly when you stop pedalling - keeping you always in complete control. There are 3 levels of assistance to choose from using the intuitive handlebar remote control, which also shows battery charge levels.
Frame / Components:

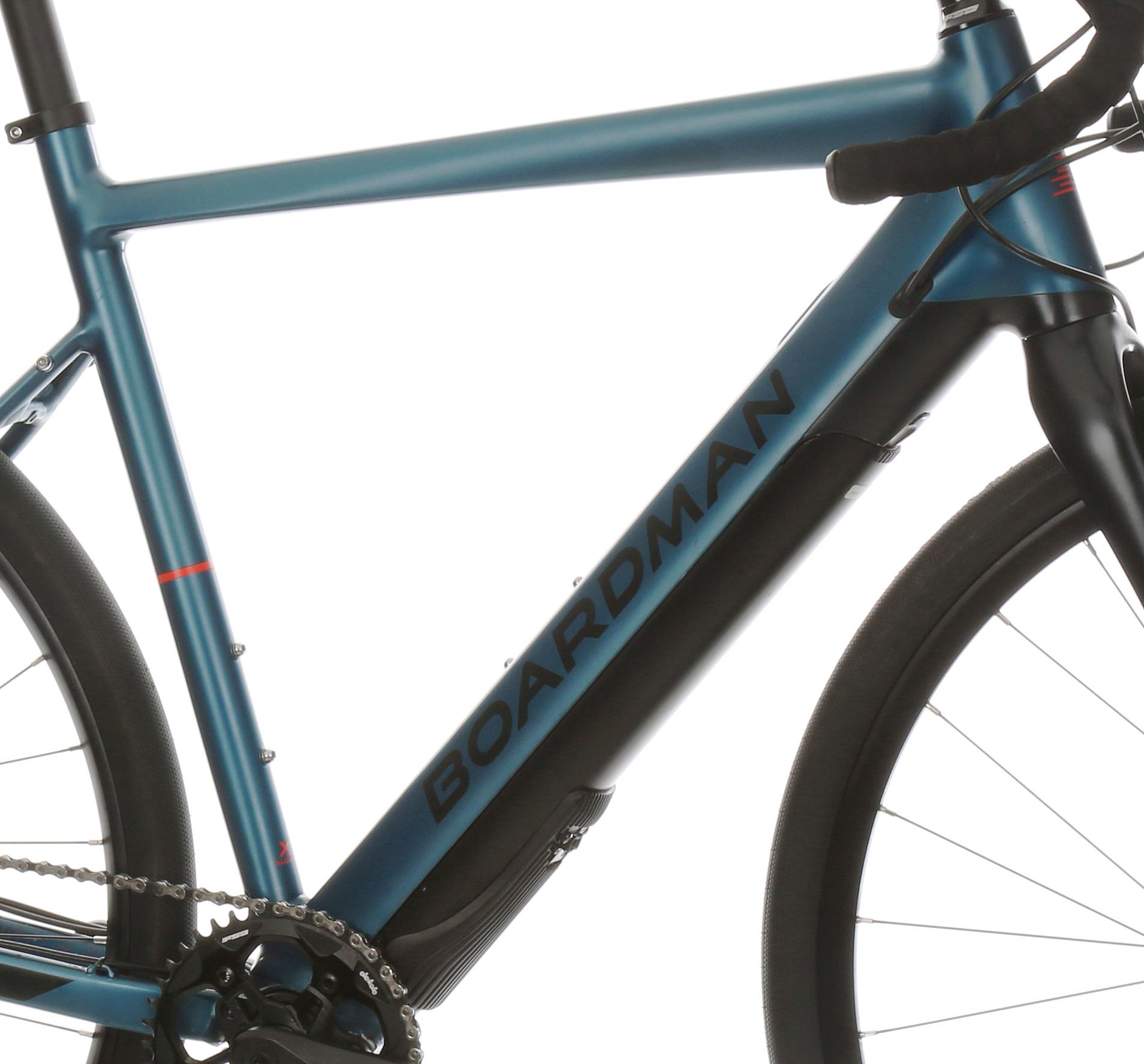

  • Frame: Boardman ADV-E 6061 Aluminium with Smooth Welds

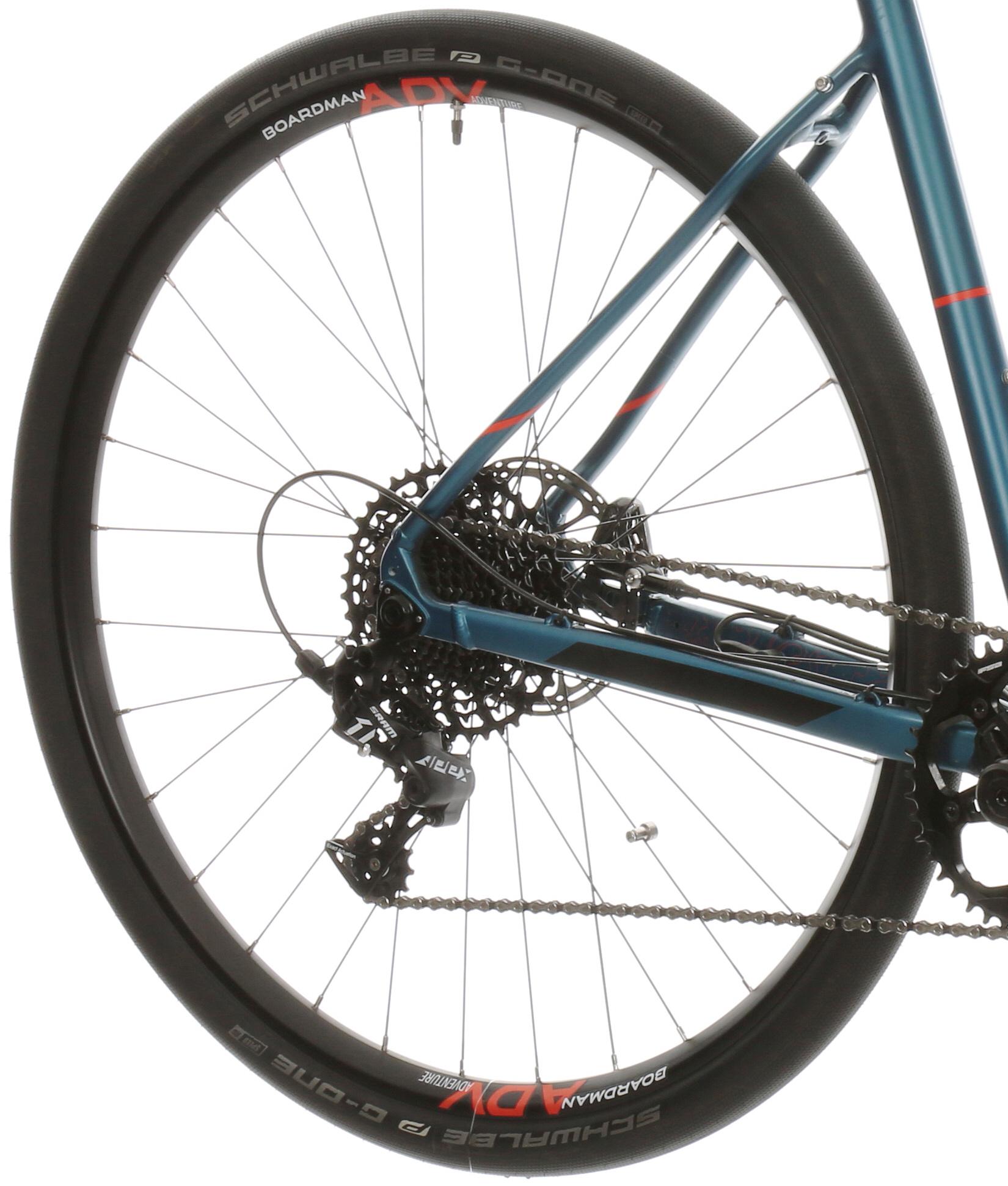

  • Gears: Broad range of 11 gears – SRAM Apex 1
  • Brakes: Powerful hydraulic disc brakes from SRAM’s Apex 1 groupset
  • Tyres:  Fast rolling but grippy 700c x 38mm Schwalbe G-One Speed tyres


Boardman ADV 8.9E Mens Adventure Electric Bike Extra Info

  • FREE build
  • Unlimited lifetime safety checks
  • Lifetime guarantee on frames and rigid forks*
  • E-Bike Cyclecare available
  • 2 year warranty on all electrical components (1 year warranty on all other components)
  • 2 years / 500 charge warranty on the battery
*Please see our T&C's here

Click here to find out more about our new Boardman range

Boardman Adventure Bike Size Guide



Height (Inch) Height (cm) Frame Size
5' 4" - 5' 8" 160 - 172 Small
5' 7" - 5' 11" 170 - 180 Medium
5' 10" - 6' 2" 177 - 188 Large
6' 1" - 6' 5" 185 - 195 X Large

Men's Geometry Table

Size S M L XL
Stack 556mm 575mm 596mm 610mm
Reach 376mm 385mm 388mm 399mm
Seat Tube 515mm 530mm 555mm 575mm
TT Top Tube 535mm 555mm 570mm 585mm
HT Head Tube 130mm 150mm 170mm 185mm
FO Fork Offset 50mm 50mm 50mm 50mm
HA Head Angle 70.5° 70.5° 71° 71°
SA Seat Angle 74° 73.5° 73° 73°
CS Chain Stay 430mm 430mm 430mm 430mm
BB Bottom Bracket Drop 70mm 70mm 70mm 70mm
Crank Length 170mm 173mm 173mm 175mm
Stem Length 80mm 80mm 90mm 100mm
Handlebar Width 420mm 440mm 440mm 440mm
Seatpost Length 350mm 350mm 350mm 350mm

Additional Information:

Learn more about our maximum weight limits on adult bikes here.
