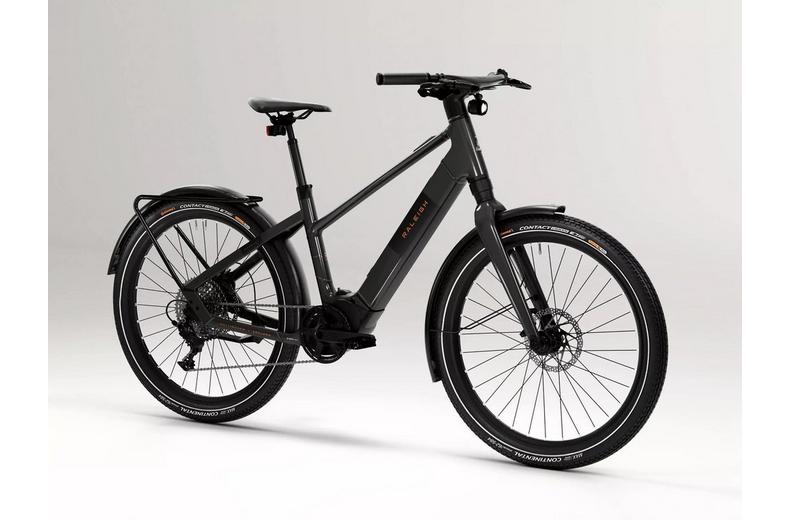

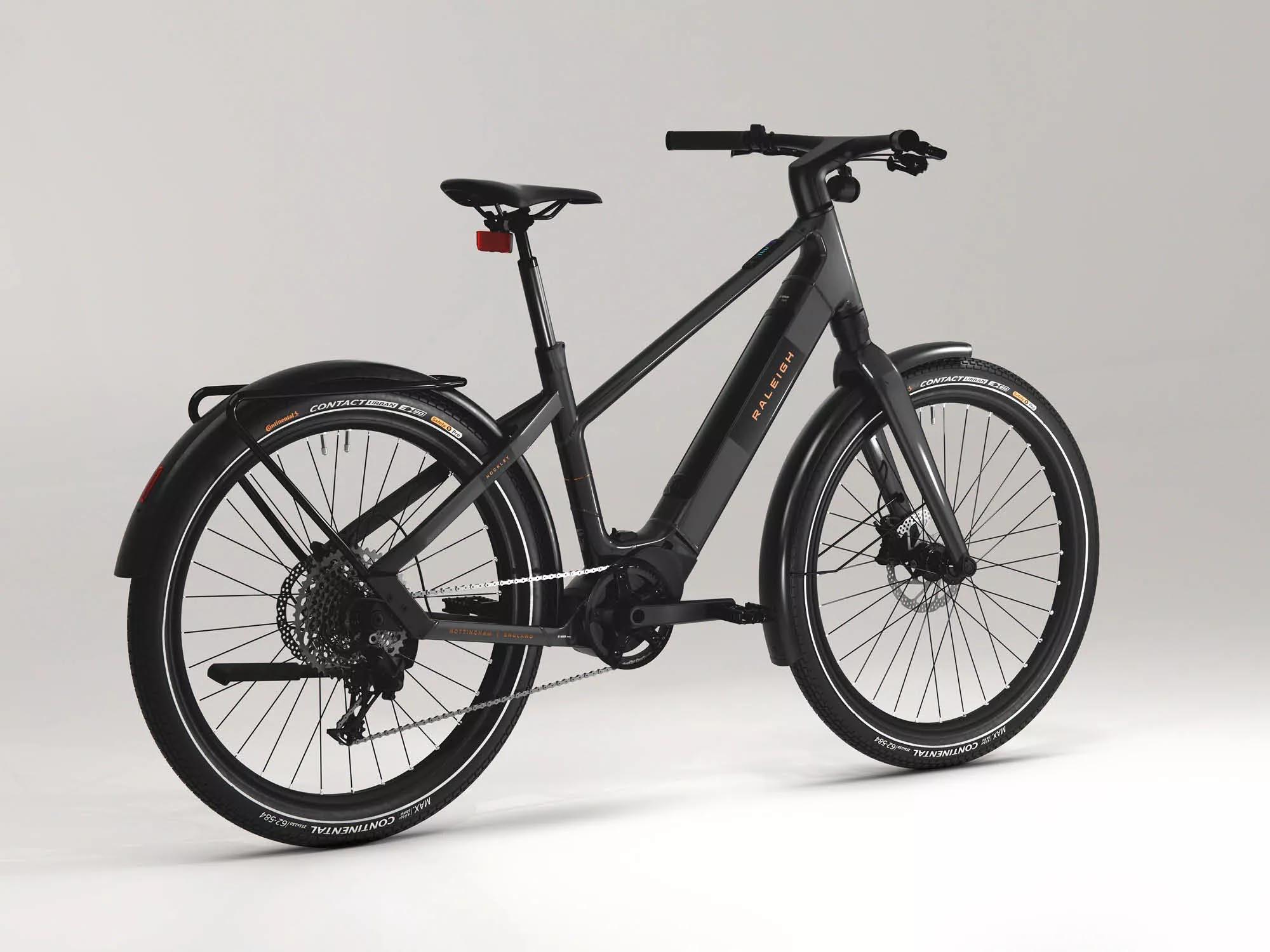

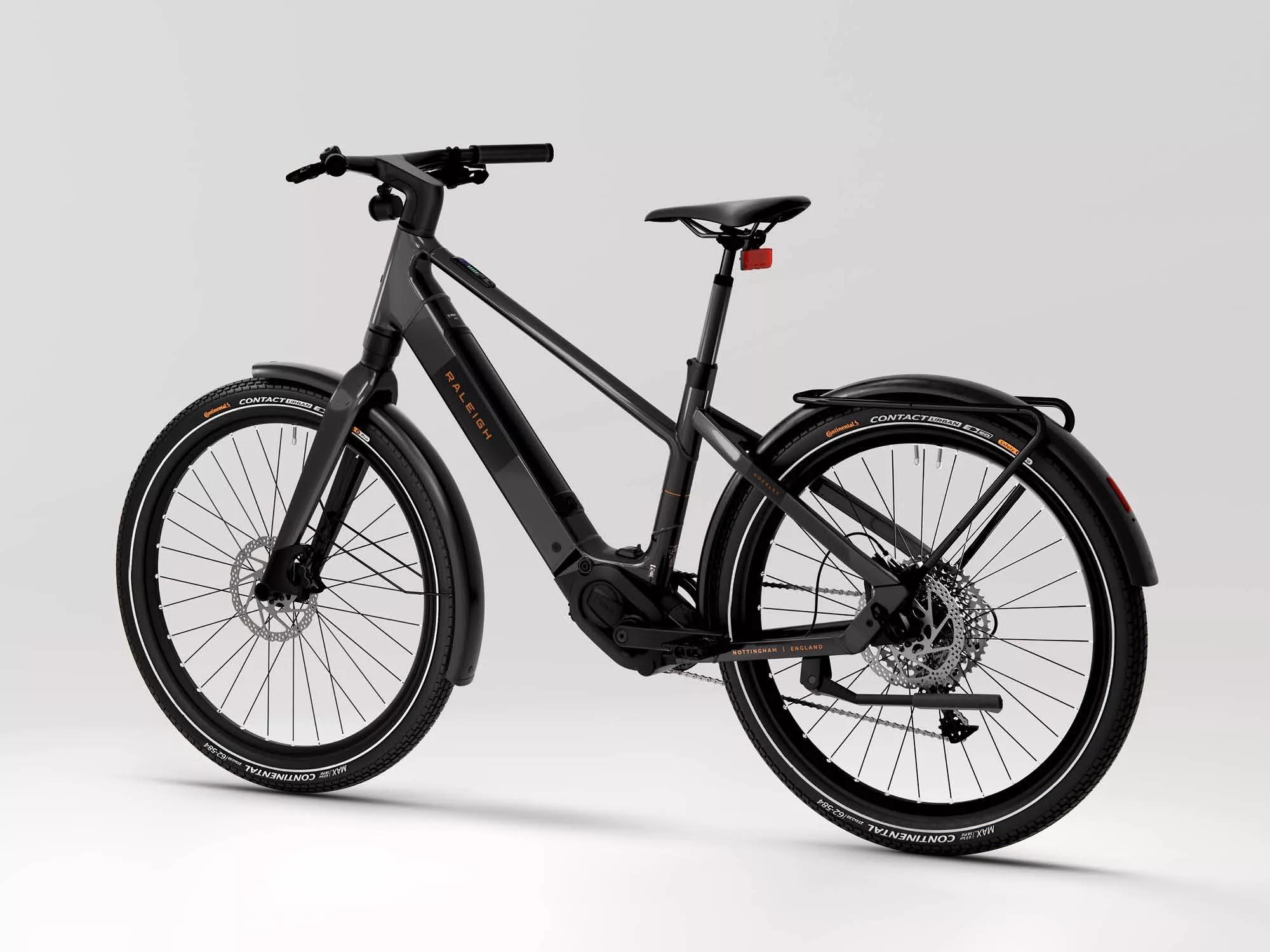

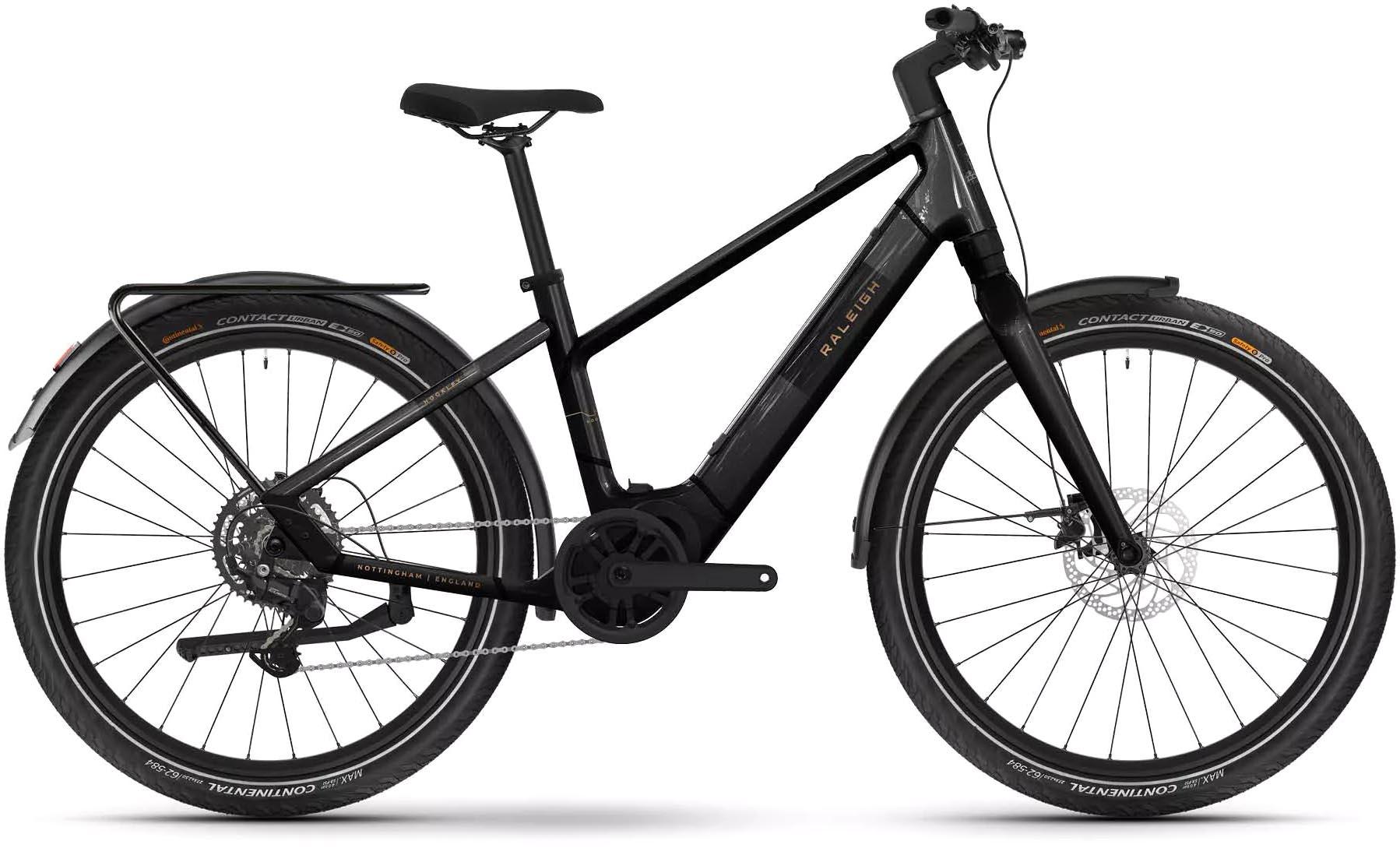

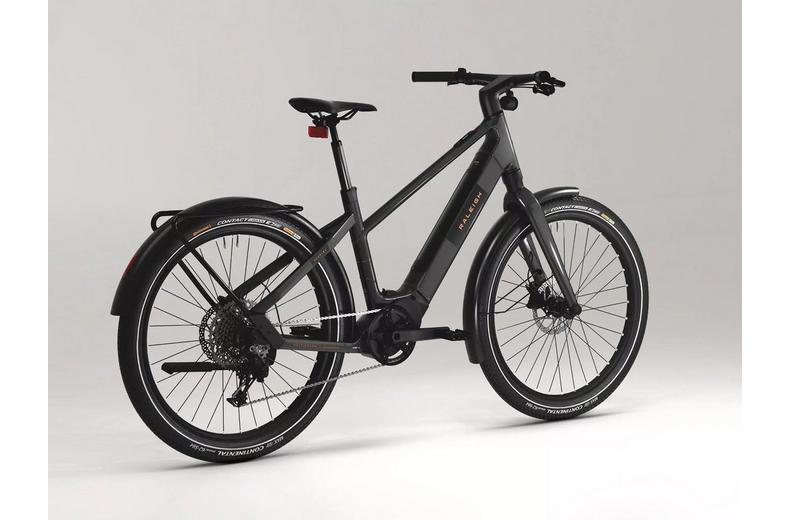

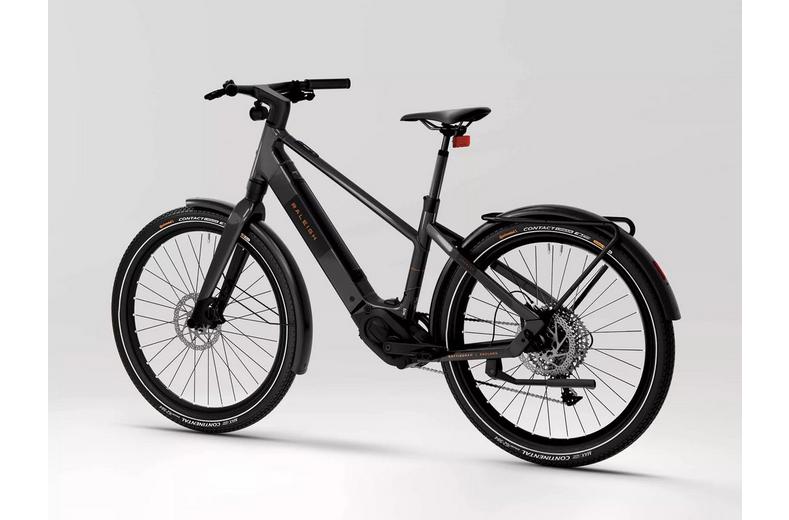

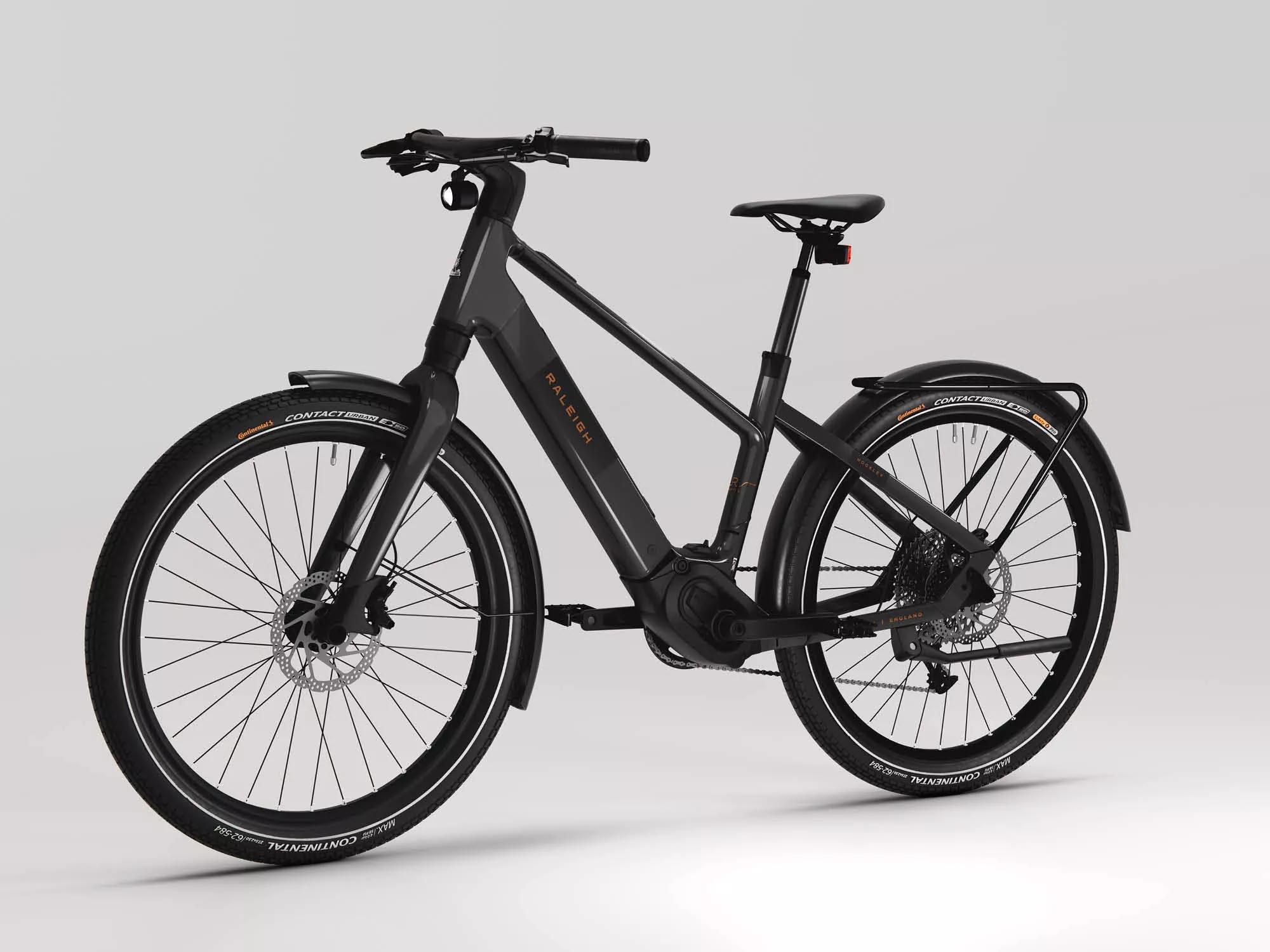

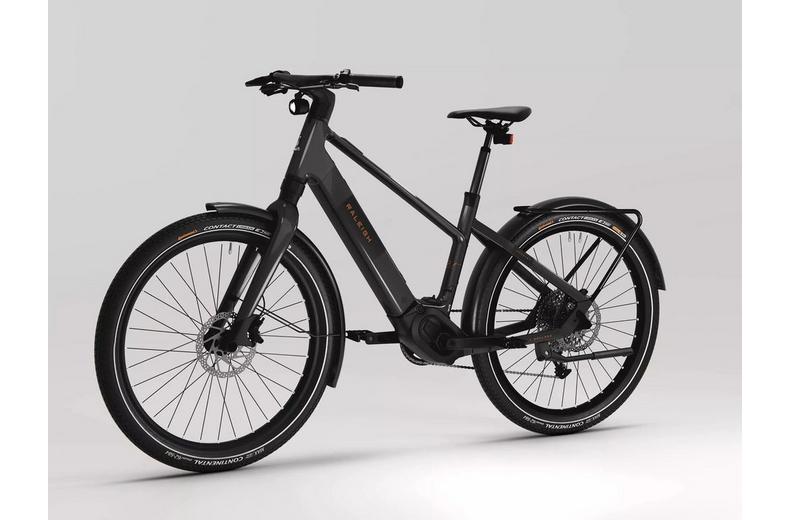

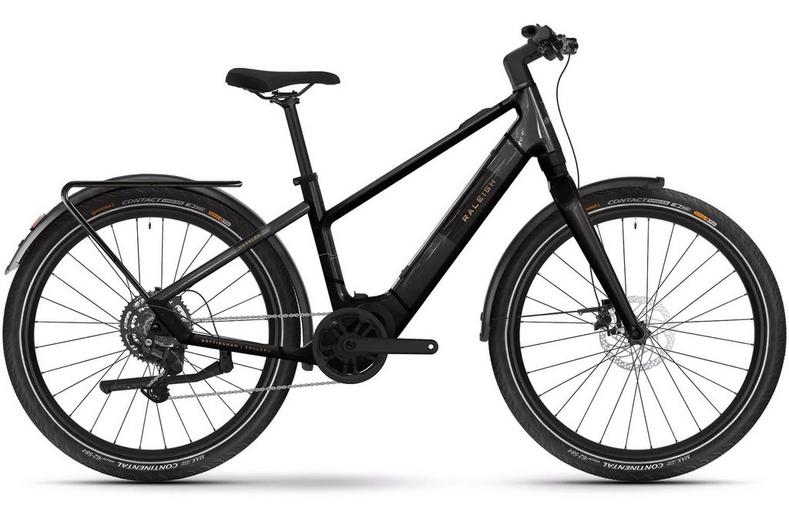

Raleigh Hockley Crossbar Electric Hybrid Bike - S, M, L Frames
Gender | Unisex |
|---|---|
Type | Electric Hybrid Bikes |

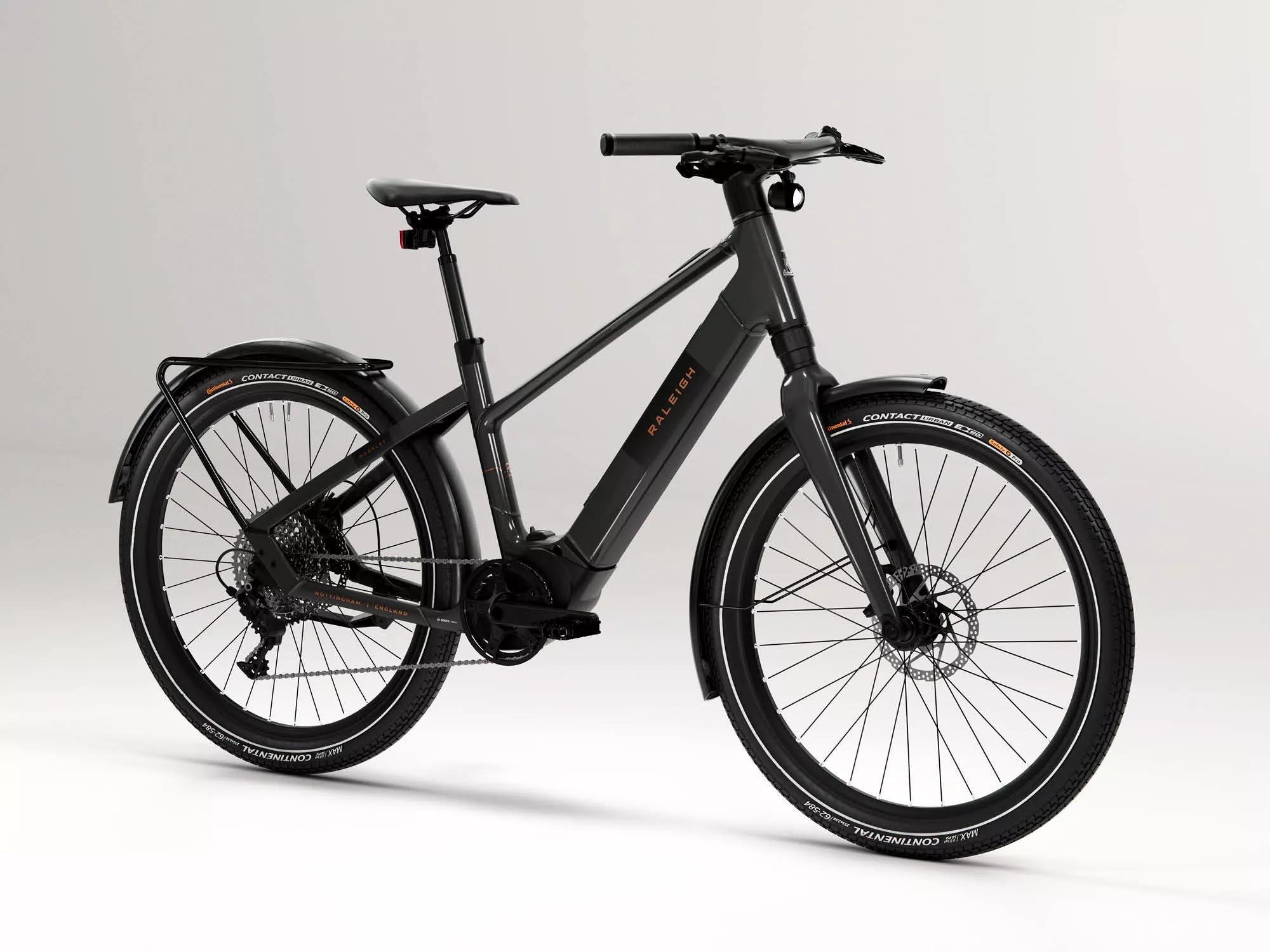

Frame | Hybrid, alloy 6061 |
Forks | Alloy, monoshock suspension |
Headset | Glory Wheel Threadless ICR 51.9 ZS56/38 |
Stem | Raleigh, integrated 90mm, non-adjustable |
Handlebars | Alloy comfort handlebar, 640mm width |
Grips | XLC comfort grips |
Seatpost | Raleigh alloy, 31.6mm x 300mm length, 34.9mm clamp |
Saddle | Selle Royal Vivo saddle |
Pedals | Yes |
Brake Type | Disc Brakes |
Front Brake | Shimano BR-MT200, hydraulic disc brake, 180mm rotor |
Rear Brake | Shimano BR-MT200, hydraulic disc brake, 180mm rotor |
Number of Gears | 9 |
Gear Shifters | Shimano CUES SL-U4000, 9-speed |
Rear Derailleur | Shimano CUES RD-U4000, 9-speed |
Suspension | No Suspension |
Chain | Shimano CN-LG300 |
Chainset | Miranda, 40T, 170mm crank length |
Cassette/Freewheel | Shimano CS-LG300, 11-41T, 9-speed |
Bottom Bracket | Integrated with drive unit |
Front Wheel | Alloy double wall, 27.5", 15mm thru-axle |
Rear Wheel | 27.5" double wall, alloy hub, 12mm thru-axle, 32H |
Tyres | Continental Contact Urban Reflex, 27.5x2.5" (62-584) |
Mudguard Mounts | yes |
Pannier Mounts | yes |
Built In Kickstand | Yes |
Approximate Weight (KG) | 23Kg |

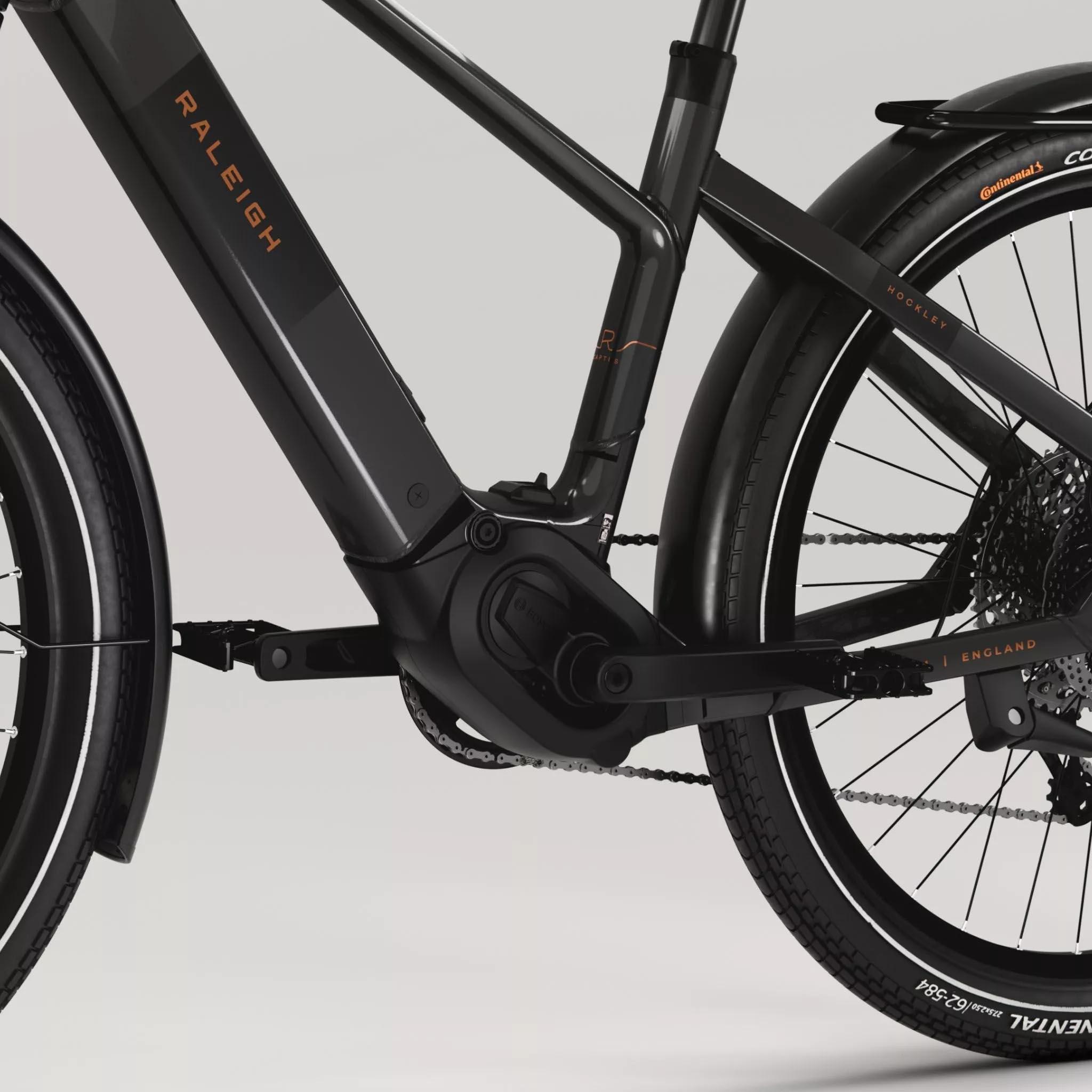

Motor | Bosch Performance SX (Smart System), mid drive motor, 60Nm |
Battery | Bosch CompactTube 400Wh |
Battery warranty | 2 Years |
Removable Battery | Yes |
Battery Charger | Bosch 2A Charger |
Recharge time | Up to 6 hours |
Maximum Range | 60 miles |
Maximum Speed | Assistance to 15.5mph |
Maximum Rider Weight | 120kg |
Display | Bosch Mini Remote |
Sensor type | Speed, Cadance and Torque |
Wheel Size | 27.5" |
SKU | 471955 |
