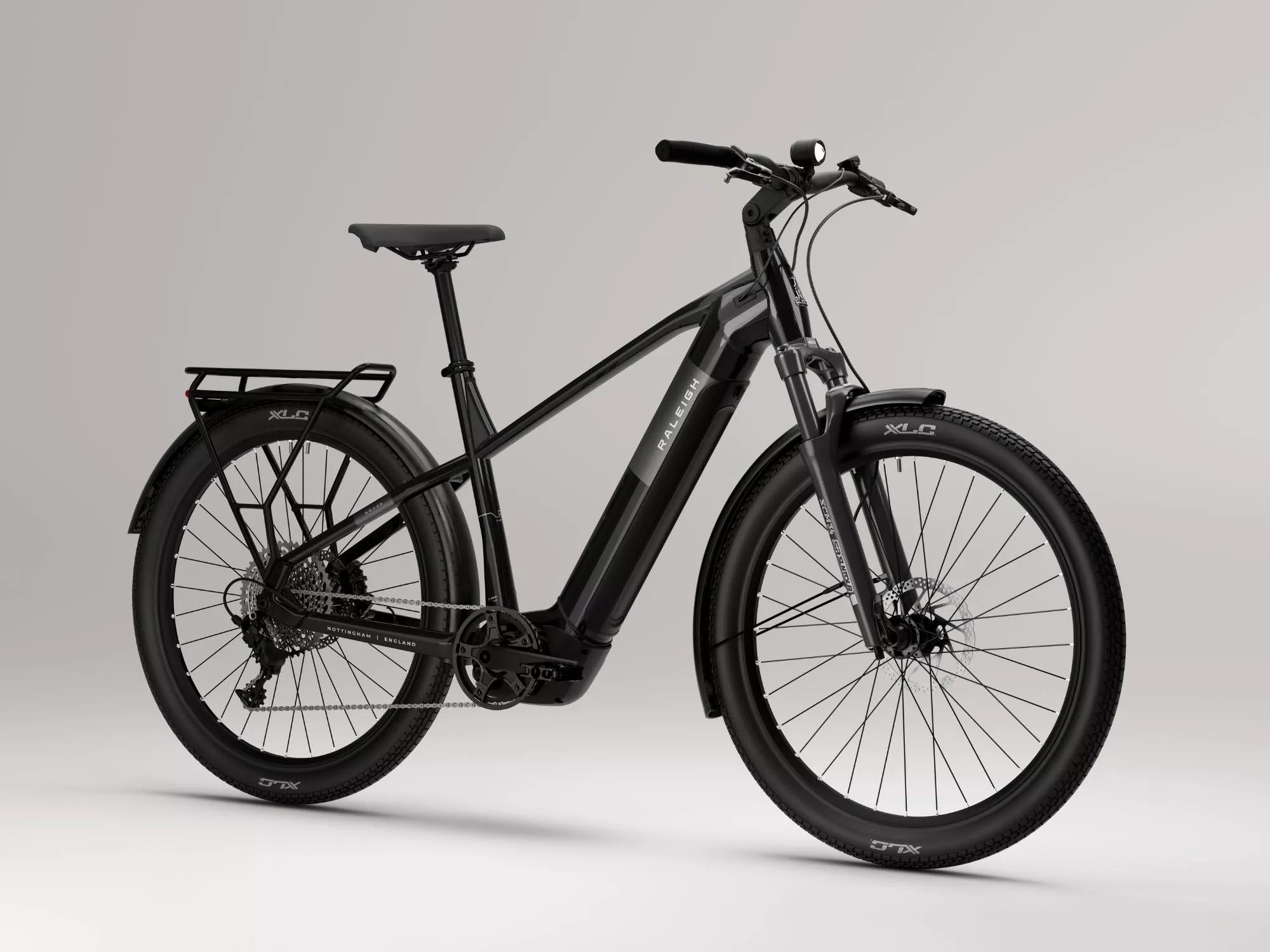

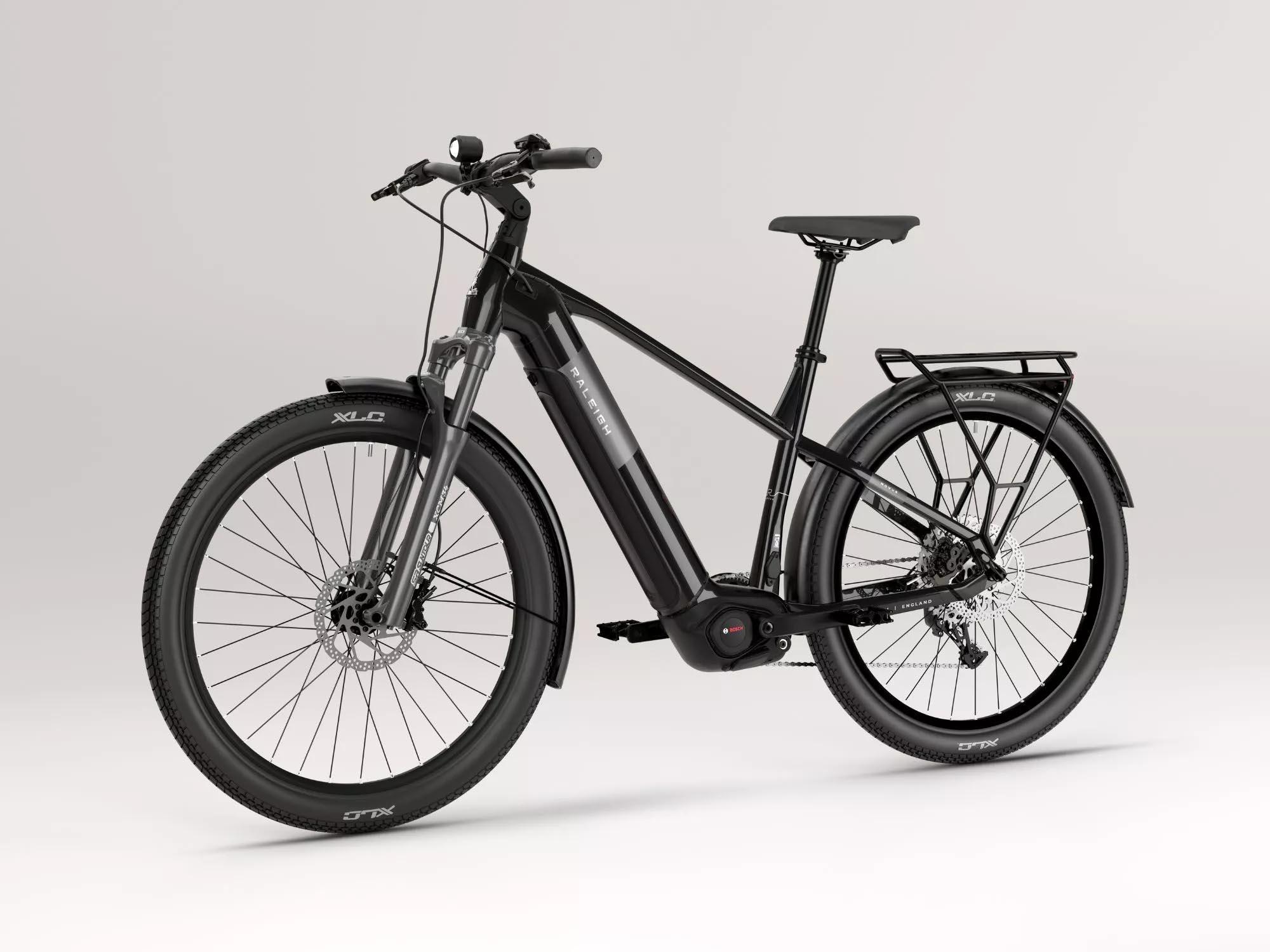

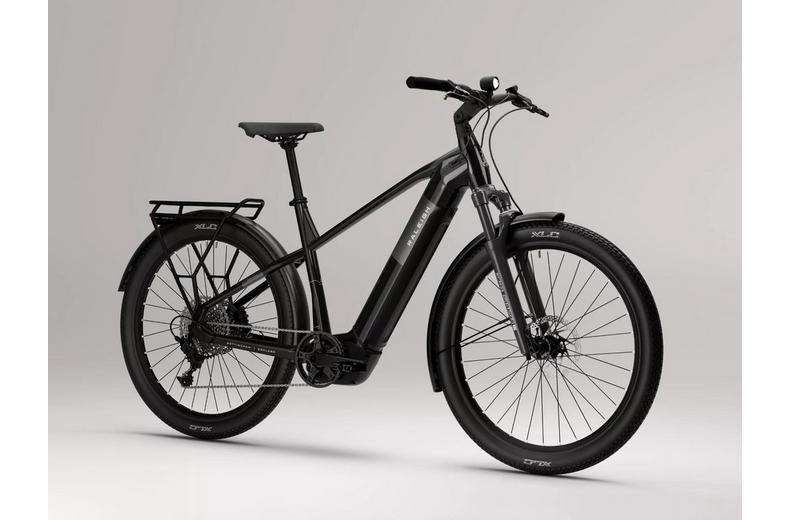

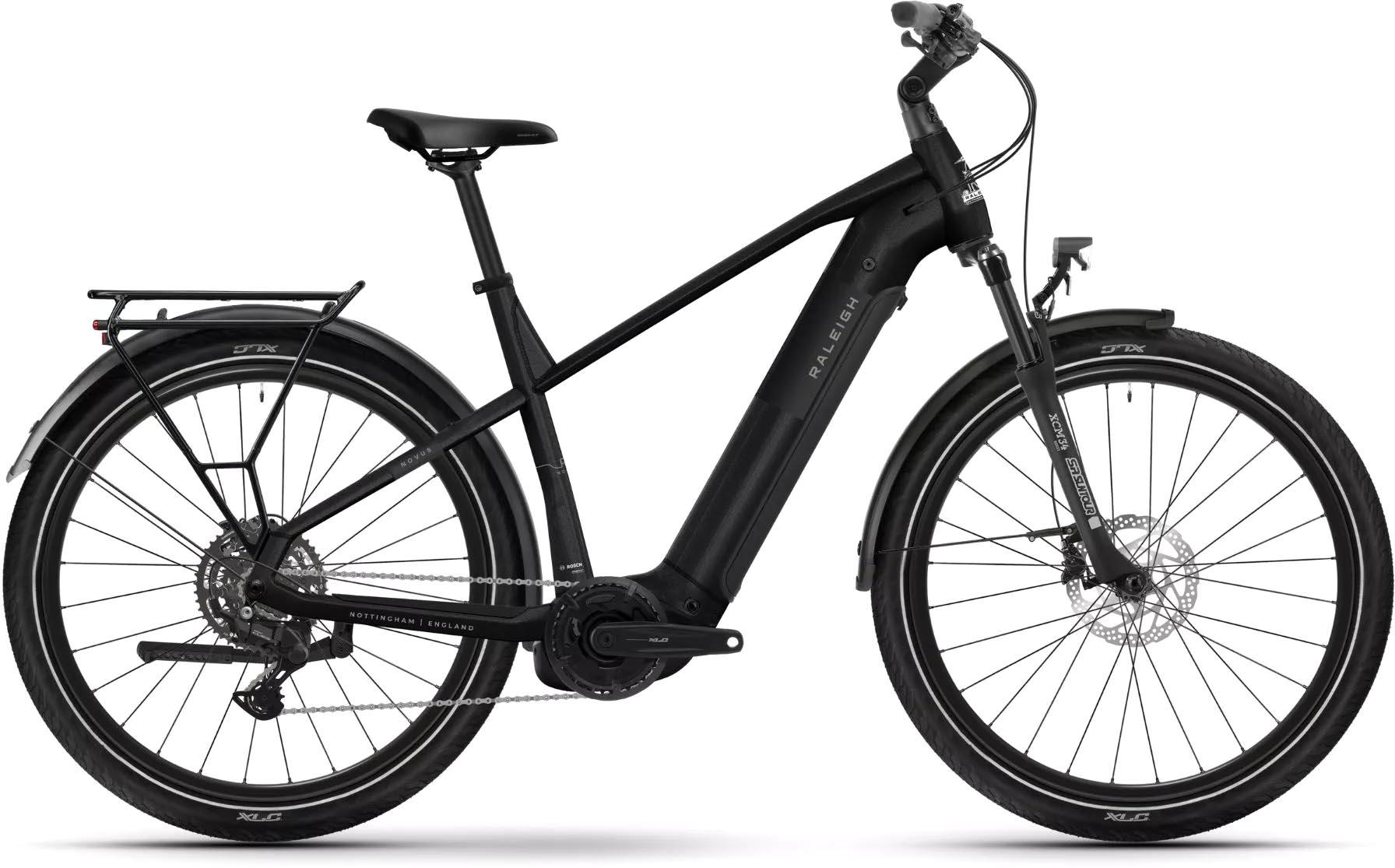

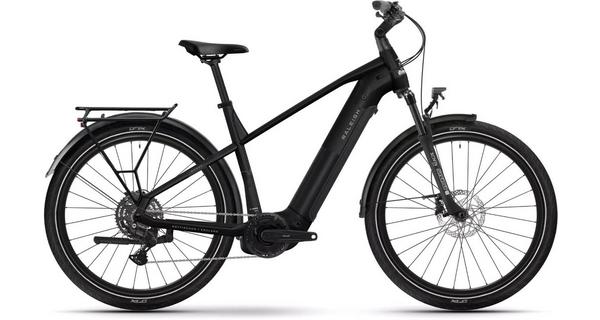

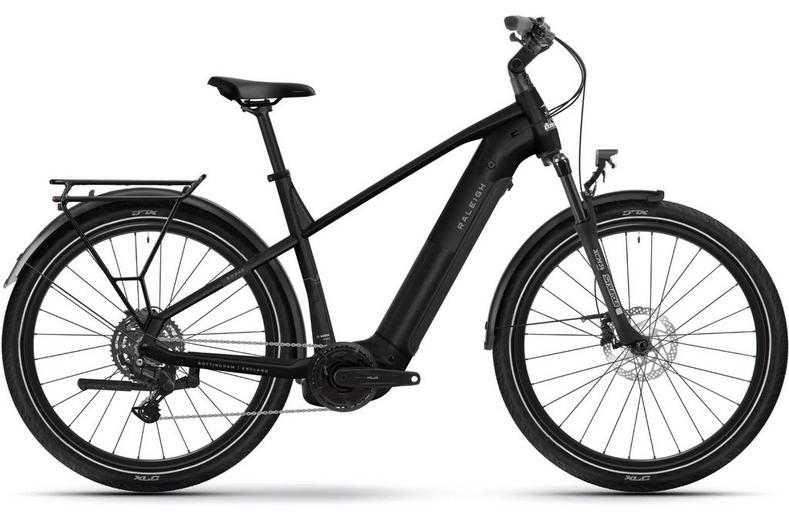

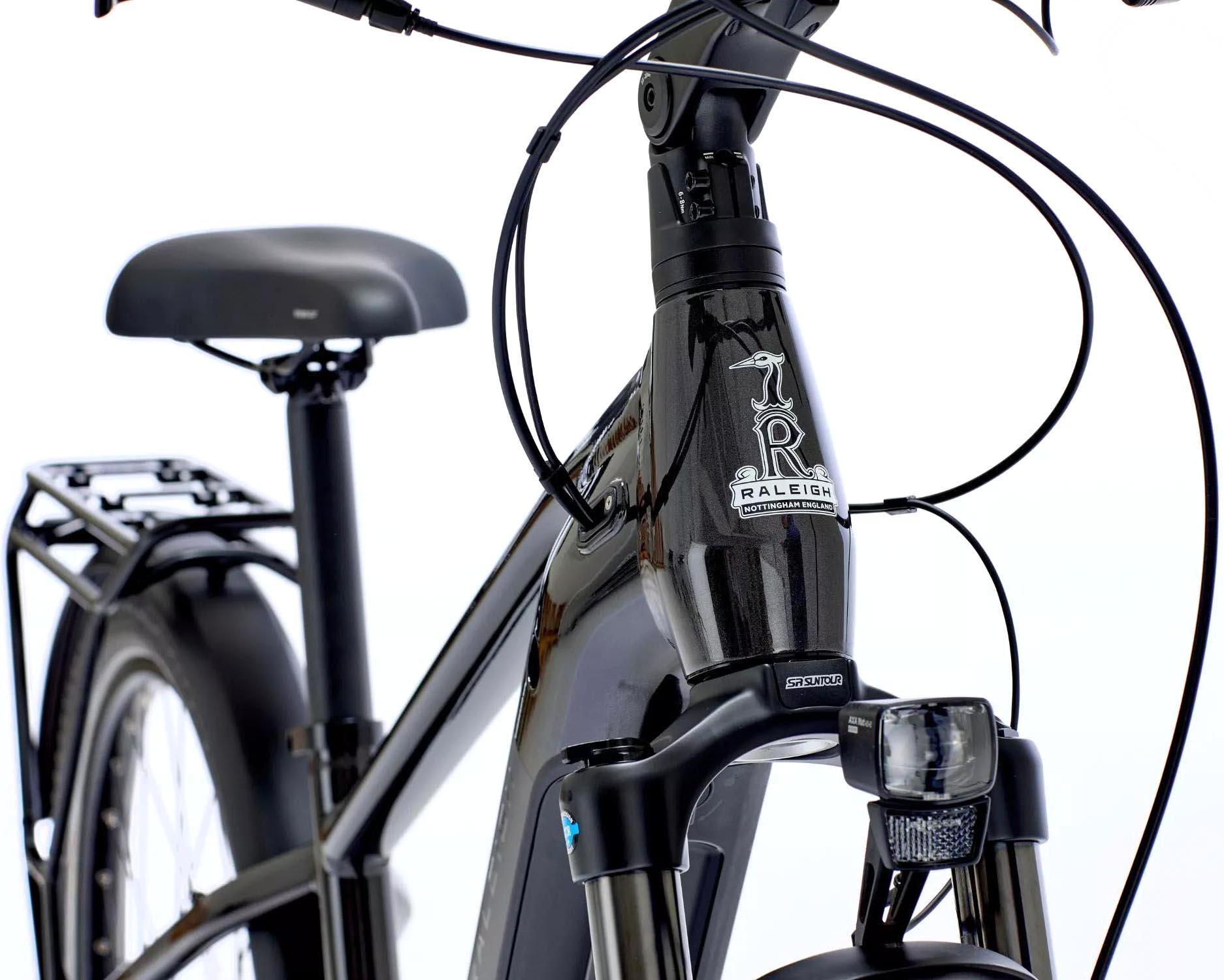

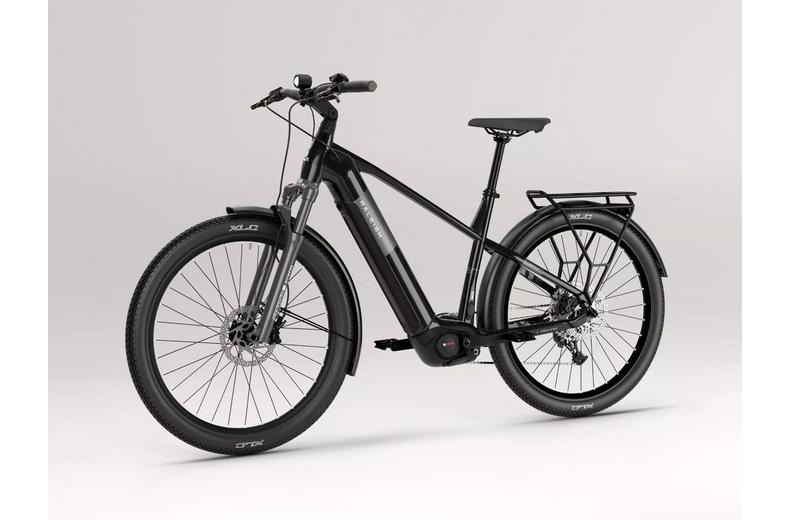

Raleigh Novus Hub Crossbar Electric Hybrid Bike - S, M, L, XL Frames
Payment options available
Gender | Unisex |
|---|---|
Type | Electric Hybrid Bikes |
Frame | Hybrid, alloy 6061 |
Forks | Suntour XCM34 suspension fork, 100mm travel |

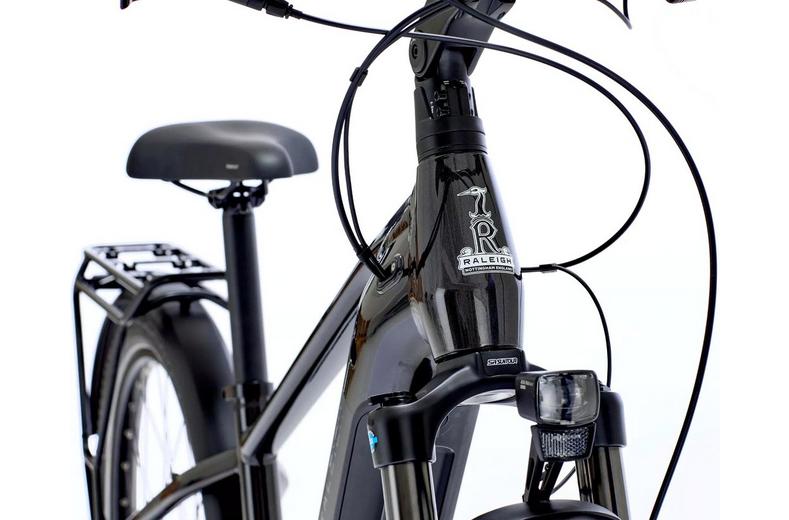

Headset | Acros Threadless ZS44 Viscoset |
Stem | Raleigh alloy 80mm, height adjustable |

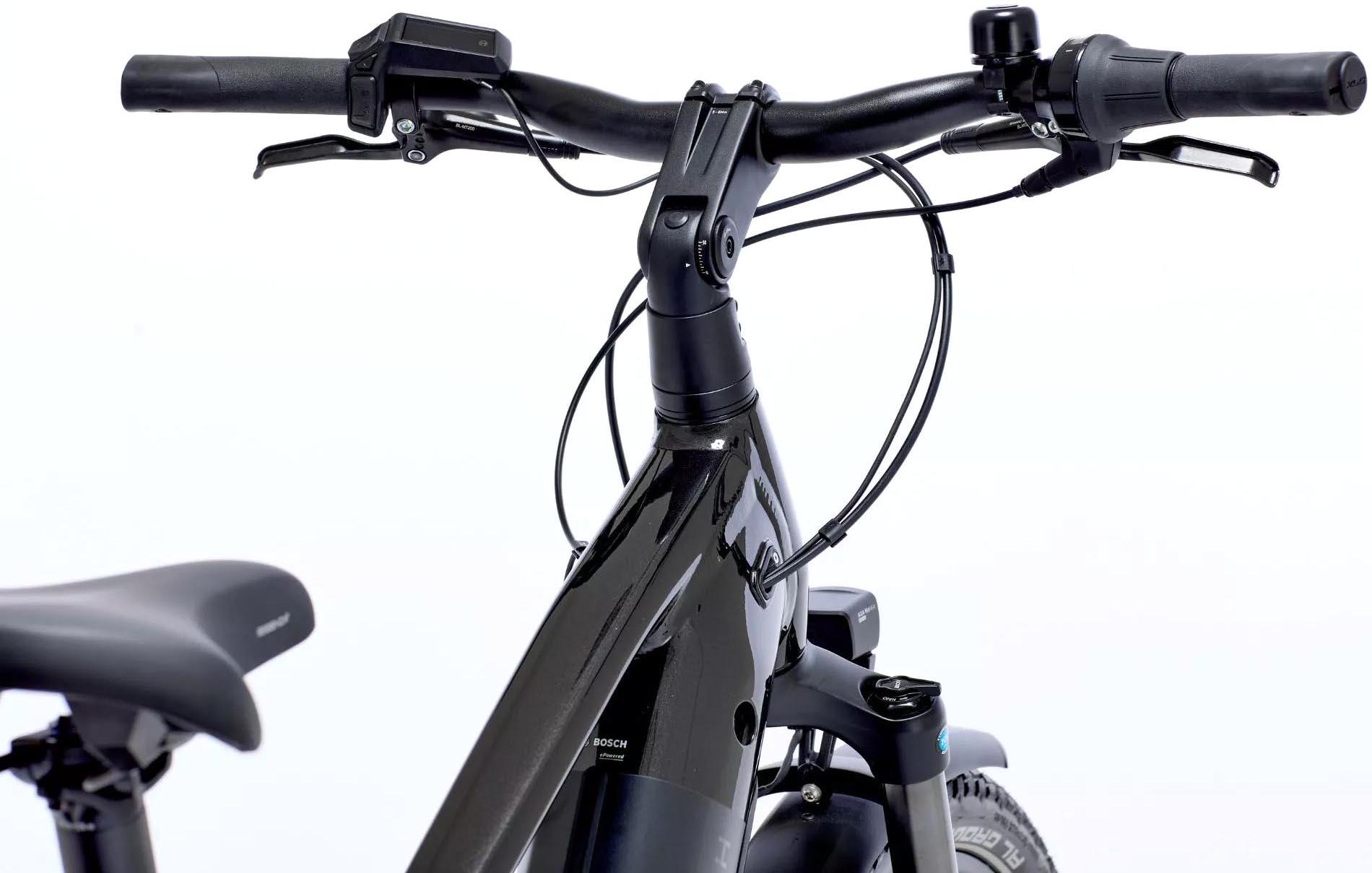

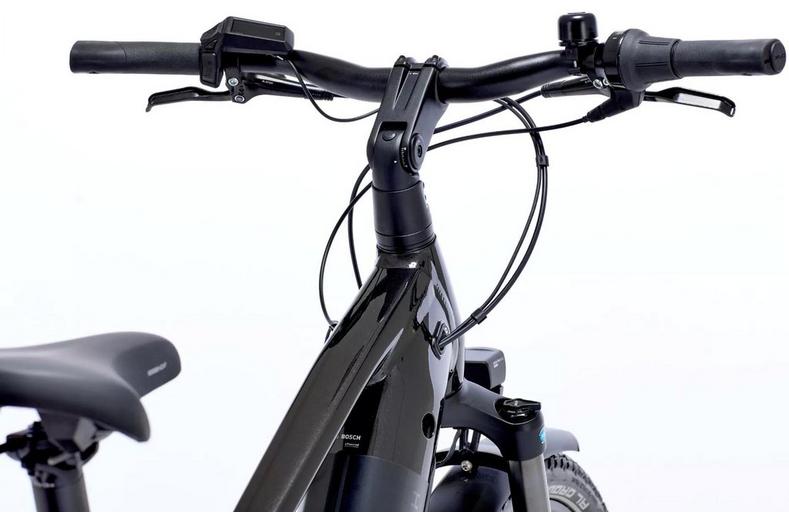

Handlebars | Alloy comfort handlebar, 640mm width |
Grips | XLC comfort grips |
Seatpost | Raleigh alloy, 34.9mm x 300mm length, 38.1mm clamp |

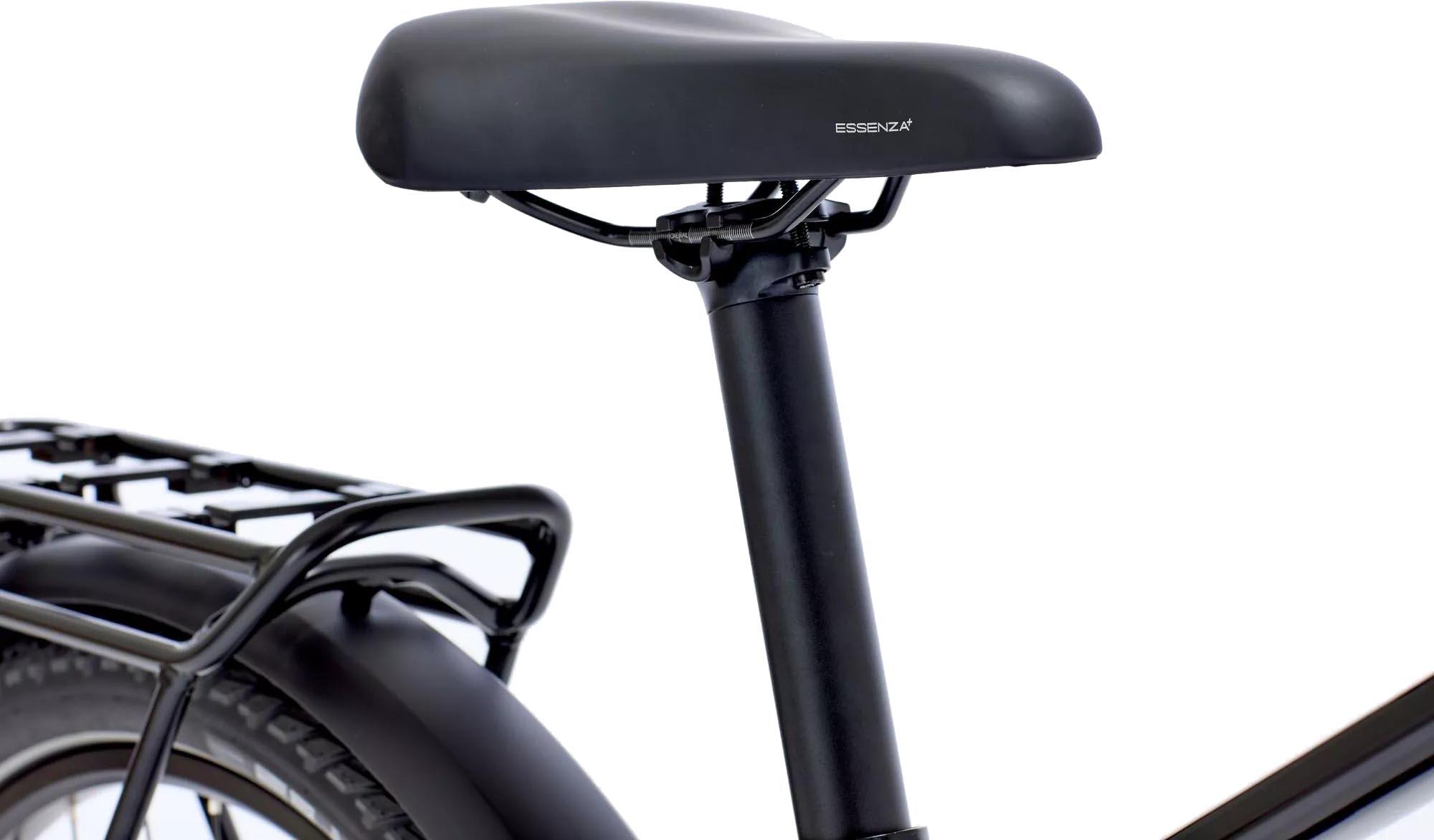

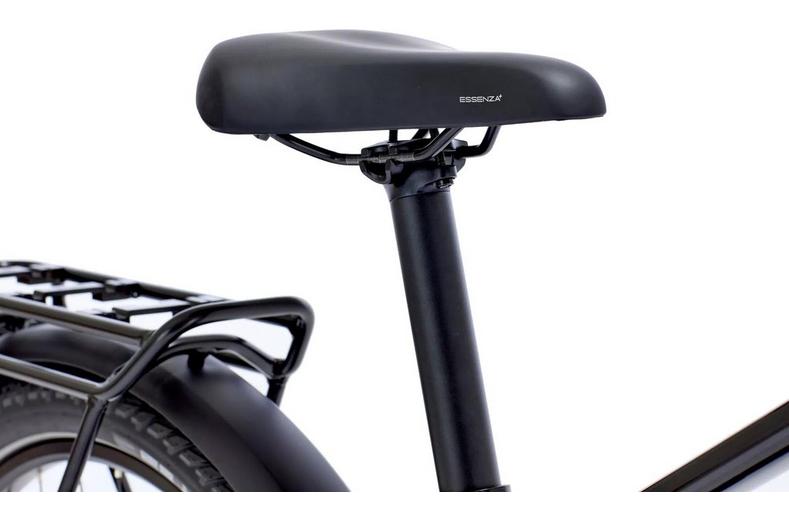

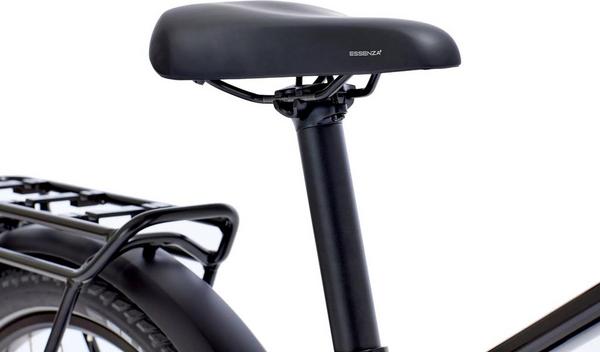

Saddle | Selle Royal Essenza saddle |
Pedals | Yes |
Brake Type | Disc Brakes |
Front Brake | Shimano BR-MT200, hydraulic disc brake, 180mm rotor |
Rear Brake | Shimano BR-MT200, hydraulic disc brake, 180mm rotor |
Number of Gears | 5 |
Gear Shifters | Shimano Nexus SL-C5000, 5-speed |
Rear Derailleur | Shimano CUES RD-U4000, 9-speed |
Suspension | Front suspension |
Chain | KMC E1 EPT |
Chainset | XLC 38T, 40T, 170mm crank length |
Cassette/Freewheel | KMC sprocket 1/2 X 3/32 |
Bottom Bracket | Integrated with drive unit |
Front Wheel | Alloy double wall, 27.5", 15mm thru-axle |
Rear Wheel | 27.5" double wall, alloy hub, 12mm thru-axle, 32H |
Tyres | Schwalbe AI Grounder, 27.5×2.35" (60-584) |
Mudguard Mounts | yes |

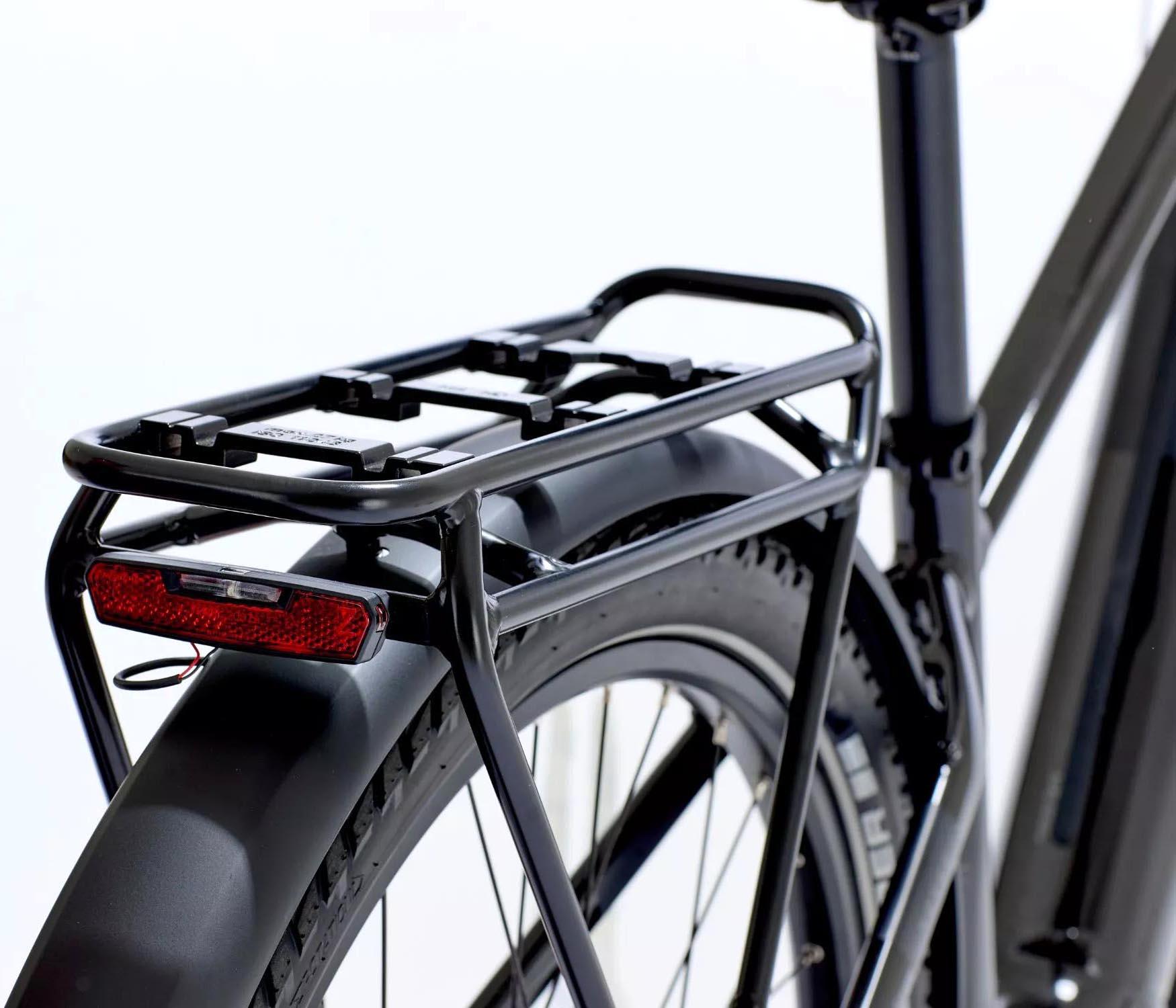

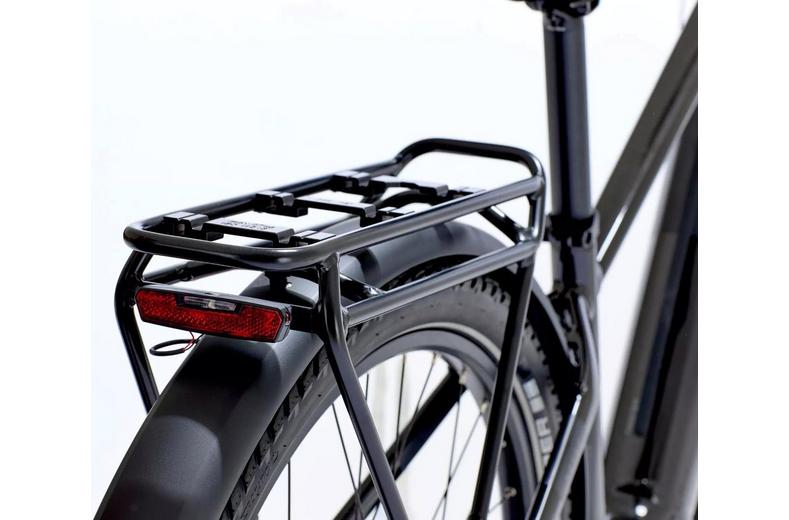

Pannier Mounts | yes |
Built In Kickstand | Yes |
Approximate Weight (KG) | 26Kg |
Motor | Bosch Performance Performance Line, mid drive motor, 75Nm |

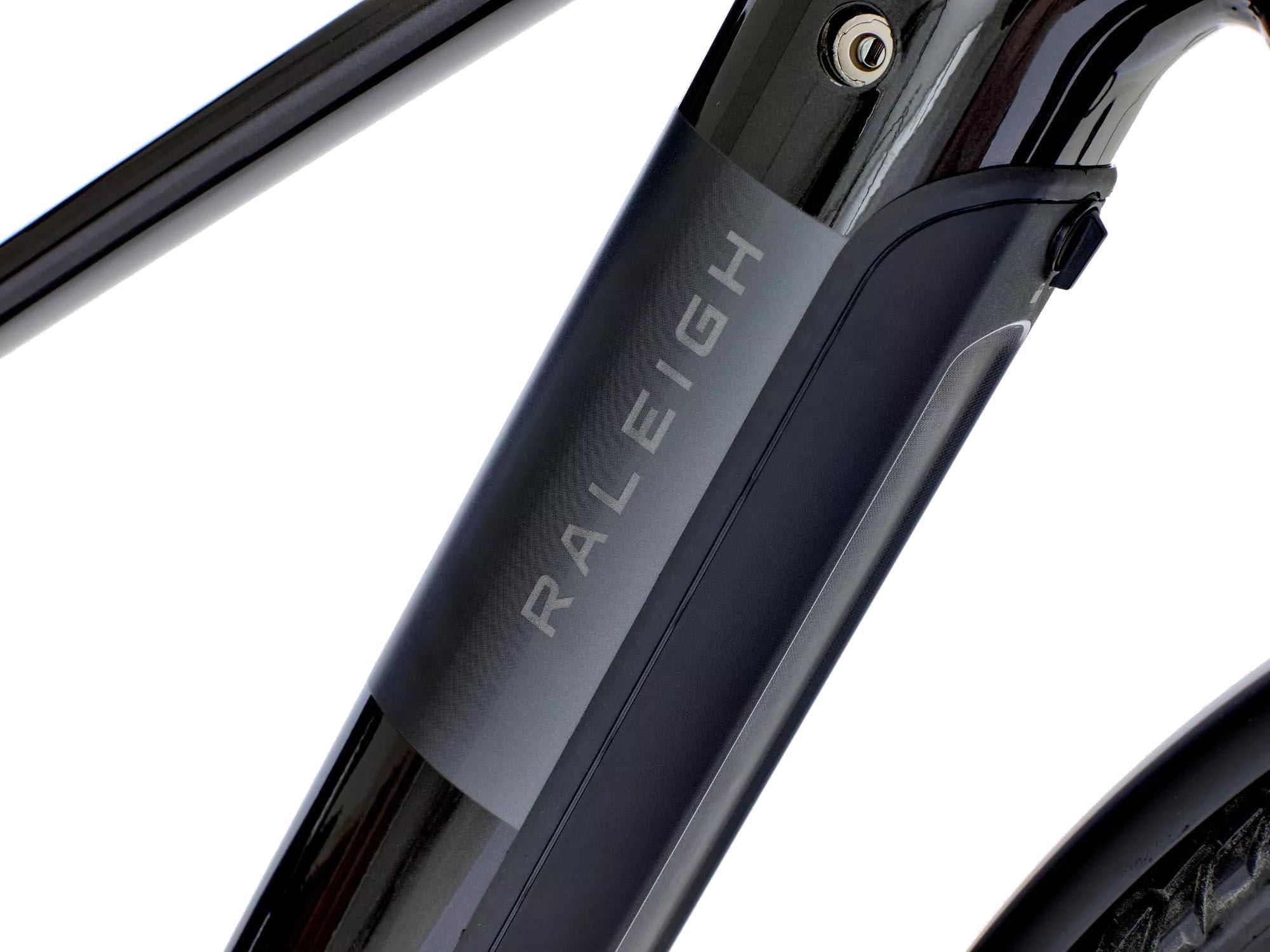

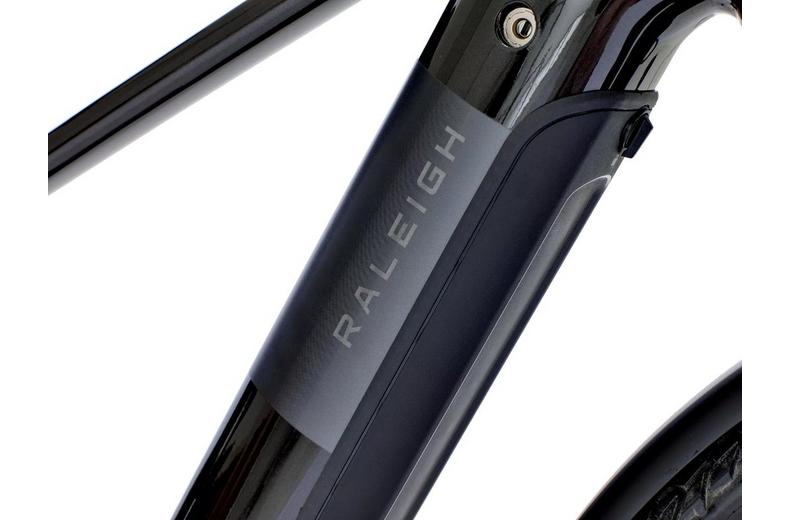

Battery | Bosch PowerTube, 600Wh |
Battery warranty | 2 Years |
Removable Battery | Yes |
Battery Charger | Bosch 2A Charger |
Recharge time | Up to 9 hours |
Maximum Range | 80 miles |
Maximum Speed | Assistance to 15.5mph |
Maximum Rider Weight | 120kg |
Display | Bosch Purion 200 |
Sensor type | Speed, Cadance and Torque |
Wheel Size | 27.5" |
SKU | 471731 |
