Carrera Kraken Mens Mountain Bike 2020 - Dark Blue - S, M, L, XL Frames 347654

  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 0ms
  • reviews, product
Please select a variation to see the final price
  • Forks : Suntour XCR-32 with 120mm of travel and lockout
  • Groupset : Shimano Acera 2x9 (18 speed)
  • Brake Type : Shimano Hydraulic Disc Brakes

Step 1: Select Product Options


Step 2: Would You Like It Built?


We can build your bike for you - you can either collect it in-store or have it delivered.

  • FREE - Bike Built and Collected In-store
  • £25.00 - Bike Built and Delivered (per bike)

Please note: Adding Bike Build for collection in store means you will need to choose a collection slot to collect your bike. Once you have chosen a slot, this date and time is unable to be amended.

Step 3: Select Buying Option

Check stock in your location
Use my Location
FREE Click & Collect is not available
Home Delivery

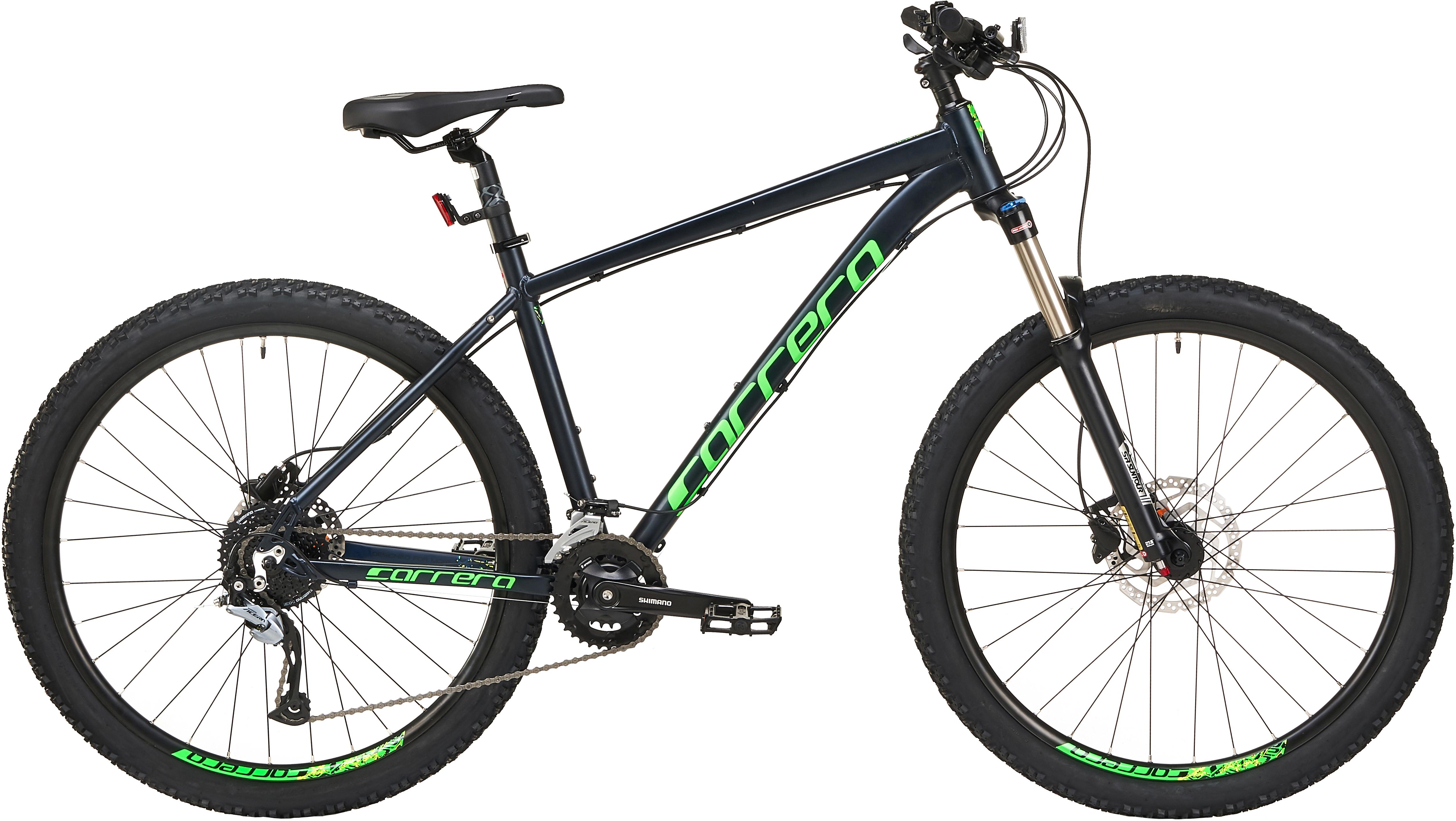

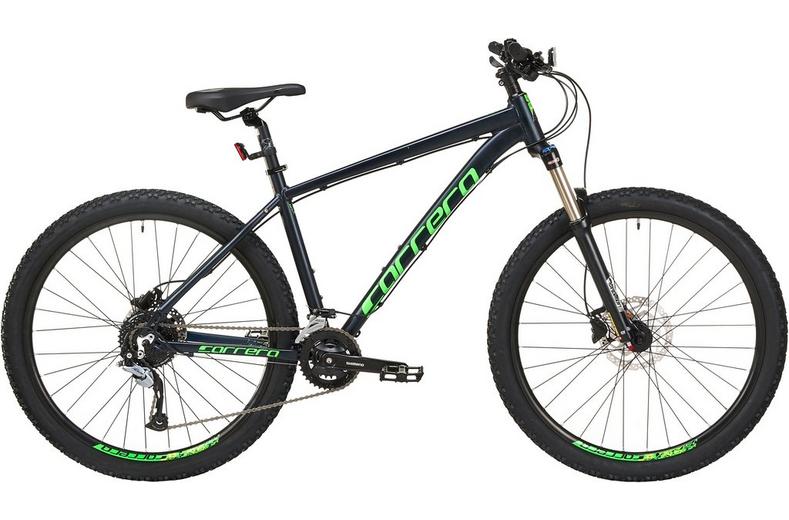

Carrera Kraken Mens Mountain Bike - Dark Blue

  • Frame: Lightweight strong and durable Alloy frame
  • Forks: Suntour XCR lightweight forks with lockout and 120mm of travel
  • Gears: 18-speed Shimano Acera gearing for smooth shifting

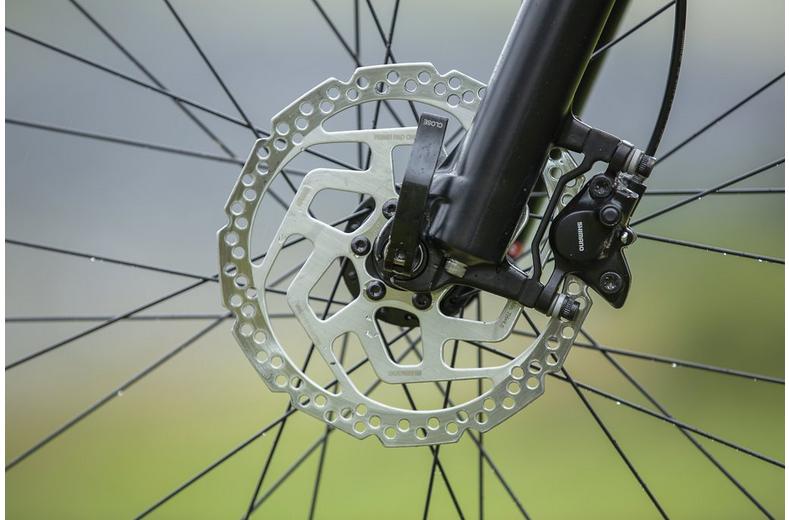

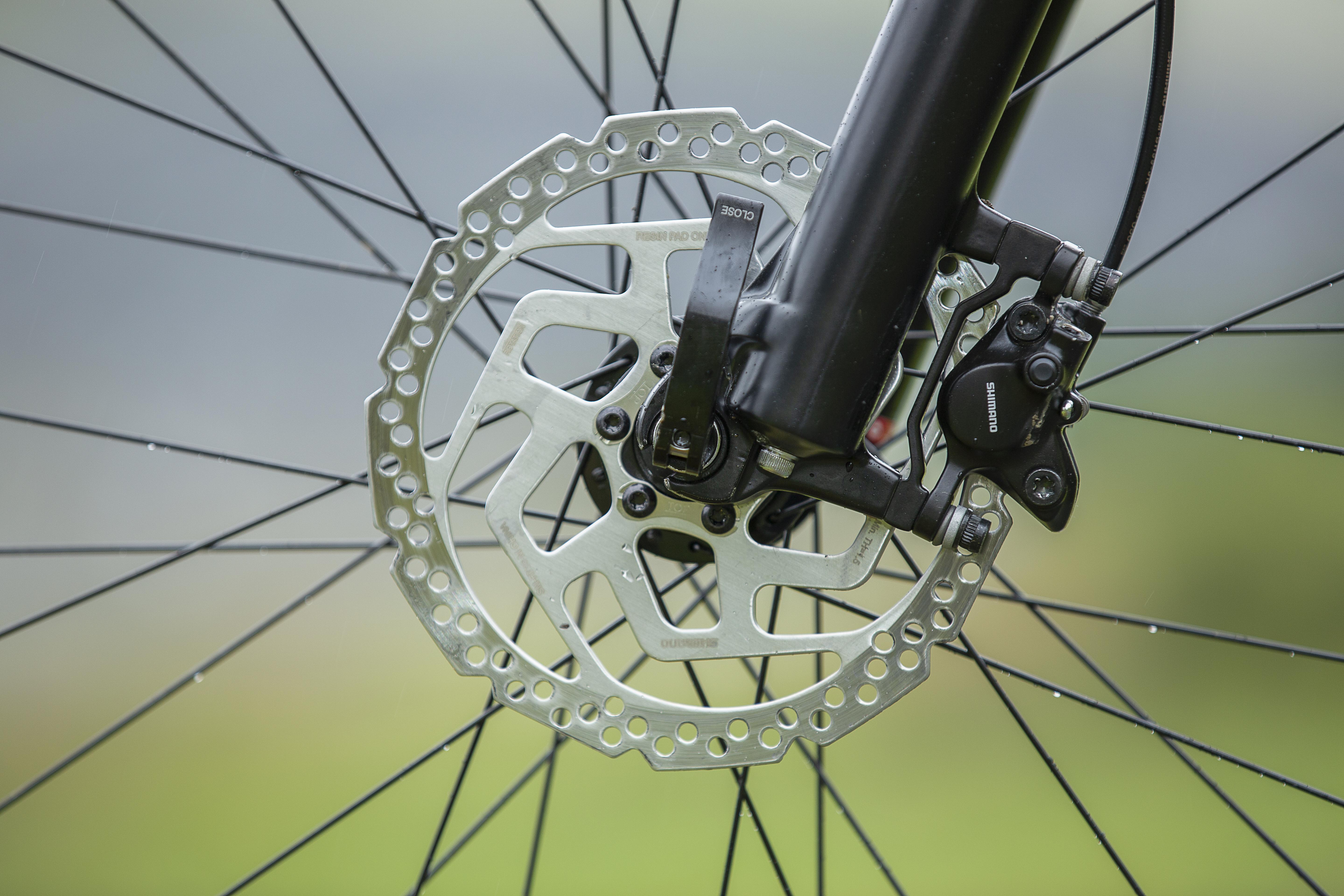

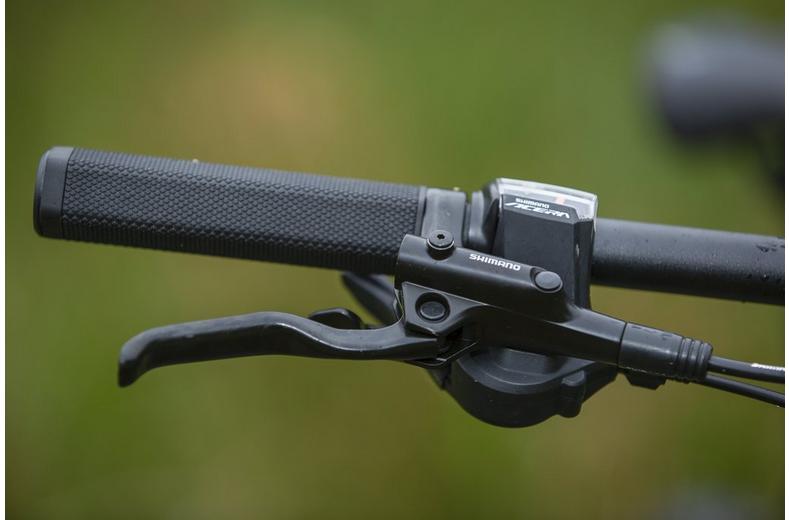

  • Brakes: Shimano Hydraulic disc-brakes for controlled stopping in all conditions
  • Wheels: 27.5" double walled rims for extra durability
  • Saddle: Carrera Memory Foam Saddle for ultimate comfort on your ride
  • Lifetime Frame Guarantee: Built strong and built to last
  • Puncture Protection Tyres: Fast rolling WTB Tyres designed with an extra puncture resistant layer

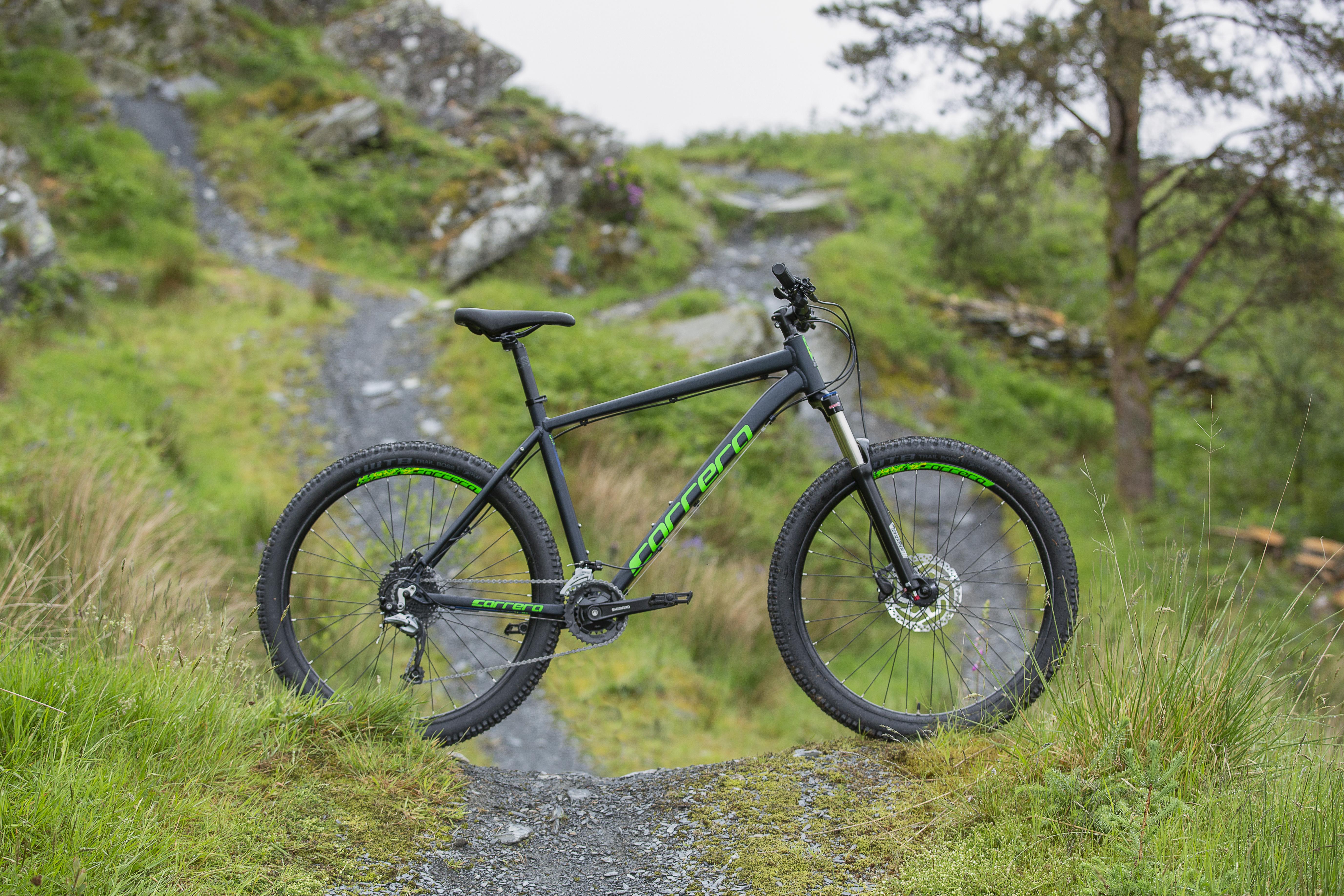

The Carrera Kraken is the ultimate partner for the ultimate adventure. With powerful Shimano hydraulic brakes and a lightweight magnesium fork for superb climb efficiency, this is a bike that won’t let you down, whatever challenge you come up against. The triple-butted frame is lightweight but strong so makes the job easier whether you’re climbing or descending. And, you can rely on the new design of the Carrera Kraken to make for a really comfortable ride. All that you need to do, is get out there and go for it.

We guarantee you’ll be raring to go when you pick up your new bike, so don’t waste any trail time on having to build it. Our team of in-store bike experts have the tools and the time to put your brand new Kraken together and make sure it’s safe to ride, so you can turn up and collect it ready to go! Choose the ‘free bike build’ option at the online checkout. Plus, our free lifetime safety checks and lifetime frame guarantee mean you have the confidence to go even further.


Most sizes of this bike are suitable for a rear mounted child seat, unfortunately the XS & small versions are not compatible - in these instances you could opt for a pannier rack and pannier mounted child seat.

Carrera Mountain Bike Size Guide


Height (Inch) Height (cm) Frame Size
5' 3"  - 5' 7" 160 - 170 S (16")
5' 6" - 5' 10" 168 - 178 M (18")
5' 9" - 6' 1" 175 - 185 L (20")
5' 11" - 6' 4" 180 - 193 XL (22")

Mens Geometry Table

Size XS (14") S (16") M (18") L (20") XL (22")
Top Tube (effective) 570mm 586mm 615mm 635mm 655mm
Seat Tube Length 355mm 410mm 460mm 510mm 560mm
Head Tube Length 100mm 100mm 110mm 130mm 150mm
Head Angle 67 degrees 67 degrees 67 degrees 67 degrees 67 degrees
Seat Angle (effective) 74 degrees 73.degrees 73.degrees 73.degrees 73.degrees
Chain Stay Length 427mm 427mm 427mm 427mm 427mm
Fork Offset (Rake) 40mm 40mm 40mm 40mm 40mm
Bottom Bracket Drop 45mm 45mm 45mm 45mm 45mm
Crank Length 165mm 170mm 175mm 175mm 175mm
Stem Length 45mm 45mm 45mm 45mm 45mm
Handlebar Width 740mm 740mm 760mm 760mm 760mm

More About The All-New Carrera Kraken Mountain Bike

Lightweight Suspension

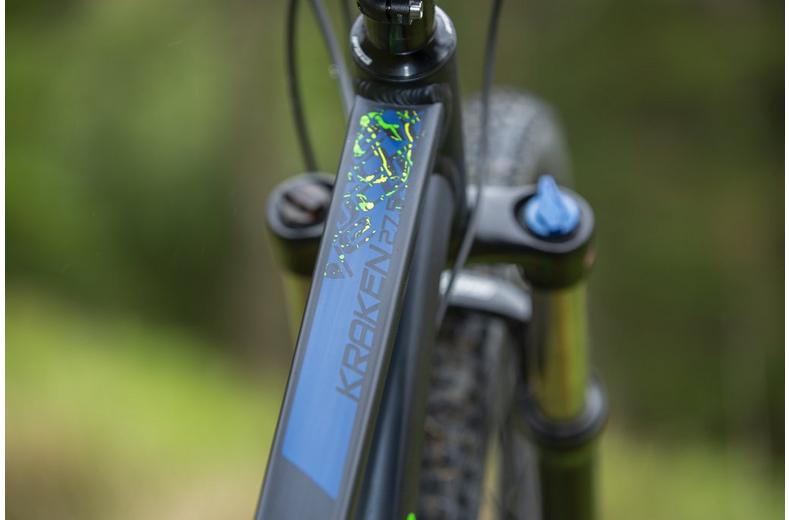

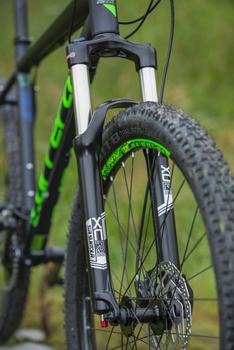

The Suntour XCR magnesium fork is a lighter option that doesn’t compromise on performance or control. Travel increases to 120mm giving you even more confidence into corners and the lockout feature means you can cut out all suspension for those steep, smooth climbs and transfer power more efficiently

Lightweight responsive frame

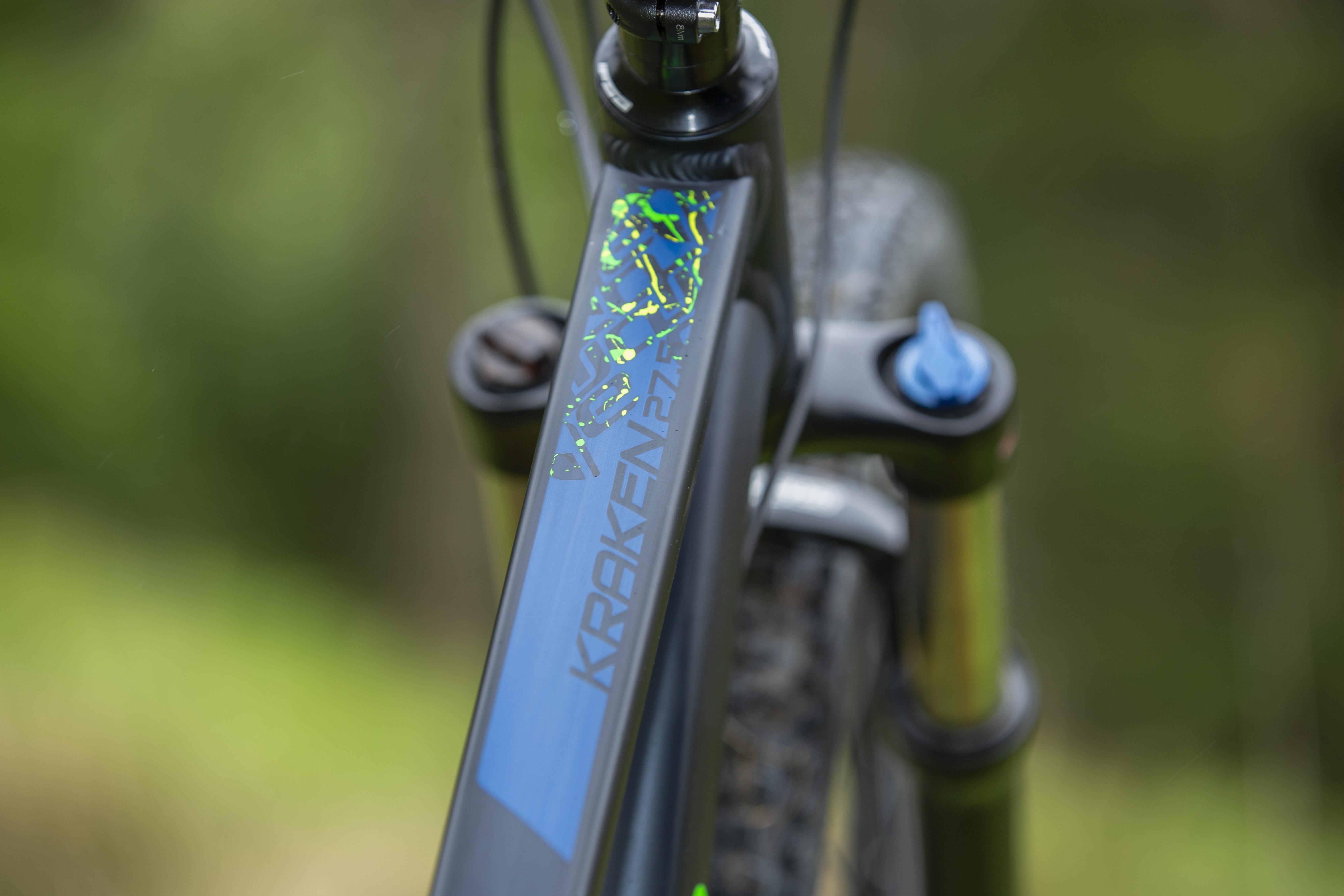

Triple butted frames have unwanted material removed from the middle of tubes to reduce weight but still have strong and durable joints that do not compromise on strength and safety. As with all the other 2020 Carrera bikes we’ve overhauled and updated the tube profiles so that they deliver a stiffer and more capable frame that still has low overall weight - at approximately 15kg on the Kraken. Even better news is the improved geometry whereby we’ve tweaked the angles of the frame giving a longer wheelbase which offers stability, coupled with shorter stems and wider handlebars which will give riders more control especially when cornering.

Extra comfort

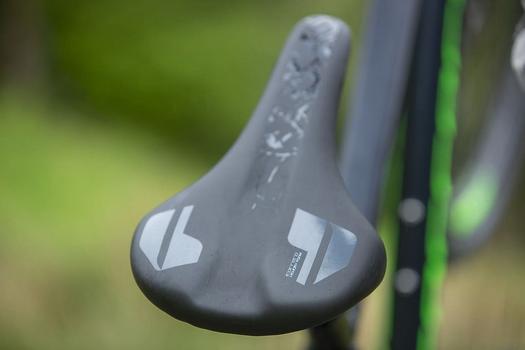

Customers told us that features such as saddle comfort were a crucial element of their riding experience. Recognising this we’ve therefore equipped the Carrera bikes with memory foam saddles helping you spend even more time comfortably on the roads and trails. Often overlooked but an important contact point, we’ve developed new handlebar grips whose shape enables a steady hold with a knurled soft rubber surface for additional comfort.
Additional peace of mind. And grip.

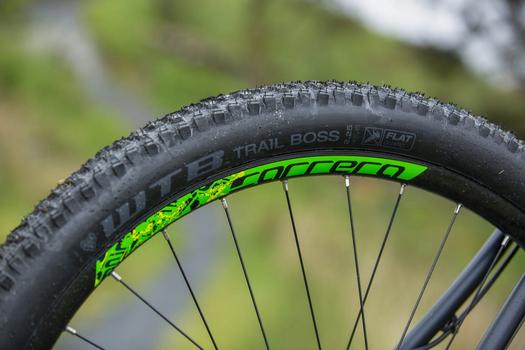

To give you even more riding time and not have you standing idle we’re also giving you more peace of mind by fitting ‘Carrera Puncture Protection’ tyres as standard which include an additional layer of puncture resistant material running around the tyre which will help reduce the incidence of punctures.

Efficient modern gears

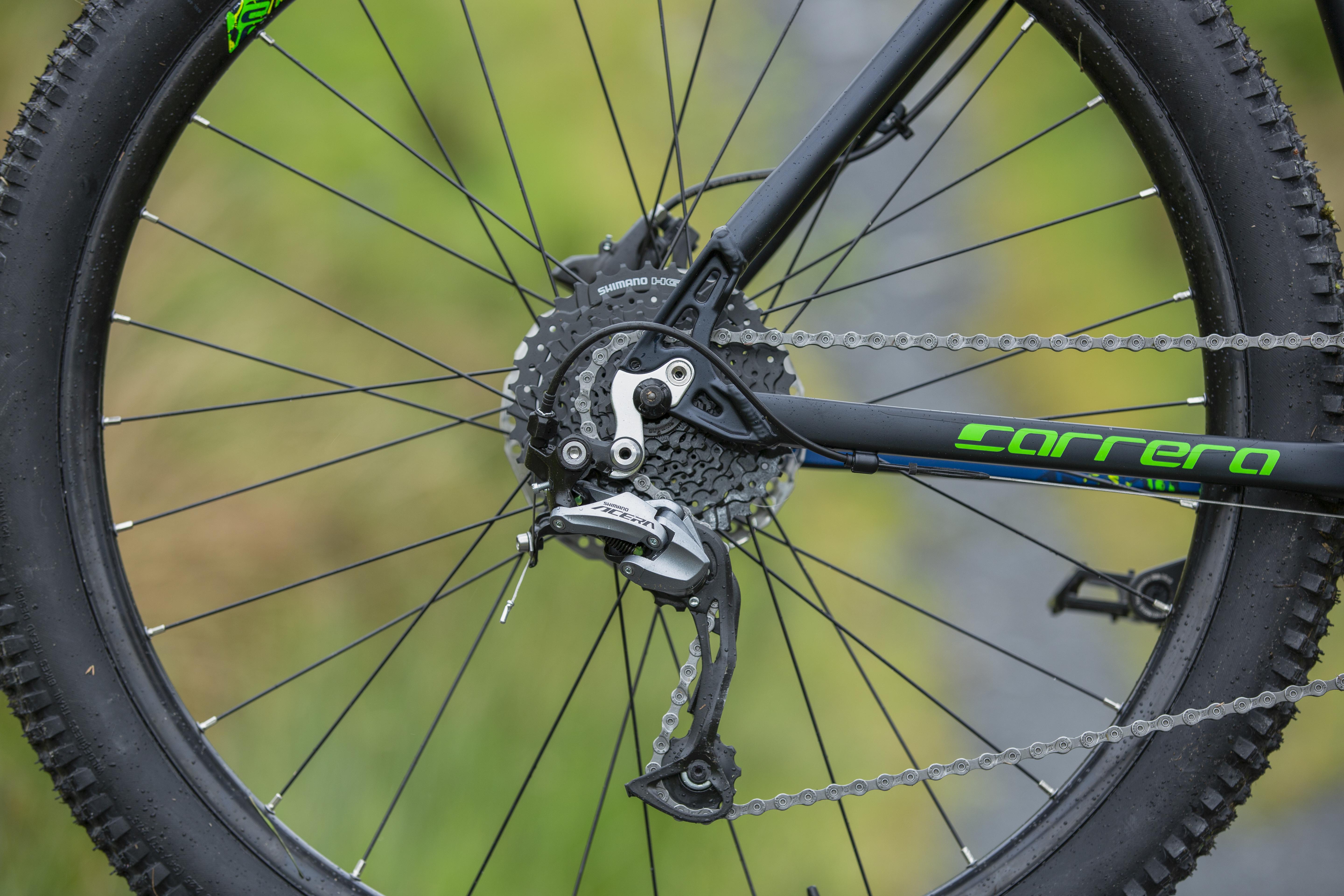

To enhance the riding experience, we have also upgraded the drivetrain on the new Hellcat, moving from a triple chainset to a 2x (2 by). One less cog at the front means less weight and less maintenance but also makes changing gears more intuitive as fewer choices help you get the one you want quicker… and don’t worry about the range of gears. The Kraken now comes with a bigger 9-speed cassette at the back wheel, so you’ve still got those important choices at the top and bottom end of the range. Sometimes, less is definitely!

Carrera Kraken accessories

Mudguard Set is a great option for helping to keep some of the mud and water away from your bike and clothes.
Deter thieves with a Lock, ideal for locking your bike up outside the office or at a bike rack, and make sure you’re safe and seen with Bike Lights.


Carrera Kraken bike maintenance

Keeping your bike in peak condition is key if you plan on having it a long time, so let Halfords look after your bike with CycleCare. With a huge range of services covering everything from your brake cables to the chainset, CycleCare is designed to ensure your bike stays in peak condition, even after plenty of miles. Remember that you always bring your Carrera to your local Halfords store for unlimited free safety checks for as long as you have the receipt.

Our guarantee

We take bike build quality seriously, which is why your new Carrera Kraken comes with a lifetime frame guarantee. The Carrera Kraken really is built to last.
*Please see our T&C's here
Looking for more mountain bike buying tips? Start with our Mountain Bike Buyers Guide, full of tips and tricks for choosing the best mountain bike for you.
Trading up?

Trade up to Carrera Fury Mountain Bike for:
  • 1x Groupset for trail readiness and less chain drops
  • Dropper Seat post for improved control on descents
  • Performance Air Fork with Q-Loc Axle for reduced weight and precise steering efficiency

Additional Information:

Learn more about our maximum weight limits on adult bikes here.
