Carrera Titan X Mens Full Suspension Mountain Bike - S, M, L, Frames
10 people are viewing now
5 purchases during last 48 hours

Carrera Titan X Mens Full Suspension Mountain Bike - S, M, L, Frames 850682

Carrera Titan X Mens Full Suspension Mountain Bike - S, M, L, Frames is rated 4.5 out of 5 by 20.
  • y_2021, m_9, d_24, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_20
  • loc_en_GB, sid_850682, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_halfords
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 0ms
  • reviews, product
Please select a variation to see the final price
  • Forks : Rockshox Recon RL
  • Gears : SRAM SX Eagle 1x12s
  • Brakes: Shimano MT200 Hydraulic Disc Brakes

Step 1: Choose A Size

Frame Size
Need help choosing?
View our size guide
Need help choosing?
For fitting, please change quantity to 1 and add each item and fit separately

Step 2: Would You Like It Built?


You can either collect your built bike in store or have it delivered. Learn more

  • FREE - Bike Built and Collected In-store (per bike)
  • £30.00 - Bike Built and Delivered (per bike)

Please note: If you select a Bike Built for collection in-store you'll book a collection day and time. Once chosen, this date and time is unable to be amended.

Step 3: Select Delivery Option

Check stock in your location
Use my Location
Booking system unavailable, please try again later.
FREE Click & Collect is not available
Home Delivery

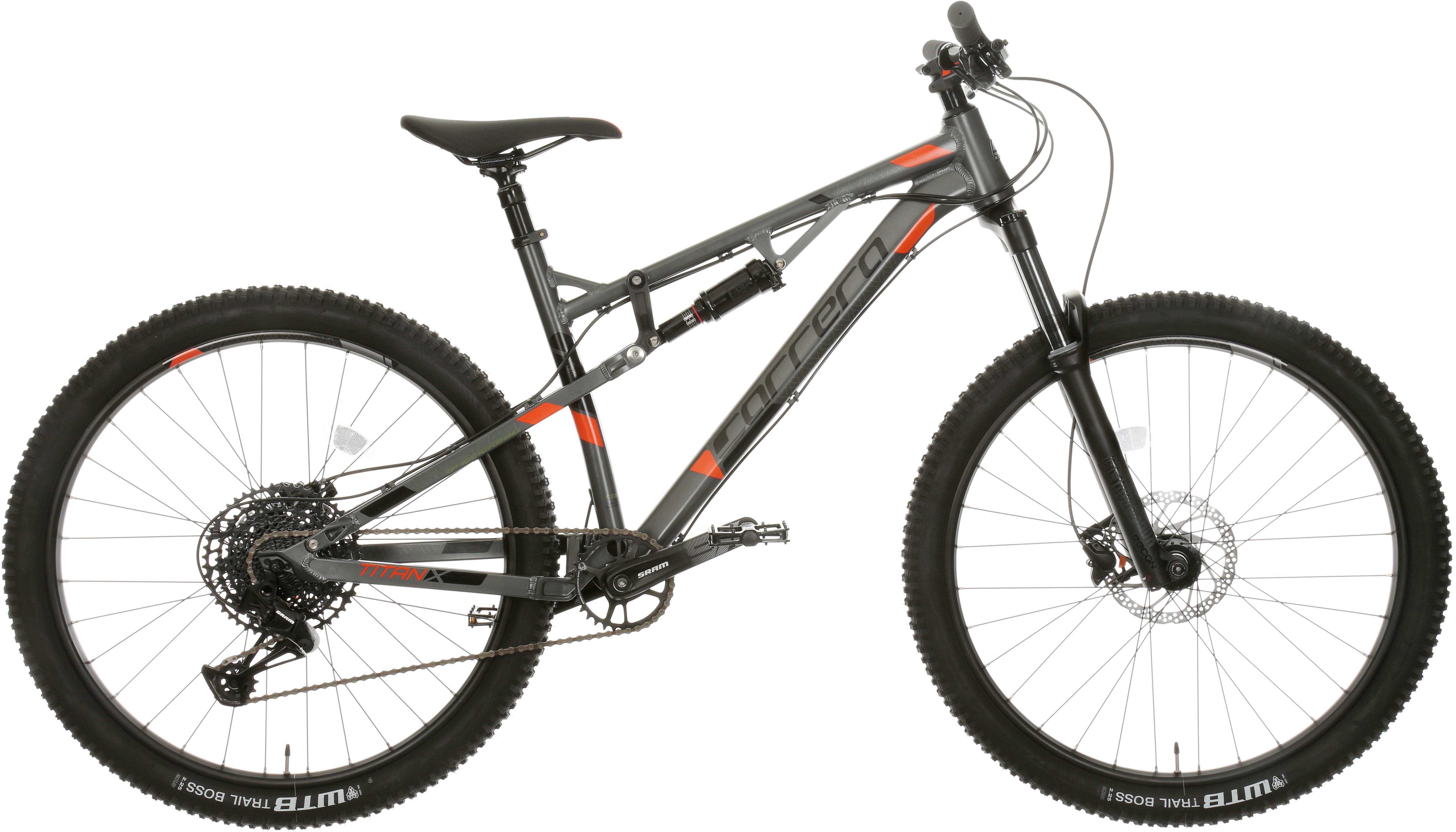

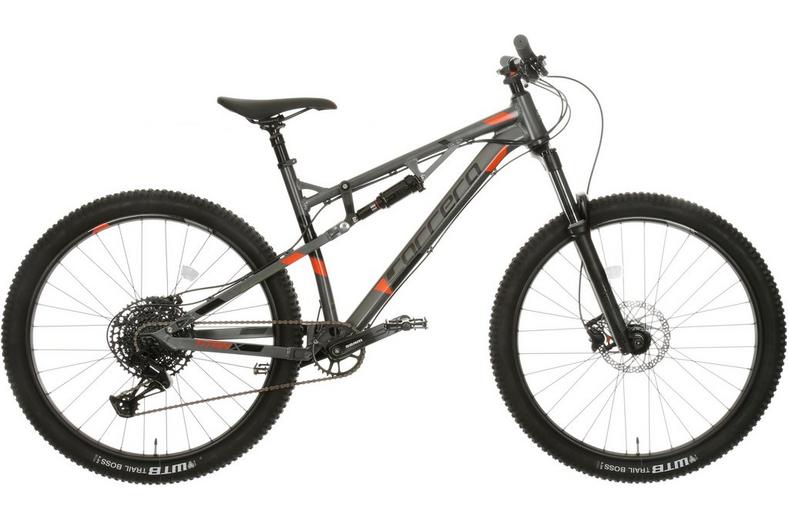

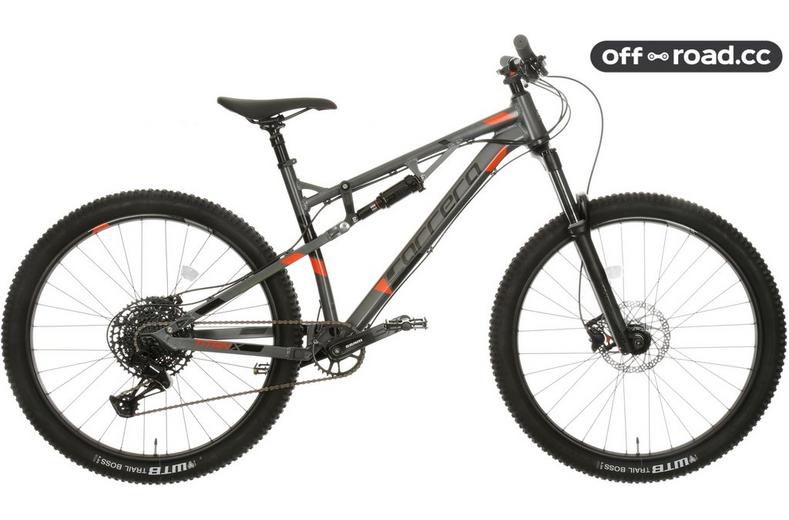

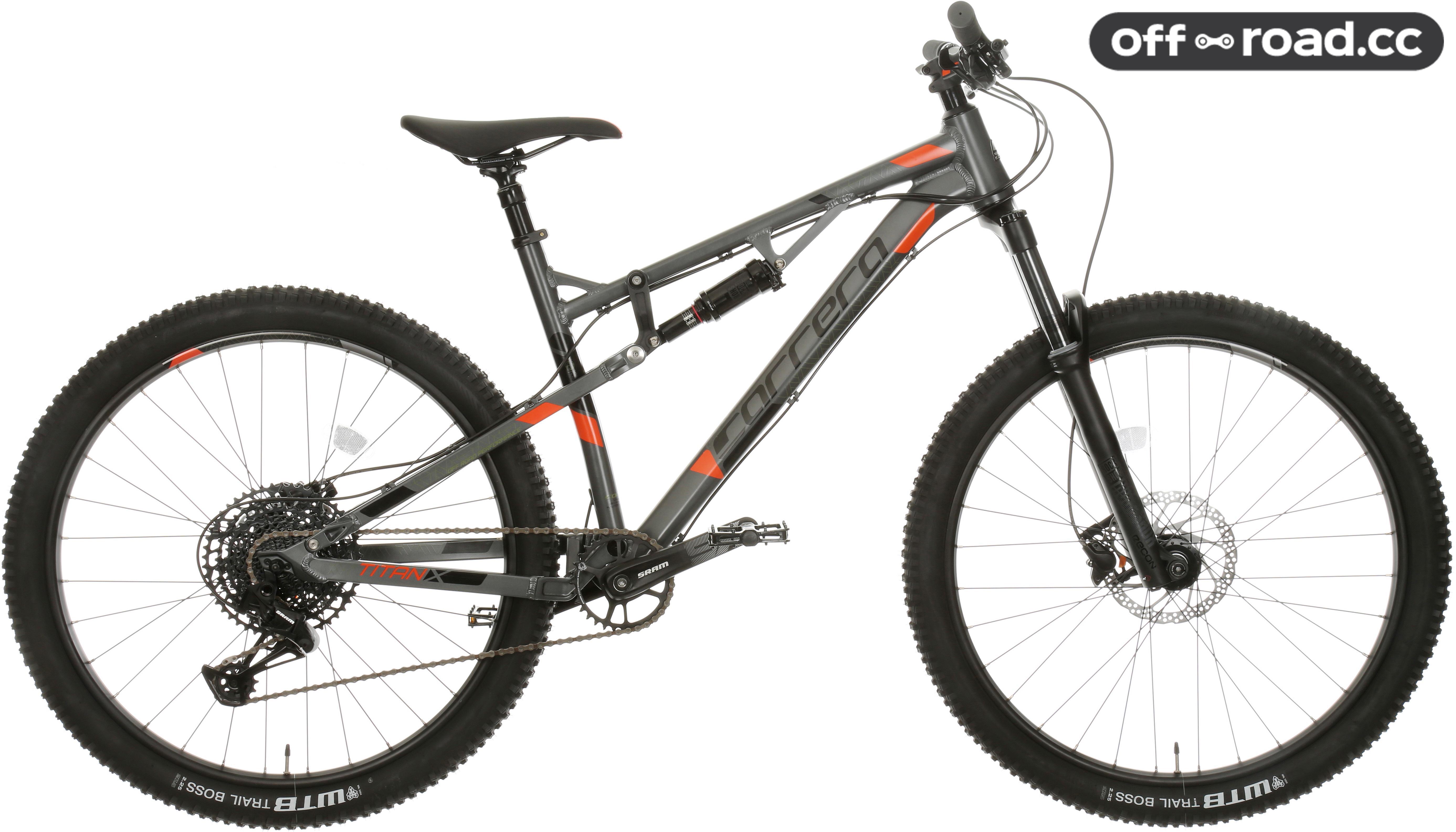

Carrera Titan X Mens Full Suspension Mountain Bike

  • Frame: Full-Suspension aluminium frame
  • Forks: Rockshox Recon RL with 130mm of travel

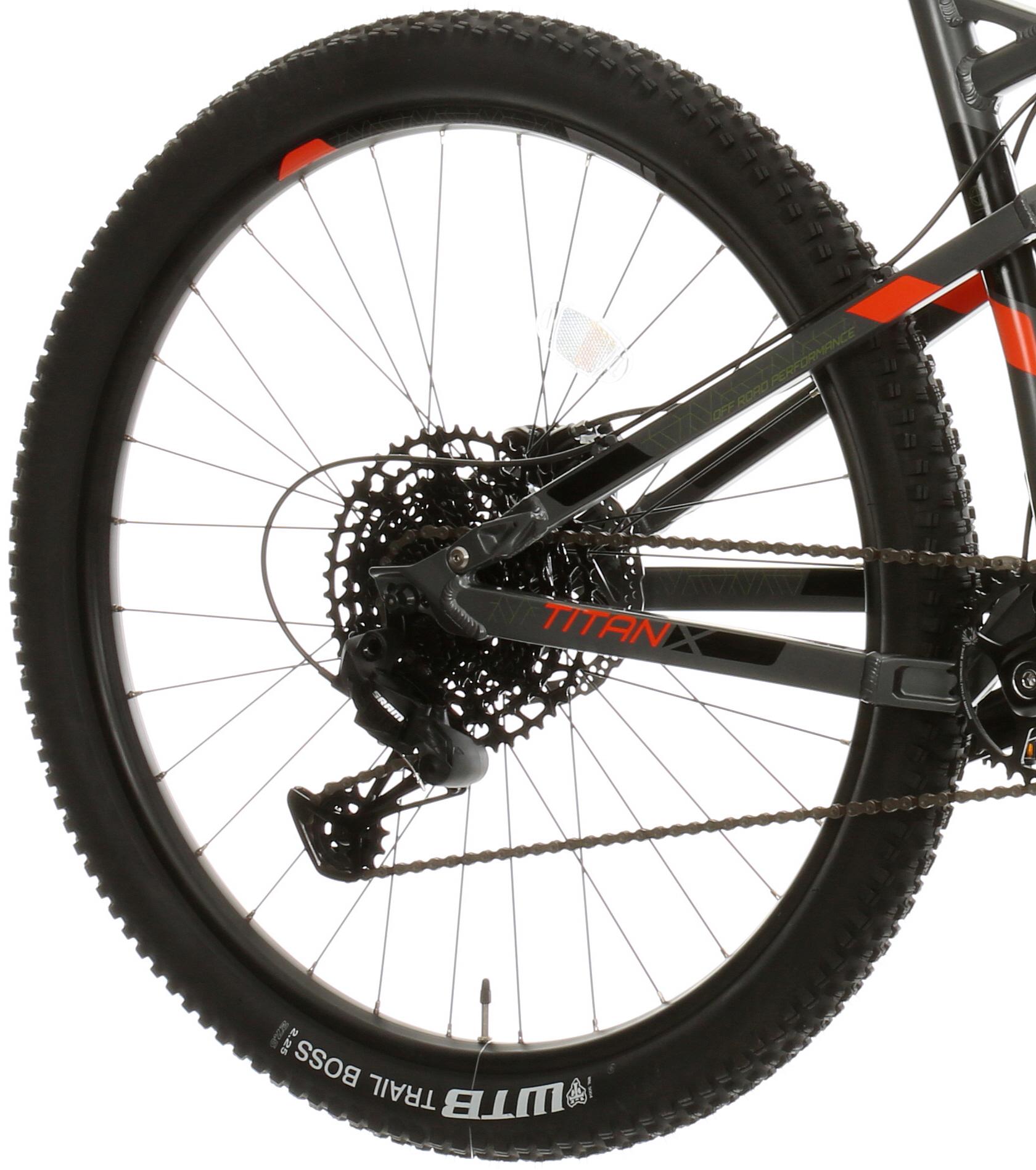

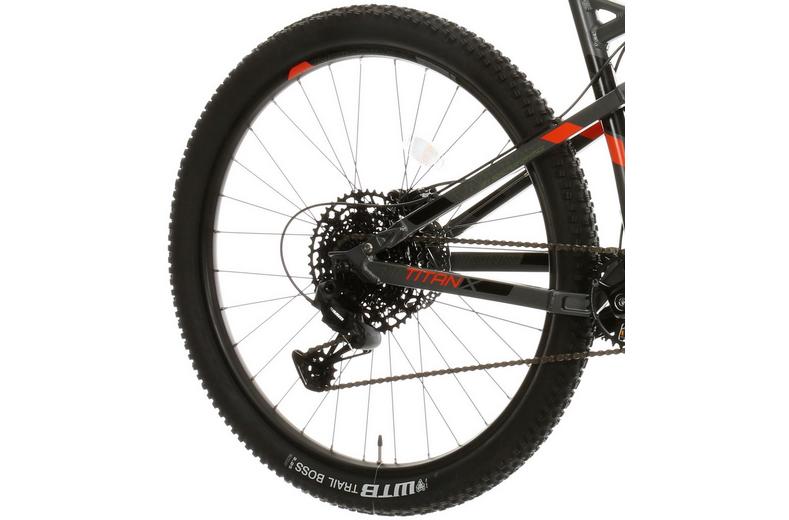

  • Gears: SRAM SX Eagle 1x12 gearing
  • Brakes: Shimano MT200 hydraulic disc brakes
  • Wheels: 27.5” wheels with through-axle hubs and tubeless ready rims

The Carrera Titan X Mountain Bike gives the off-road descending capability you can only find in a full-suspension mountain bike, but is backed up with the right spec to enable a confident climb back up to the trailhead. The Rockshox Recon RL front fork is paired perfectly with the Monarch R at the rear to soak up bumps whilst maintaining full control. The dropper seat post and 1 x 12 gearing pair excellently to enable a fast transition between fast descending and slow, steep climbs.

We’ve designed soft and supportive memory foam into every one of our saddles so wherever you’re going, we’ve added in more comfort. WTB Trail boss tyres pair with the full suspension frame to offer plenty of grip whether climbing or descending and thanks to the puncture protect strip embedded in the rubber the chances of a puncture are greatly reduced.

Carrera Titan X Mens Full Suspension Mountain Bike Extra Info

  • FREE build
  • Unlimited lifetime safety checks
  • Lifetime guarantee on frames and rigid forks*
  • Cyclecare available

*Please see our T&C's here

Size Guide

Height (Inch) Height (cm) Frame Size
5' 3" - 5' 10" 160 - 170 S (16")
5' 6" - 6' 1" 168 - 178 M (18")
5' 9" - 6' 3" 175 - 185 L (20")

Geometry Table

Size S (16") M (18") L (20")
ST (Seat tube) 410mm 460mm 480mm
TT (Top tube) 561mm 584mm 603mm
HT (Head tube) 115mm 120mm 130mm
SA (Seat angle) 73.5 degrees 73.5 degrees 73.5 degrees
HA (Head angle) 67 degrees 67 degrees 67 degrees
Suspension Travel 130mm 130mm 130mm
BBD (Bottom Bracket Drop) 25mm 25mm 25mm
Rake (Fork offset) 42mm 42mm 42mm
RC (Chainstays) 435mm 435mm 435mm
Stem 45mm 45mm 45mm
Handlebars Width 720mm 720mm 720mm
Seatpost Length 420mm 420mm 420mm
Crank Length 170mm 175mm 175mm
Dropper Travel 125mm 125mm 125mm
Stack 593mm 600mm 607mm
Reach 407mm 429mm 442mm

Additional Information:

Learn more about our maximum weight limits on adult bikes here.

The above images and description serve as an example. Current disruption in the global supply network mean that specific components may not be available. If that occurs, we may replace those components with similar parts of the same or higher quality, provided that any such substitutions do not negatively affect the overall quality or use of the product.
