Please select a variation to see the final price
Extra 20% off Bike Rack when you buy a Bike*
Discount applied in basket. *Excludes balance Bikes.
  • Groupset : Shimano Claris 2x8 (16 speed)
  • Brake Type : Mechanical Disc Brakes
  • Forks : Full Carbon fork, tapered

Step 1: Choose A Size

Need help choosing?
View our size guide
Need help choosing?

Step 2: Would You Like It Built?

  • FREE - Bike built and collected in store
  • £30.00 - Bike built and delivered (per bike)

Please note: For bikes built and collected in store, you'll be asked to choose a date and time slot for collection. Once chosen, this slot is unable to be amended.

Step 3: Add a CycleCare plan?

Step 4: Select Delivery Option

Check stock in your location
Use my Location
Booking system unavailable, please try again later.
FREE Click & Collect is not available
Home Delivery

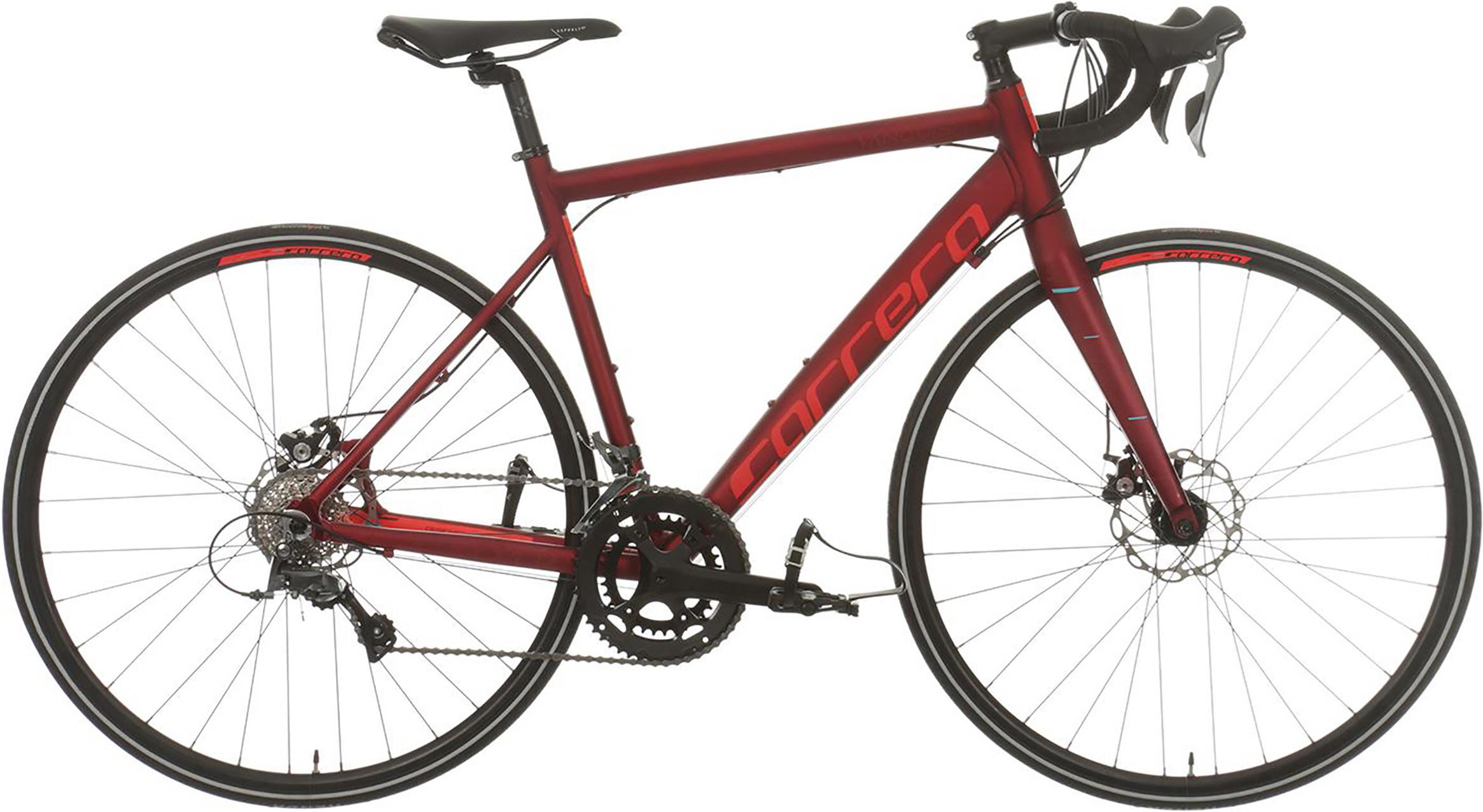

Carrera Vanquish Mens Road Bike - Red

  • Frame: Triple butted, light Alloy frame with dropped seat stays for extra comfort
  • Fork: Carbon fork reduces road vibration
  • Gears:  2x8 Shimano Claris gears for slick gear changes
  • Saddle: Carrera Memory Foam Saddle for ultimate comfort on your ride
  • Puncture Protection Tyres: 28c tyres designed with an extra puncture resistant layer
  • Brakes: Flat Mounted Mechanical disc brakes for controlled stopping power
  • Wheels: 700c double walled rims for extra durability
  • Lifetime Frame Guarantee: Built strong and built to last

Performance, speed and comfort are perfectly combined in the Carrera Vanquish Disc which sits at the top of this exciting range. Thanks to the lightweight, triple-butted aluminium frame, you’ll barely notice the incline and the carbon fork with tapered steerer dampens any vibration and gives you precise steering control. This road bike can fly and you’ll be glad of the flat mount road brakes which do their job whilst reducing weight further. Tackle the straights or the hills with ease on this top-tier road bike.

We guarantee you’ll be raring to go when you pick up your new bike, so don’t waste any riding time on having to build it. Our team of in-store bike experts have the tools and the time to put your brand new Vanquish Disc together and make sure it’s safe to ride, so you can turn up and collect it ready to go! Choose the ‘free bike build’ option at the online checkout. Plus, our free lifetime safety checks and lifetime frame guarantee mean you have the confidence to go even further.

Carrera Road Bike Size Guide


Height (Inch) Height (cm) Frame Size
5' 6" - 5' 10" 168 - 178 S (48cm)
5' 9" - 6' 0" 175 - 183 M (51cm)
5' 11" - 6' 3" 180 - 191 L (54cm)

Mens Geometry Table

Size S (48cm) M (51cm) L (54cm)
Top Tube (effective) 545mm 560mm 580mm
Seat Tube Length 480mm 510mm 541mm
Head Tube Length 135mm 150mm 175mm
Head Angle 71 degrees 71.5 degrees 72 degrees
Seat Angle (effective) 73.5 degrees 73.5 degrees 73 degrees
Chain Stay Length 415mm 415mm 415mm
Fork Offset (Rake) 45mm 45mm 45mm
Bottom Bracket Drop 65mm 65mm 65mm
Crank Length 170mm 170mm 170mm
Stem Length 80mm 90mm 105mm
Handlebar Width 40mm 40mm 42mm

More About The All-New Vanquish Disc Road Bike

Lightweight frame

Weighing in at just 10.5kg, the Carrera Vanquish has a triple butted aluminium frame – which simply means less material in areas that don’t need it, same great strength and stiffness with no compromises at the joints but lower overall weight. Allied with a carbon fork that not only reduces weight further but also helps dampen down vibration from the road surface.
The dropped seat stays also help with the overall comfort as they allow a bit more flex in the seat-post which dampens vibrations and all-new tube shapes deliver a stronger and stiffer frame that is better for power transfer.

Extra comfort
Customers told us that features such as saddle comfort were a crucial element of their riding experience. Recognising this we’ve therefore equipped all 2020 Carrera bikes with memory foam saddles as standard - helping you spend even more time comfortably on your rides. These saddles are specific to the discipline and their shape is designed to complement that style of riding.
Additional peace of mind. More comfort.

To give you even more riding time and not have you standing idle we’re also giving you more peace of mind by fitting ‘Carrera Puncture Protection’ tyres as standard which include an additional layer of puncture resistant material running around the tyre which will help reduce the incidence of punctures. Additionally, we’ve upgraded the tyres on all Carrera 2020 road bikes to a wider 28c width which not only give extra grip but will run at lower pressures and give a smoother overall ride.

Modern braking system
Disc brakes are fast becoming the norm on high end road bikes due to their increased control and more powerful braking - and if its good enough for the pros then its only right that Carrera customers get the best features too. For 2020 all-new Carrera road bikes come with mechanical disc brakes to give you additional stopping power in all conditions and with the Vanquish these are mounted direct to the frame for a positive response and weight reduction.

Great Gear range

With the help of a 16-speed Shimano Claris gear set you’ll be in great shape to tackle hills and also get up to speed when the road is flat. Gear changes will feel slick and smooth and a large range cassette ensures you’ll be transferring energy from the pedals to the rear wheel efficiently.

All weather warrior

It’s a small thing but these bikes are built with our weather in mind – so when it does turn a bit on the damp side you’ll find all out road bikes come with mudguard and pannier mounts so you have some protection from the rain.

Maintain your Carrera Vanquish Disc

If you plan on using your Carrera Vanquish Disc regularly, then we’d recommend our CycleCare services to make sure your new bike stays in top shape. Just like the annual service you’d get done on your car, we’ll check your bike’s components depending on the service you choose, then make any repairs and make sure your bike is safe to ride. On the subject of safety, you’re also welcome to bring your Carrera Vanquish Disc to any Halfords store for unlimited safety checks at any time.

Our guarantee

Thanks to our confidence in the high quality bikes we sell, Halfords offer a lifetime guarantee on all frames and rigid forks, so you can ride your Carrera Vanquish Disc Bike safe in the knowledge that it’s built to last.

Additional Information

The above images and description serve as an example. Current disruption in the global supply network mean that specific components may not be available. If that occurs, we may replace those components with similar parts of the same or higher quality, provided that any such substitutions do not negatively affect the overall quality or use of the product.
