Kinesis Tripster AT Gravel Frameset

Kinesis Tripster AT Gravel Frameset

• Tough yet lightweight 7046 series Kinesium tubeset with tapered machined headtube.

• 31.8mm seat tube for 27.2mm seat post (will add a bit of compliancy).

• 31.8mm front mech clamp required.

• Colour-matched Columbus Futura Carbon Plus fork with 12mm thru axle.

• Inboard Shimano Flat-mount disc mounts on frame and frame and fork (maximum 160mm rotors).

• Seat stay mounts for mudguards and pannier racks. Bridges on chain stay and seat stay for fender mounting runs 40mm tyres with full mudguards for clean winter riding!

• Beyond gravel capability with 700c x 45mm or 650b x 52mm tyre clearance.

• 3 x bottle boss mounts for extra carrying capacity or storing a tool keg.

• Optimum hydration system - multi-position down-tube bottle cage mounting to allow for full bottle carry capacity even with a frame bag.

• GW Switch Lever Thru-axles included

• Internal cable routing for mechanical and electronic gear systems.

• BSA threaded BB shell for real-world low maintenance riding.

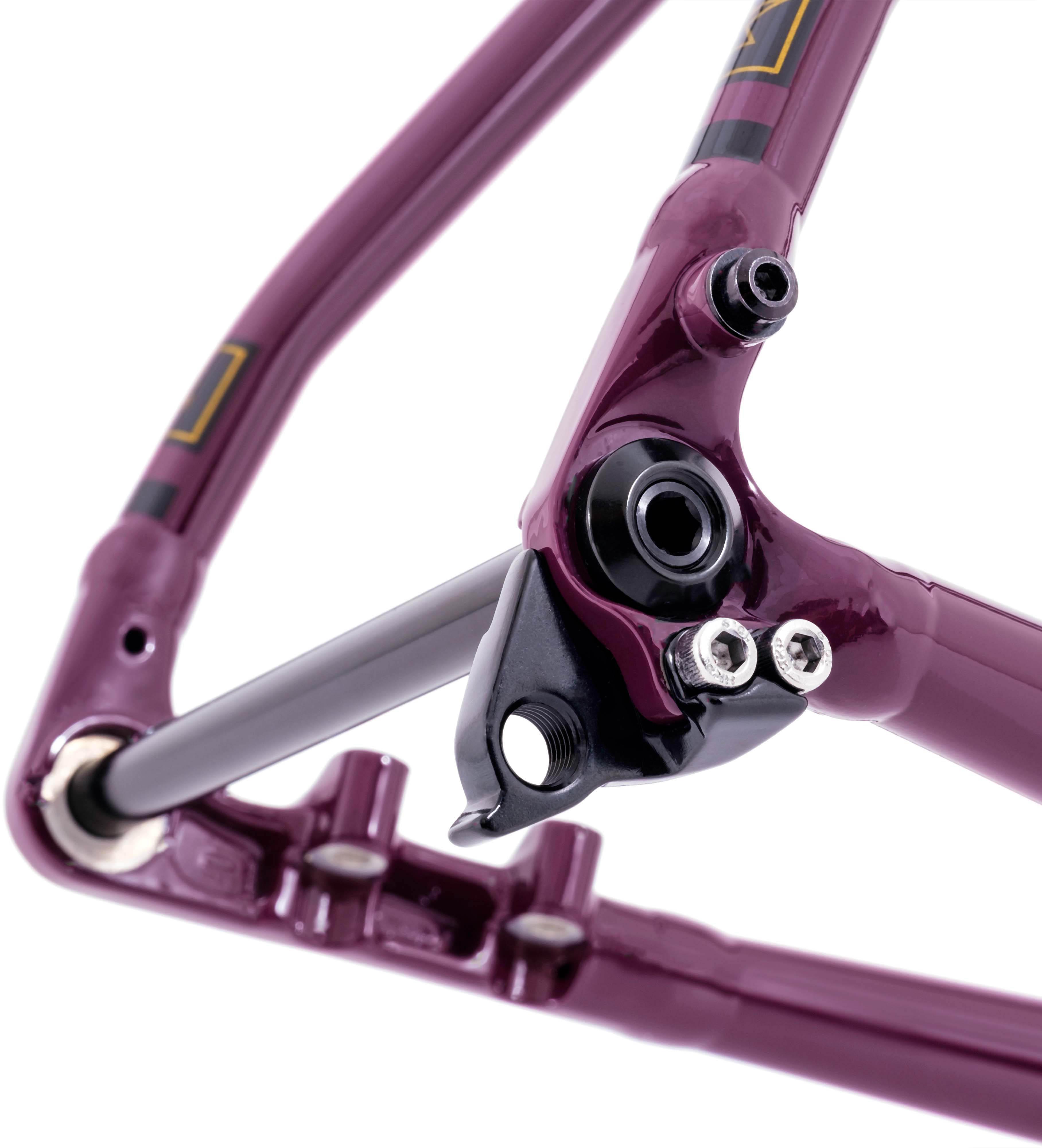

• 22mm long flat mount disc brake bolts required for the frame.

The brand-new Kinesis Tripster AT gravel adventure bike frameset builds upon the success of the renowned Tripster ATR and our line of championship-winning cyclocross bikes. This adventure bike is designed to handle a wide range of terrains and activities.

The Kinesis Tripster AT All Terrain bike frame features cutting-edge adventure bike technology, offering versatility to perform well in various scenarios. Whether it's used for commuting, gravel riding, bike packing, touring, or bridleway adventures, the new Tripster AT bike frameset is up for the challenge.

Equipped with through axles front and rear, the bike provides clearance for 700c x 45mm or 650B x 52mm tyres, and versatile cable routing to accommodate different groupsets, making it a truly versatile machine.

Additionally, the bike offers multiple bottle cage mounts, rack and mudguard mounts, the high-performance Columbus Futura Cross+ Carbon fork, and the reliability of a British Standard bottom bracket, all built on Kinesis UK's proven geometry. With these features, the Tripster AT All Terrain bike is a reliable companion for any adventure.

Technical specification:

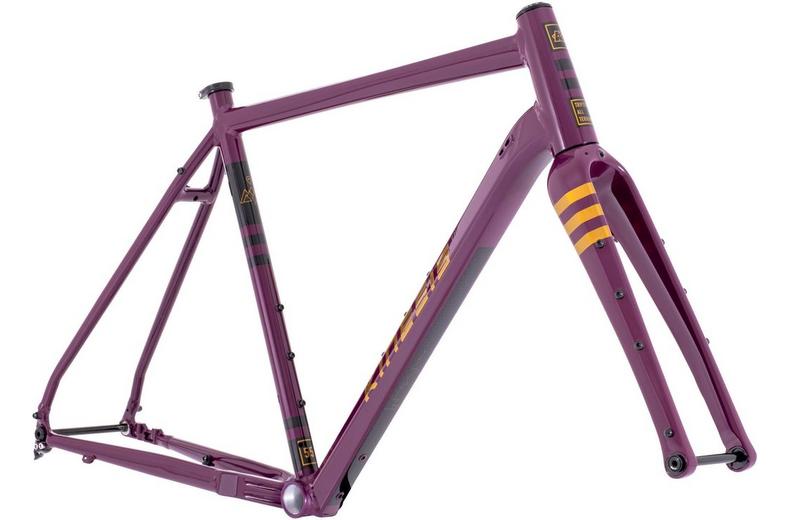

• Frame: tough yet lightweight 7046 series kinesium tubeset with tapered machined headtube.

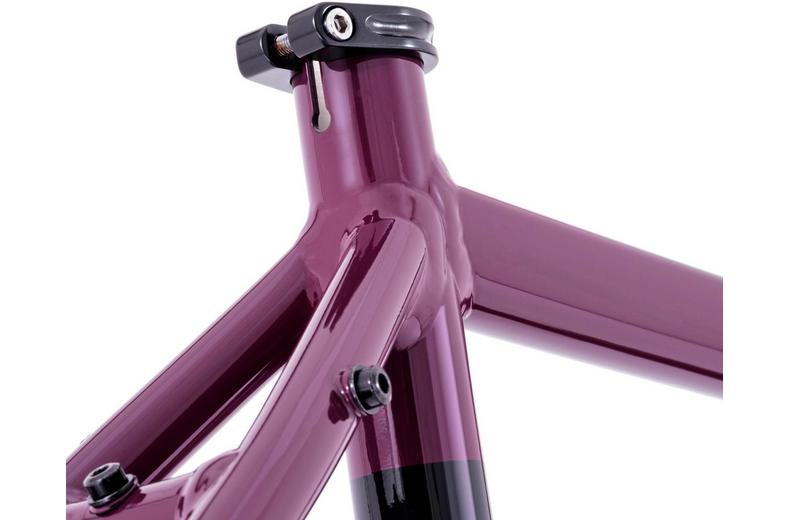

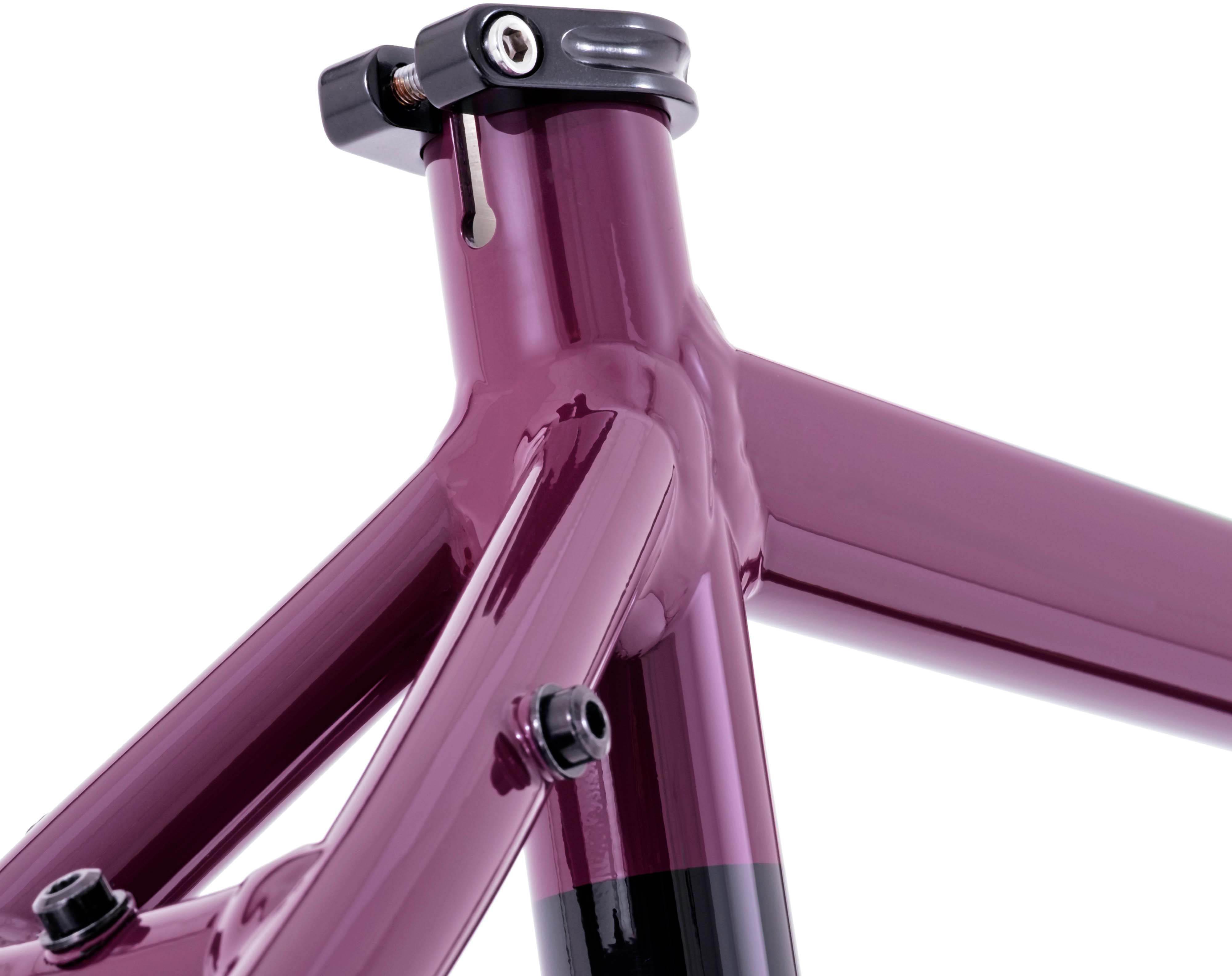

• Seat tube: 31.8mm seat tube for 27.2mm seat post (will add a bit of compliancy).

• Front mech: 31.8mm front mech clamp required.

• Fork: all new colour-matched columbus futura cross+ carbon fork with 12mm thru axle.

• Mudguard and luggage options: seat stay mounts for mudguards and pannier racks.

• Mudguards: bridges on chain stay and seat stay for fender mounting and you can run 40mm tyres with full mudguards for clean winter riding.

• Tyre clearance: beyond gravel capability with 700c x 45mm tyre clearance with supplied fork and up to 52mm clearance on the frame.

• Mounts: 3 x bottle boss mounts for extra carrying capacity or storing a tool keg.

• Axle removal: gw switch lever thru-axles included.

• Drivetrain options: internal cable routing for mechanical and electronic gear systems.

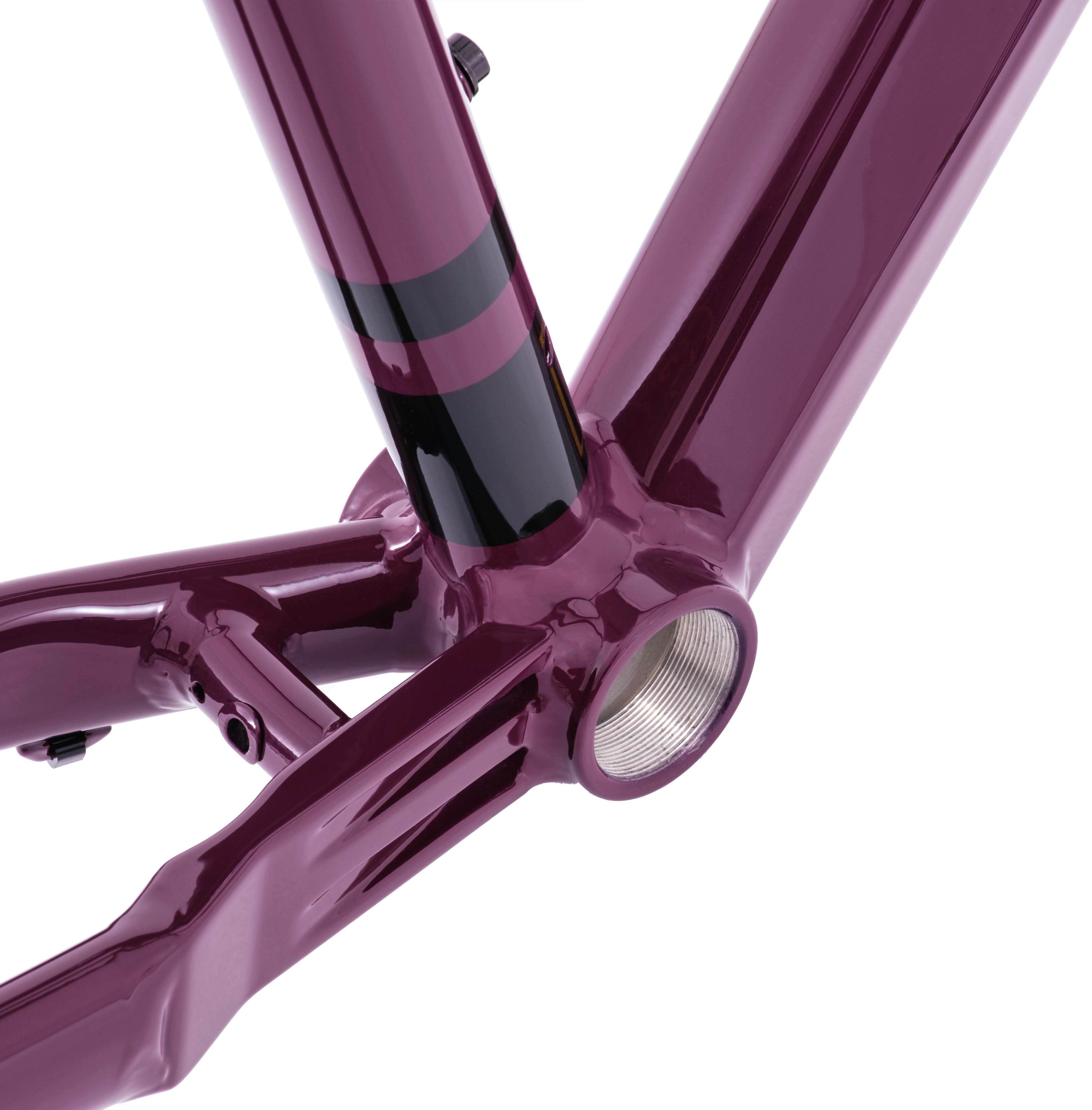

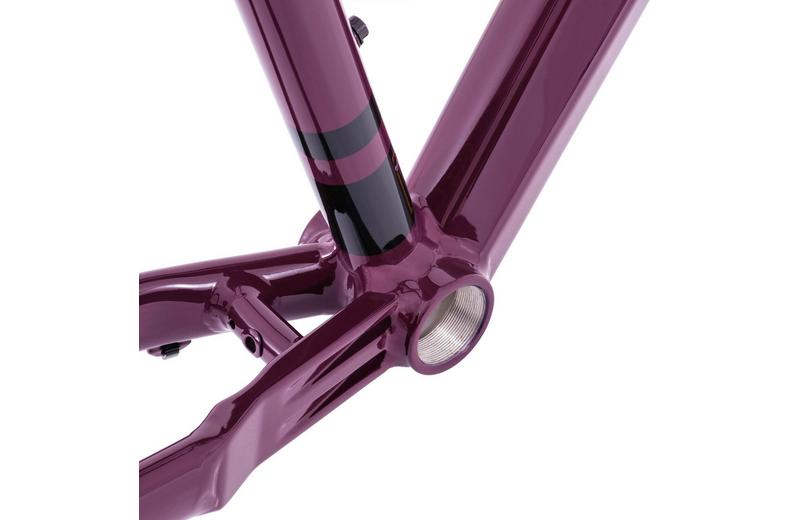

• Bottom bracket: BSA threaded bb shell for real world low maintenance riding.

• Sizing and weights: (Centre/Top) 48cm = 1.77kg | 51cm = 1.8kg | 54cm = 1.84kg | 55.5cm = 1.89kg | 57cm = 1.91kg | 60cm = 1.96kg | 63cm = 1.99kg.

• Fork weight: Kinesis Tripster Disc Thru Axle Fork - 534g with axle and 463g without.

• Colour: Dark Plum or Midnight Blue

What's in the box:

• Frame

• Fork

• Headset

• Seat clamp

• Front and rear thru axles

• Cable port hardware

• Derailleur hanger

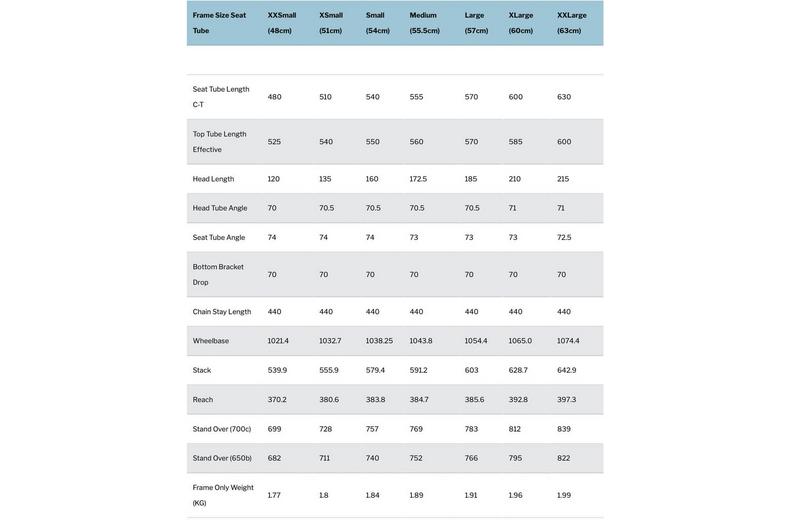

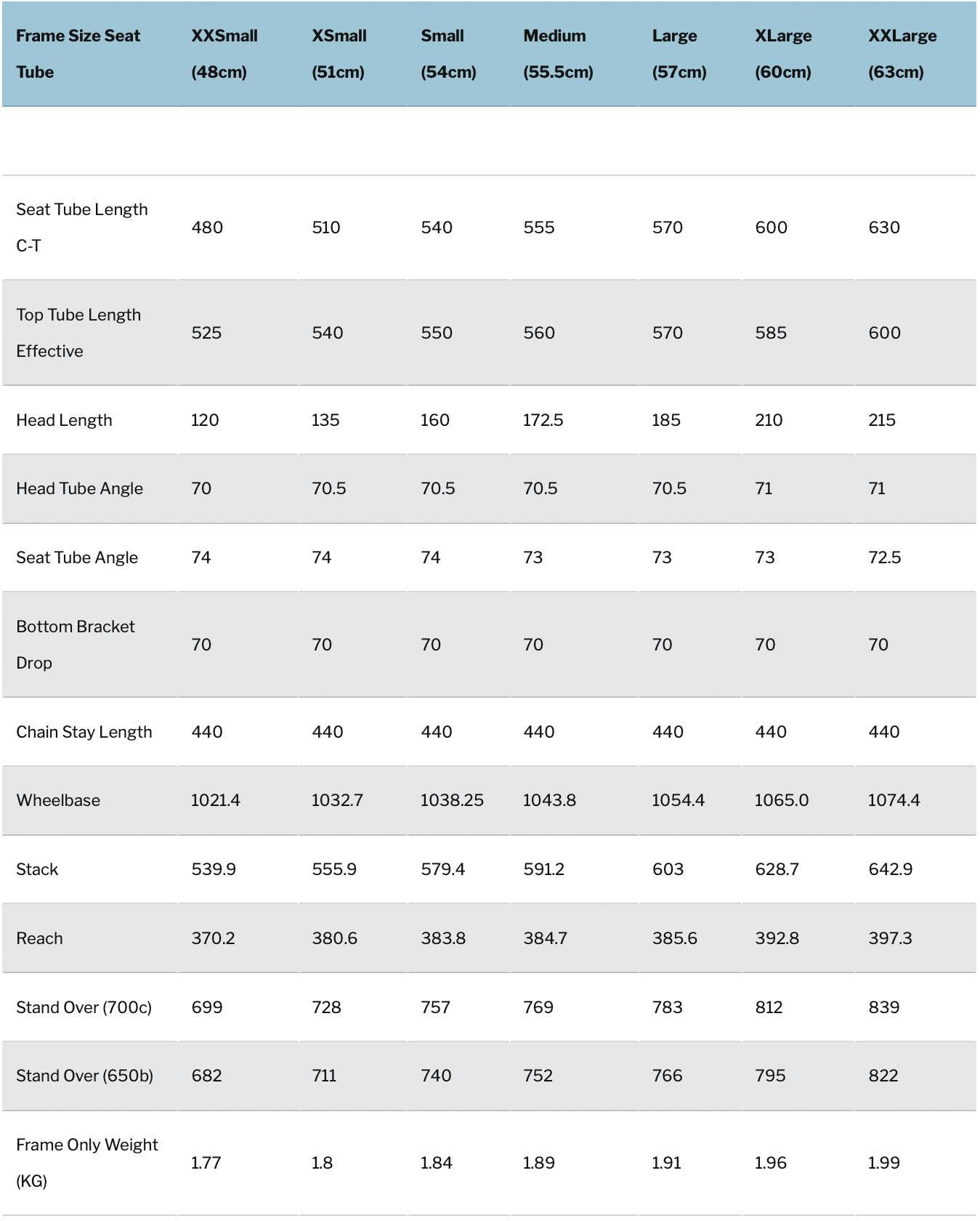

*Please see images for sizing and geometry information.
