Halfords Core Motorcycle L Plate

Halfords Core Motorcycle L Plate

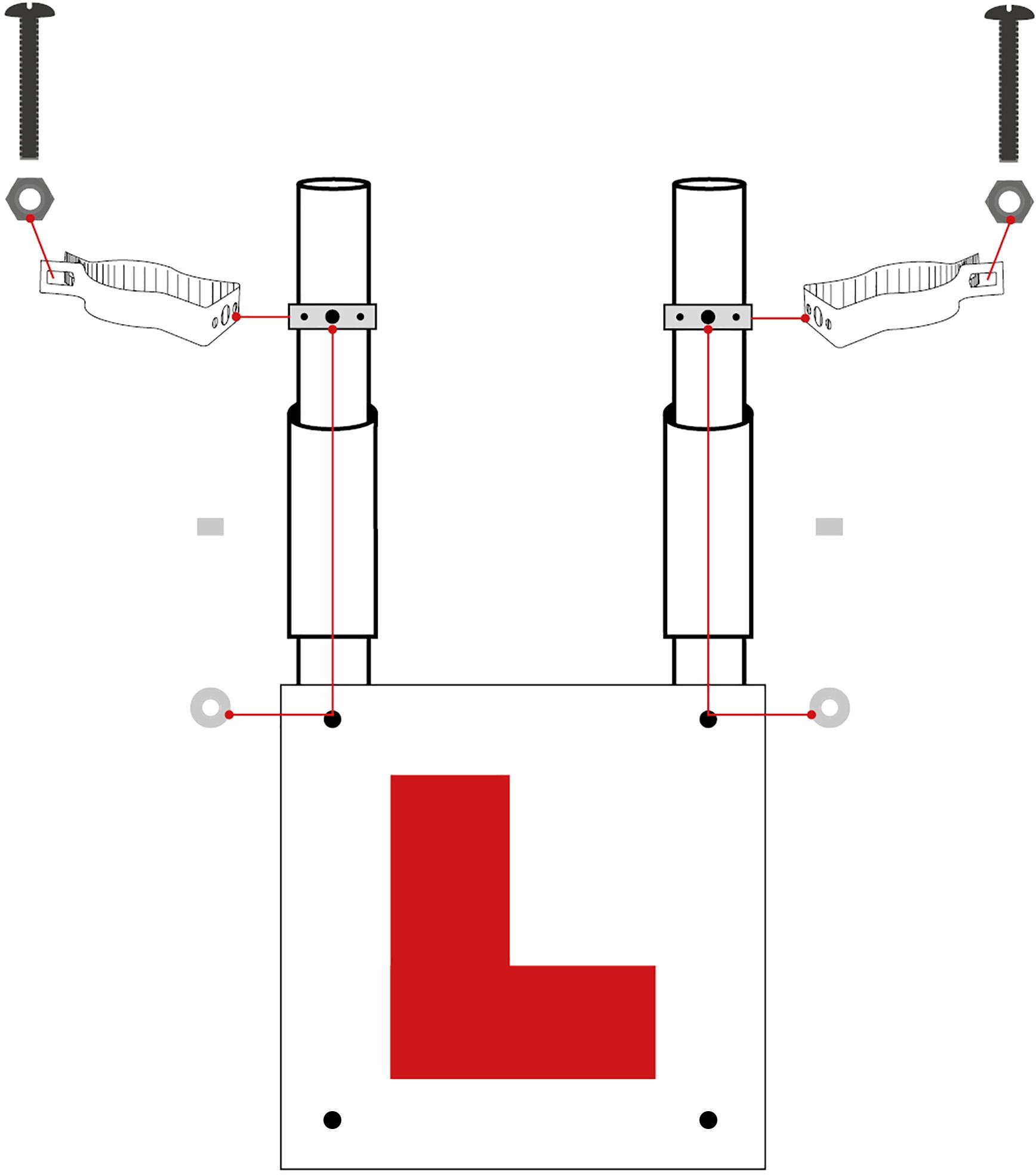

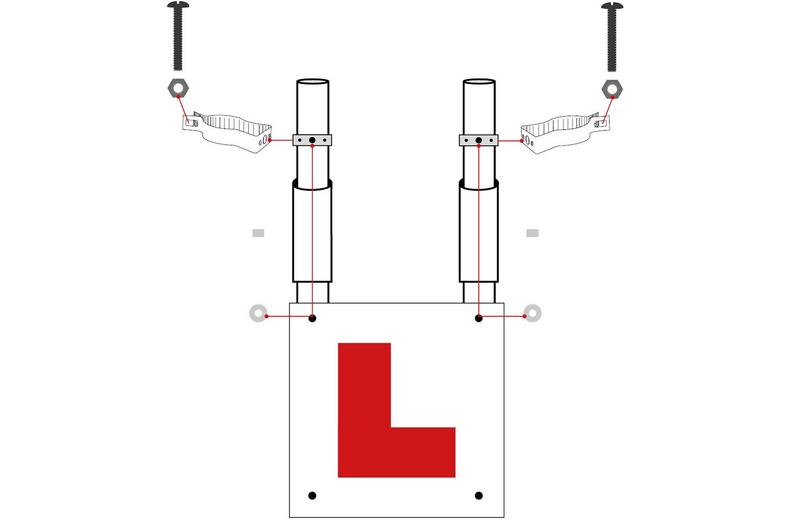

Fork Mounting

Attach the two brackets to the front forks of the bike using the metal nuts and bolts provided, ensuring there is no contact with any moving parts. Hold the L-Plate against the brackets, and mark the width of the brackets on the plate lightly. Drill 2 parallel holes in the L-Plate, approximately 4cm from the top, and attach the L-Plate using the white plastic nuts and bolts provided. Ensure that the L-Plate is securely attached and cannot be easily moved. Or alternatively, remove the backing from the adhesive L-Plate and attach to the front of the bike in a suitable and clearly visible position.

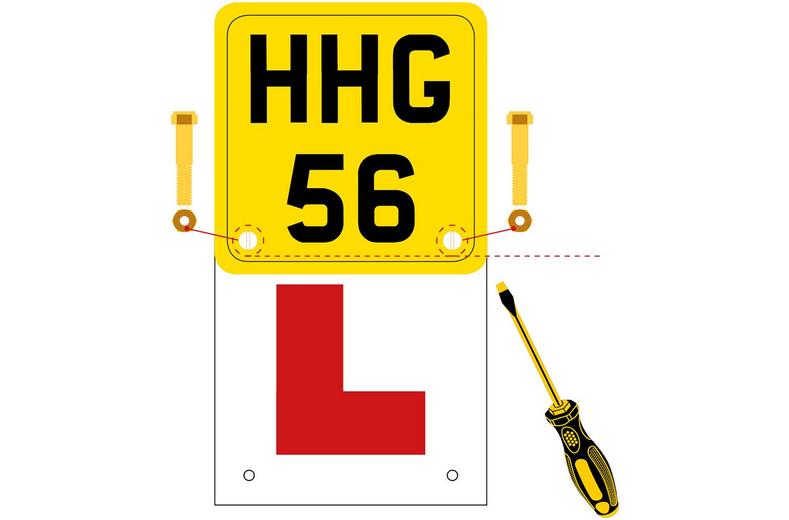

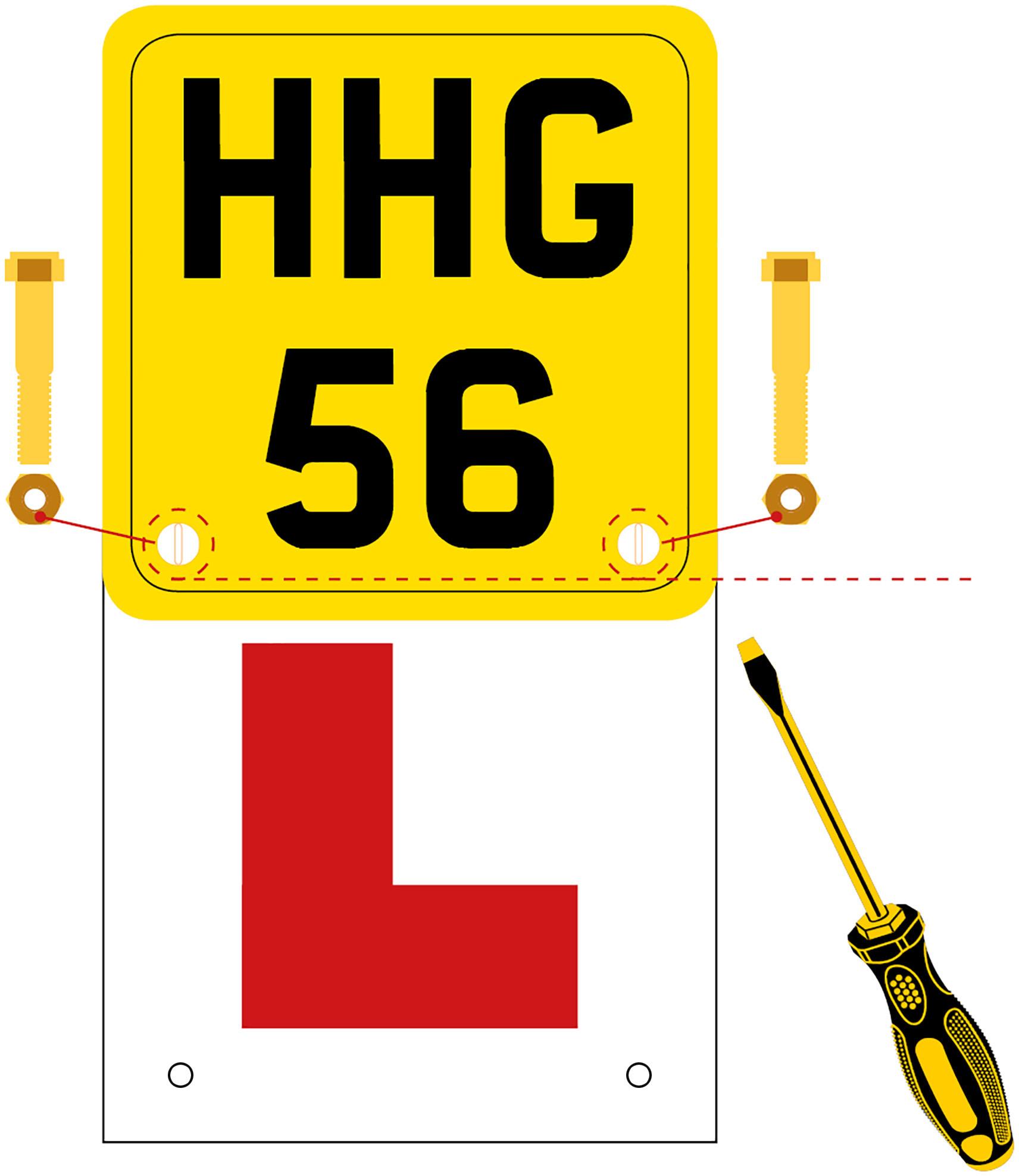

Rear number plate mounting

Place the L-Plate against the reverse of the rear number plate of the bike, so no information on the number plate is obscured. Then drill 2 parallel holes through the number plate and the L-Plate. Both holes must be at least 4cm from each side of both plates and at least 2cm from the bottom of the number plate and top of the L-Plate. When drilling the holes, ensure no characters of the number plate are drilled through. With the yellow nuts and bolts provided, attach the L-Plate to the number plate of the bike. Ensure that the L-Plate is securely attached and cannot be easily moved.

Warning! Before every ride ensure that the L-Plates are securely attached and do not interfere with any moving parts of your bike. Halfords accept no liability for incorrect or inappropriate fitting of L-Plates and any consequences thereof.
