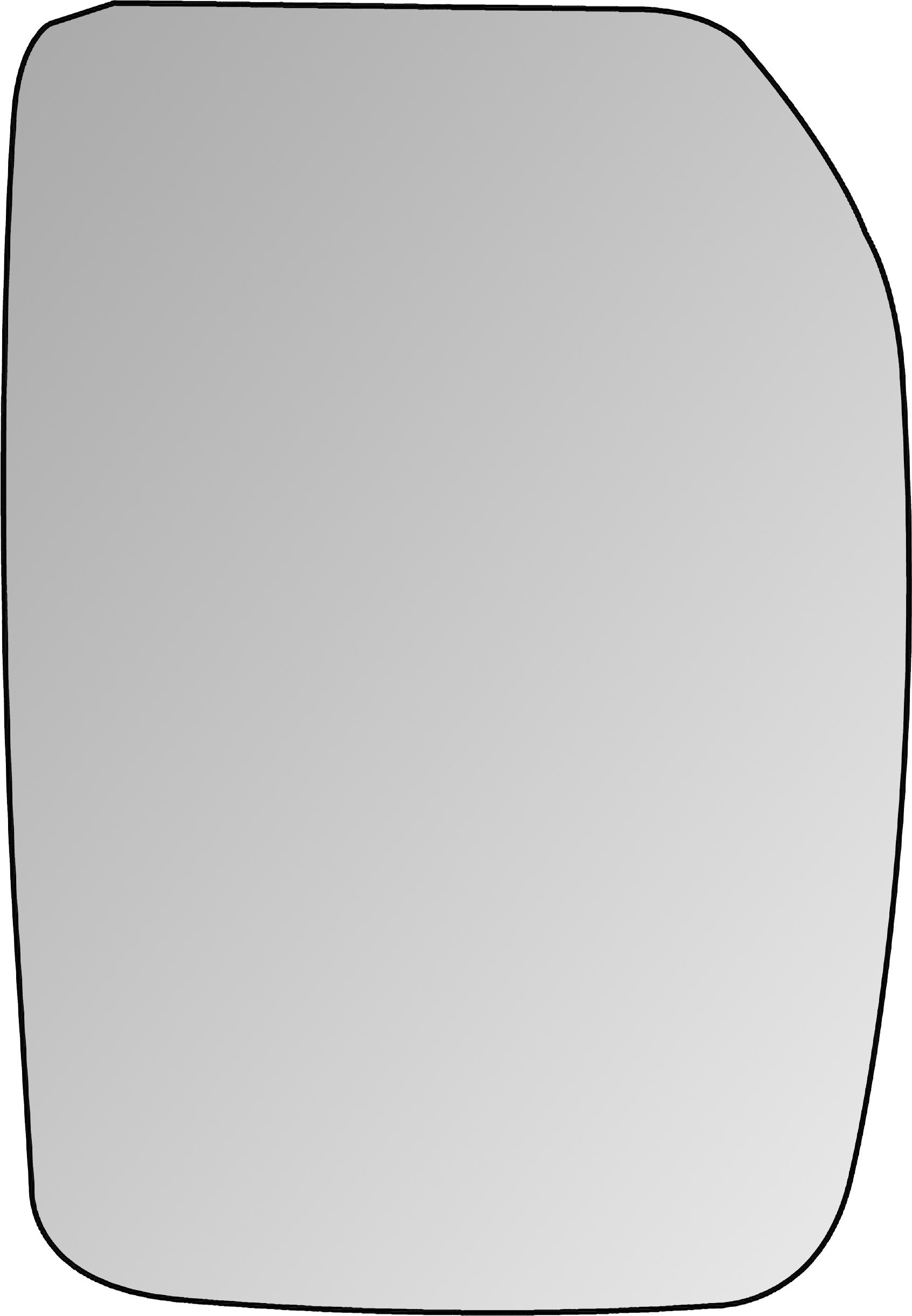

Summit Commercial Backing Plate Mirror Glass TCG7RB

The Summit Commercial Backing Plate Mirror Glass TCG7RB offers a quick, easy, hassle free solution for a damaged or missing door mirror glass. The replacement mirror glass is simply clipped into place in the door mirror housing after removal of your existing mirror and backing plate.

Features & Benefits:
  • Vehicle specific - exact fit for your vehicle
  • Passengers side
  • Quick & easy to fit
  • The only tool required is a flat head screwdriver
  • Chrome coated mirror glass in a plastic backing plate
Additional Note:
  • Fitting Instructions
  • Safety first! Always wear protective gloves when working with broken glass
  • Never remove glass unnecessarily - the original mirror glass and backing plate should be carefully removed without removing any glass.
  • Ensure the vehicle is parked in a safe place and you have plenty of access around the door mirror that you are working on
  • Carefully remove the new mirror glass from the packaging and check that the shape is correct for the vehicle
  • Very carefully push the top of the mirror glass into the door mirror housing, this will push the bottom of the glass up to reveal a gap underneath
  • Insert the flat head screw driver between the mirror housing and bottom of the mirror glass, push the screwdriver handle downwards, this should unclip the backing plate
  • Once the backing plate is unclipped, gently but firmly, pull the backing plate away from the mirror housing the mirror should come out easily
  • If the mirror you are removing is heated, at this point you need to disconnect the heating connections, if the mirror has been on the vehicle for some time the connectors could be difficult to remove, using a pair of pliers will make this a little easier
  • Once removed place the damaged mirror in a safe place until you have finished fitting the new backing plate
  • To begin fitting your new backing plate mirror fit any metal clips that came with your mirror to the back of it, if the mirror is heated connect up the heating connectors in the door mirror housing
  • Now you need to line up the bottom of the new backing plate with the base in the door mirror housing; when removing we tilted the base upwards and into the top of the housing, you may need to straighten this before you start fitting
  • Once lined up push firmly in the centre of the mirror putting pressure on the area that the mirror clips into in the housing, you should hear an audible click when the mirror is fitted
  • Once the fitting is complete make sure to clean your mirror and reposition your door mirror before driving your vehicle
  • To clean your Summit Commercial Backing Plate Mirror Glass TCG7RB use a glass cleaner and a soft cloth. Alternatively, you can use glass cleaner wipes. We would advise against using abrasive cleaning solutions, car shampoo, household cleaners or car polish.
  • Your car may fail an MOT if you have a damaged or missing door mirror glass, always ensure that you check your mirror glasses prior to your MOT.
