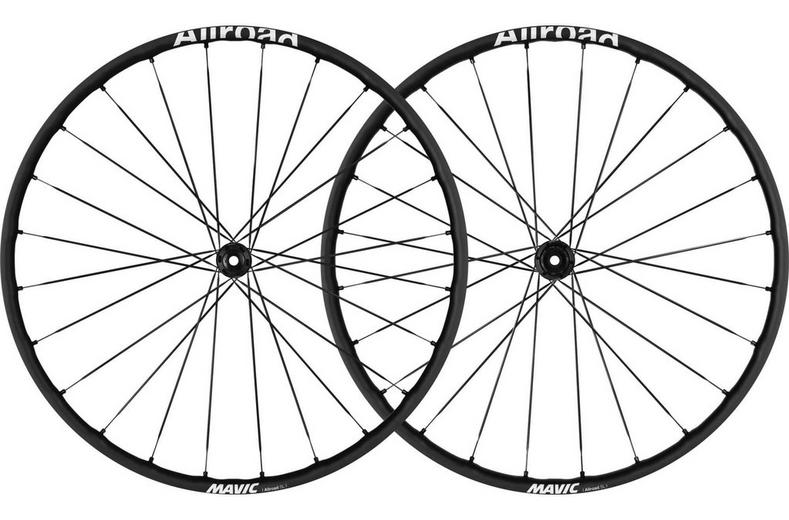

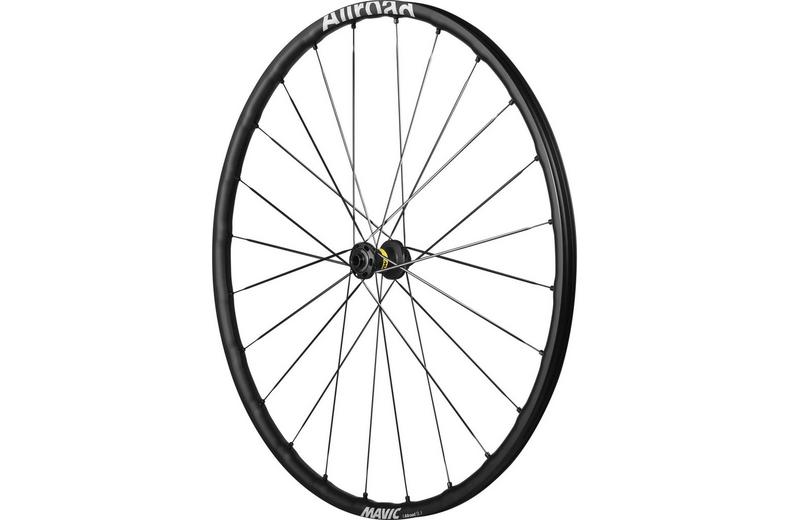

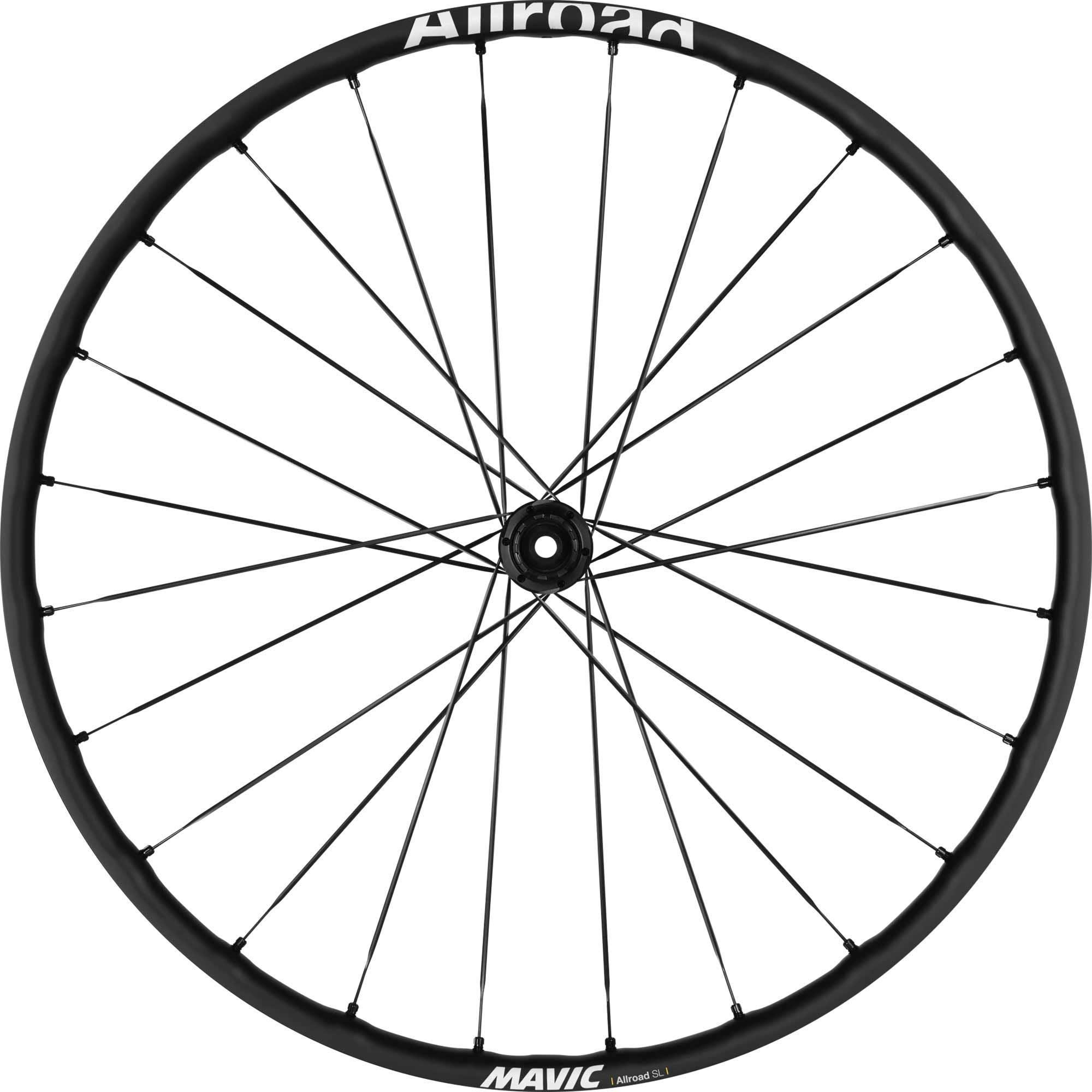

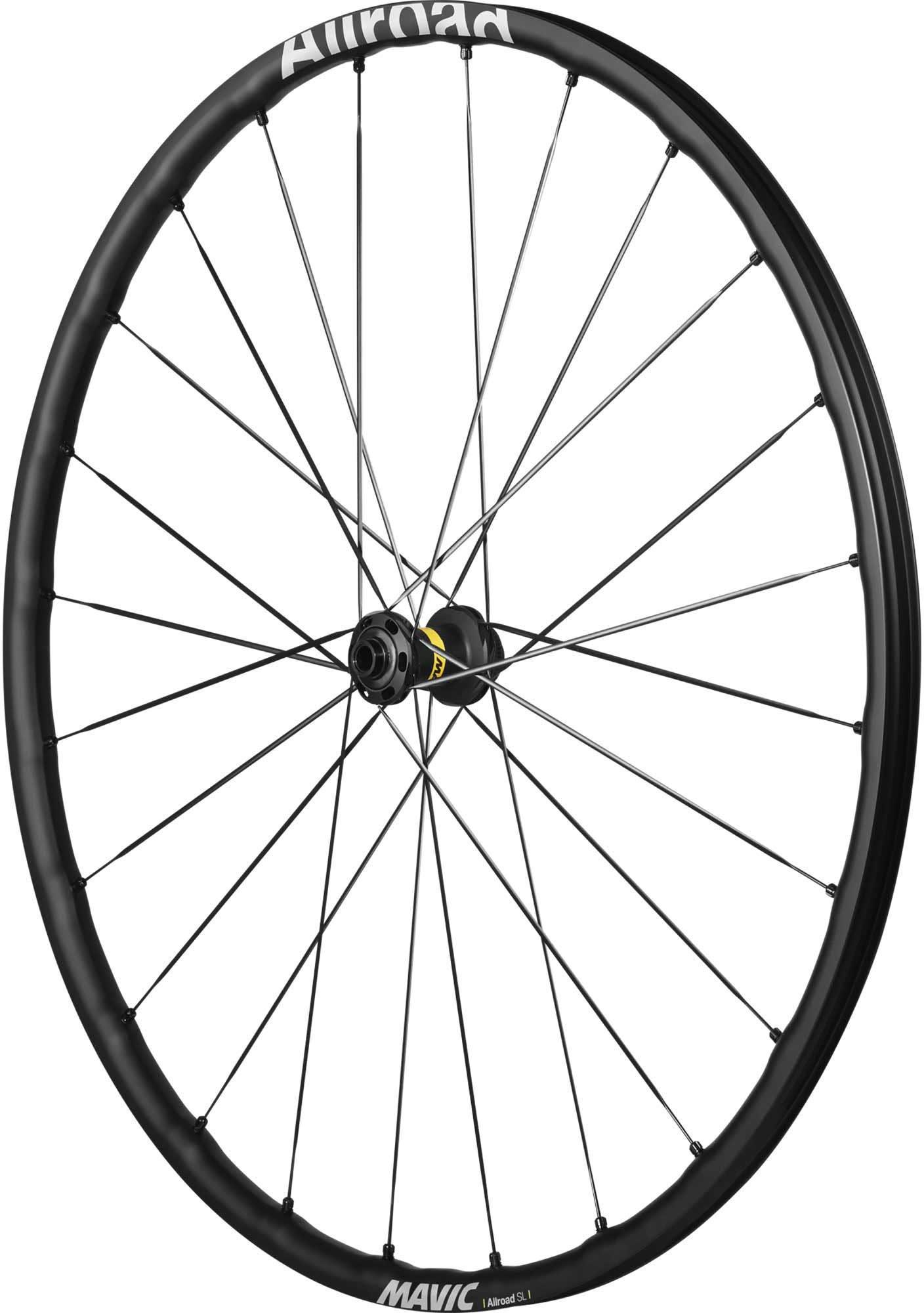

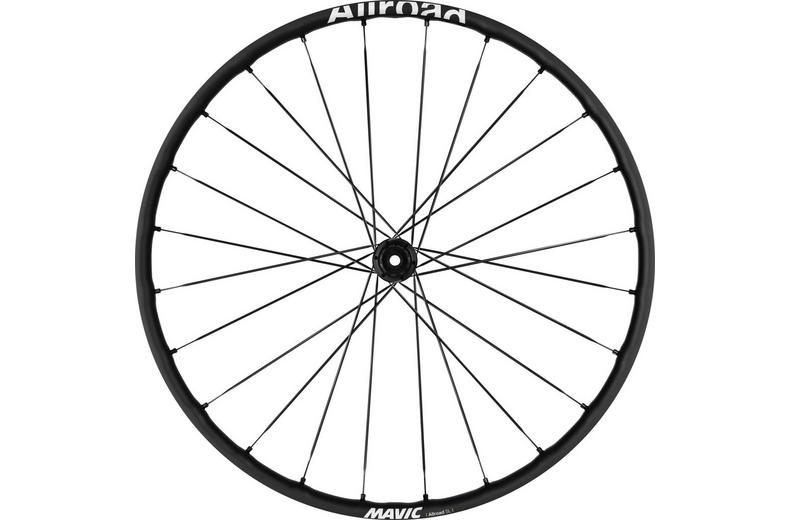

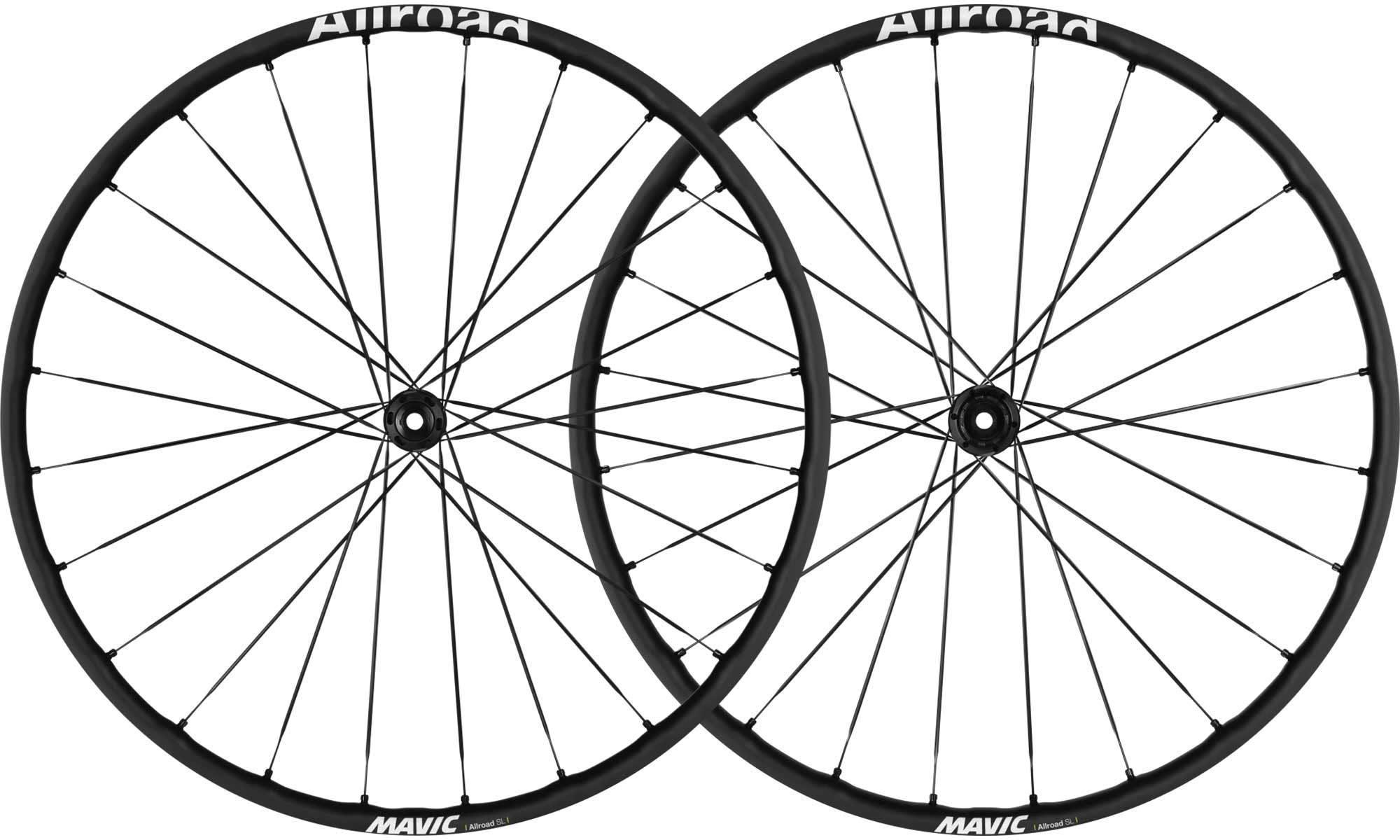

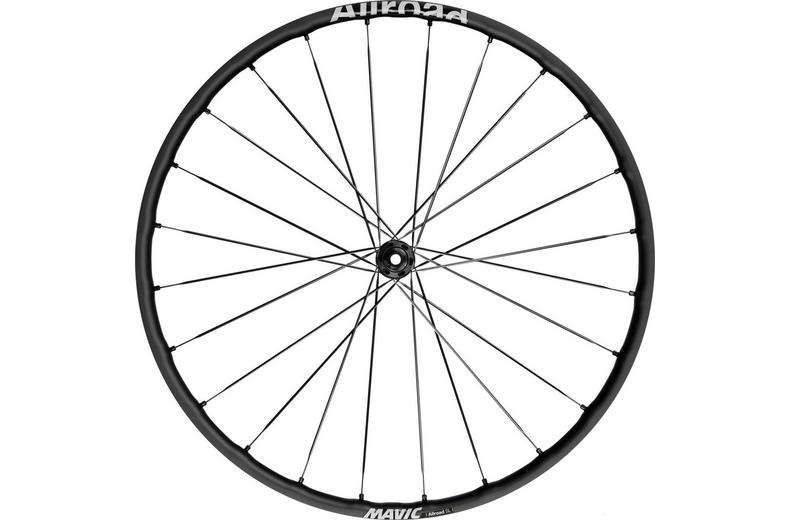

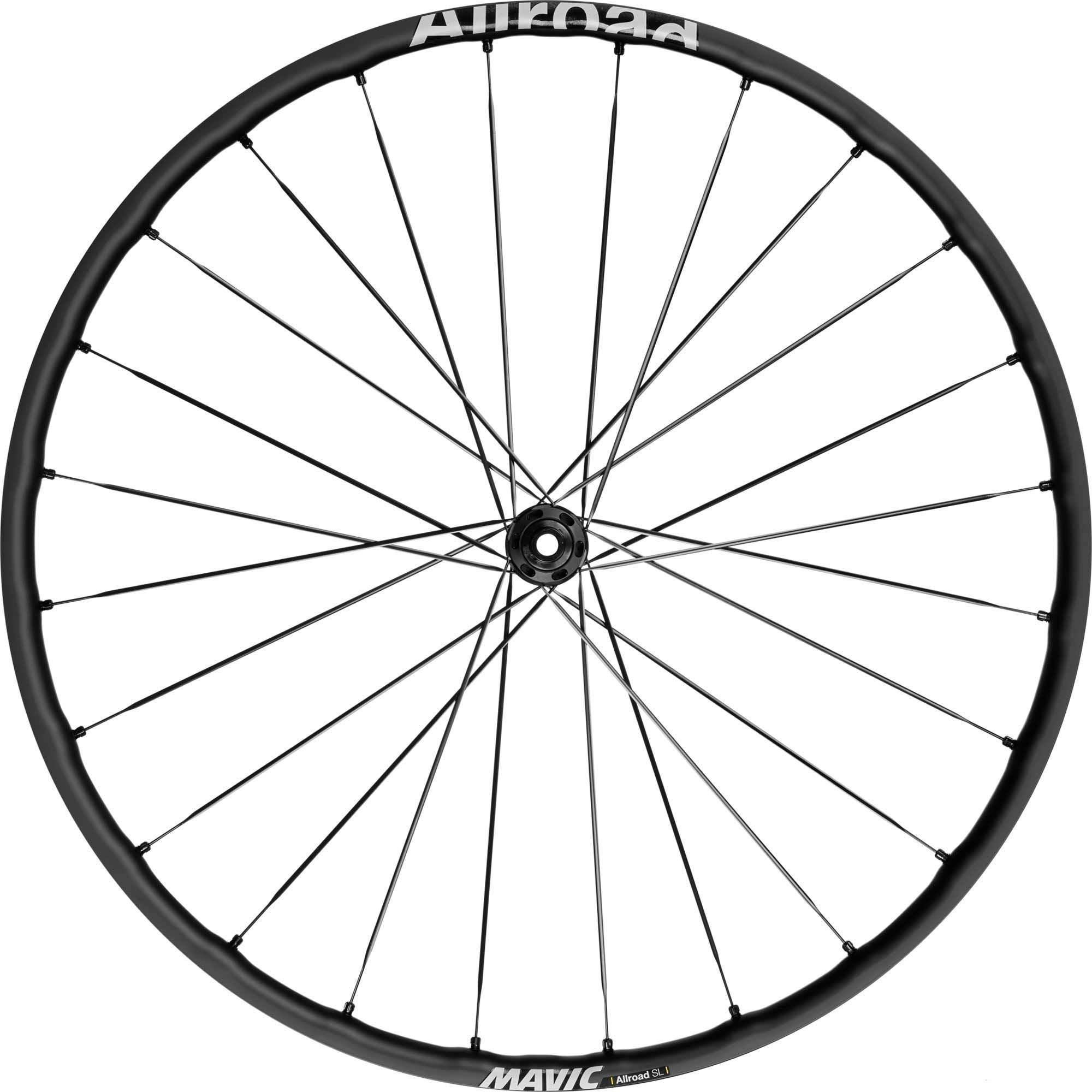

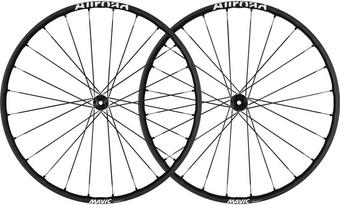

Mavic Allroad SL Disc Centre Lock Wheelset

Mavic Allroad SL Disc Centre Lock Wheelset

• 25mm wide hookless UST rims for a smooth ride with a wide range of tubeless tyres from 30mm-64mm.

• UST Road Tubeless lets you run lower tyre pressure for comfort and control on rough roads.

• No tubes mean less friction, better efficiency and grip, and pinch-flat protection.

• Patented aero spokes improves ride quality and speed.

• ISM4D rim saves weight where it matters while protecting durability.

• Black Shield rim finish offers 2 times stronger protection against rock impacts and scratches.

• Fore drilling makes the rim fully airtight without the need for a rim tape - 30g saved per wheel.

• ID360 freewheel is low and easy maintenance and automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability.

• Fore technology keeps the rim upper bridge solid to make the rim stiffer.

• Oversize axles and bearings offers greater lateral stiffness.

• ID360 freewheel technology is 12mm compatible, convertible to quick release.

• Wheelset weight: 1655g (front - 773g / rear - 882g)

The Allroad SL wheel is the pinnacle of efficiency, ride quality and speed on the roughest roads, the loosest gravel tracks and all paths that lead to them. Thanks to its 25mm wide UST hookless rims, this wheel offers a smooth ride with a wide range of matching tubeless tyres, from 30mm to 64mm.

Patented Aero spokes improve the ride quality and speed of the Allroad SL wheel, creating a dynamic, high-performance experience that's almost magical. Fore drilling makes the rim completely airtight, eliminating the need for a rim tape and saving 30g per wheel-the weight of an extra bar in your back pocket. That weight savings per revolution, not to mention the ID360 freewheel's fluidity, maximises efficiency in the long haul. While particularly lightweight, the freewheel is also easy to maintain over time thanks to the automatic bearing preload (QRM Auto). UST Road Tubeless technology allows for reduced tyre pressure, offering premium comfort and better control on the most technical surfaces, as well as reduced friction for increased efficiency and grip, plus protection against flats.

In addition to its exceptional efficiency, the Allroad SL wheel stands out for its lightness, durability and ease of use and maintenance. Using ISM4D rim technology, our engineers saved weight where it matters most, while guaranteeing an almost biblical level of durability. What's more, the Black Shield Rim finish, a combination of anodising and paint, reinforces against impacts and scratches caused by everything that committed cycling off the paved roadways can dish out.

The Allroad SL wheel will bring your daydreams to life with its ideal combination of lateral rigidity and vertical compliance, creating a sublimely dynamic ride quality. Fore technology keeps the upper bridge of the rim solid, providing increased rigidity during powerful accelerations, while oversized axles and bearings enhance lateral rigidity for improved stability in challenging terrain and harsh conditions.

The Allroad SL wheel's ID360 Freewheel technology is compatible with 12mm axles and can be converted to quick release for optimal versatility.

More than just a smooth, fast choice for rough roads, the Allroad SL is a gravel cyclist's dream come true. Indulge yourself every day with the dynamic, high-performance ride of this exceptional wheel.

Key Technology:

• Maxtal aluminium alloy: Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.

• ISM 4D light rim technology: Inter Spoke Milling 4 Dimensions is an exclusive Mavic patented concept. The ISM 4D significantly reduces weight and inertia without compromising durability. Quicker accelerations, better handling and less resistance; the right mix to make the most of any ride. The smooth profile also helps reduce aerodynamic drag.

• Fore tapeless tubeless technology: Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.

• Instant Drive 360 freewheel technology: The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

• UST tubeless technology: Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

• SUP welding technology: Stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

• Black Shield treatment: This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.

• Infinity hub design: Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

• QRM Auto bearing preload technology: The cartridge bearings are of course double sealed with C3 interna; clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

• Diameter: 700c

• Weight (pair): 1655g

• Material (rim): Maxtal

• Rim height: 22mm

• Tyre compatibility: UST Tubeless Ready

• Profile: Hookless

• Internal rim width: 25mm

• Drilling: 24 holes (front and rear)

• Brake type: Disc brake

• Material (spokes): Steel

• Nipples: brass, black

• Lacing: crossed 2 (front and rear)

• Hub material: Aluminium

• Disc standard: Centre Lock

• Freehub: Shimano/SRAM, SRAM XDR or Campagnolo

• Axle size: Front - 12x100mm; rear - 12x142mm (convertible to quick release with adapters - not included)

• Minimum tyre width and pressure: 30mm (59 PSI)

• Maximum tyre width and pressure: 64mm (36 PSI)

• Maximum supported weight: 135kg (bike weight included)

What's included with the wheelset?

• User guide

• UST tubeless valves

• 2 Multifunction adjustment wrench with the rear wheel

Compatibility:

• Shimano/SRAM option is compatible with Shimano Road 9, 10, 11 and 12 speed cassettes and SRAM splined 9, 10 and 11 speed cassettes.

• XDR option is compatible with SRAM 11,12 and 13 speed XDR cassettes only.

• Campagnolo option is compatible with 9, 10, 11 and 12 speed cassettes.

• Front wheel is configured for forks with 12x100mm thru axle spacing but can be converted to Quick Release with adapters available for purchase separately. Rear wheel is configured for frames with 12x142mm thru axle rear spacing but can be converted to Quick Release with adapters available for purchase separately.

• Centre Lock disc brake interface for compatibility with Centre Lock disc rotors.
