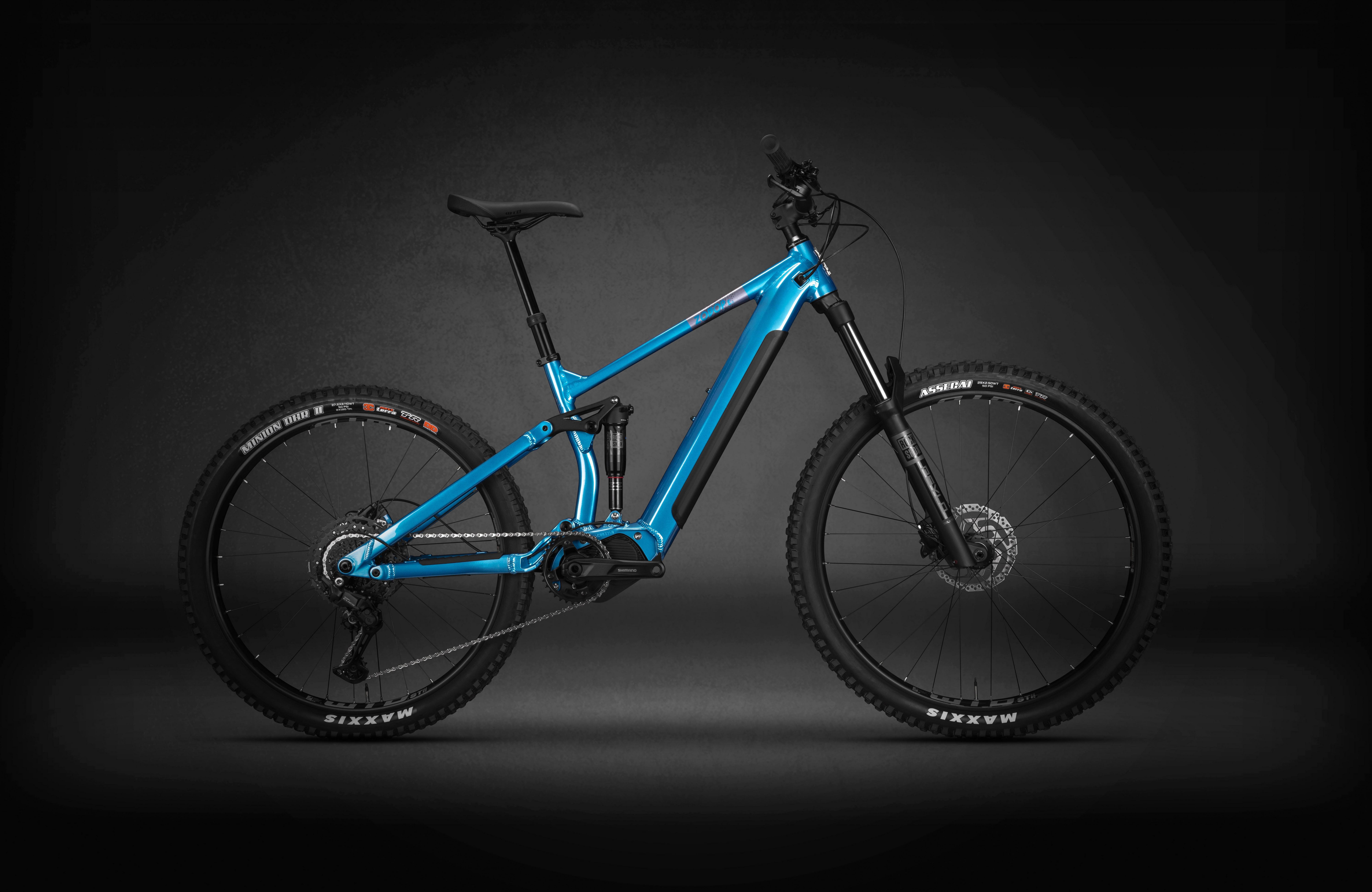

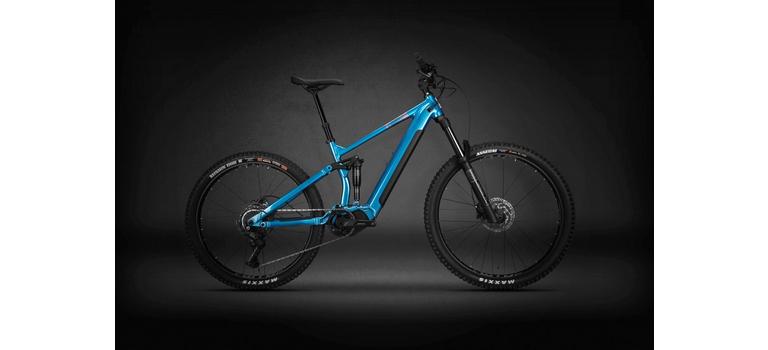

Voodoo Zobop-E Electric Mountain Bike - S, M, L, XL Frames
Payment options available
Gender | Unisex |
|---|---|
Type | Electric Mountain Bikes |
SEO Widget Short Description Text | Voodoo Zobop-E At A Glance - Motor: Shimano EP6 mid-drive, 250w 85Nm torque - Battery: Shimano 36v, 14Ah, 504Wh - Brakes: Shimano hydraulic disc brakes, 180mm rotors - Gears: Shimano CUES 10 speed groupset - Fork: RockShox Psylo Silver R with 160mm travel - Rear Shock: RockShox Deluxe Select+ - Dropper Post: X-Fusion Manic, 150mm travel - Tyres: Maxxis Assegai, 29"x2.5" (front), Maxxis DHR II, 27.5"x2.4" (rear) Electric Capability. Building on the success of the Voodoo Zobop mechanical bike, Voodoo have equipped the Zobop-E with a lightweight Shimano EP6 motor that delivers an impressive 85Nm of torque, giving you extra… |
Frame | Alloy Al-6061 T6 custom tubing, smooth welding |
Forks | RockShox Psylo Silver R, 160mm travel |
Headset | 1-1/8" - 1.5" semi-integrated, sealed cartridge (S,M) FSA No.57-HBS 200, (L,XL) |
Stem | Voodoo alloy, 45mm |
Handlebars | Voodoo alloy, 780mm x 31.8mm |
Grips | Voodoo, lock-on grips |
Seatpost | Voodoo dropper post with up to 150mm travel |
Saddle | WTB Volt saddle |
Brake Type | Disc Brakes |
Front Brake | Shimano BR-MT200, hydraulic disc brake, 180mm rotor |
Rear Brake | Shimano BR-MT200, hydraulic disc brake |
Number of Gears | 10 |
Gear Shifters | Shimano CUES SL-U6000, 10 speed |
Rear Derailleur | Shimano CUES RD-U6000, shadow plus, 11-speed |
Suspension | Full Suspension |
Chain | KMC eGlide EPT, 10 speed |
Chainset | Shimano FC-EM600 160mm crank arm, Shimano SM-CRE70-B 34T chain ring |
Cassette/Freewheel | Shimano CUES CS-LG300, 11-48T, 10 speed |
Bottom Bracket | Integrated with drive unit |
Front Wheel | WTB alloy 29", double wall, tubeless ready, 15mm thru-axle |
Rear Wheel | WTB alloy 27.5", double wall, 32H, tubeless ready, 12mm thru-axle |
Tyres | Maxxis Assegai, 3C MaxxTerra, 29"x2.5" (front) Maxxis DHR II, 3C MaxxTerra, 27.5"x2.4" (rear) |
Mudguard Mounts | Yes |
Pannier Mounts | No |
Built In Kickstand | No |
Approximate Weight (KG) | 25Kg |
Motor | Shimano EP6, mid drive motor, 85Nm |
Battery | Shimano, 504Wh, 14Ah |
Battery warranty | 2 Years |
Removable Battery | Yes |
Battery Charger | Manufacturer Supplied |
Recharge time | Up to 7 hours |
Maximum Range | 60 miles |
Maximum Speed | Assistance to 15.5mph |
Maximum Rider Weight | 120Kg |
Display | Shimano SC-EN500 LCD Display, 3 assistance modes |
Sensor type | Torque Sensor |
Wheel Size | 29" |
SKU | 328915 |
