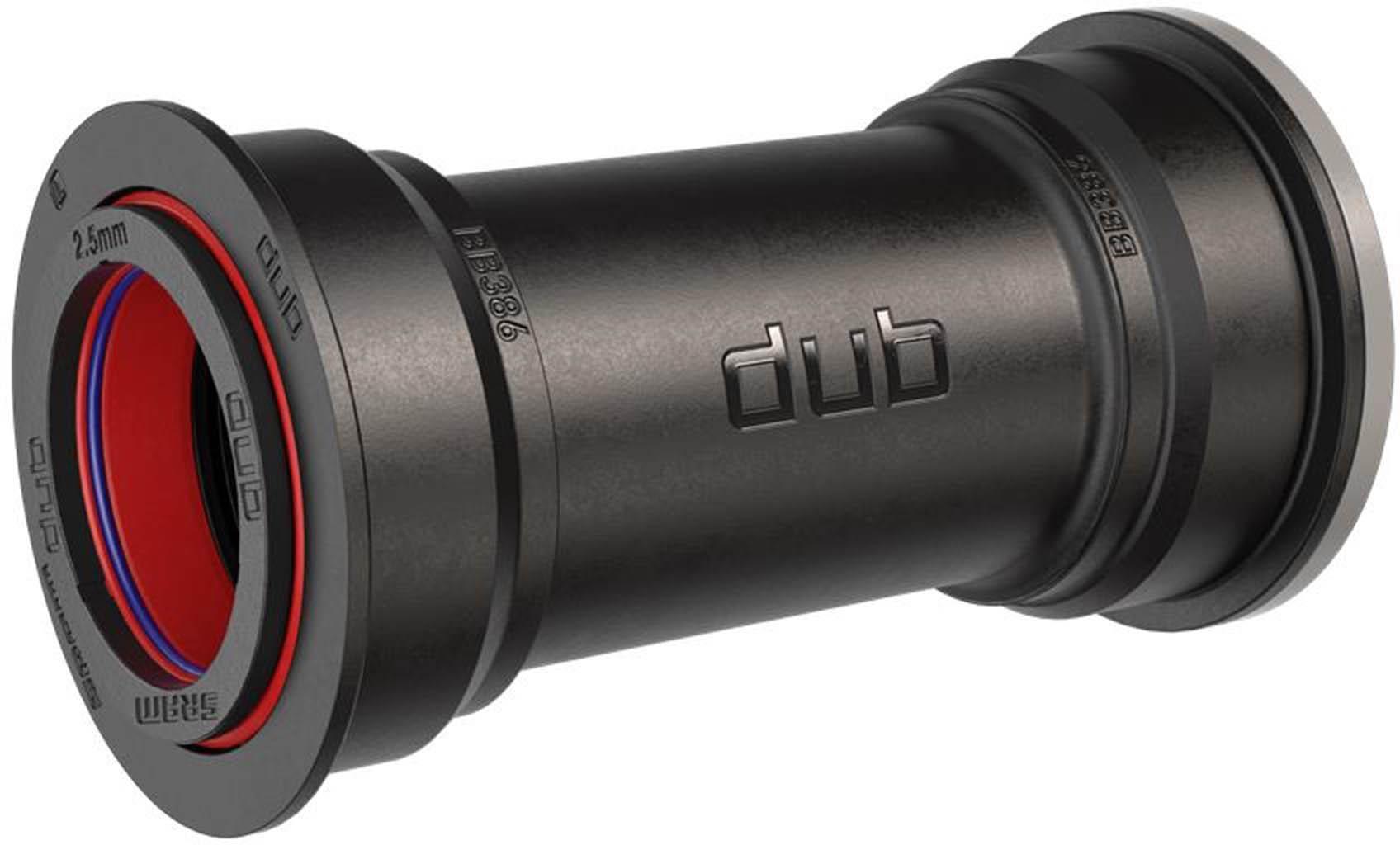

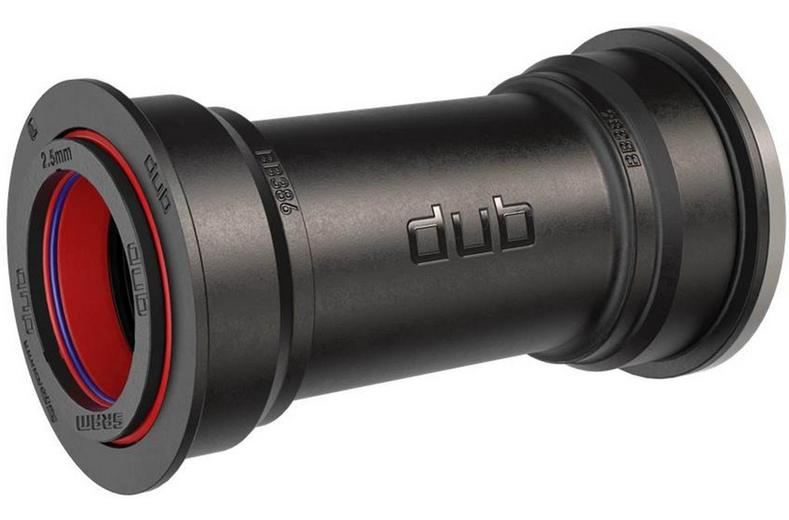

SRAM DUB BB386 Road Bottom Bracket 86.5mm

SRAM DUB BB386 Road Bottom Bracket 86.5mm

• One oversized spindle to work across every bottom bracket specification.

• Easy installation.

• PressFit cups for lighter weight.

• Sealed cartridge steel bearings.

The SRAM DUB bottom bracket series has a simple job—connect your crankarms and protect the smooth, long-lasting application of power to your drivetrain. To allow that singular focus, we've engineered the DUB spindle to be the one true unifying component. One oversized spindle to work across every bottom bracket specification. For better crankarm compatibility. For better protection from the elements. For longer-lasting performance. To be stronger, smoother, simpler. Now, back to the ride.

The SRAM DUB BB386 bottom bracket is compatible with bike frames that have a frame shell inner diameter of 46mm and a frame shell width of 86.5mm. Will fit SRAM DUB Road cranksets.

Technical specification:

• Bottom bracket-frame interface: BB386 (86.5mm)

• Crank-bottom bracket interface: DUB

• Frame shell inside diameter (I.D.): 46mm

• Frame shell width: 86.5mm

• Bearing type: Steel

• Spindle diameter: DUB

• Cup material: Aluminium

SRAM part code: 00.6418.026.000
