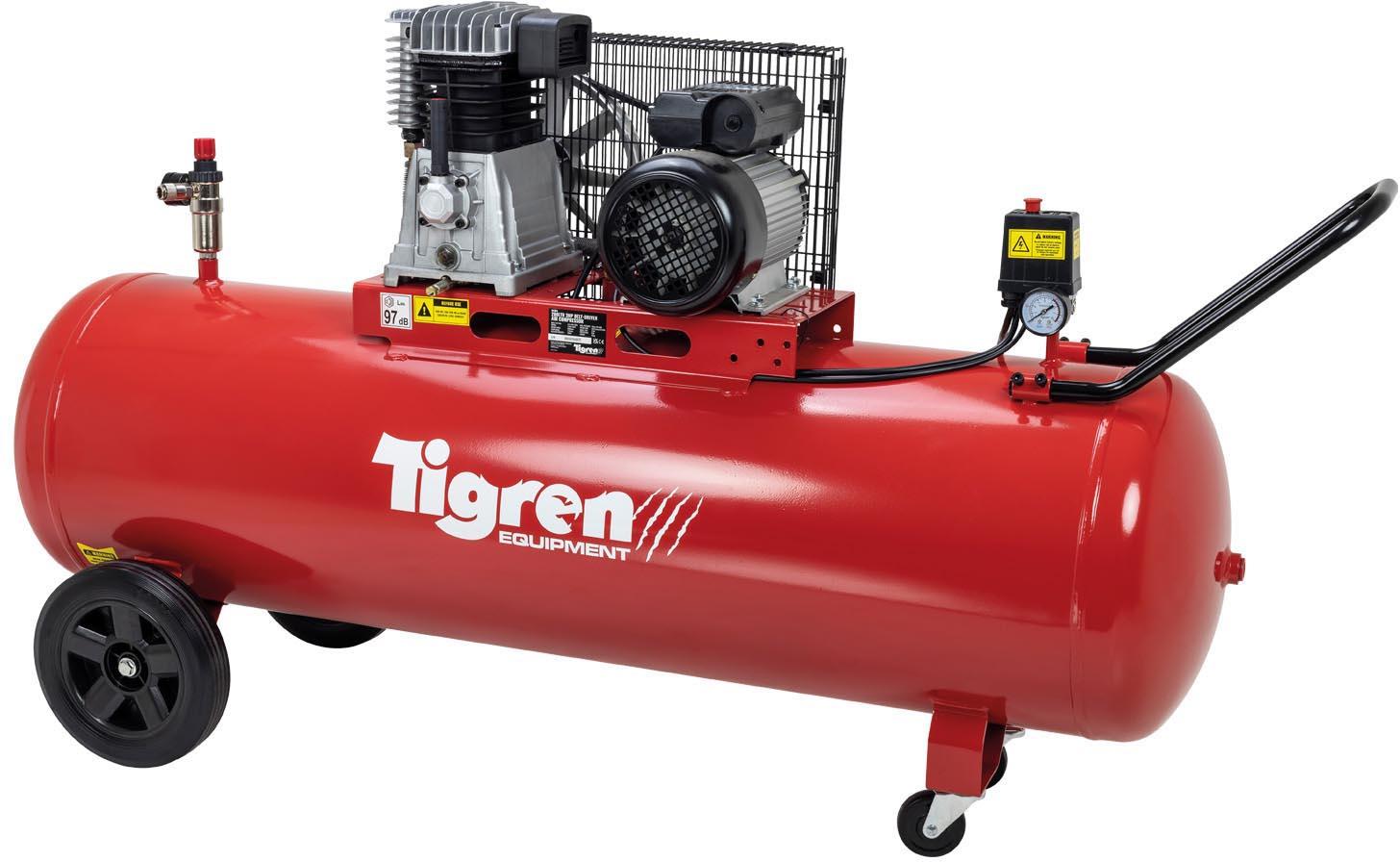

Tigren 200ltr 3hp Belt-Driven Compressor

Tigren 200ltr 3hp Belt-Driven Compressor

The Tigren 200L 3hp Belt-Driven Compressor delivers performance and mobility to small and medium-sized workshops. This solution is ideal for demanding and busy work areas and is particularly suited to automotive and agriculture applications.

Through robust design and professional construction, reliability and long lifespan is assured. Fitted with durable components including a twin-cylinder splash oil-lubricated pump and heavy-duty brushless induction motor, compressed air is delivered for a variety of workshop uses. Also fitted with a 13A plug and wheel kit for flexibility.Applications and uses: Workshop air tools, paint spraying and tyre maintenance.

• Belt-driven transmission: Delivers positive transmission drive for proven and reliable everyday use.

• 200ltr air receiver: Stores high air volume within a compact space-saving design.

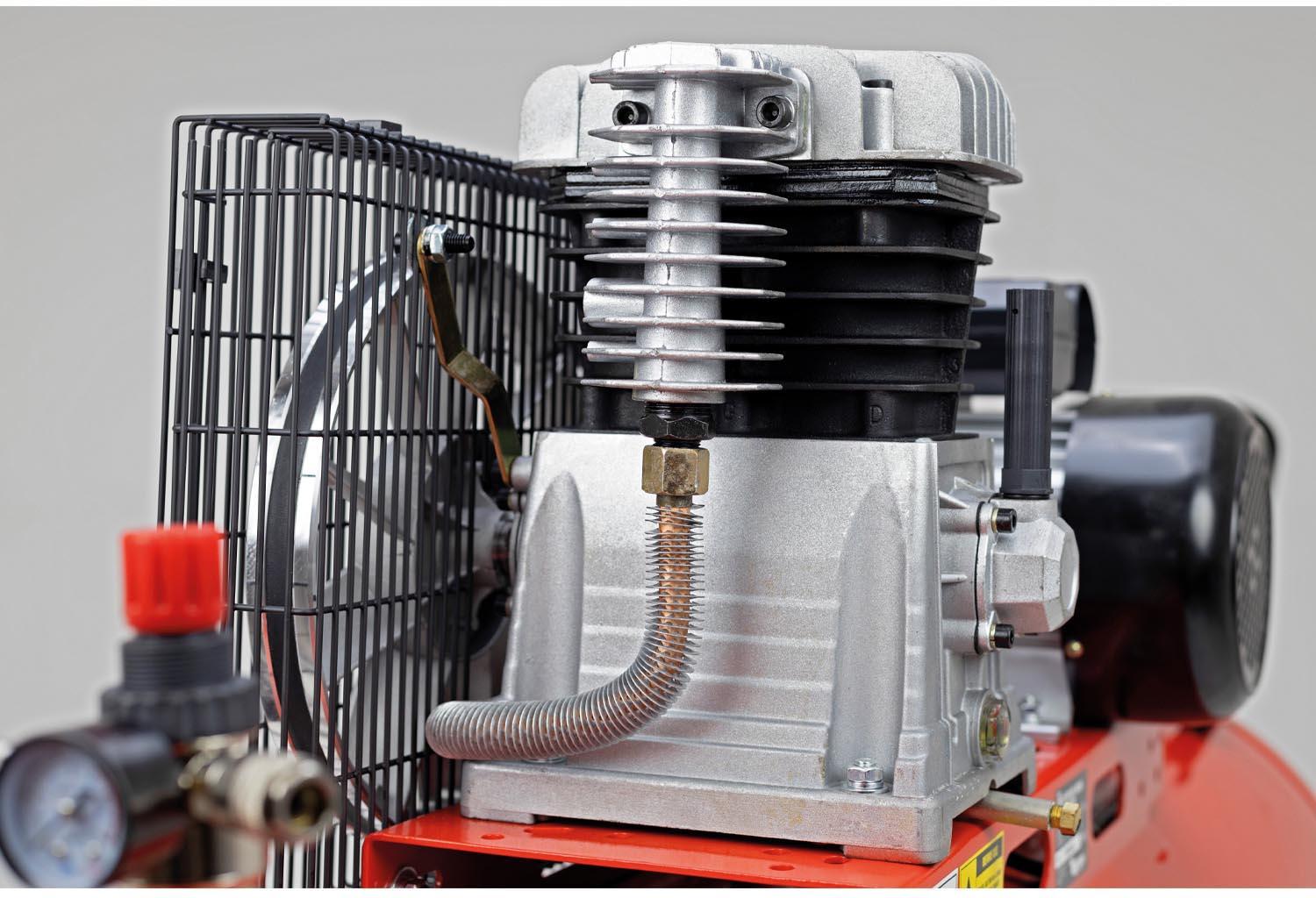

• Twin-cylinder splash oil-lubricated pump: Designed to maximise the volume or air, this durable component supports increased production as the air receiver fills faster for the task at hand.

• Heavy-duty 3hp brushless induction motor: Enables the compressor to meet its full capability and support the demanding lifespan of the product.

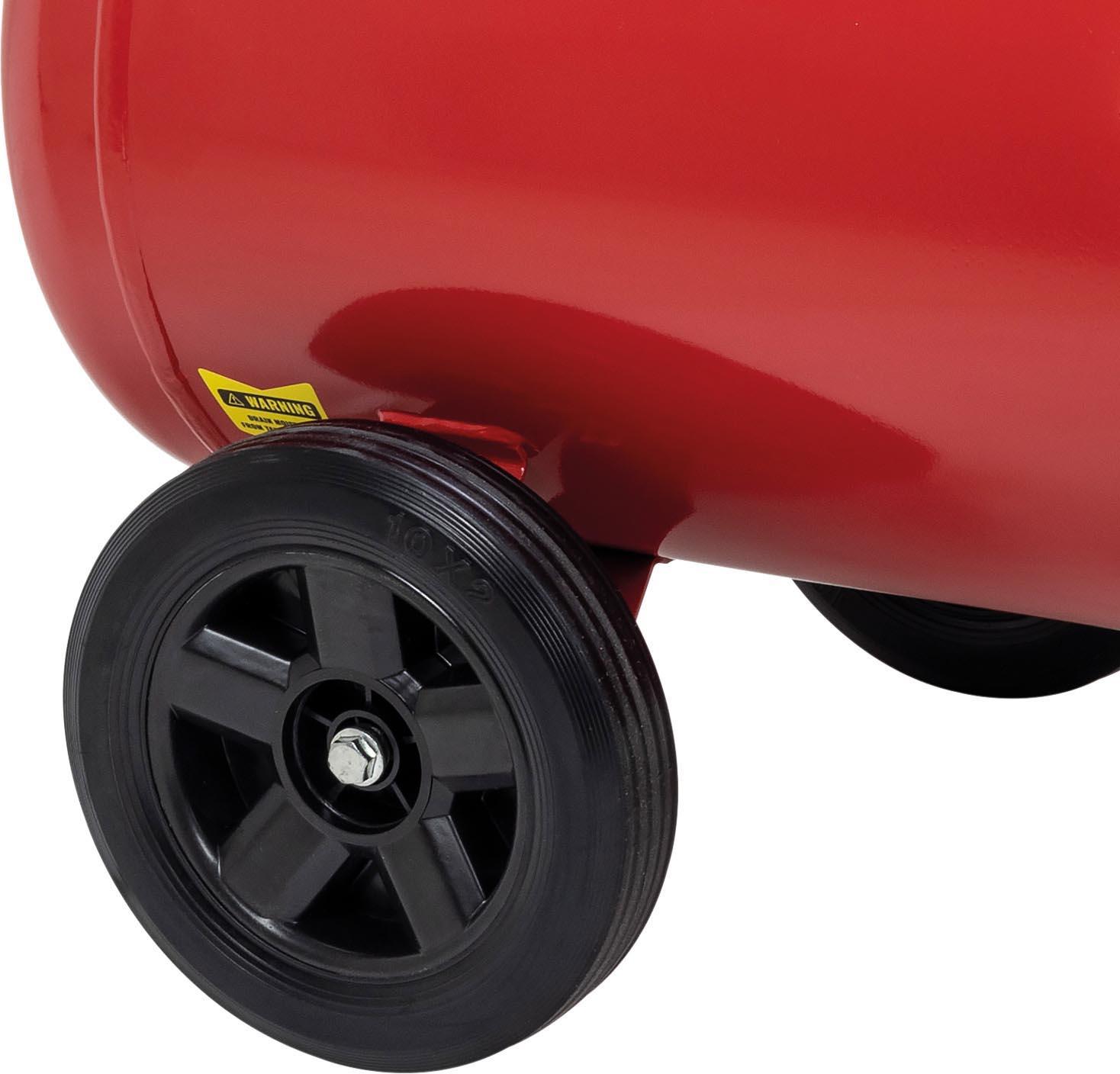

• Wheel-mounted: Improves mobility to support use throughout the workshop.

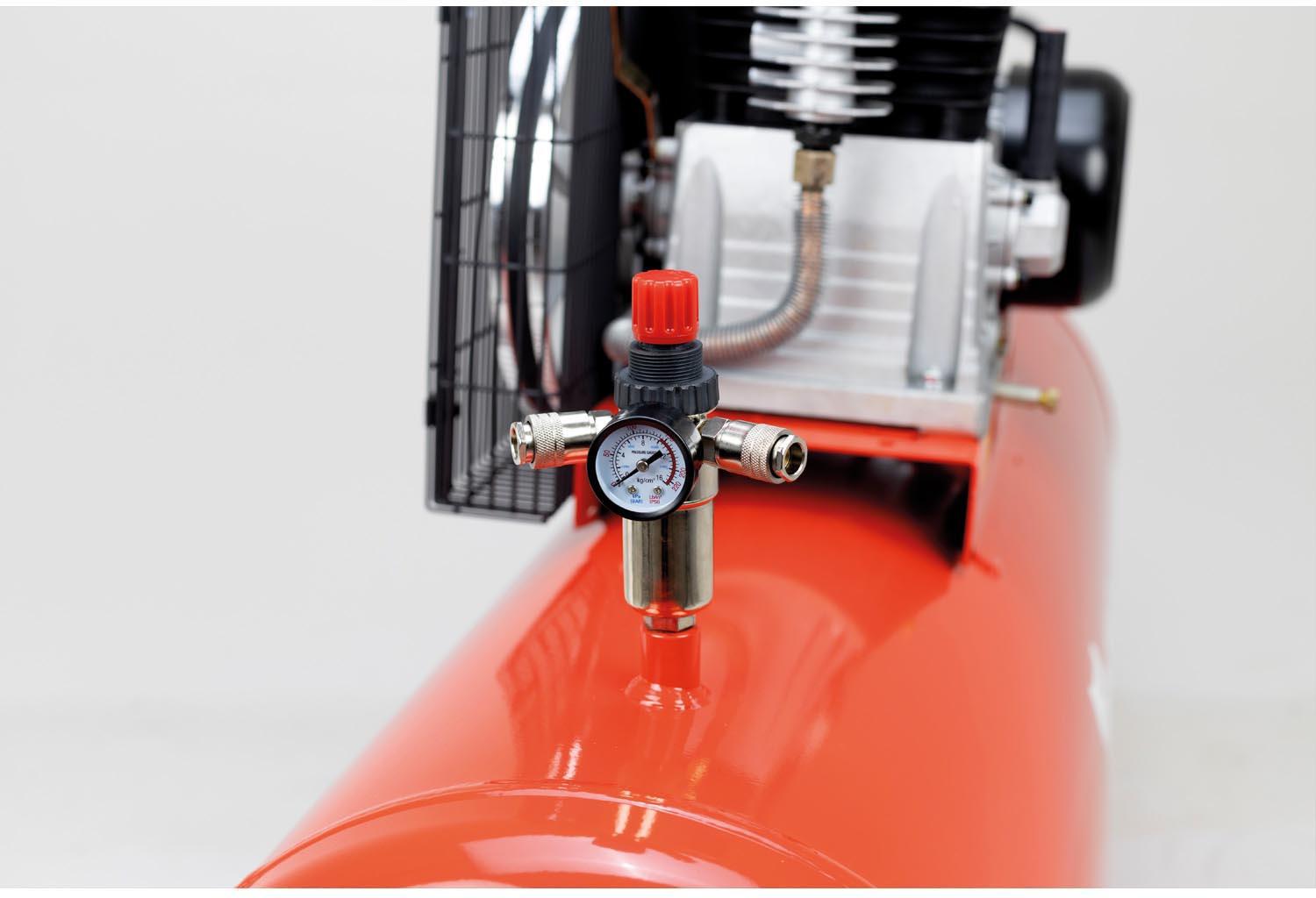

• Adjustable air regulator: Optimises the working pressure for effective operation and application use.ITEM NO. 04394

• Input Voltage: 230v (13A)

• Motor Power: 3hp (2.2kW)

• Receiver Size: 200ltr

• Max. Air Pressure: 150psi (10bar)

• Pump Speed: 1100rpm

• Piston Displacement: 14CFM (400ltr/min)

• Free Air Delivery (FAD): 10CFM (285ltr/min)

• Isolation Class: Class F

• Protection Type: IP54

• Motor Efficiency: 80%

• Noise Level: 97dB
