Teng Torque Wrench 5-25Nm
Payment options available
Teng Torque Wrench 5-25Nm

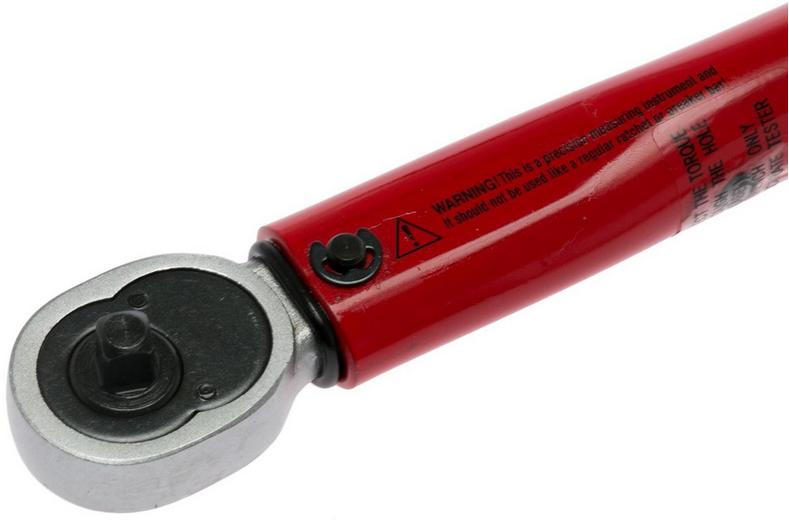

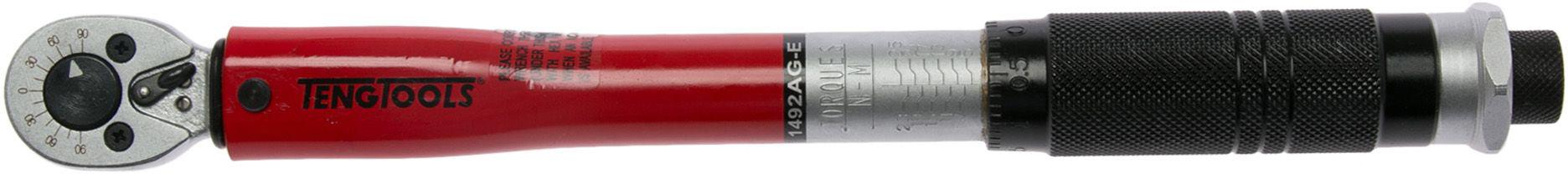

This Teng Tools torque wrench is manufactured according to DIN 3122 standards. With a ratchet head, the torque wrench can be used for both tightening and final checking of the torque. It is reversible with its lever but only for right hand action when torque checking. The wrench is equipped with an angular gauge for after tightening. It is graduated in both Nm and ft.lb, and has a degree scale for after tightening of cylinder heads.
The ratchet head has a satin finish and, for comfort and excellent grip, the wrench has a rubber handle.
Specifications:
Accuracy: ± 4%.
Torque range: 5 to 25Nm / 4 to 18 ft.lb.
Length : 277mm.
Material | Not specified |
|---|---|
Type | Torque Wrenches |
primary colour | Red |
Colour | RED |
Box Contents | 1x Teng Tools 1492AG-E 1/4" Drive Torque Wrench 5-25Nm; protective storage case |
Range | 25 |
No. of Teeth | 24 |
Fastenings | Bolts, nuts and fasteners requiring torque tightening to 5-25Nm |
Drive Type | Square Drive |
Metric or Imperial | Both |
Finish | Satin |
Drive | 1/4" |
No. of Pieces in a Pack | 1 |
Suitable For | Automotive work, precision mechanical tasks, cylinder head tightening, smaller assembly jobs requiring lower torque values (5-25Nm) |
Dimensions | 277mm (length) x 27.6mm (width) |
Socket Size | 0.25 |
SKU | 636142 |
