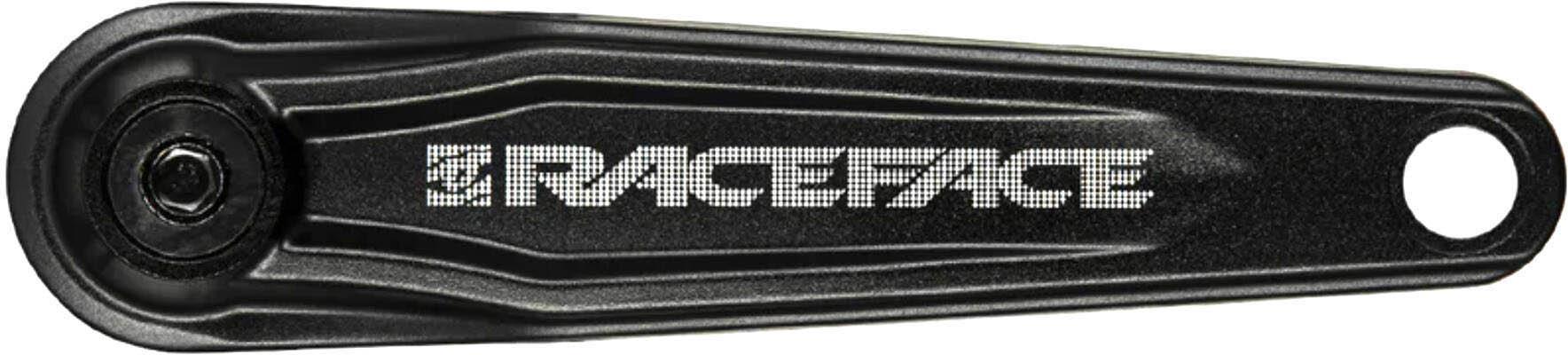

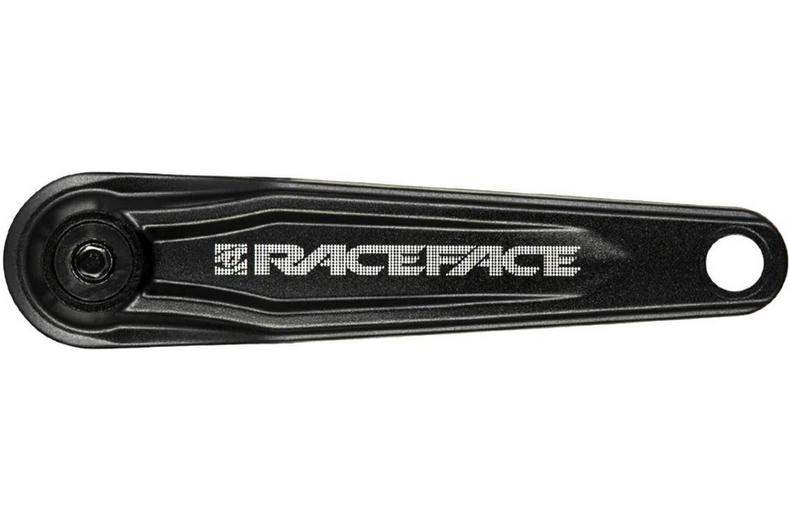

Race Face Ride Cranks

Race Face Ride Cranks

Features and Benefits:

• CINCH system compatibilty

• 24mm EXI interface for easier crank installation

• Forged from 6066 aluminum with aggressive styling for a high strength to weight ratio

• Lightweight, forged and CNC machined CrMo steel EXI spindle

• CINCH DM Alloy or Steel rings available

With the Ride Crankset, the name says it all. No over-the-top tech, no stoke-shriveling price point, just rock-solid construction and user-friendly versatility that lets you get out and ride, as hard and as often, as you want.

Forged 6066 aluminum and a cro-mo spindle give this crankset the strength to go full send on the trail without worrying about a breakdown.

CINCH System is next level universal. This crankset will work with any drivetrain you have now as well as any drivetrain you may ever own.

The way you flow, the way you curve, the way you lay down your line-it's all about style. And the Ride has plenty of it with its elegant crankarm styling.

Technical specifications:

• Chainline: 51mm - 137 Spindle, 77mm - 190 Spindle

• Crank arm lengths: 170mm, 175mm

• Includes: Pedal Washers (Chain Rings and Bottom Brackets sold separately)

• Axle Material: Steel

• Crank Arm Material : 6066 Aluminum

• Spindle Diameter: 24mm

• Spindle length: 137mm, 190mm

• Weight: 714g (Weight based on 170mm crank arms with 32T chainring)

*137mm spindle (51mm chainline) is suitable for mountain bikes with boost rear frame spacing; 190mm spindle (77mm chainline) is designed for fat bikes.

If you are currently running a Shimano crankset, it's likley that you will be running a 24mm Hollowtech bottom bracket, the Race Face Ride cranks use a 24mm spindle, so they will slide right into that bottom bracket. If you are currently running a SRAM DUB or SRAM GXP crankset, the Ride cranks will NOT fit and you will need to change your bottom bracket. Race Face manufactures 3 bottom brackets to accomdate a 24mm spindle, this includes the PF30 24mm, Team BSA 24mm or BB92 24mm.
