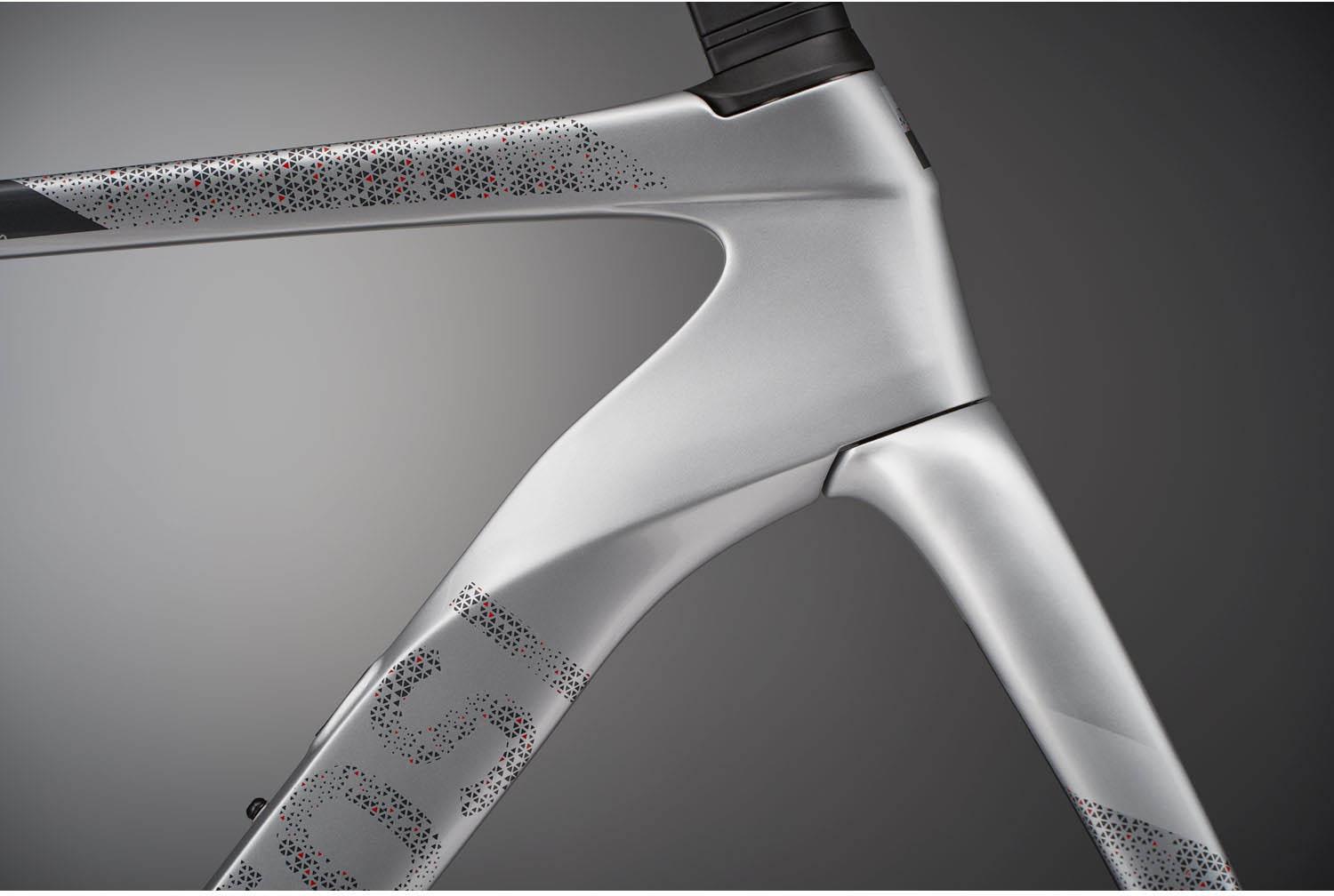

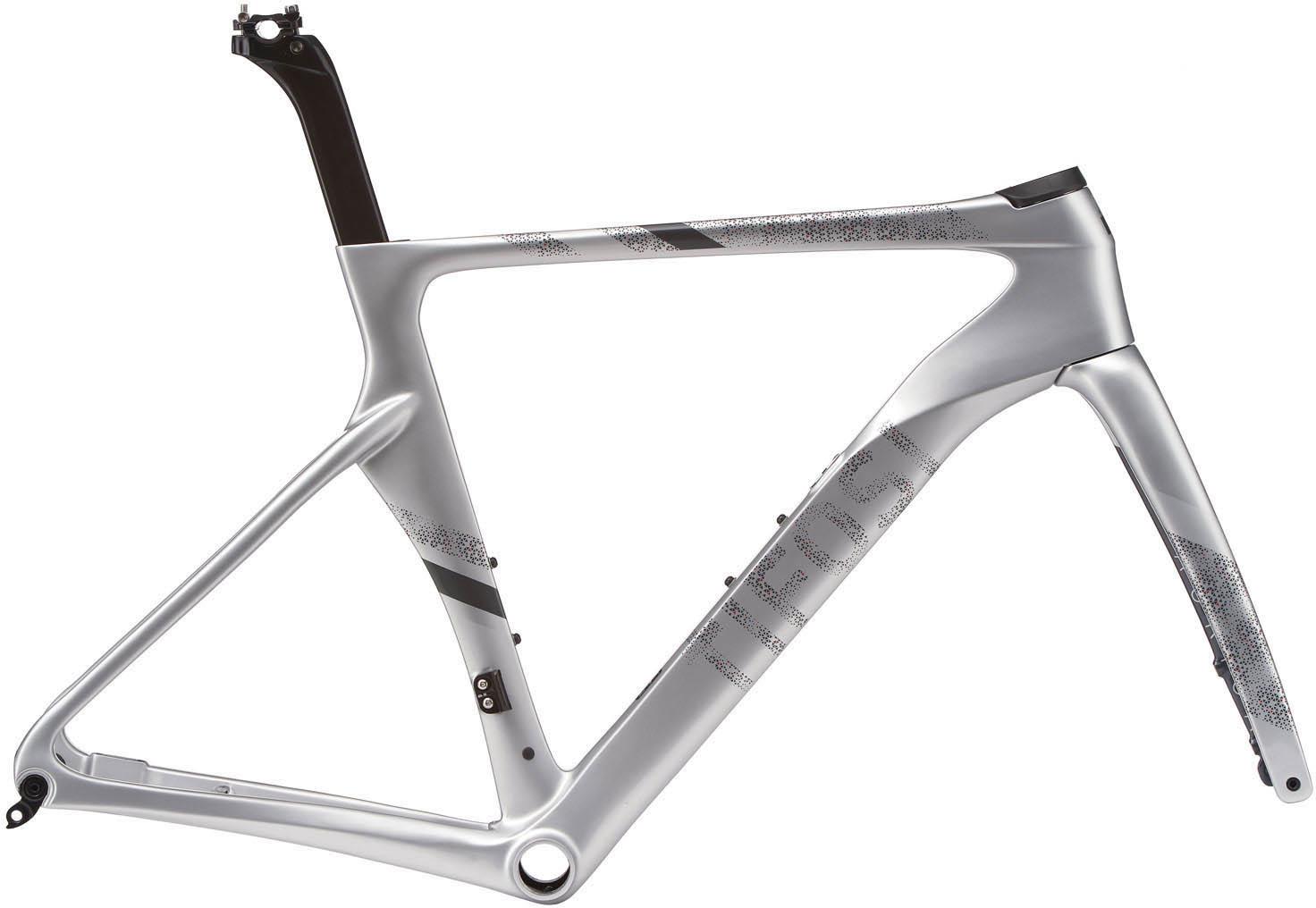

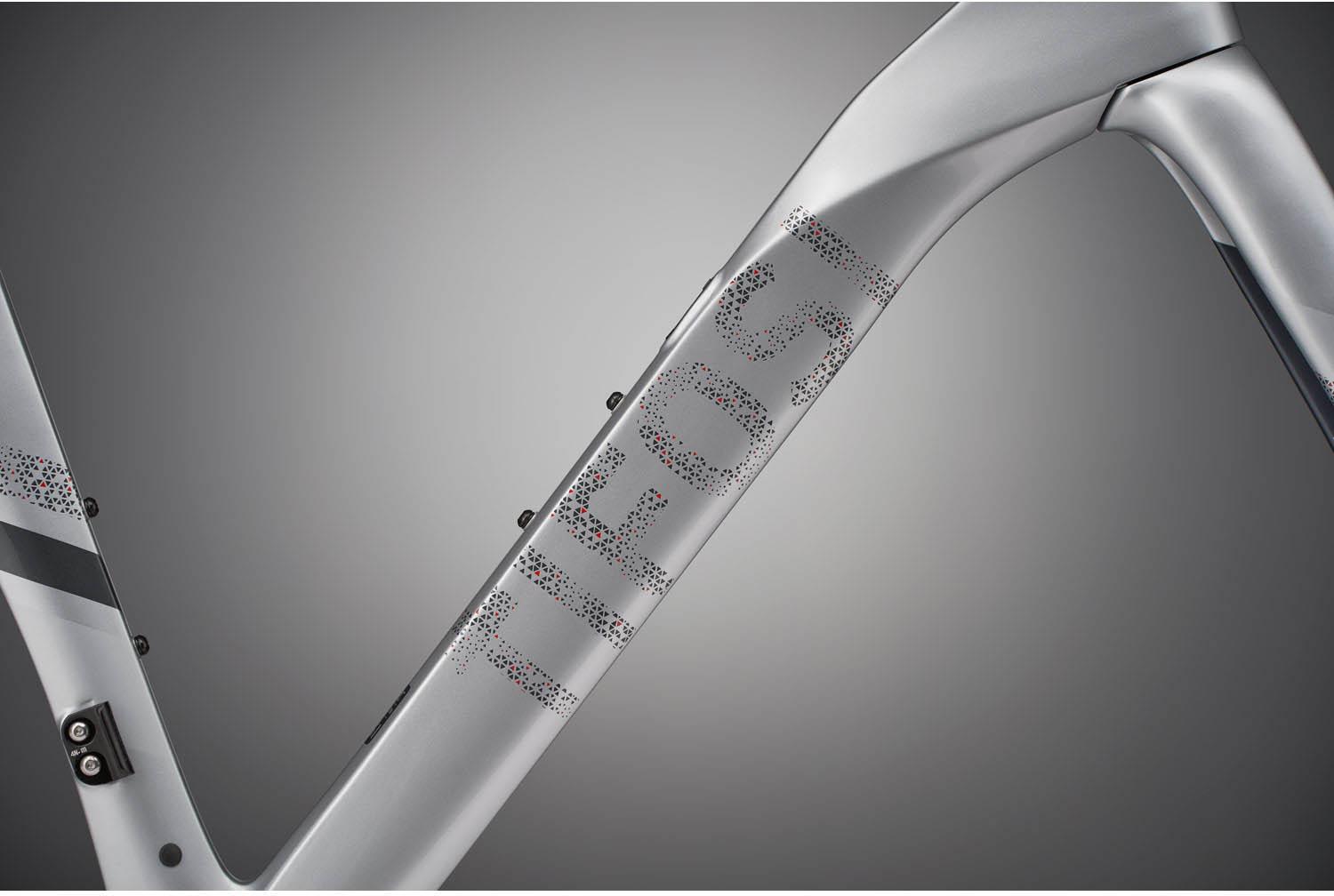

Tifosi Auriga Disc Silver Carbon Road Frameset

HIGHLIGHTS:

"End-to-end" full internal cable routing
Full carbon frameset with aero credentials
Compatible with mechanical & electronic groupsets
Designed using Computational Fluid Dynamics
Truncated foil design improves aerodynamic efficiency in real world conditions
Designed in the UK

To further advance the Auriga's racing design Tifosi has been working with professional race teams to make the Auriga frameset faster than ever...
This, the third generation of multi race winning frame, has fully integrated internal cable routing, capable of running internally from shifter to derailleur. It is quick in the sprints but also comfortable enough for the challenging terrain of UK road racing.

The frame uses Toray T800 carbon to add stiffness and T700 to allow flexibility in key areas, giving comfort where needed. Designed using CFD aerodynamics (Computational Fluid Dynamics) not just wind tunnel testing, the latest research has shown the truncated foil design allows air to move around the frame from any angle as efficiently as possible. This means aerodynamics in real world situations, not just in wind tunnels.

The rear stays have been redesigned for additional comfort and improved braking, allowing clearance for up to 28mm tyres. Disc brakes use the flat mount standard for hydraulic or mechanical calipers and thru-axles keep everything stiff and secure.

TECHNICAL SPECIFICATIONS:

Sizes: S, M, L, XL
Frame: UD Toray T700 and T800 Carbon
Fork: UD Carbon with ACR internal routing
Seatpost: Tifosi Carbon (included)
Frame weight: 1220g
Fork weight: 440g
Colour: Silver
Max tyre clearance: 700x28c
Fitting: Mechanical or electronic groupsets
Brakes: Disc brakes, flat mount standard
Bottom bracket shell: 86.5x41mm (BB86)
Headset: Tifosi ACR Headset 1-1/8-1/2 45deg 52mm

What's in the box?

Frame
Fork
Aero seatpost
Seat clamp
Mech hanger

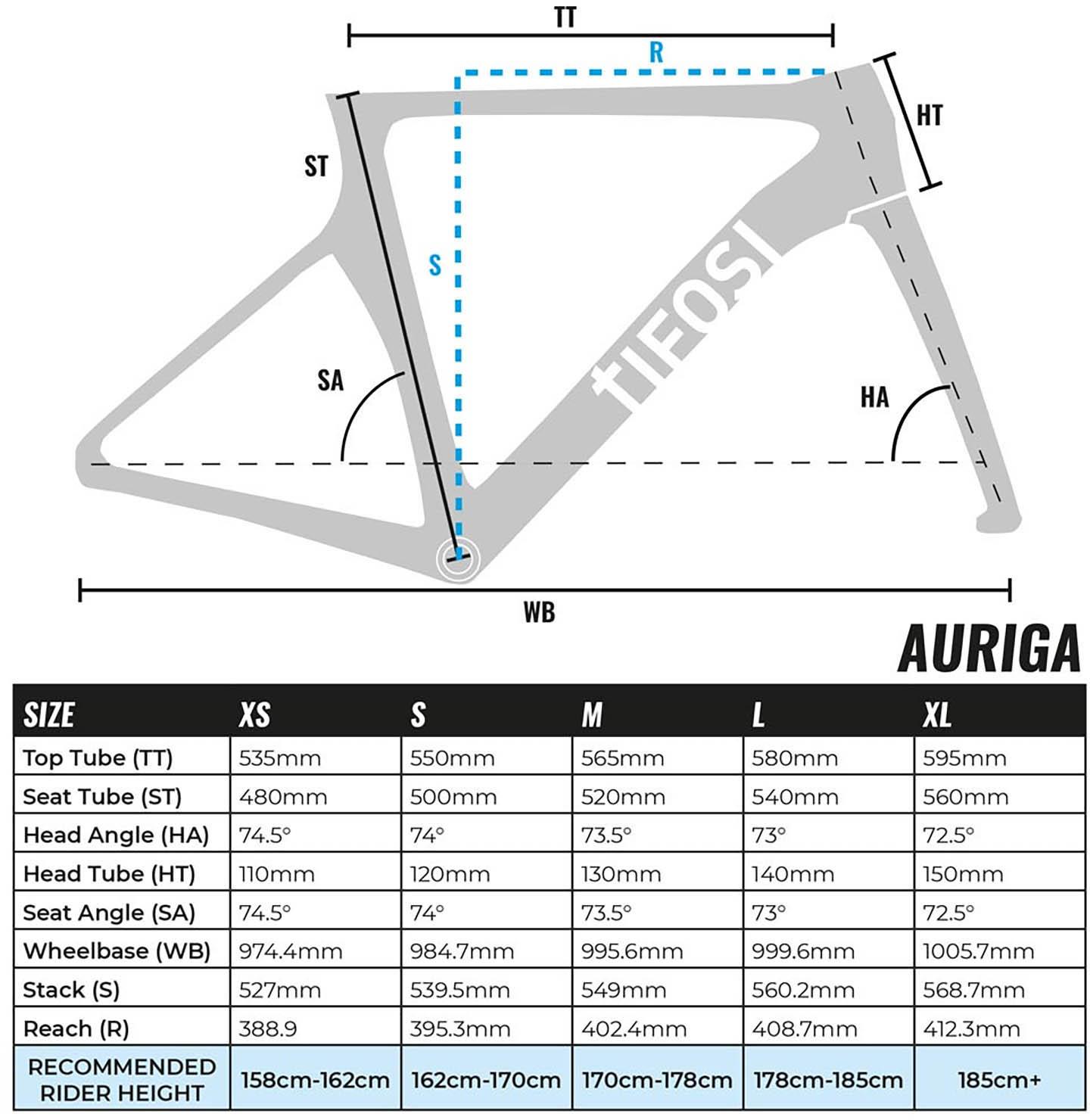

*Please see images for sizing and geometry information.
