Park Tool BBT-RS Bottom Bracket Tool Retaining System

Park Tool BBT-RS Bottom Bracket Tool Retaining System

• The BBT-RS uses a spring-based tension system to apply consistent, adjustable pressure to the tool, ensuring full engagement with the tool fitting and preventing slippage

• The BBT-RS can be configured for use with the vast majority of threaded and thread-together bottom bracket standards and features an M8 threaded rod and a double-sided adapter nut with M12 and M15 threads, allowing it to thread directly into any compatible cartridge bottom bracket

• The M15 adapter can also be used to install any of Park Tool's nine aluminium bottom bracket tools, all of which feature integrated threading for use with the BBT-RS

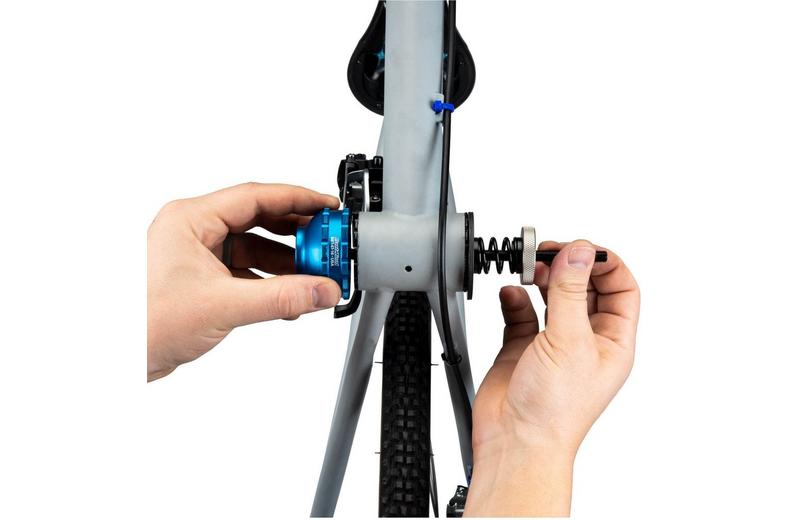

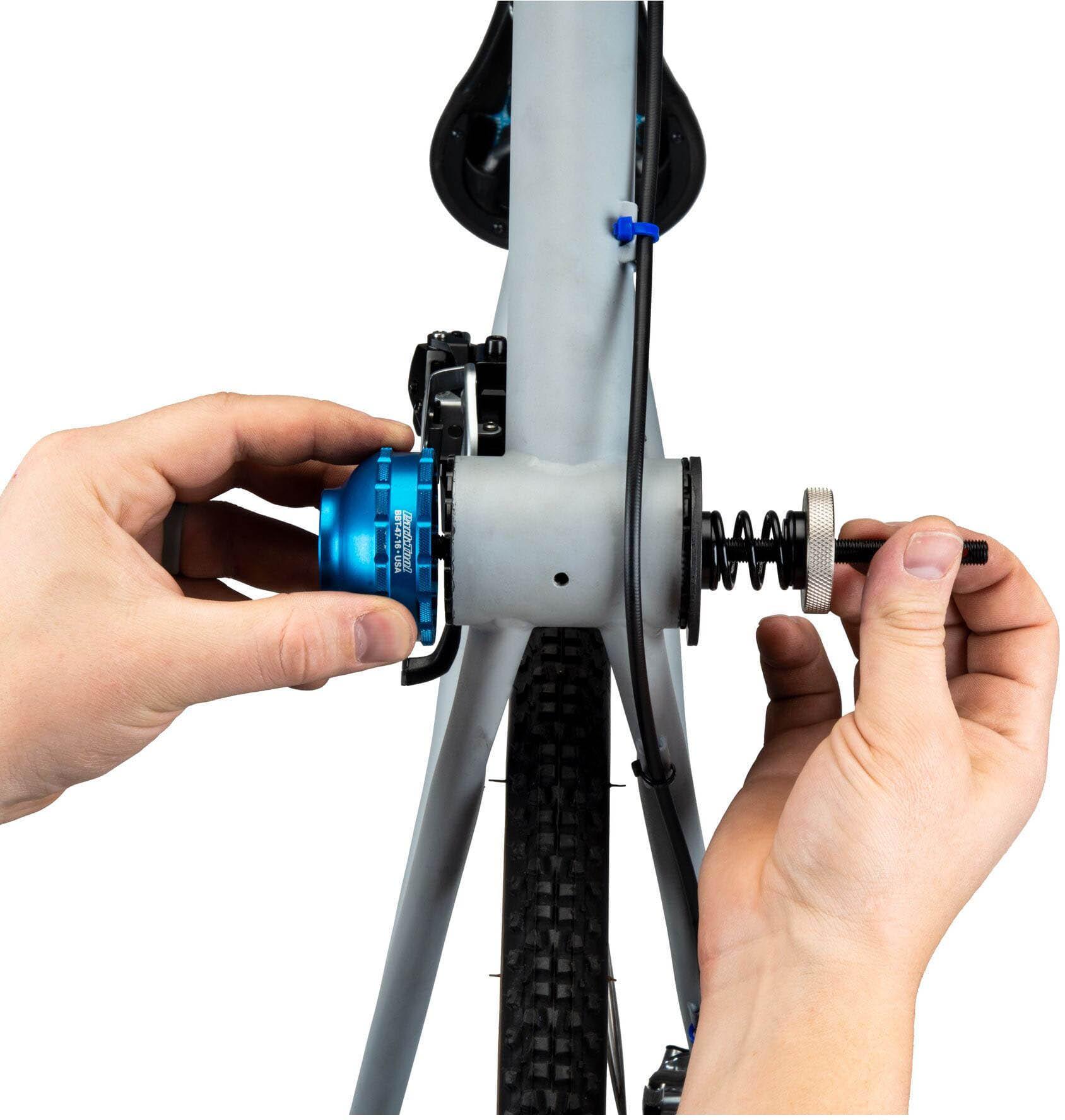

Bottom brackets have some of the highest torque specs of any component found on a bicycle. Despite this, some bottom bracket cups feature tool fittings that allow mere millimeters of engagement, which can be a problem when attempting removal or installation. Solution: the Park Tool Bottom Bracket Tool Retaining System. Used in conjunction with nearly any Park Tool bottom bracket tool, the BBT-RS uses a spring-based tension system to apply consistent, adjustable pressure to the tool, ensuring full engagement with the tool fitting and preventing slippage.

Features:

• Compatible with the following bottom bracket styles:

• Threaded cup

• Thread-together

• Cartridge

• Cup-and-cone

Compatible with the following bottom bracket tools:

• BBT-27.3

• BBT-35-12

• BBT-35-36

• BBT-47-12

• BBT-47-16

• BBT-49.3

• BBT-59.3

• BBT-69.3

• BBT-69.4

• BBT-79.3

• Wrench-style bottom bracket tools with a handle (e.g. Park Tool BBT-9, BBT-29, HCW-4)

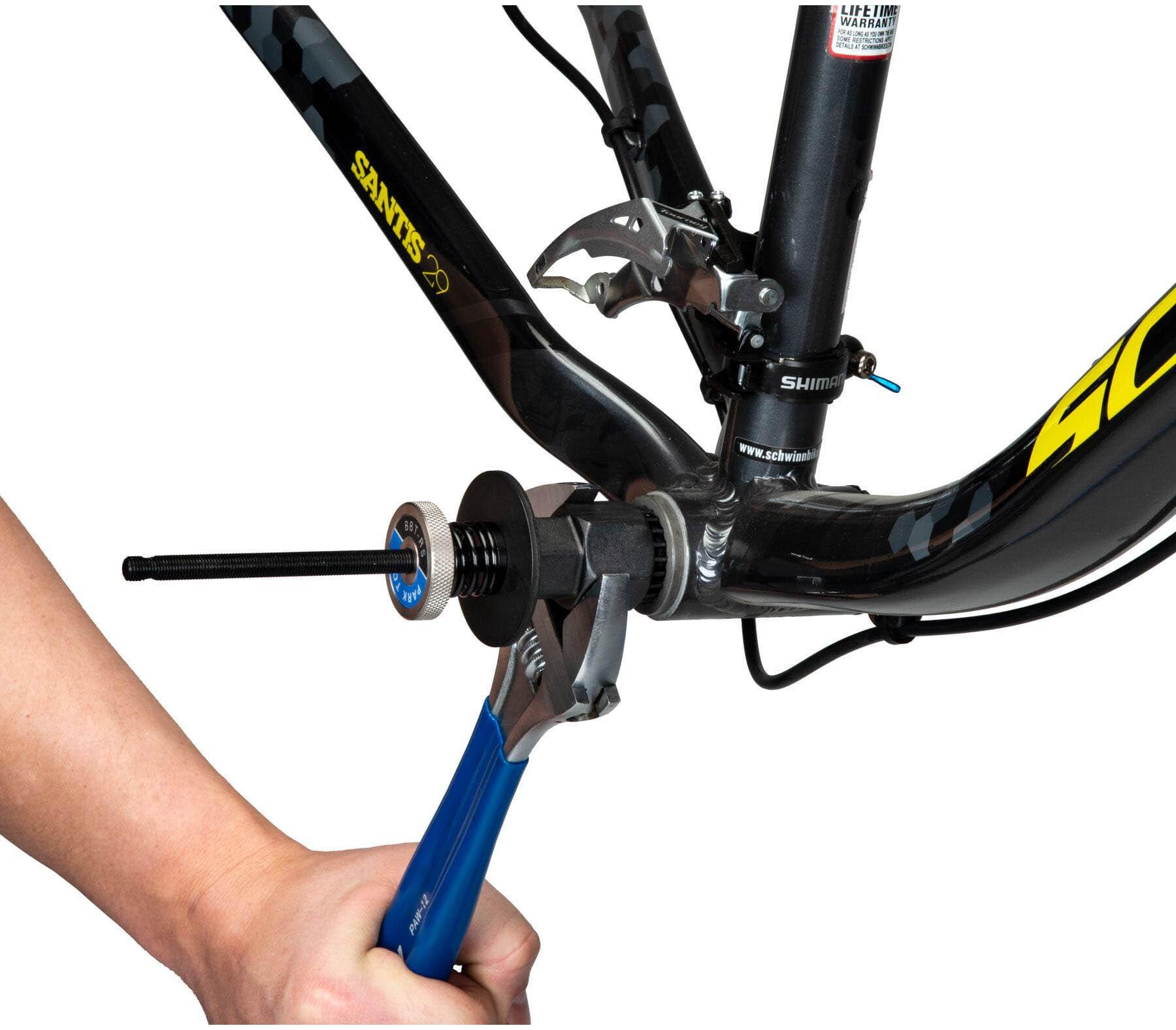

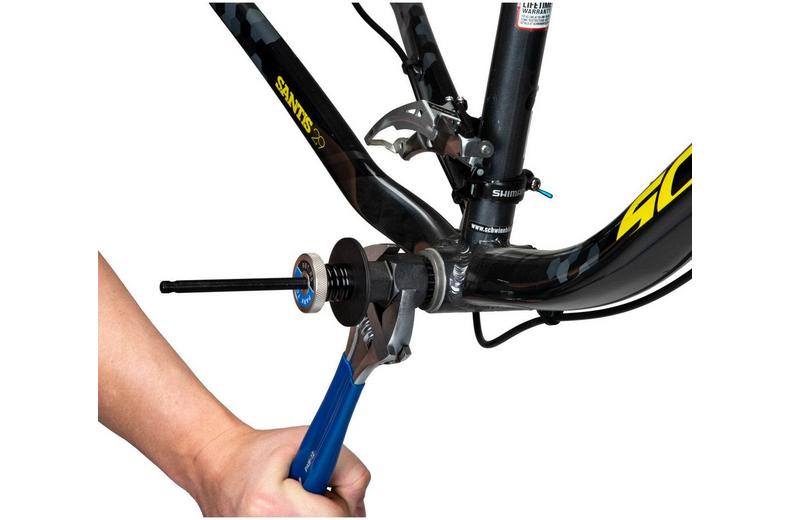

• Bottom bracket tools with external wrench flats (e.g. Park Tool BBT-19.2, BBT-22)

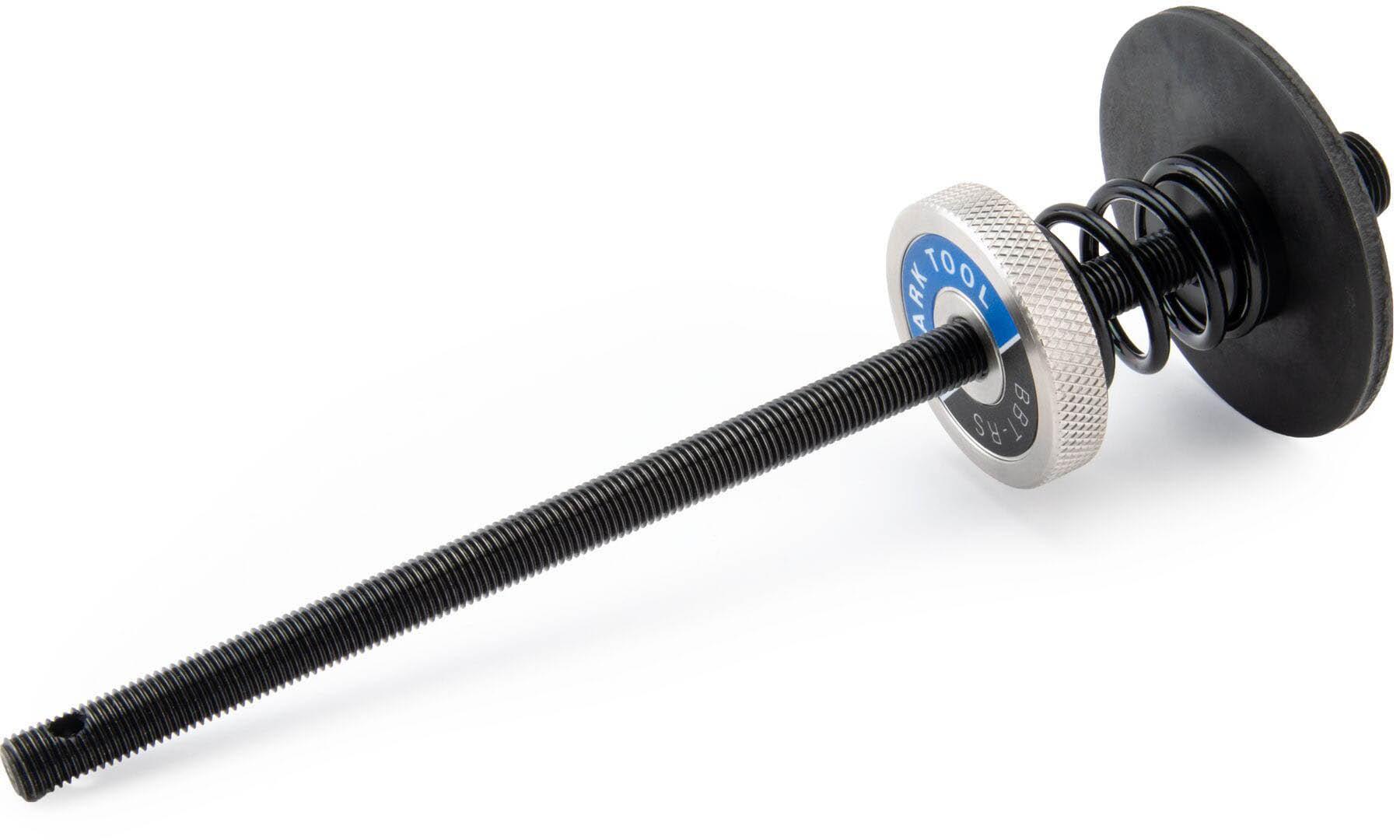

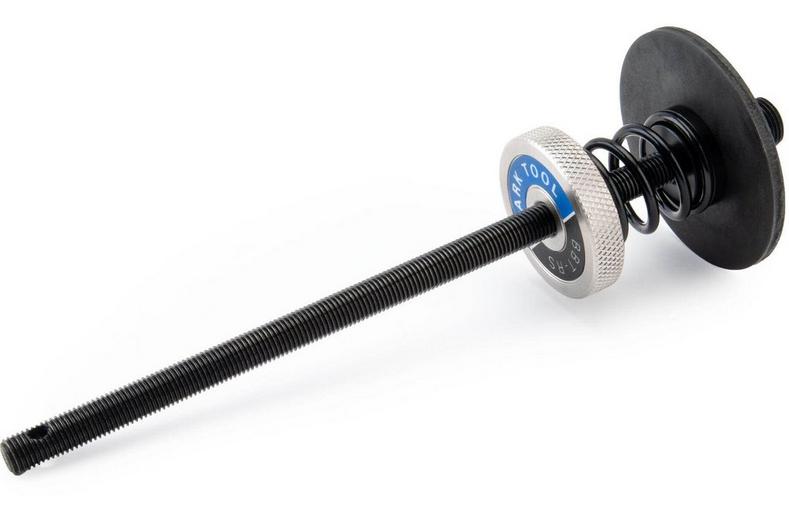

Tool specifications:

• Rod length: 175 mm (6.9")

• Rod threading: M8 x 1.0

• Adapter nut threading: M12 x 1.0 and M15 x 1.0

• Speed nut diameter: 38 mm (1.5")

• Washer diameter: 57 mm (2.25")
