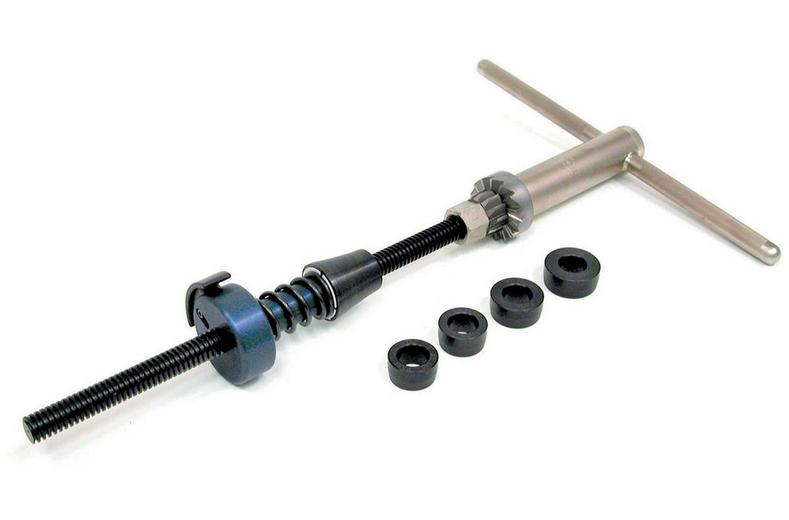

Park Tool HTR-1B Head Tube Reaming & Facing Set

Park Tool HTR-1B Head Tube Reaming and Facing Set

• The HTR-1B combines reaming and/or facing of the head tube to create a perfect fit for most sizes of headset cups.

• The HTR-1B comes complete with a 33.8mm reamer, and four different size pilots (29.8mm, 30.0mm, 33.8mm, and 36.8mm).

• The reamer is used to clean out or increase the diameter of the head tube.

• Most often facing of the head tube for a good cup fit is the objective and no reaming is required, in which case the pilots can be used in place of the reamers.

• The unique quick-release, quick-adjust feature allows you to slide the bottom portion on and off easily without the long threading process.

• This threading function of the tool can still be fine tuned whilst in use.

• The tapered centering cone unit rides on a bearing for extra smooth operation.

• All cutting surfaces are top quality and extra sharp.

• Made in the USA and covered by Park Tool's legendary limited lifetime warranty.

Proper bicycle frame preparation is a very important step in building or overhauling a bike. The HTR-1B is a complete professional tool set for reaming and facing both head tubes and press fit bottom bracket shells. The durable handle assembly features a quick-release, quick-adjust design allowing for easy tool installation, adjustment and removal. Optional accessories for the HTR-1B include over 20 different reamers and facers for most headset and bottom bracket standards.

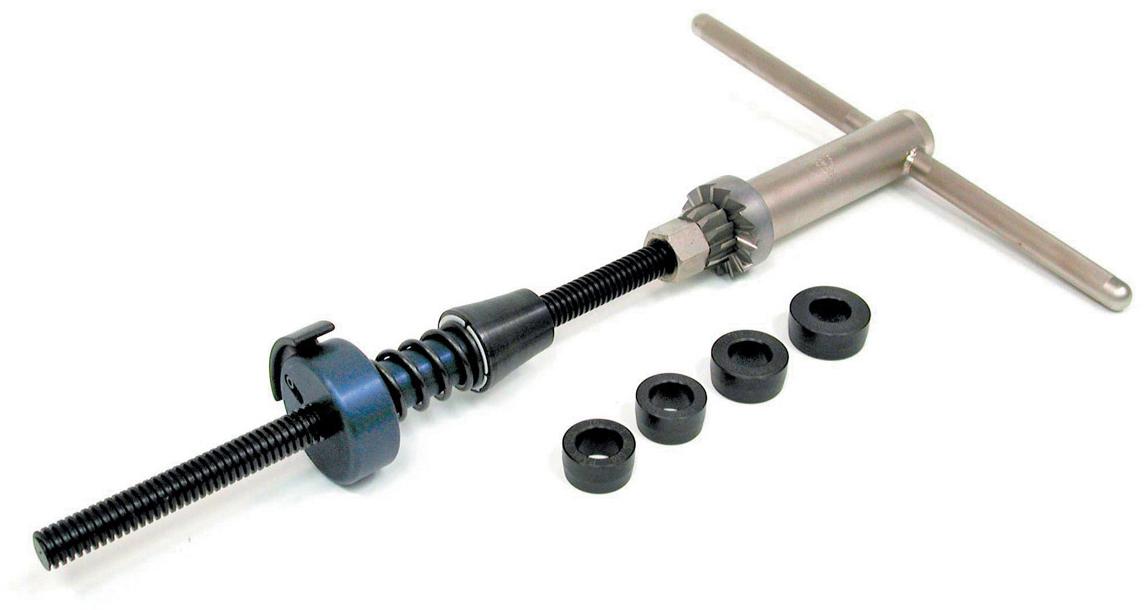

Includes:

• 33.9 mm reamer (part #754.2) for 1 1/8" headset standard

• 45 mm facer (part #690)

• 29.8 mm pilot (part #762)

• 30.0 mm pilot (part #763)

• 33.8 mm pilot (part #765)

• 36.8 mm pilot (part #766)

SHIS terminology: The stock HTR-1B will face EC29, EC30, EC34 and EC37 frames. It will ream EC34 frames. Accessories will allow service in other standards.

Also available as a standalone handle set with no reamers, facers or pilots (HTR-HS).

*NOTE: Always use cutting fluid such as Park Tool CF-2 when machining.
