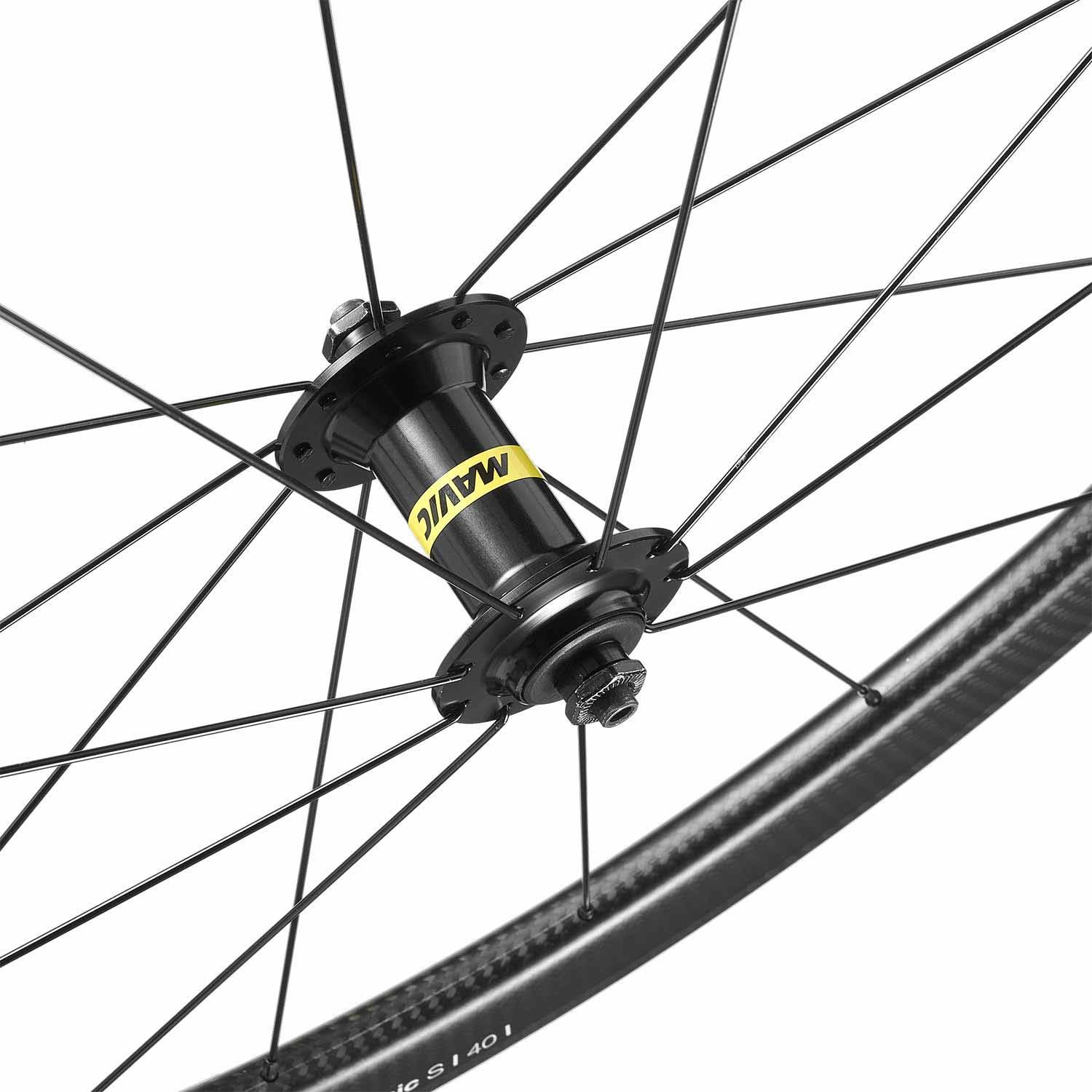

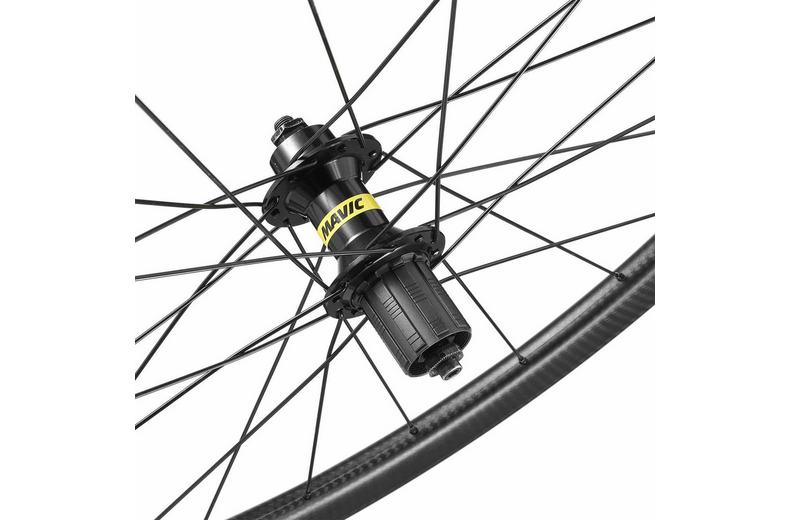

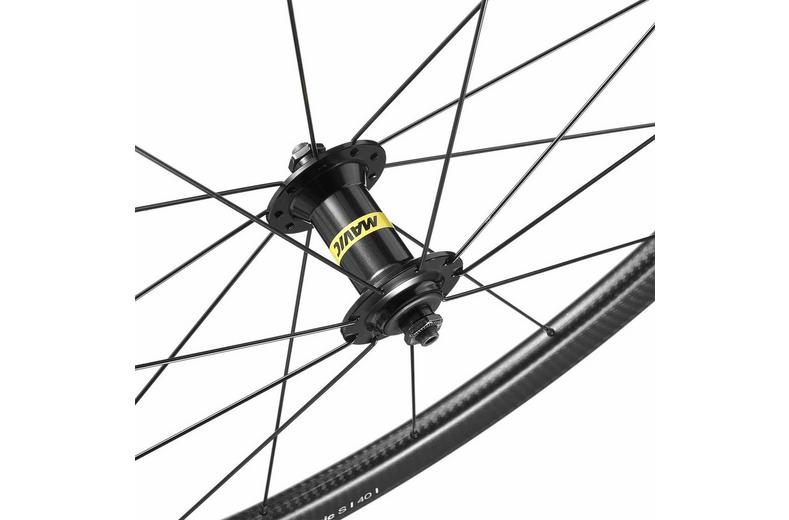

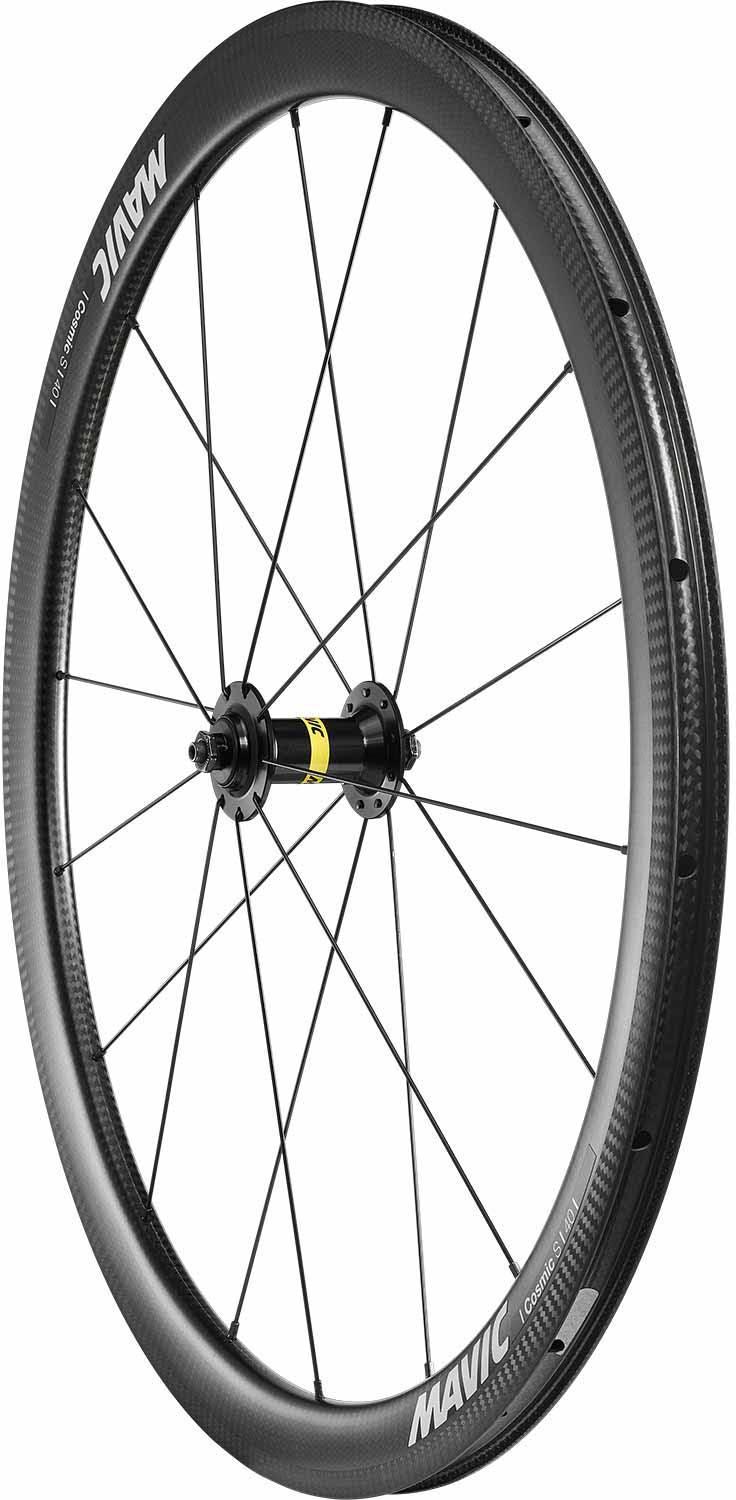

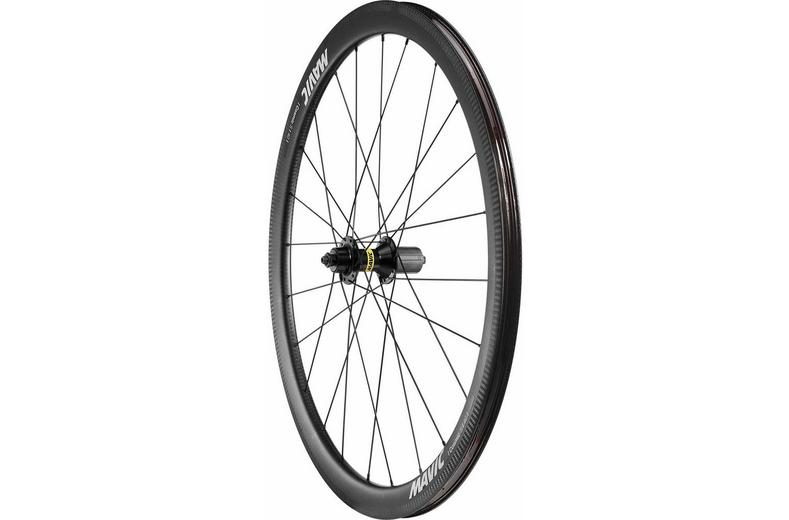

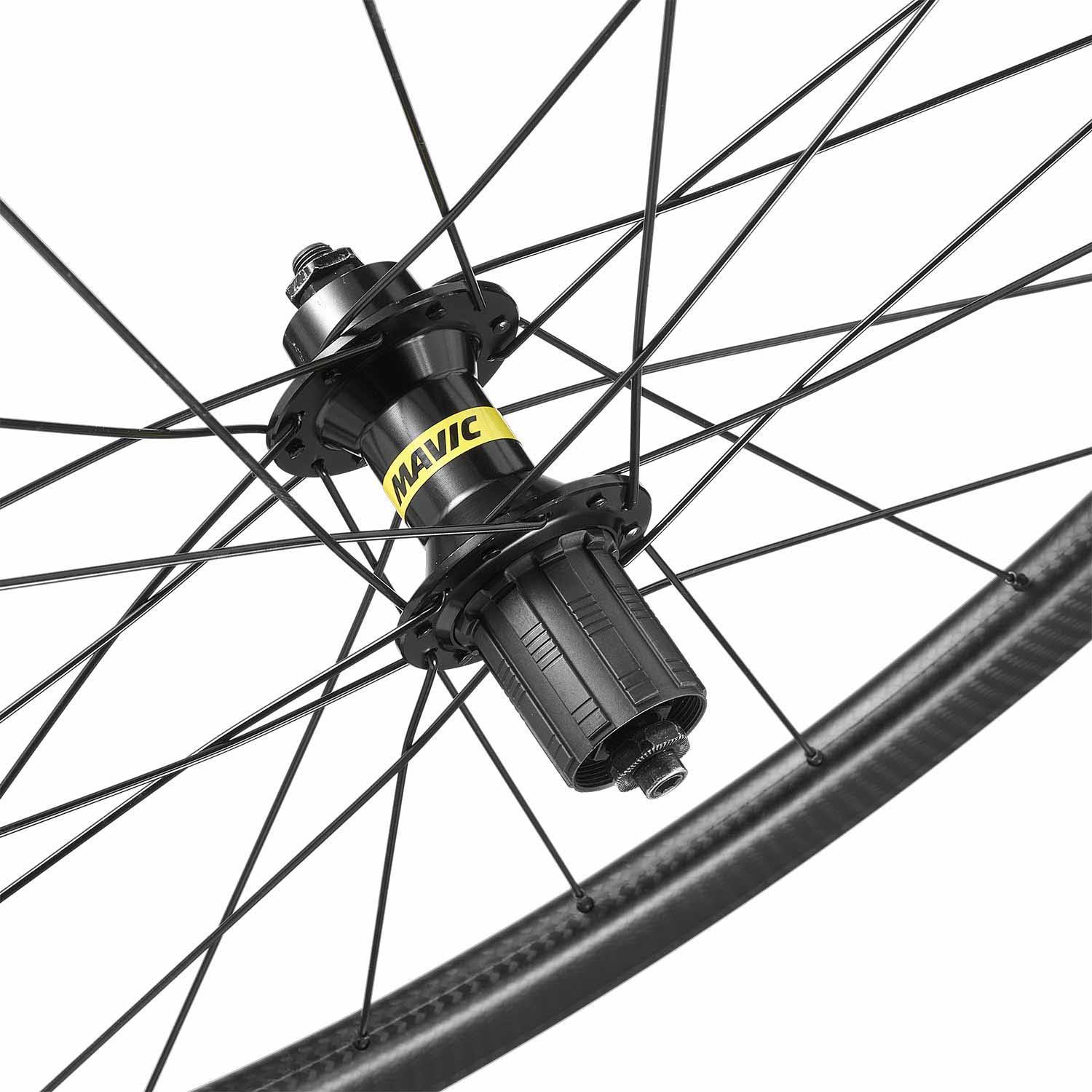

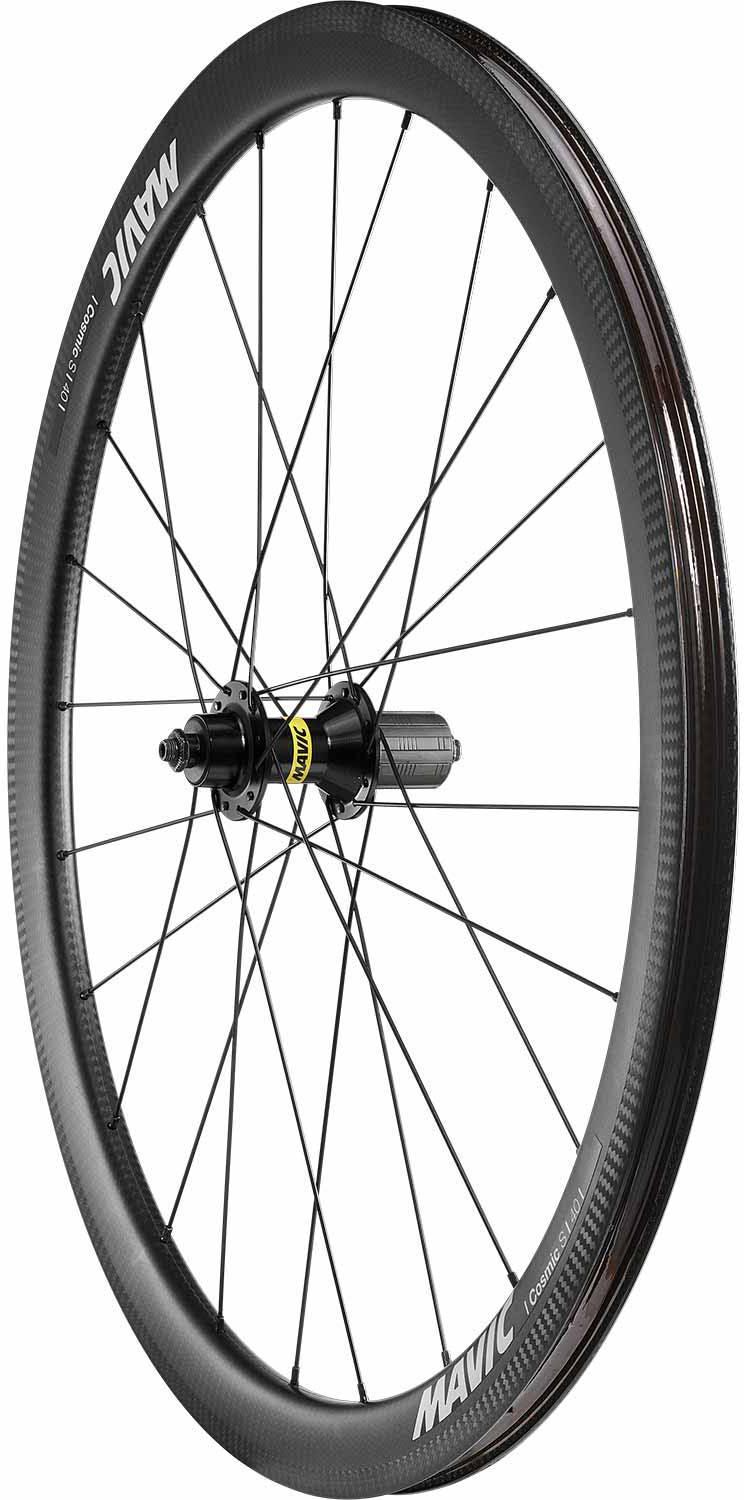

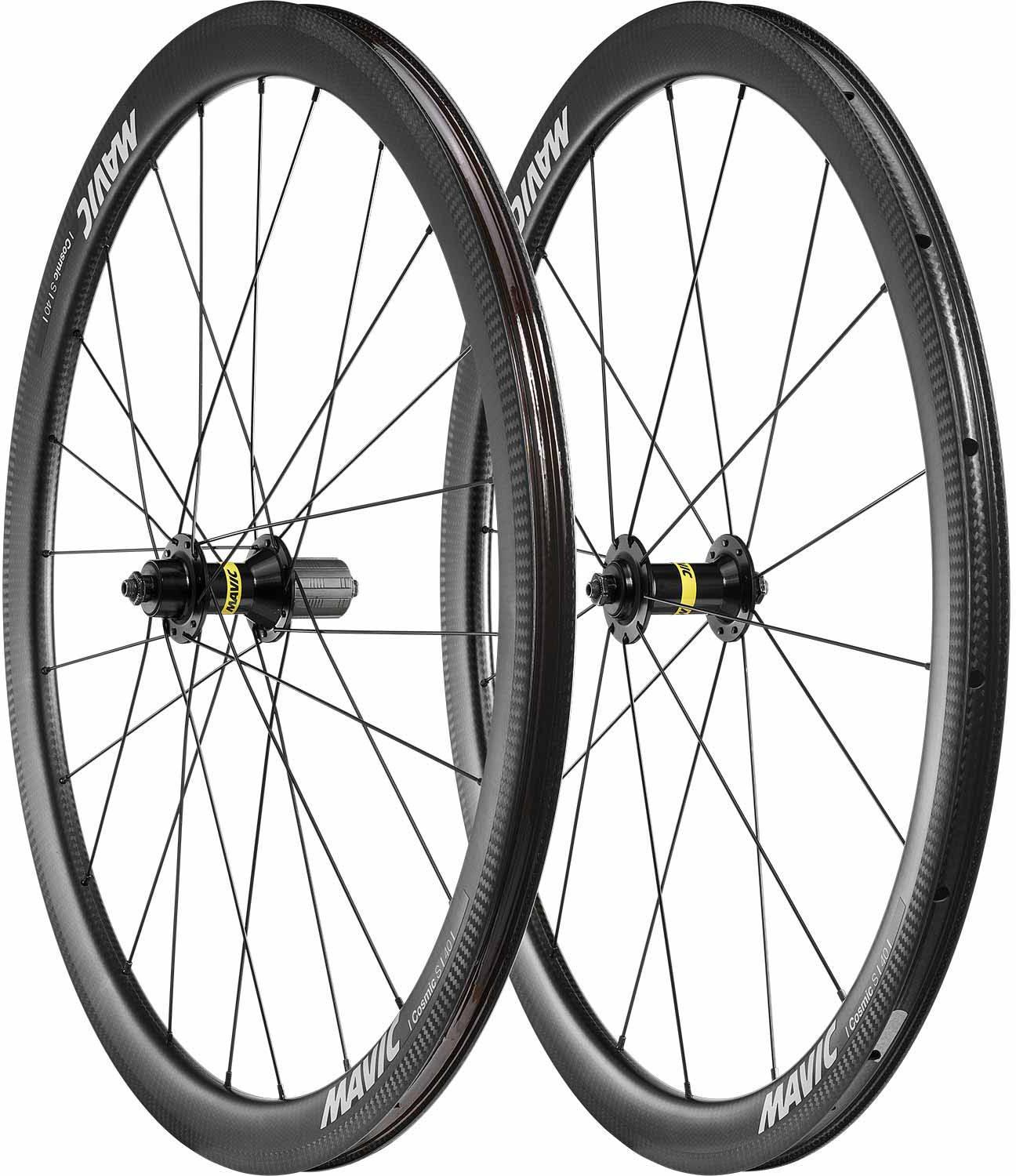

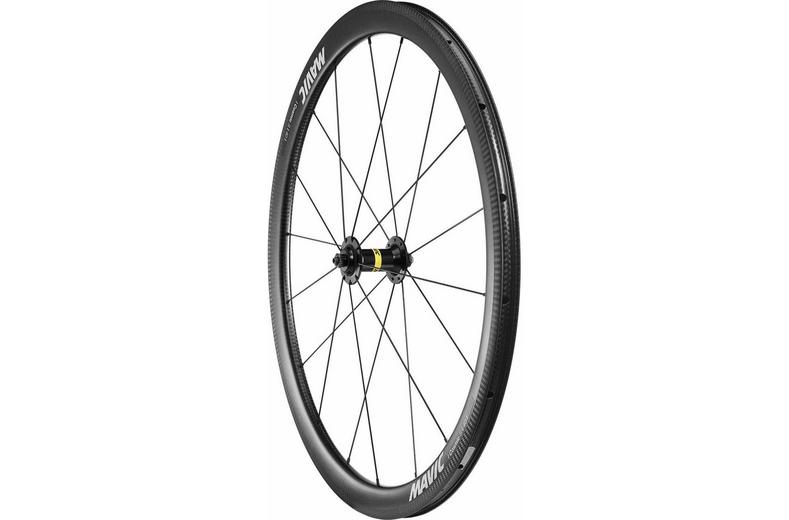

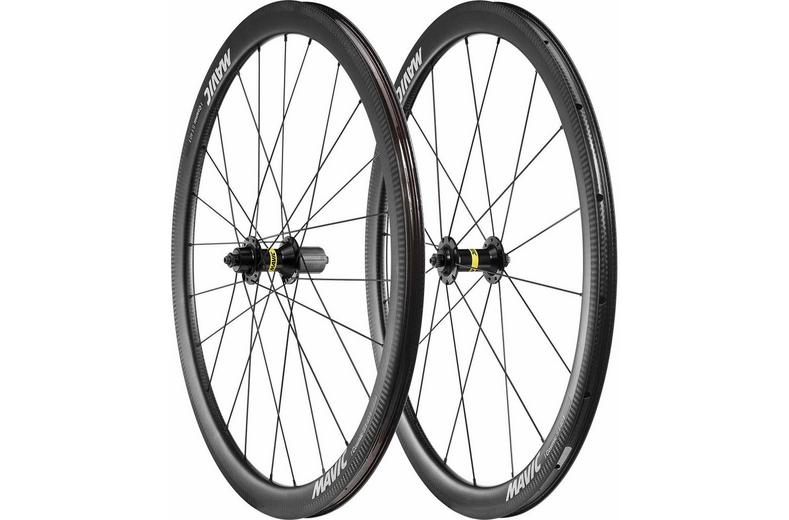

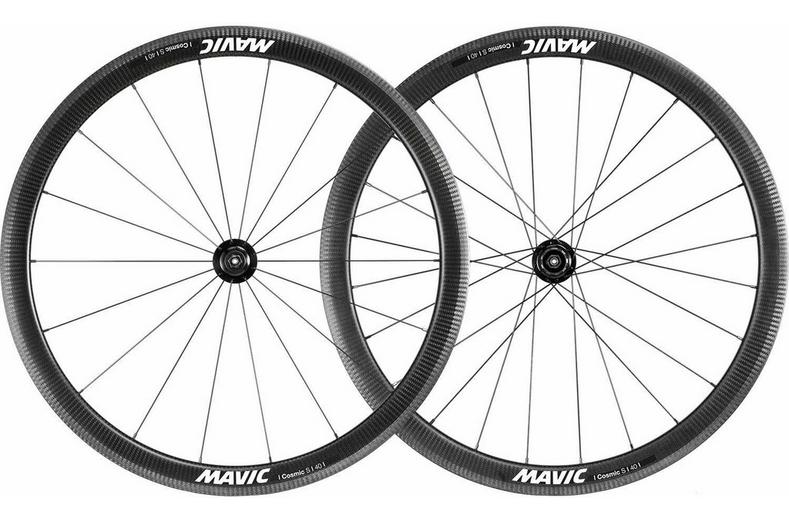

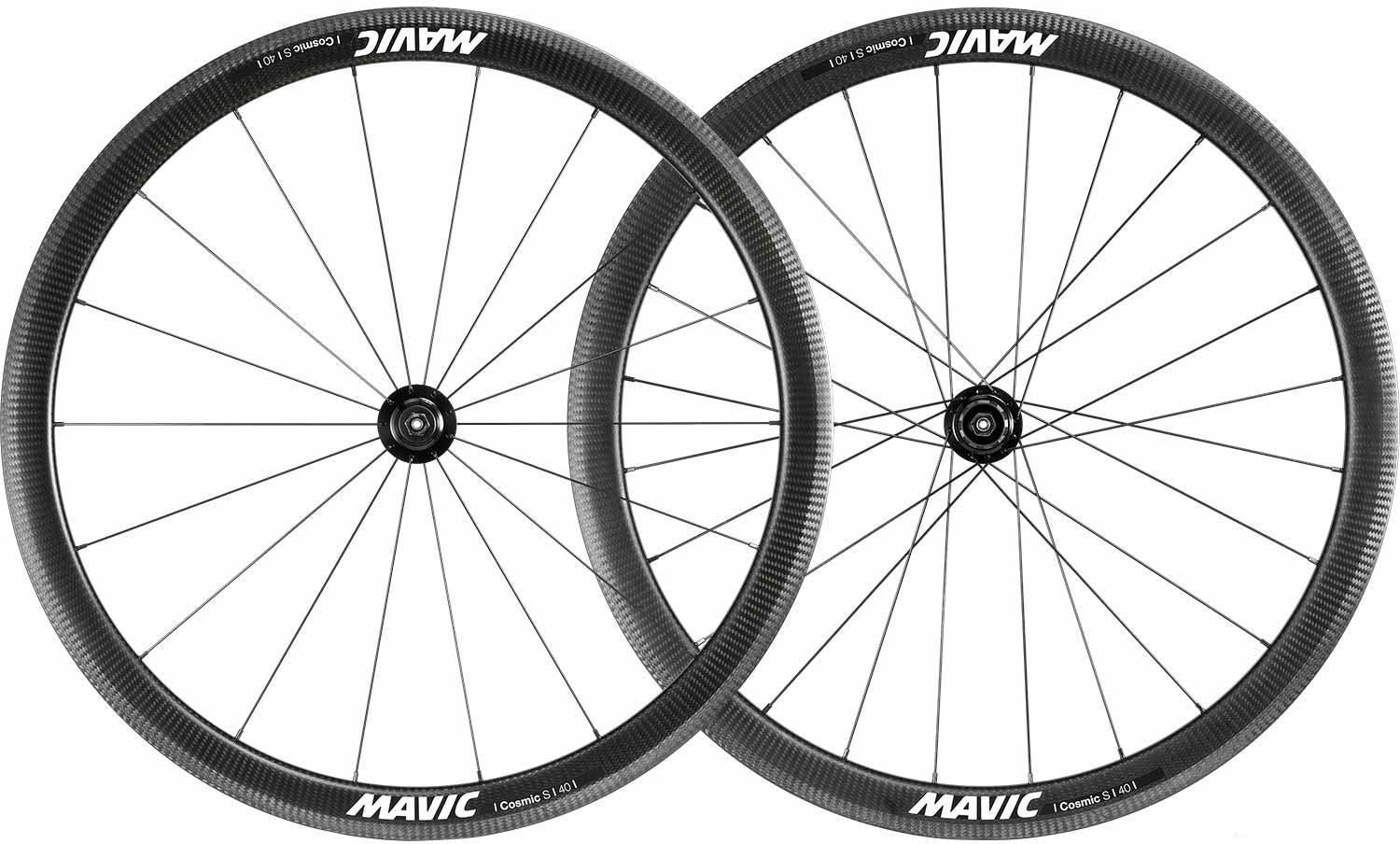

Mavic Cosmic S 40 Rim Brake Wheelset
Payment options available
40mm deep aerodynamic profile reduces drag
Lightweight UD carbon rim improves responsiveness
iTgMAX technology ensures exceptional braking performance
Mavic Cosmic S 40 Rim Brake Wheelset
Aerodynamics for speed - Less drag, more watts thanks to the 40mm carbon rim developed by our aero experts.
Improved responsiveness - The lightness of the UD carbon rim ensures improved reactivity on every pedal stroke.
Exceptional braking performance - The braking strips are made with ITGMAX technology designed specifically to limit the overheating of brake pads, so the COSMIC S 40 effectively manages braking stresses on long descents.
Wheelset weight: 1764g (front - 784g / rear - 980g).
Best value for money to access the legendary Cosmic carbon wheels and boost your rim brakes bike.
Key Technology:
FTS-L freewheel technology: Force Transfer System Light. Reinforcement of key transmission components. The contact area between the pawl and the hub body is reinforced by 2 stainless steel inserts, which allows the use of a 100% aluminium hub body.

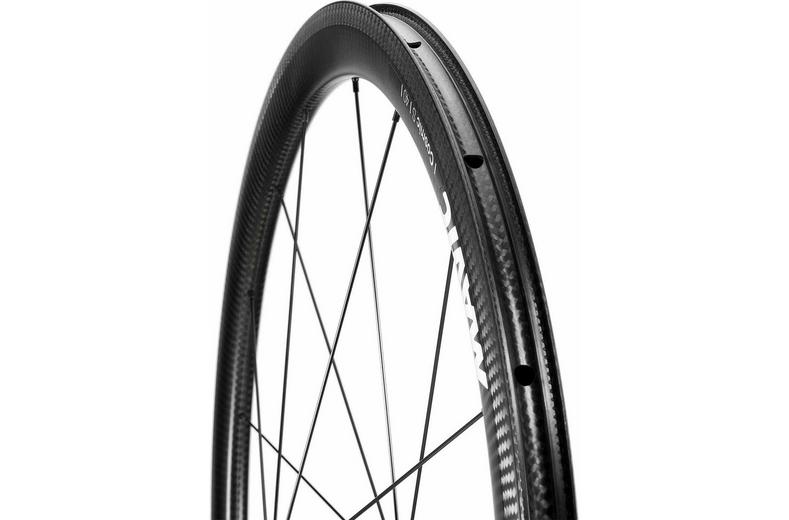

iTgMAX carbon clincher technology for rim brake: Integral Glass Transition Temperature. iTgMAX consists in an inner rim bed finished with multiple layers of seamless carbon fiber to achieve a unique one-piece rim contour without cutting any fibers. The brake track is then finished with a laser machining to ensure the best braking efficiency.
QRM Auto bearing preload technology: The cartridge bearings are of course double sealed with C3 interna; clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.
Technical Specification:
Diameter: 700c
Weight (pair): 1764g
Material (rim): 100% carbon fiber
Rim height: 40mm
Tyre compatibility: UST Tubeless Ready (can also be used with inner tubes)
Internal rim width: 19mm
Drilling: Front - 18 holes; rear 24 holes
Brake type: Rim brake
Material (spokes): Steel
Nipples: Steel, ABS, black
Lacing: Front - radial; rear - crossed 2
Hub material: Aluminium
Freehub: Shimano/SRAM, SRAM XDR or Campagnolo
Axle size: Front - 9x100 Quick Release; rear 9x130 Quick Release
Minimum tyre width and pressure: 23mm (97 PSI)
Maximum tyre width and pressure: 62mm (55 PSI)
Maximum supported weight: 120kg (bike weight included)
What's included with the wheelset?
User guide
Quick Release skewers
Carbon brake pads
Rim tape (pre-installed)
UST tubeless valves
Compatibility:
Shimano/SRAM option is compatible with Shimano Road 9, 10, 11 and 12 speed cassettes and SRAM splined 9, 10 and 11 speed cassettes.
XDR option is compatible with SRAM 11,12 and 13 speed XDR cassettes only.
Campagnolo option is compatible with 9, 10, 11 and 12 speed cassettes.
Diameter | 700c |
Type | Wheel Sets |
Discipline | Road Bike |
Weight | 1764g (pair) |
Brake Type | Rim Brakes |
Tyre Compatibility | Tubeless |
SKU | 466563 |
