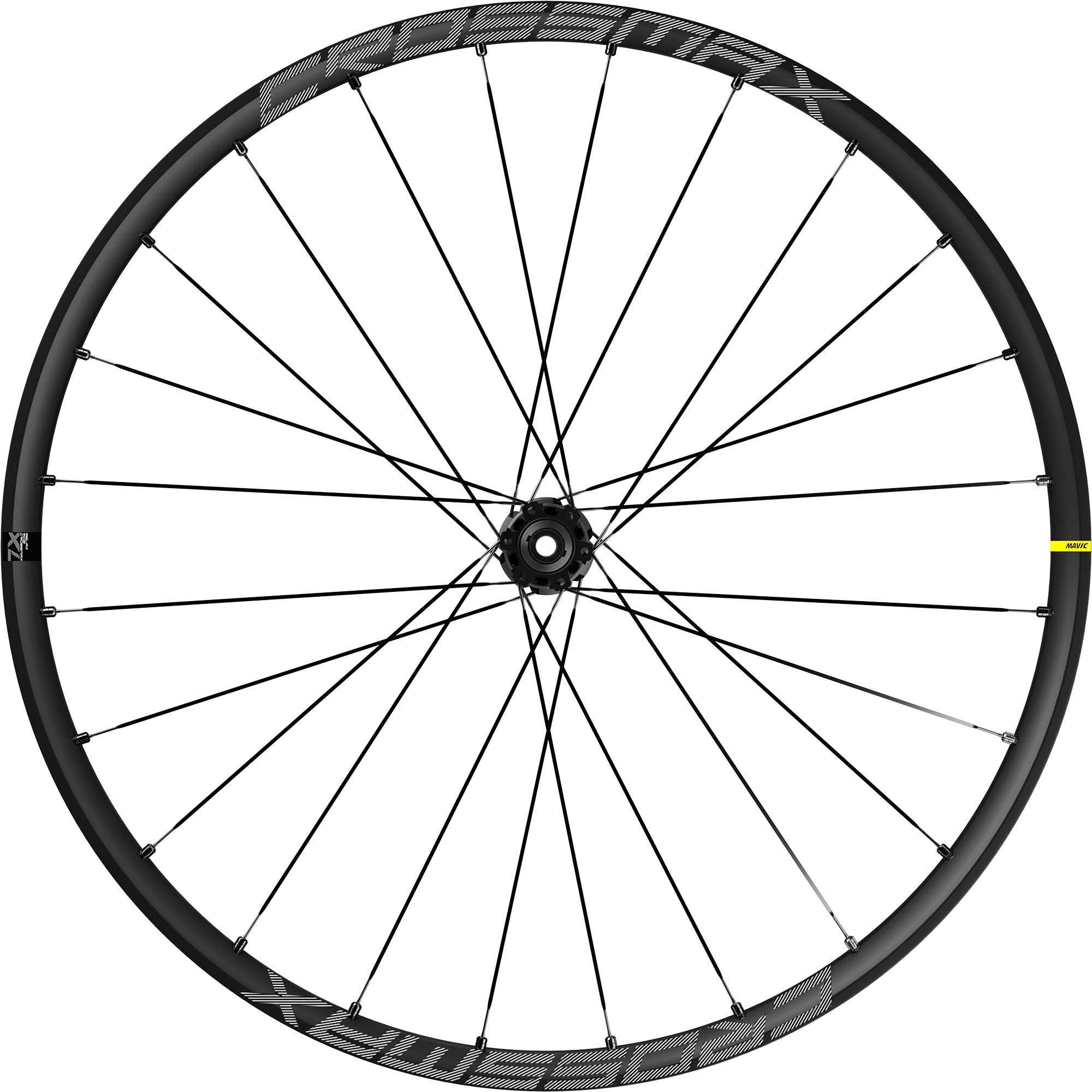

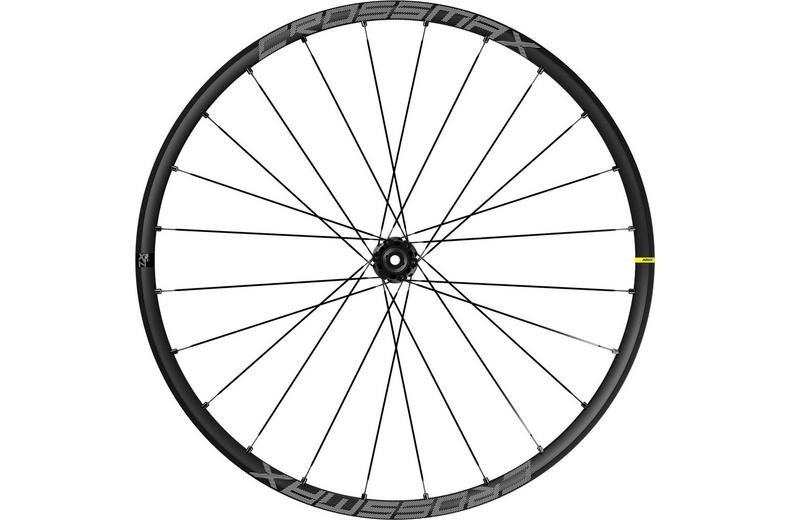

Mavic Crossmax XL 29" 6 Bolt Rear Wheel

Wide, strong rim profile with Black Shield treatment protects your rim against impacts and scratches.
New lighter, stiffer Infinity hubs with ultra-reliable ID360 freewheel system for instant acceleration.
30mm wide rim is optimised for lower tyre pressure, giving you a smoother ride with more traction and control.
Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.
Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tyres.
Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.
SRAM XD or Shimano HG freehub options (conversion kit for Shimano Micro Spline available separately).
6-bolt rotor interface for compatibility with 6-bolt disc rotors.
Available with boost (12x148mm) thru axle spacing (adapters can be purchased separately for boost quick release conversion).
Weight rear: 1030g.

Trail riding is all about adventures, thrills and fun. Exploring wild places and flowy trails. To get the most out of your ride, you need to have confidence in your gear. This is especially true with your wheels, which play a critical role in the overall ride experience. That’s where the new Crossmax XL comes in. It represents the highest quality aluminium trail wheel we’ve ever built.

The rims are made with our patented Fore technology, which features a fully sealed upper bridge that eliminates the need for rim tape. That saves 30 grams per wheel and does away with the hassle of using tape to set up tubeless tyres. The rim has a 30mm internal width, perfect for optimising the performance of any modern trail tyre. It’s engineered with a super strong triangular shape, designed specifically to absorb impacts from the trail. Our Black Shield technology gives them a distinctive finish that protects against scratches and abrasions.

We use 24 straight-pull spokes to further dial in the sweet spot between lateral stiffness and vertical compliance. The Infinity hubs feature a stiffer and lighter construction that’s enhanced by the ultra-reliable ID360 double ratchet system for fast engagement.

Key Technology:

Maxtal aluminium alloy – Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.
ISM light rim technology – Inter Spoke Milling is an exclusive Mavic patented concept. The ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.
Fore tapeless tubeless technology – Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.
Instant Drive 360 freewheel technology – The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
UST tubeless technology – Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
SUP welding technology – Factory Welded Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
Black Shield treatment – This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.
Infinity hub design – Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.
QRM Auto bearing preload technology – The cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

Diameter: 29"
Weight (rear): 1030g
Rim material: Maxtal
Rim height: 22mm
Internal rim width: 30mm
Drilling: 24 holes
Tyre compatibility: Tubeless Ready
Spoke material: Steel
Nipples: Brass, black
Spoke lacing: Crossed 2
Hub body material: Aluminium
Brake type: Disc brake
Disc standard: 6-bolt
Freehub: SRAM XD or Shimano HG
Axle size: 12x148mm
Minimum tyre width and pressure: 52mm (43 PSI)
Maximum tyre width and pressure: 76mm (36 PSI)
Maximum supported weight: 150kg (bike weight included)

What's included with the wheel?

User guide
UST tubeless valve
2 replacement spokes
Multifunction adjustment wrench

Compatibility:

Available with either a SRAM XD or Shimano HG freehub body. SRAM XD driver body (freehub body) is compatible with SRAM XD Mountain Bike cassettes only. Shimano HG freehub body is compatible with Shimano 8-11 speed HG MTB cassettes and SRAM splined 8-11 speed cassettes. Freehub conversion kits can be purchased separately for Shimano Micro Spline cassettes.
Available with 12x148mm (boost) thru axle spacing. Adapter conversion kits are available separately for boost quick release.
6-bolt disc brake interface for compatibility with 6-bolt disc rotors.

Type	Back Wheels
Discipline	Mountain Bike
Weight	1030g (rear)
Brake Type	Disc Brake
Nipples Material	Brass
Tyre Compatibility	Tubeless
Spokes Material	Steel
SKU	358651
