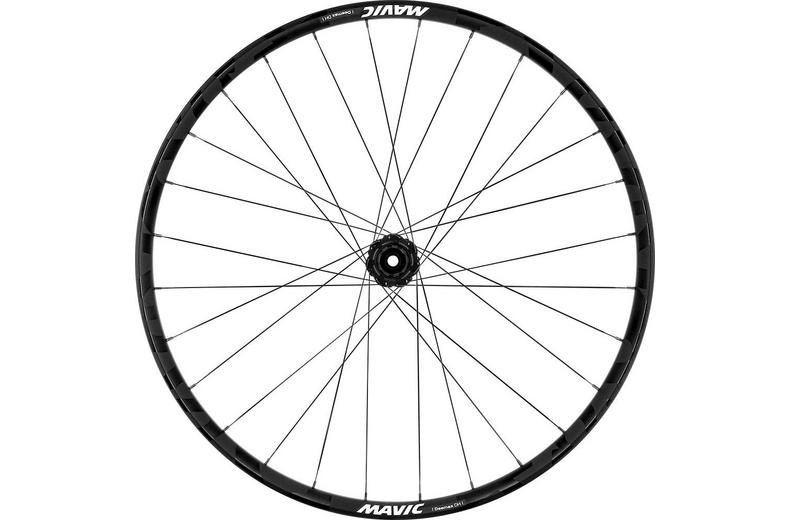

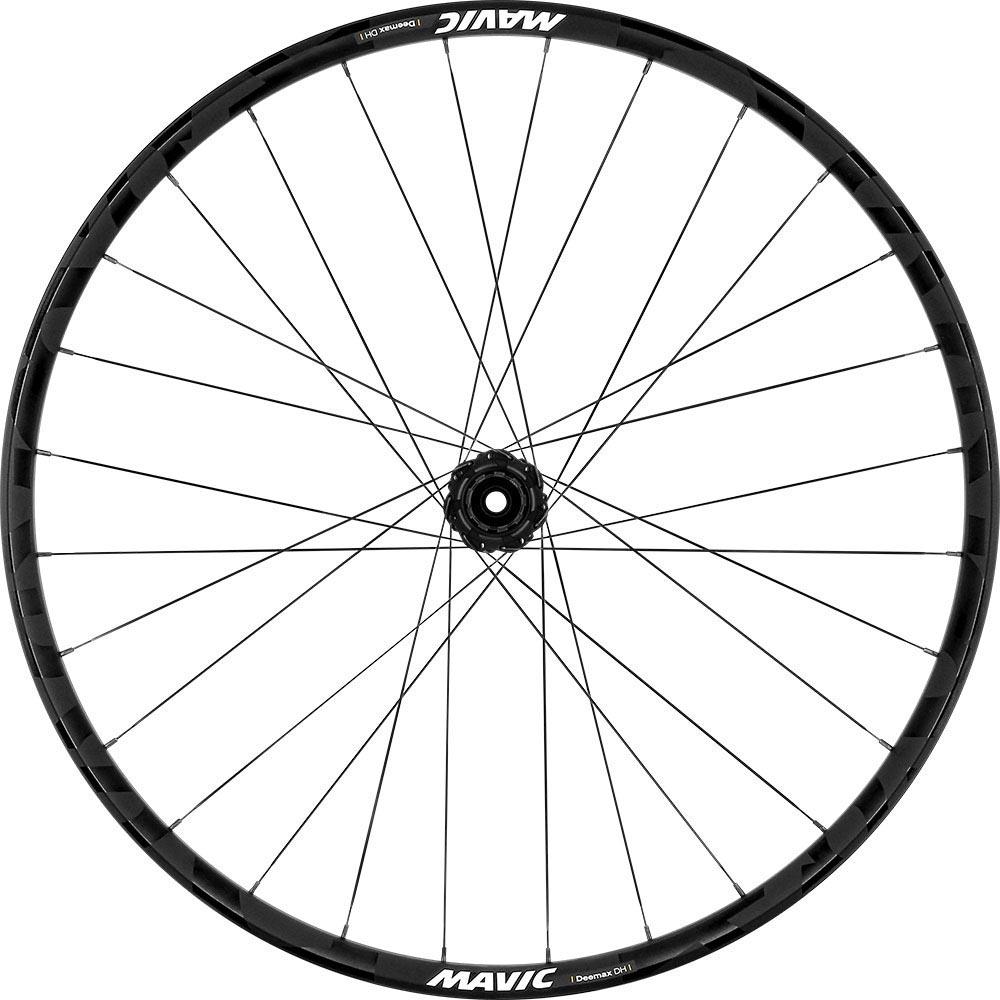

Mavic Deemax DH 29" 6 Bolt Rear Wheel

Wider welded rim (30mm width) is designed to absorb heavy impacts.
The 28 double-butted J-Bend spokes offer the best compromise between strength and dynamism.
The double rims surface protection (Blackshield) preserves the aesthetic condition of the rim against stones impacts.
Developed, tested, and proven to meet the standards of World Cup DH racers.
Quick and easy to fix thanks to J-Bend spokes.
Two replacement spokes delivered with every wheelset.
Wide rim shape facilitates DH casing tyre between 2,0’’ and 3,0’’ set-up, which allows pilots to choose their favourite set-up.
SRAM XD or Shimano HG freehub options (conversion kit for Shimano Micro Spline available separately).
Available with 12x148mm (boost) thru axle spacing or 12x157mm (super boost) thru axle spacing.
6-bolt rotor interface for compatibility with 6-bolt disc rotors.
Weight rear: 1080g.

Designed at the foot of the French Alps and built in our workshops, this exceptional wheel has been developed, tested and approved by the Mavic DH team riders on the most demanding World Cup tracks. The Deemax DH 29 features a 30mm wide welded rim specifically designed to absorb heavy impacts, shocks and other vibrations, providing maximum confidence on rough terrain. The Deemax DH 29 makes aggressiveness fun—and vice versa.

Laced with 28 J-Bend spokes in swaged steel, the Deemax DH offers the ideal balance between robustness and compliance for maximum performance on the most demanding descents. The spokes are designed to be easy to repair, so you can get back on the track quickly and avoid a tedious pit stop or the workshop. Each wheel comes with two replacement spokes for even greater peace of mind.

To meet the demands of the DH track the double Blackshield treatment offers two levels of resistance to impacts from rocks and scratches.

The wide rim shape makes it easy to fit DH tyres with cross-sections between 2.0" and 3.0", giving riders exceptional versatility to adapt their tyre setup to the conditions.

The ultimate downhill wheel, the Deemax DH 29 embodies Mavic heritage and innovation and is the ideal choice for any rider looking for top performance on the roughest descents. Choose total confidence in any terrain, with ease of maintenance and versatility as bonuses.

Key Technology:

Maxtal aluminium alloy – Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.
ISM light rim technology – Inter Spoke Milling is an exclusive Mavic patented concept. The ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.
Instant Drive 360 freewheel technology – The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
UST tubeless technology – Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
SUP welding technology – Factory Welded Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
Black Shield treatment – This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.
QRM Auto bearing preload technology – The cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

Diameter: 29"
Weight (rear): 1080g
Rim material: Maxtal
Rim height: 22mm
Internal rim width: 30mm
Drilling: 28 holes
Tyre compatibility: Tubeless Ready
Spoke material: Steel
Nipples: Steel, ABS, black
Spoke lacing: Crossed 3
Hub body material: Aluminium
Brake type: Disc brake
Disc standard: 6 bolt
Freehub: SRAM XD or Shimano HG
Axle size: 12x148mm or 12x157mm
Minimum tyre width and pressure: 52mm (43 PSI)
Maximum tyre width and pressure: 76mm (36 PSI)
Maximum supported weight: 150kg (bike weight included)

What's included with the wheelset?

User guide
Rim tape (pre-installed)
UST tubeless valve
2 replacement spokes
Multifunction adjustment wrench

Compatibility:

Available with either a SRAM XD or Shimano HG freehub body. SRAM XD driver body (freehub body) is compatible with SRAM XD Mountain Bike cassettes only. Shimano HG freehub body is compatible with Shimano 8-11 speed HG MTB cassettes and SRAM splined 8-11 speed cassettes. Freehub conversion kits can be purchased separately for Shimano Micro Spline cassettes.
Available with 12x148mm (boost) thru axle spacing or 12x157mm (super boost) thru axle spacing. Adapter conversion kits are available separately to convert the boost option to 9x141mm quick release and the super boost option to 12x150mm thru axle.
6-bolt disc brake interface for compatibility with 6-bolt disc rotors.

Type	Back Wheels
Discipline	Mountain Bike
Weight	1080g (rear)
Brake Type	Disc Brake
Tyre Compatibility	Tubeless
Spokes Material	Steel
SKU	357291
