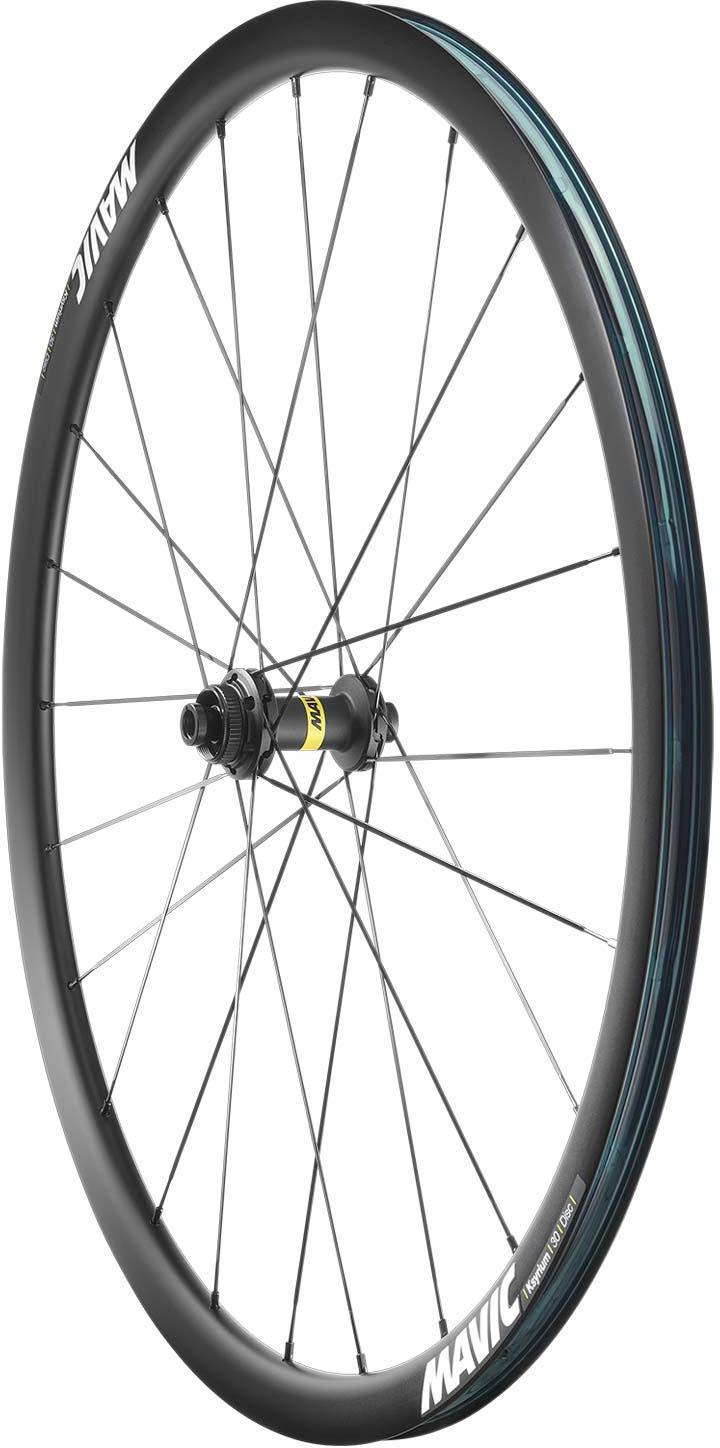

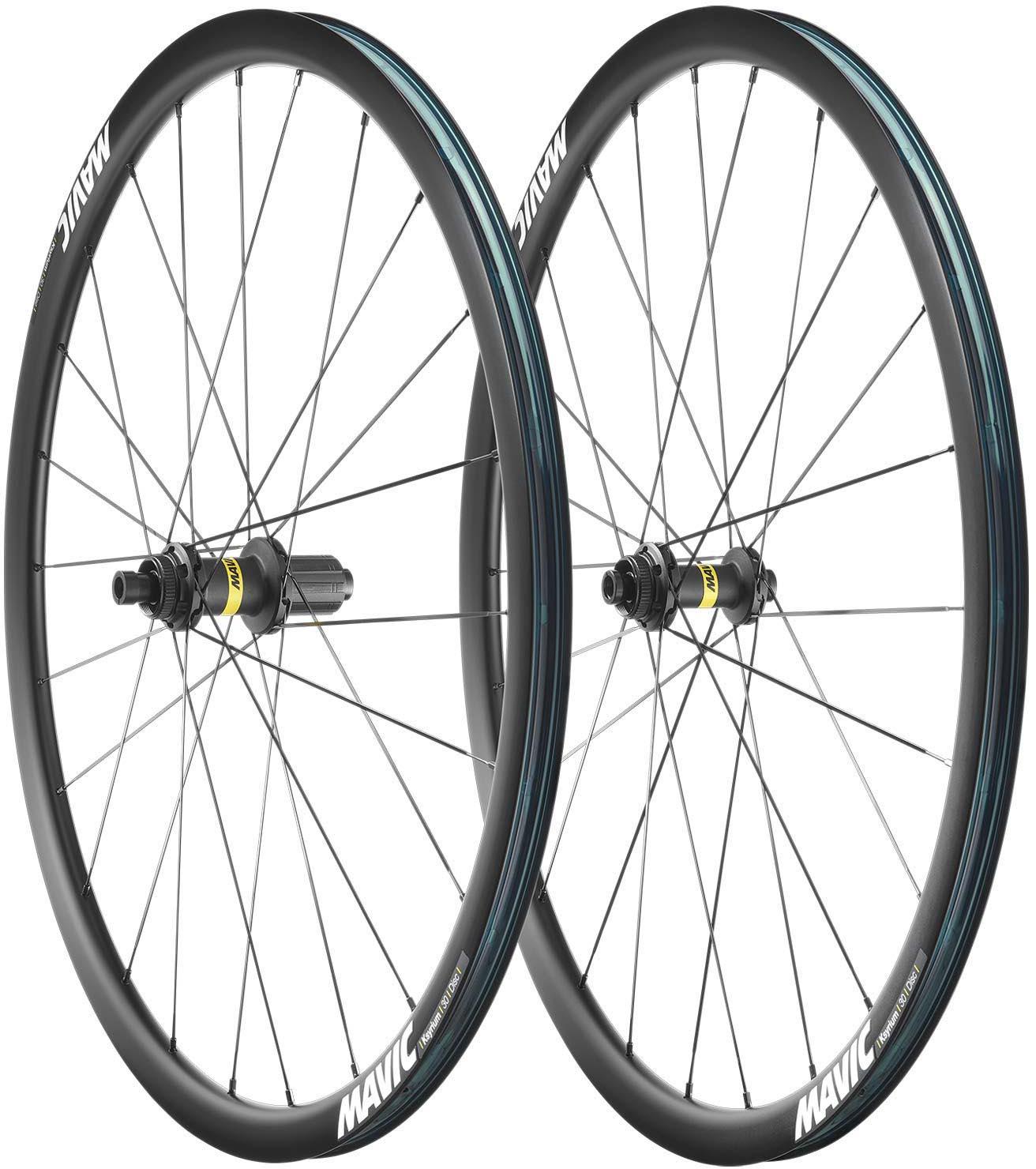

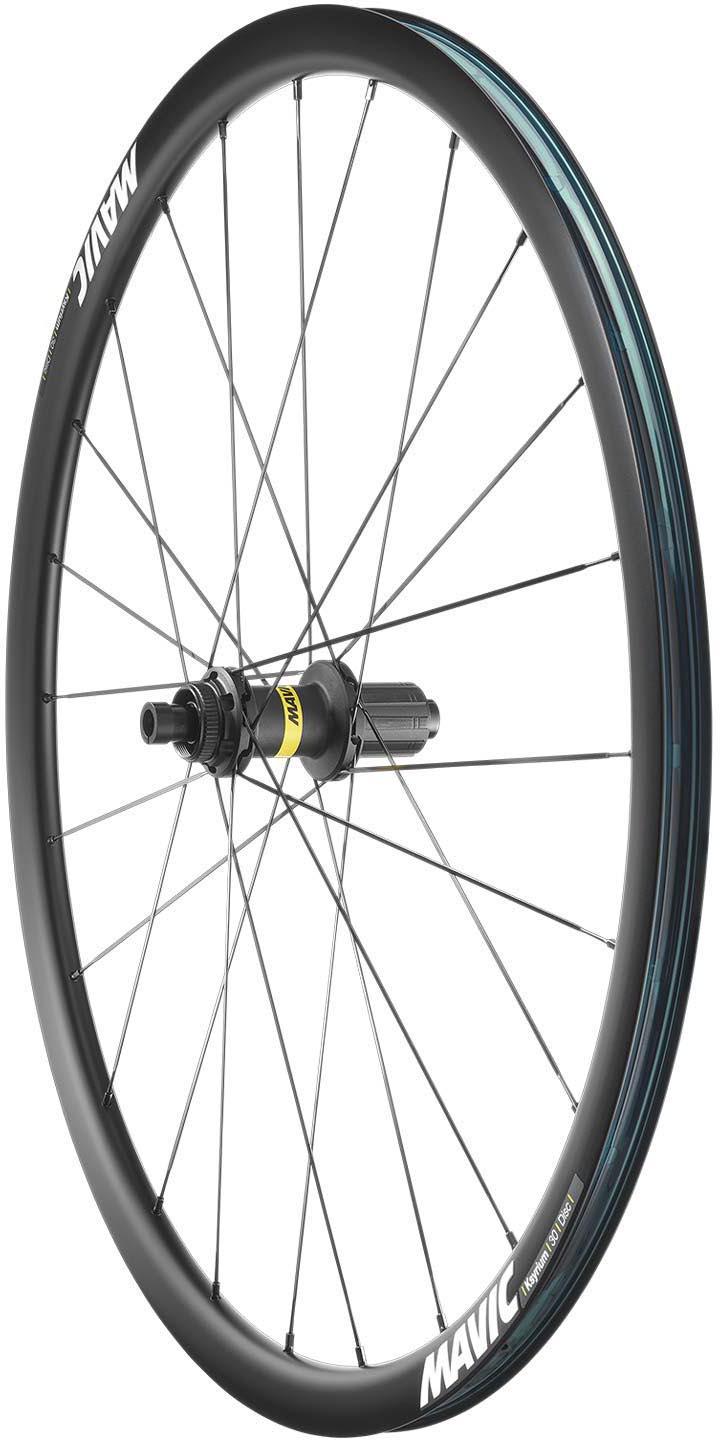

Mavic Kysrium 30 Disc Centre Lock Wheelset

Mavic Kysrium 30 Disc Centre Lock Wheelset

• ID360 freewheel technology.

• Infinity hub platform: Stiffer axle, durable bearings and new design.

• 30mm deep rim optimises aero performance.

• 19mm internal rim width accommodates larger tyre section for improved comfort.

• Light welded rim delivers the optimal balance of stiffness, strength and weight.

• Refined UST rim bed that eases tubeless tyre installation and inflation.

• Refined tubeless technology helps you ride faster and smoother, while being easy to install and maintain (also compatible with inner tubes).

• Optimised UST rim tape shape.

• Durable and perfectly sealed rim.

• Wheelset weight: 1796g (front - 833g / rear - 963g).

The Ksyrium 30 Disc is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance, while retaining a lightweight feel for climbing and accelerating.

By removing the tube, we've also removed friction, so there's less rolling resistance, which means it requires less energy to reach higher speeds.

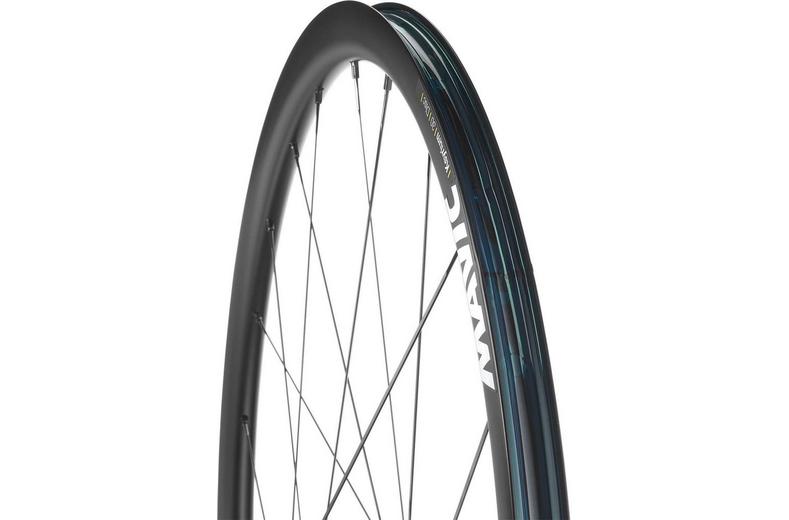

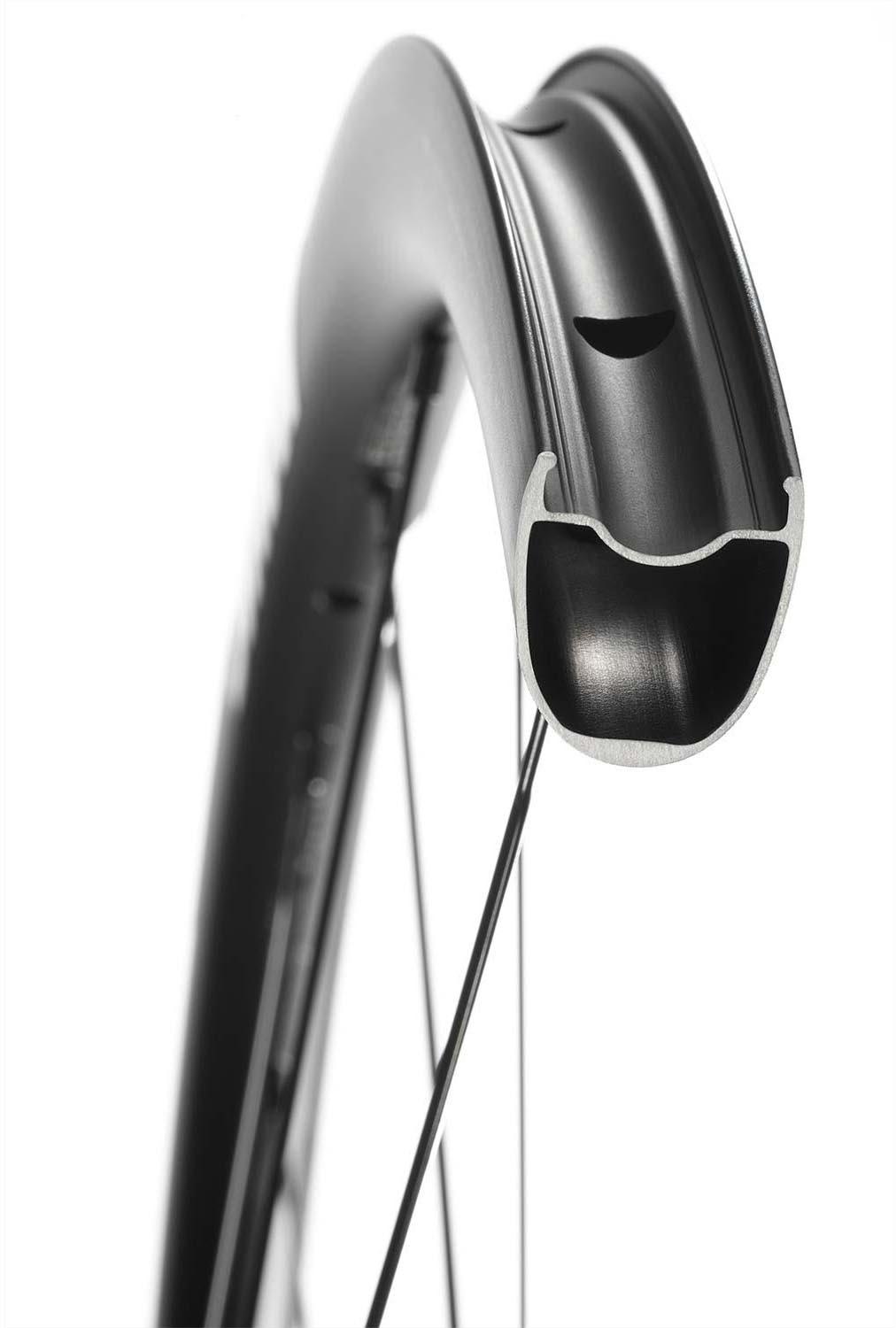

The 30mm deep rim optimises aero performance and improves stability in crosswinds. The alloy rim benefits from our unrivalled experience creating light yet strong rim extrusions. We do this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight.

The bladed straight pull spokes are laced to our high-end Infinity hub platforms: optimal spoke tension balance is a guarantee for perfect stiffness and great durability, with only 1 spoke length for both wheels to worry about.

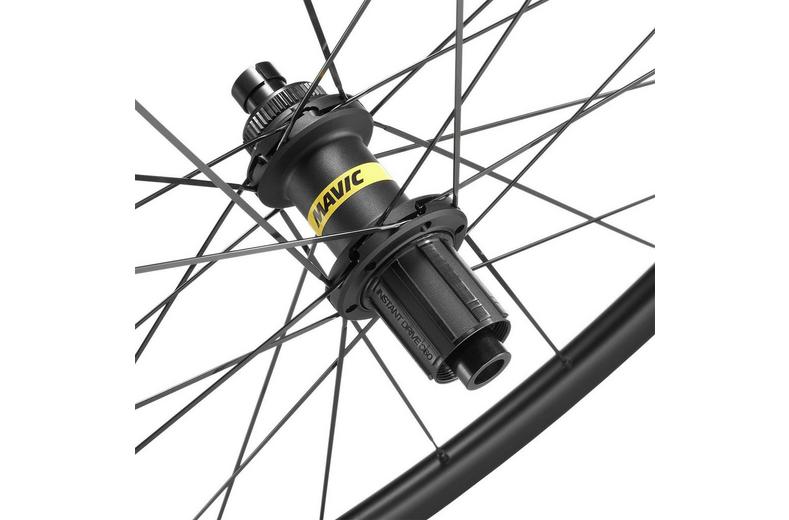

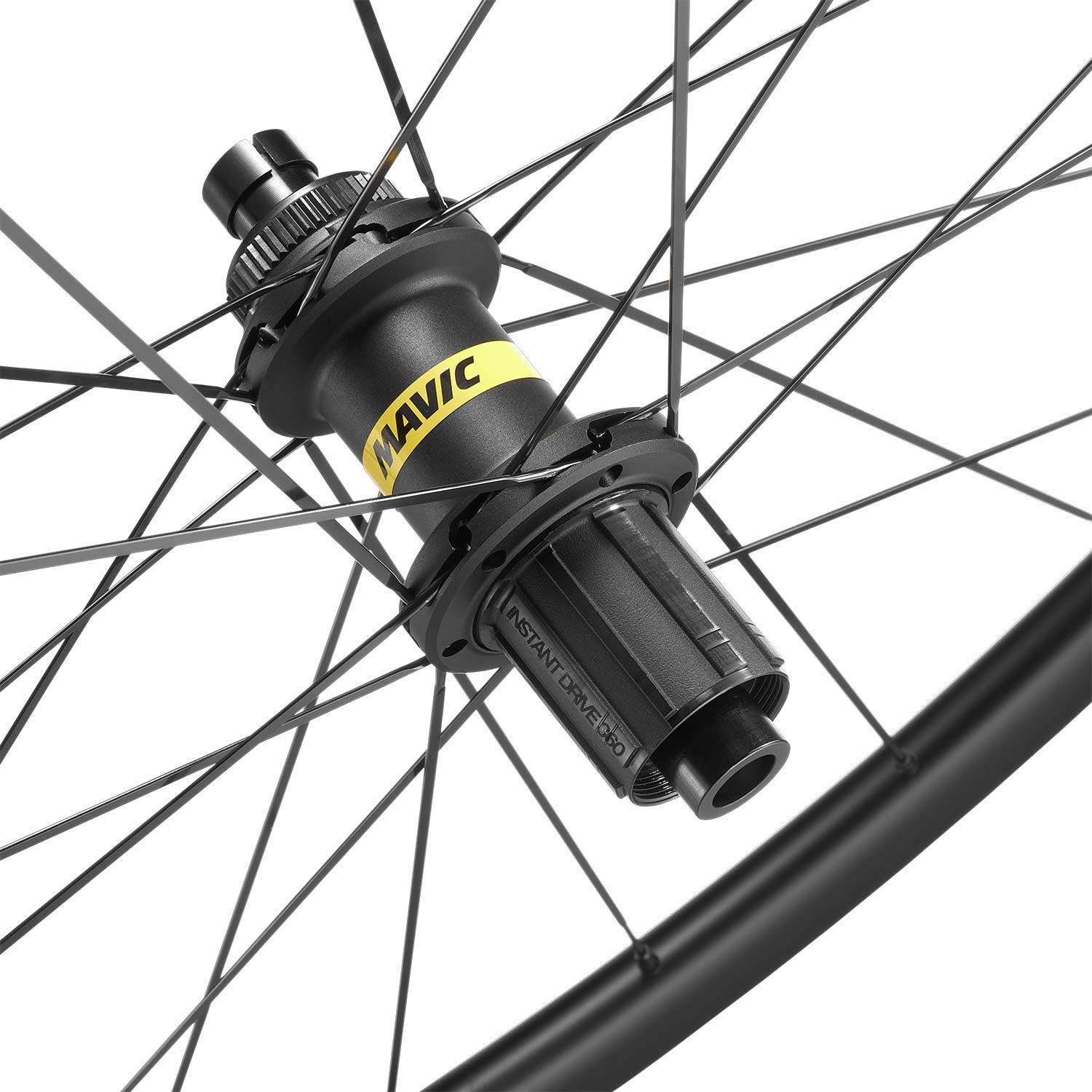

The Instant Drive 360 ratchet freewheel system is quick to engage and offers low friction.

Key Technology:

• Maxtal aluminium alloy: Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.

• Instant Drive 360 freewheel technology: The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

• UST tubeless technology: Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

• SUP welding technology: Stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

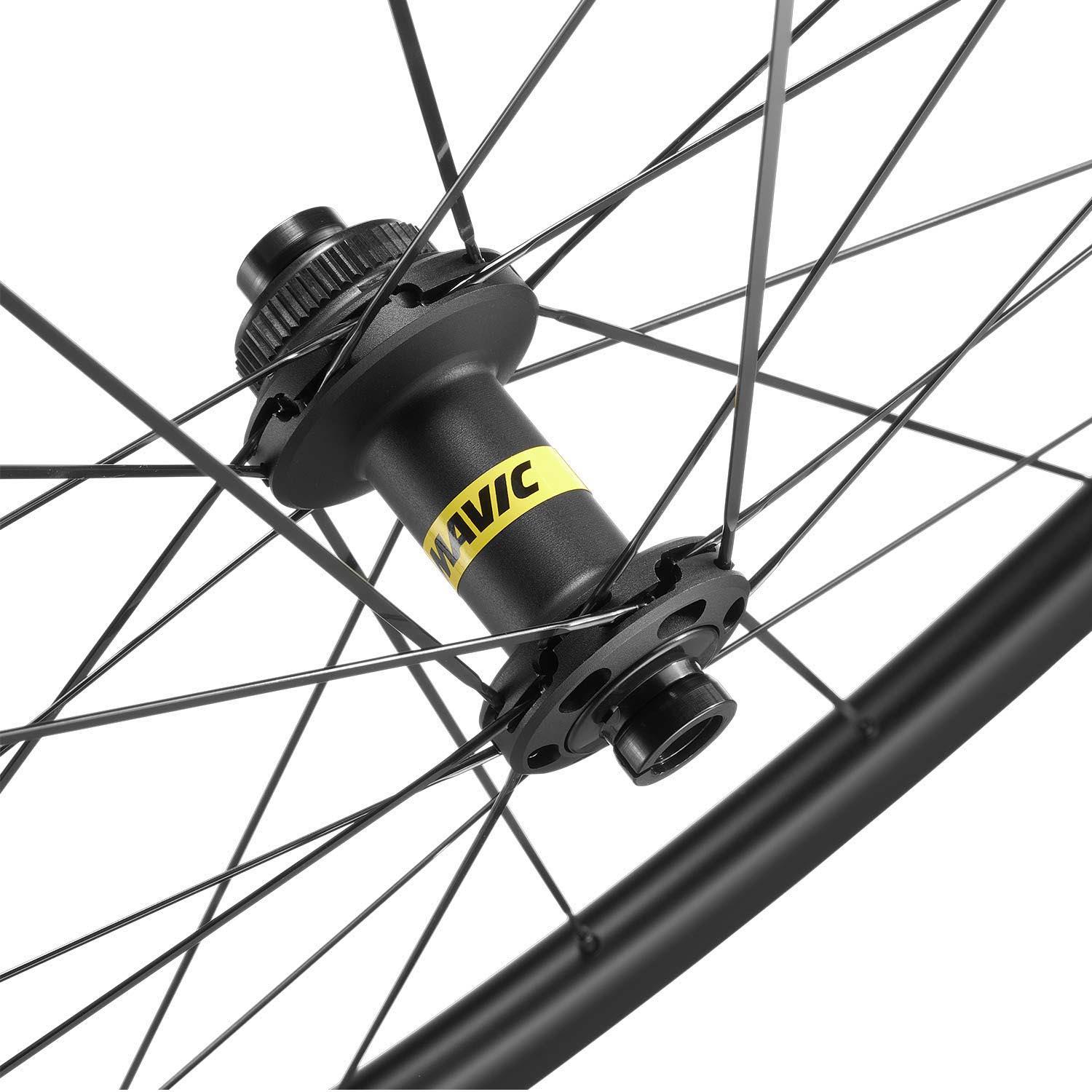

• Infinity hub design: Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

• QRM Auto bearing preload technology: The cartridge bearings are of course double sealed with C3 interna; clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

• Diameter: 700c

• Weight (pair): 1796g

• Material (rim): Maxtal

• Rim height: 30mm

• Tyre compatibility: UST Tubeless Ready (can also be used with inner tubes)

• Internal rim width: 19mm

• Drilling: 24 holes (front and rear)

• Brake type: Disc brake

• Material (spokes): Steel

• Nipples: Steel, ABS, black

• Lacing: crossed 2 (front and rear)

• Hub material: Aluminium

• Disc standard: Centre Lock

• Freehub: Shimano/SRAM, SRAM XDR or Campagnolo

• Axle size: Front - 12x100mm; Rear 12x142mm (convertible to quick release with adapters - not included)

• Minimum tyre width and pressure: 23mm (97 PSI)

• Maximum tyre width and pressure: 62mm (55 PSI)

• Maximum supported weight: 120kg (bike weight included)

What's included with the wheelset?

• User guide

• Tubeless rim tape (pre-installed)

• UST tubeless valves

• Multifunction adjustment wrench with the rear wheel

Compatibility:

• Shimano/SRAM option is compatible with Shimano Road 9, 10, 11 and 12 speed cassettes and SRAM splined 9, 10 and 11 speed cassettes.

• XDR option is compatible with SRAM 11,12 and 13 speed XDR cassettes only.

• Campagnolo option is compatible with 9, 10, 11 and 12 speed cassettes.

• Front wheel is configured for forks with 12x100mm thru axle spacing but can be converted to Quick Release with adapters available for purchase separately. Rear wheel is configured for frames with 12x142mm thru axle rear spacing but can be converted to Quick Release with adapters available for purchase separately.

• Centre Lock disc brake interface for compatibility with Centre Lock disc rotors.
