Shimano Ultegra WH-R8170 C60 Carbon Disc Wheel
Payment options available
Average weight: Front - 738g / Rear - 911g

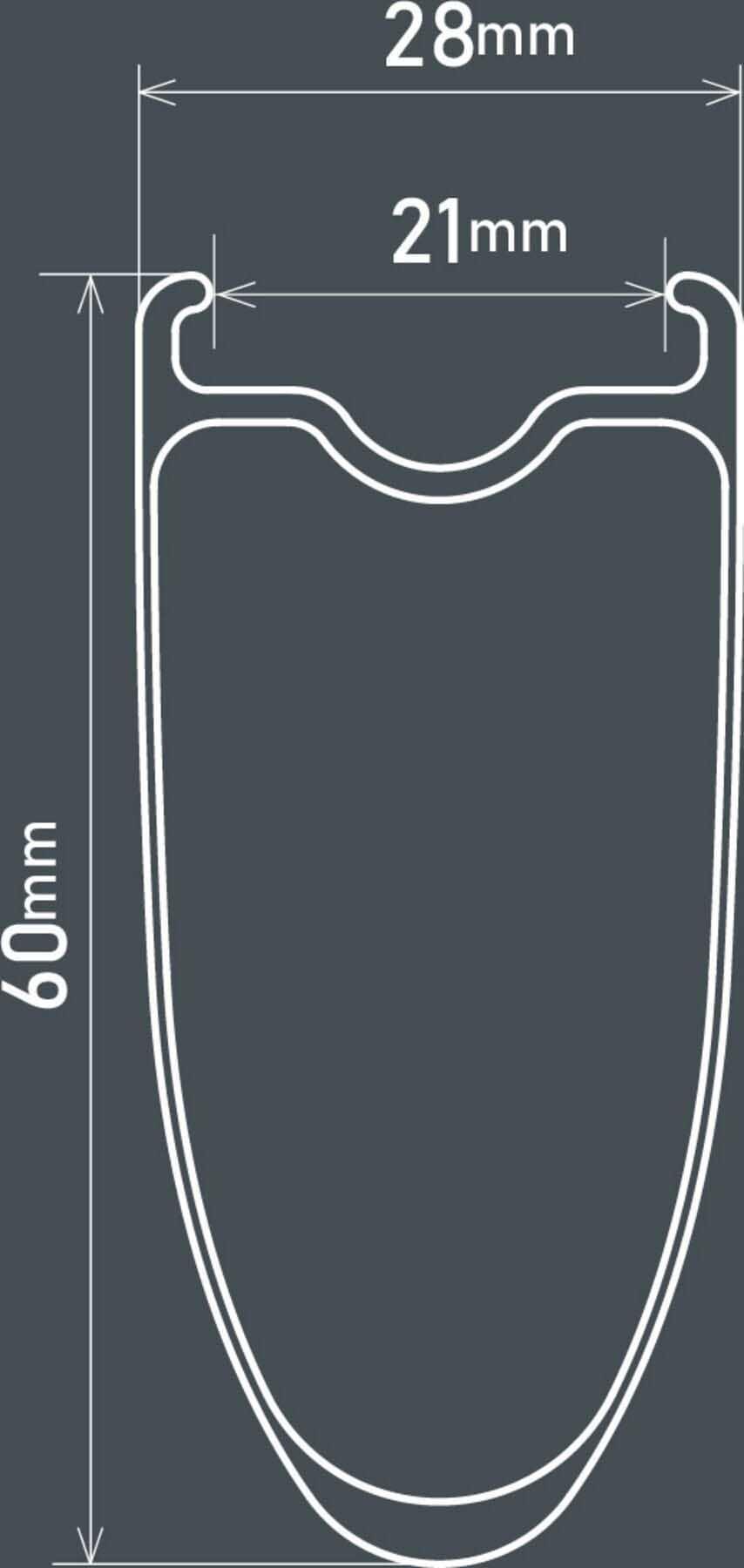

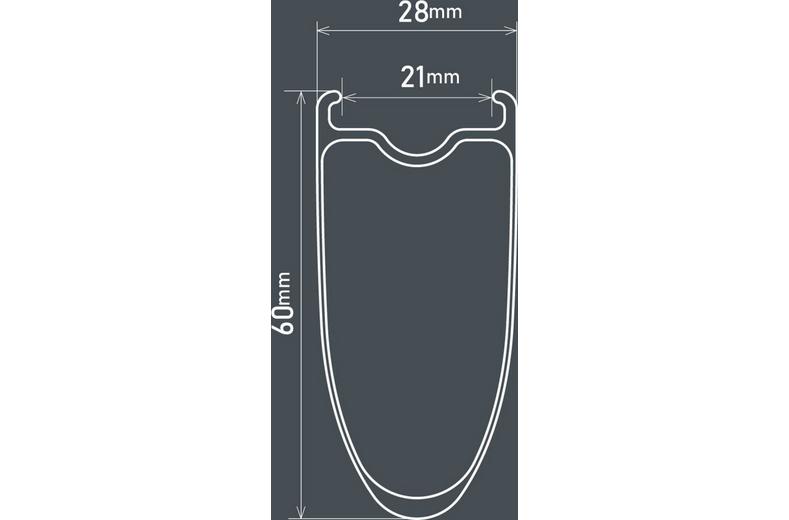

60 mm height full carbon rim
Internal rim width: 21 mm
Shimano Ultegra WH-R8170 C60 Carbon Disc Wheel
WH-R8170 TL carbon clincher disc brake designed to meet pro road race criteria
Lightweight clincher full carbon 60 mm deep rim for improved aerodynamics, increased rigidity and excellent inertia for sprinters and TT specialists
Easy to use Center Lock rotor mount for use with disc brakes
Stainless steel butted (2.0-1.8-2.0) and bladed straight pull spokes for optimal balance and rigidity (OPTBAL)
Elbow-less spokes make for a strong yet compliant wheel
High lateral rigidity is produced with a wide flange spacing
Labyrinth double-contact sealing effectively shuts out water and dirt
Alloy cone with integrated steel Borozon treated bearing races - super mirror finish reduces friction

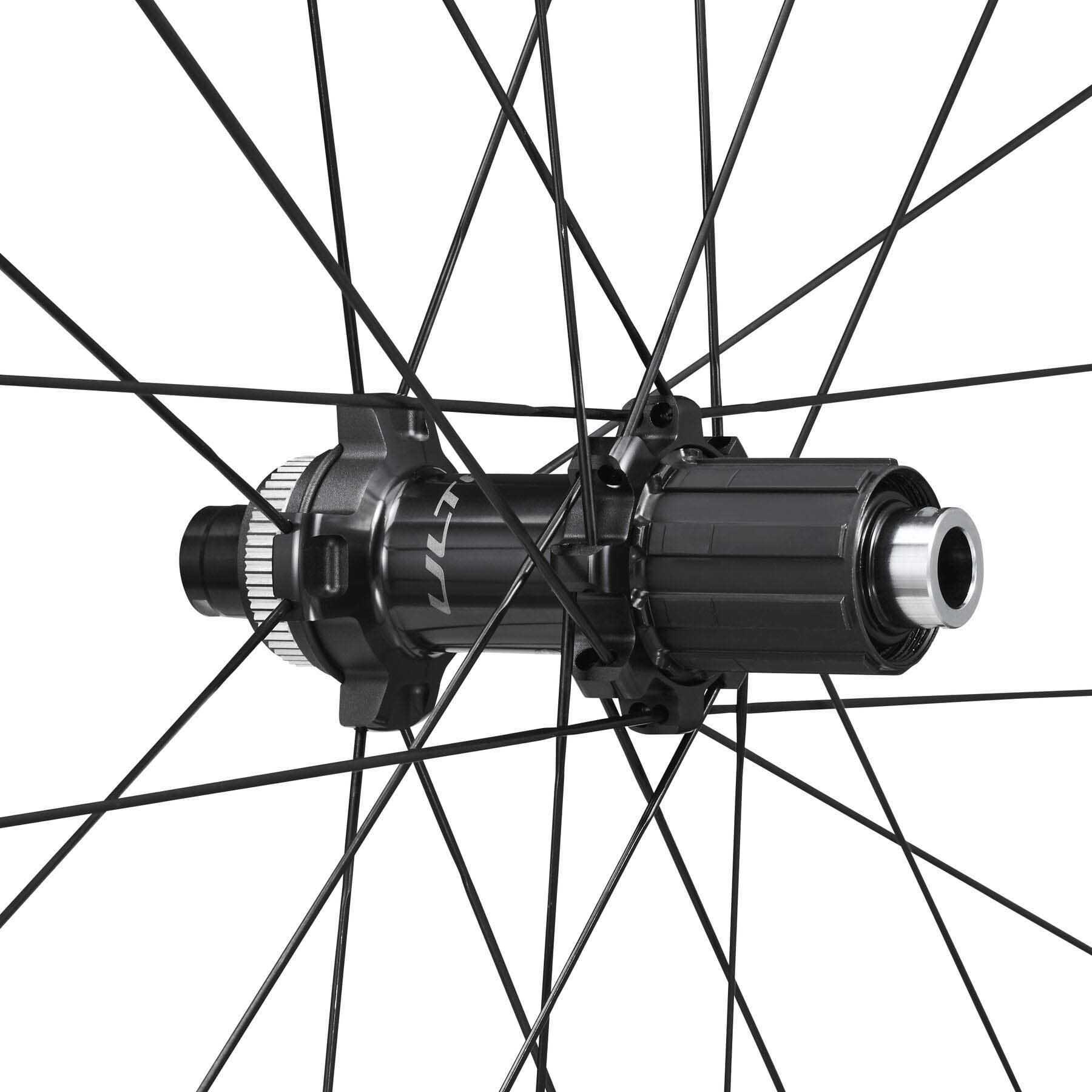

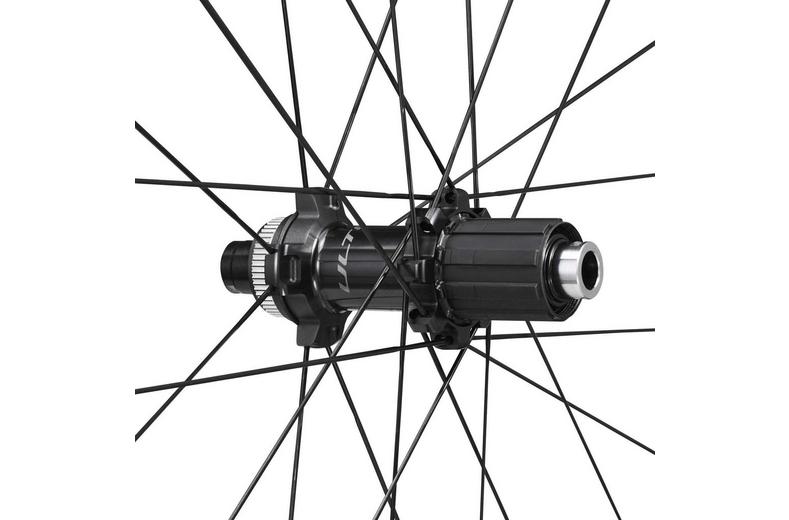

Freehub uses direct engagement interlocking faces for quick power transfer
Cold forged, machined aluminium hub shell and oversized 7075 alloy axle keep the wheel weight to a minimum
Compatible with clincher and tubeless type tyres
Axle size: Front 12x100mm; Rear 12x142mm
Average weight: Front - 738g/ Rear - 911g
Rear wheel is Shimano 11-12-speed compatible
Designed for the highest speed environments and modern tire widths, the Shimano Ultegra WH-R8170 C60 Carbon Disc Wheel shares its all-carbon rim profile with DURA-ACE but employs a hub that is compatible with both 12 and 11-speed cassettes.
For situations where aerodynamics is the priority, the new ULTEGRA R8170 C60 wheelset features an all-carbon, 21 mm internal, tubeless compatible rim and a super-fast cup and cone bearing hub that is compatible with both 12 and 11-speed cassettes.
Type | Front or Rear Wheel |
Discipline | Road Bike |
SKU | 799862 |
