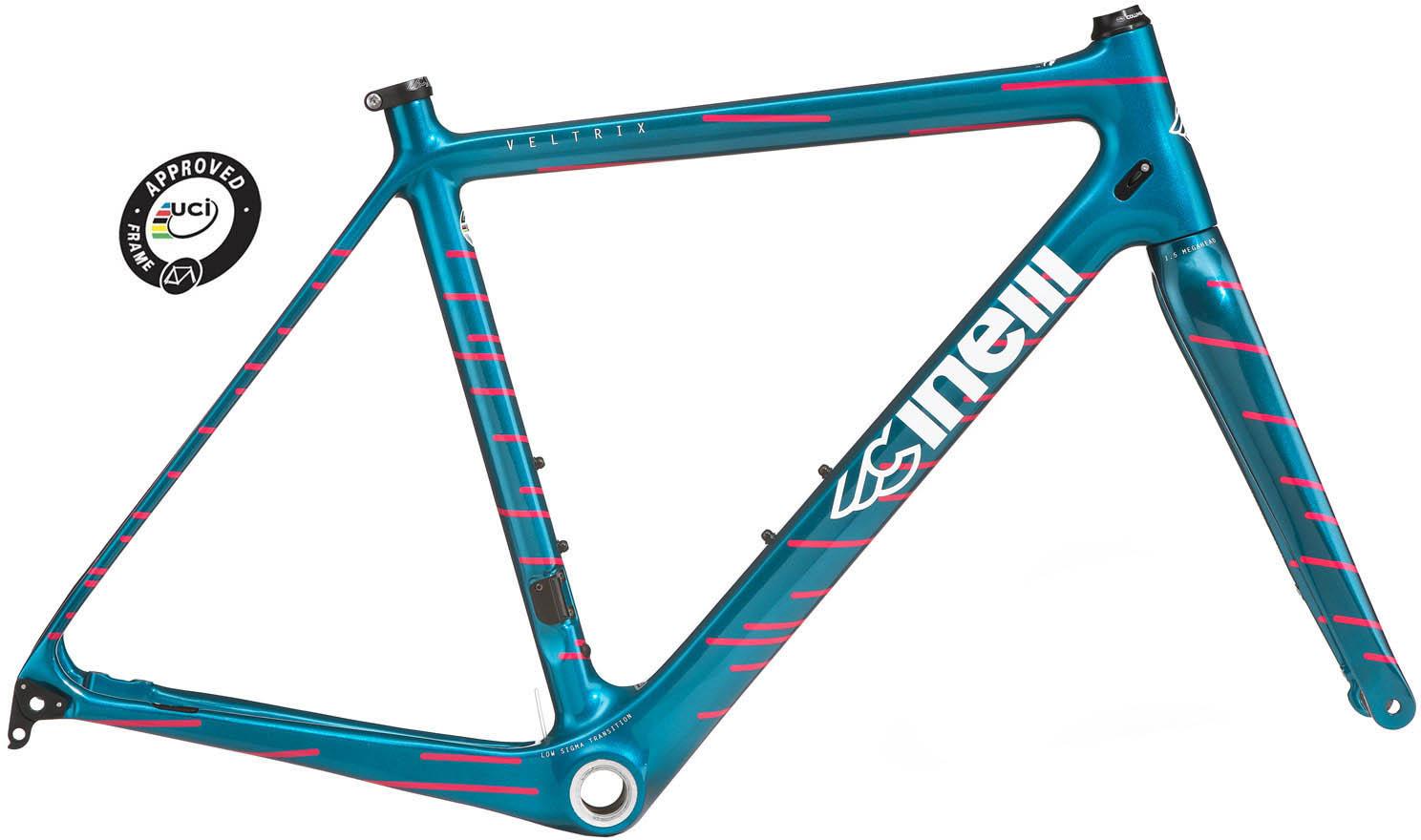

Cinelli Veltrix Disc Blue Carbon Road Frameset

HIGHLIGHTS:

• Oversized minimalist racing aesthetics
• Long distance comfort and handling
• Dynamic race geometry
• Carbon monocoque construction
• UCI approved

Veltrix is a carbon monocoque frame born from our competition experience but designed for riders looking for easier handling and greater versatility than a pure competition vehicle can offer. Minimal, rational design and intricate paintwork make this frame an everyday Italian classic.

The Veltrix uses Dynamic Race Geometry which means that the ratio between the top tube and seat tube never differs between frame sizes, offering the optimum position in the saddle for power transfer and aerodynamics regardless of size. It perfectly aligns the rider's centre of gravity, resulting in sublime handling.

Constructed with T30/HM carbon fibre and featuring a 1.5" headtube to give precision steering at the highest speeds.

The Veltrix is suitable for up to 28mm tyres, flat mount disc brakes and 12mm thru-axles. The frames is also electronic and mechanical groupset ready and UCI Approved.

TECHNICAL SPECIFICATIONS:

• Sizes: XS (50) - S (52) - M (54) - L (56) - XL (58)
• Frame material: Columbus Carbon Monocoque

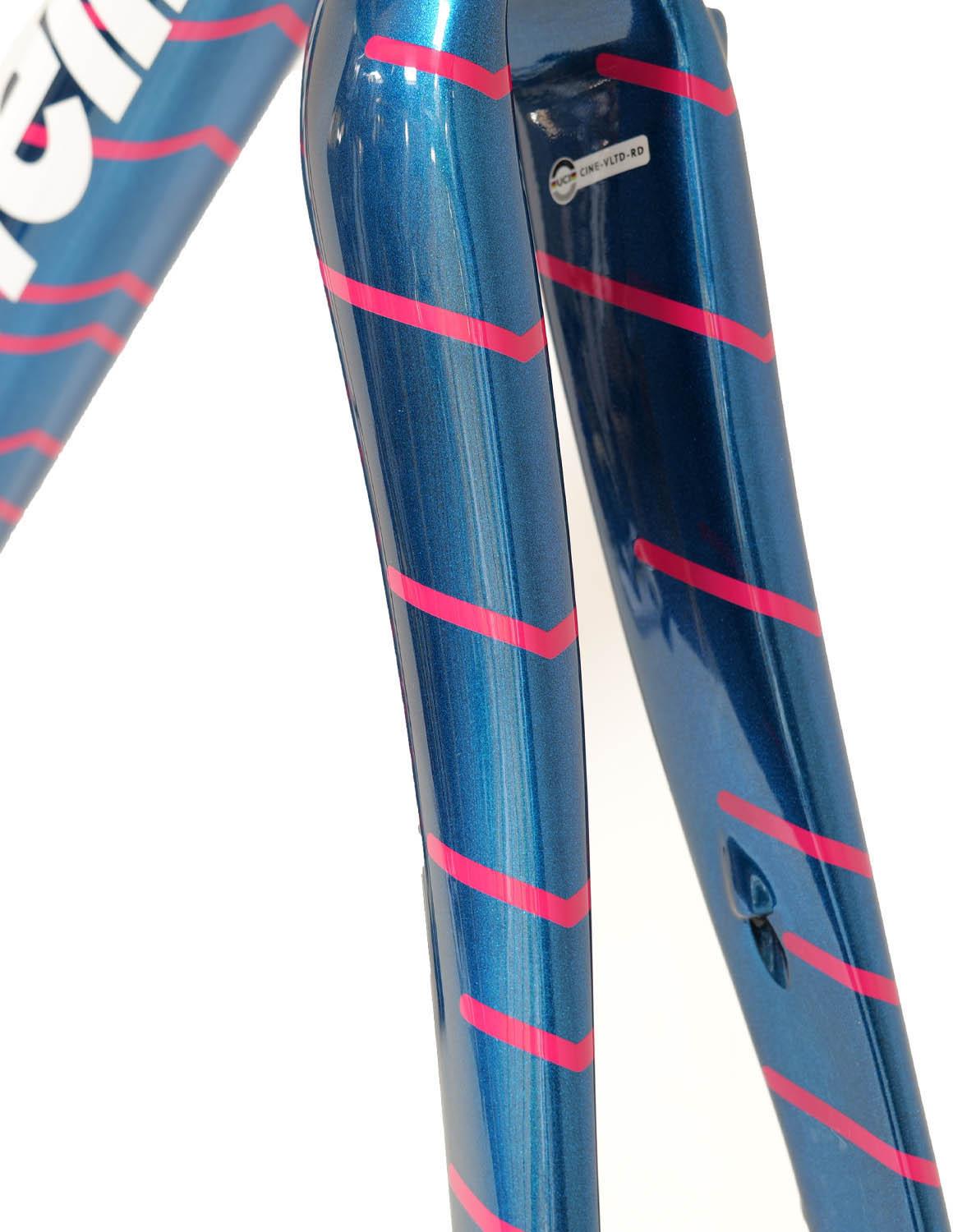

• Fork: Columbus Disc 1-1/8” 1-1/2” Carbon Monoc
• Frame weight: 1250g (size M)
• Fork weight: 500g (uncut)
• Headset: IS 42/28,6 | IS 52/40
• Seatpost size: 31.6mm
• Seatpost clamp: 34.9mm
• Bottom bracket shell: English threaded 68mm (BSA)
• Front derailleur mounting: Braze-On
• Routing: Internal - Di2/EPS compatible
• Colour: Baby Blue
• Max tyre clearance: 700x28c
• Brake: Flat mount disc brake, rotor size up to 160 mm
• Axles: 12x100mm / 12x142mm

What's in the box?

• Frame
• Fork
• Headset
• Seat clamp
• Mech hanger

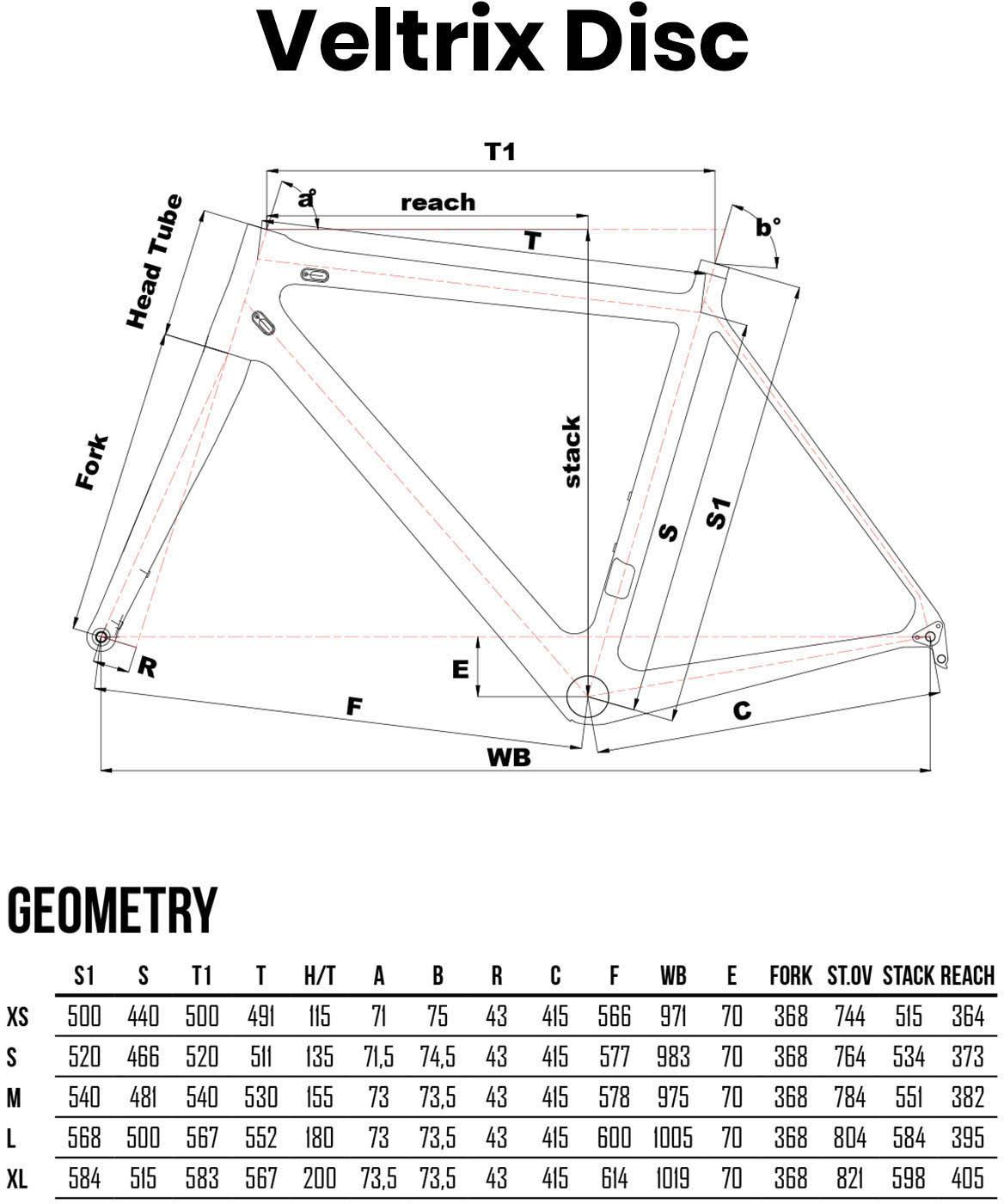

*Please see images for sizing and geometry information.
