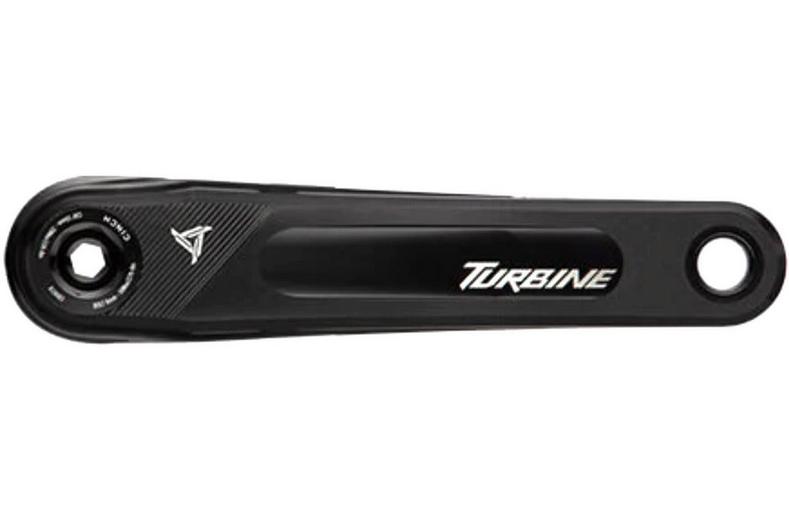

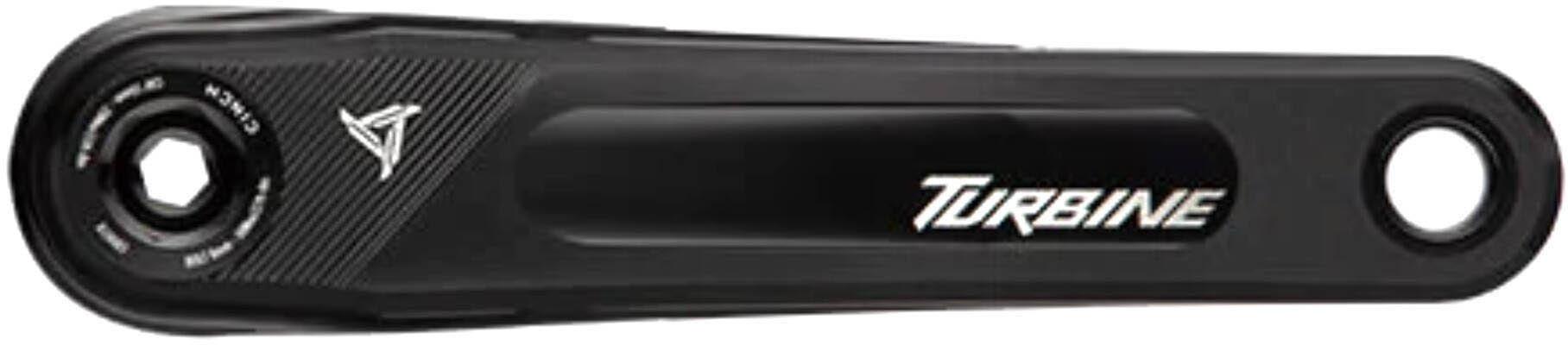

Race Face Turbine Cranks

Features and Benefits:

• Durable high-gloss finish.
• Deep pocket forged and CNC machined to optimise stiffness.
• Industry standard 30mm spline interface.
• CNC machined from 7050 alloy.
• Compatible with the Race Face CINCH Power Meter

The most trustworthy alloy crank on the trails, thirty years running. The Turbine delivers an incredibly stiff and responsive ride with uncompromised durability. Go ahead and get rowdy. Turbine has your back.

A legacy of unrivaled strength and durability has earned the Turbine a place in the crankset hall of fame. Don’t let the competitive weight and modern looks fool you. This crank is ready for anything.

The proven and future-proof CINCH System will let you keep turning these cranks on your next bike and the bike after that. Plus, you can quickly switch out a different chainring for your next race or road trip. Too easy.

This crankset is forged from 7000-series aluminum for maximum strength then machined to shave every unnecessary gram of weight. Low on flex and high on smash-ability, rock gardens won’t stand a chance.

Technical specifications:

• Chainline: 52mm - 136 Spindle, 55.5mm - 143 Spindle
• Crank arm lengths: 165mm, 170mm, 175mm
• Includes: Pedal Washers (Chain Rings & Bottom Brackets sold separately)
• Crank Arm Material    : 7050 Aluminum
• Spindle Diameter: 30mm
• Spindle length: 136mm, 143mm
• Weight: 595g (170mm arms, 136 spindle)

*136mm spindle (52mm chainline) is typically used on mountain bikes with 12x148mm boost rear frame spacing; 143mm spindle (55.5mm chainline) is normally used on mountain bikes with 12x157mm super boost rear frame spacing.

The Turbine cranks use a 30mm spindle, if your bike is currently using a Shimano Hollowtech or SRAM DUB bottom bracket you will need to change your bottom bracket. Shimano and SRAM have their own spindle diameter standards. Race Face manufactures four bottom brackets that accommodate a 30mm spindle (3 press fit and 1 threaded).
