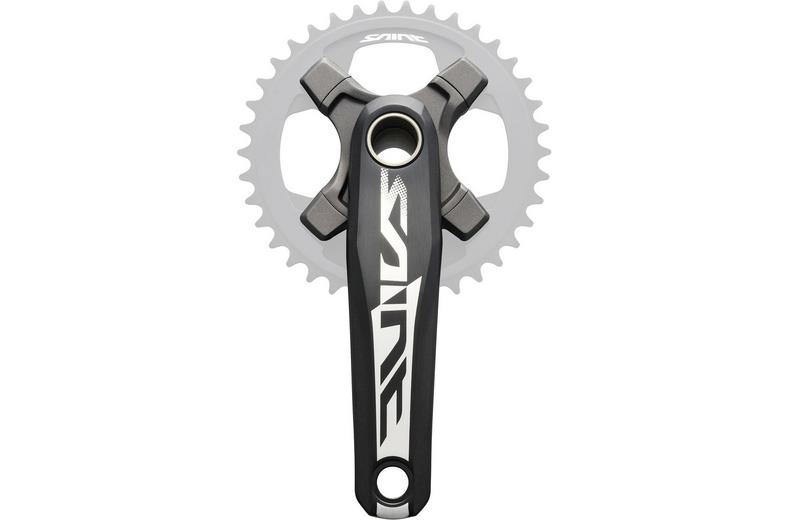

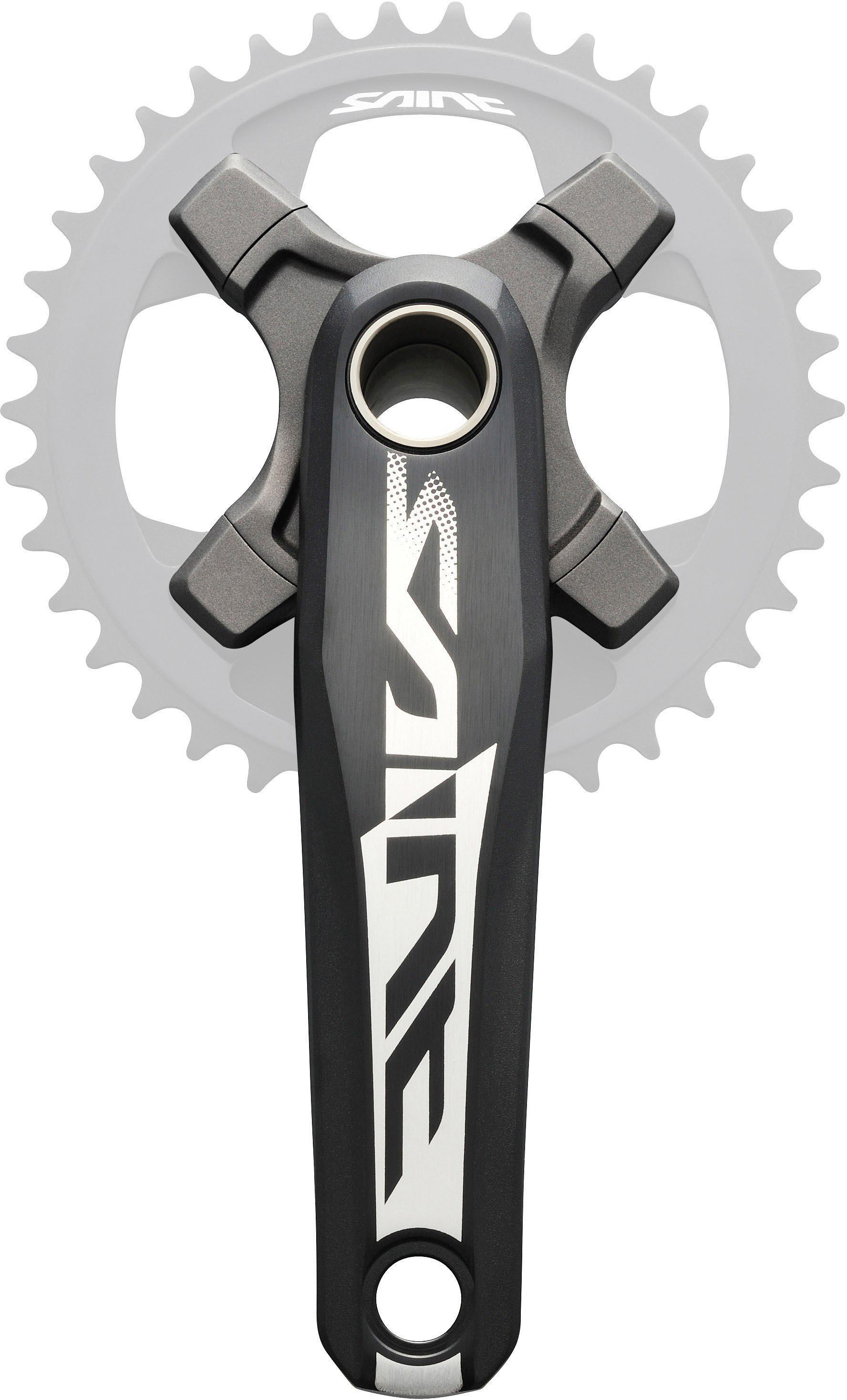

Shimano Saint FC-M825 Crank Arm Set with Bottom Bracket

Shimano Saint FC-M825 Crank Arm Set with Bottom Bracket

• HollowTech II Cold-Forged Crank Arms: Hollow construction increases rigidity while reducing weight for powerful, efficient pedalling.

• Integrated HollowTech II Bottom Bracket: Wide bearing placement and large axle diameter enhance stiffness and long-term durability.

• Steel Axle and Reinforced Pedal Inserts: T-nut style steel threaded bushings strengthen the pedal/crank interface for aggressive riding.

• Optimised Crank Arm Profile: Improved ankle clearance and enhanced rock clearance by removing excess material from the crank ends.

• Gravity-Focused Design: Developed specifically for downhill and freeride applications.

• 83mm Bottom Bracket Included: Designed for frames with 83mm shell width.

Built for the toughest downhill and freeride terrain, the Shimano Saint FC-M825 Crank Arm Set with Bottom Bracket is engineered to handle the extreme demands of gravity riding. Designed around Shimano-s strongest HollowTech II construction, this crankset delivers maximum stiffness, durability and impact resistance for aggressive MTB use.

With a steel axle, reinforced pedal inserts and a gravity-optimised crank arm profile, the Saint FC-M825 sets the benchmark for downhill and bike park performance.

Technical Specifications:

• Speeds: 10-speed

• Compatible Chainring: SM-CR82 (sold separately)

• Crank Arm Lengths: 165mm or 170mm

• Chain Line: 57.9mm

• Q-Factor: 193mm

• Bolt Circle Diameter (BCD): 104mm

• Spider / Gear Arms: 4-arm

• O.L.D Compatibility: 150mm, 157mm

• Recommended Chain: HG-X 10-speed

• Average Weight: 838g (with 34T chainring fitted)

• Colour: Black

• Bottom Bracket: Included (83mm shell width)
