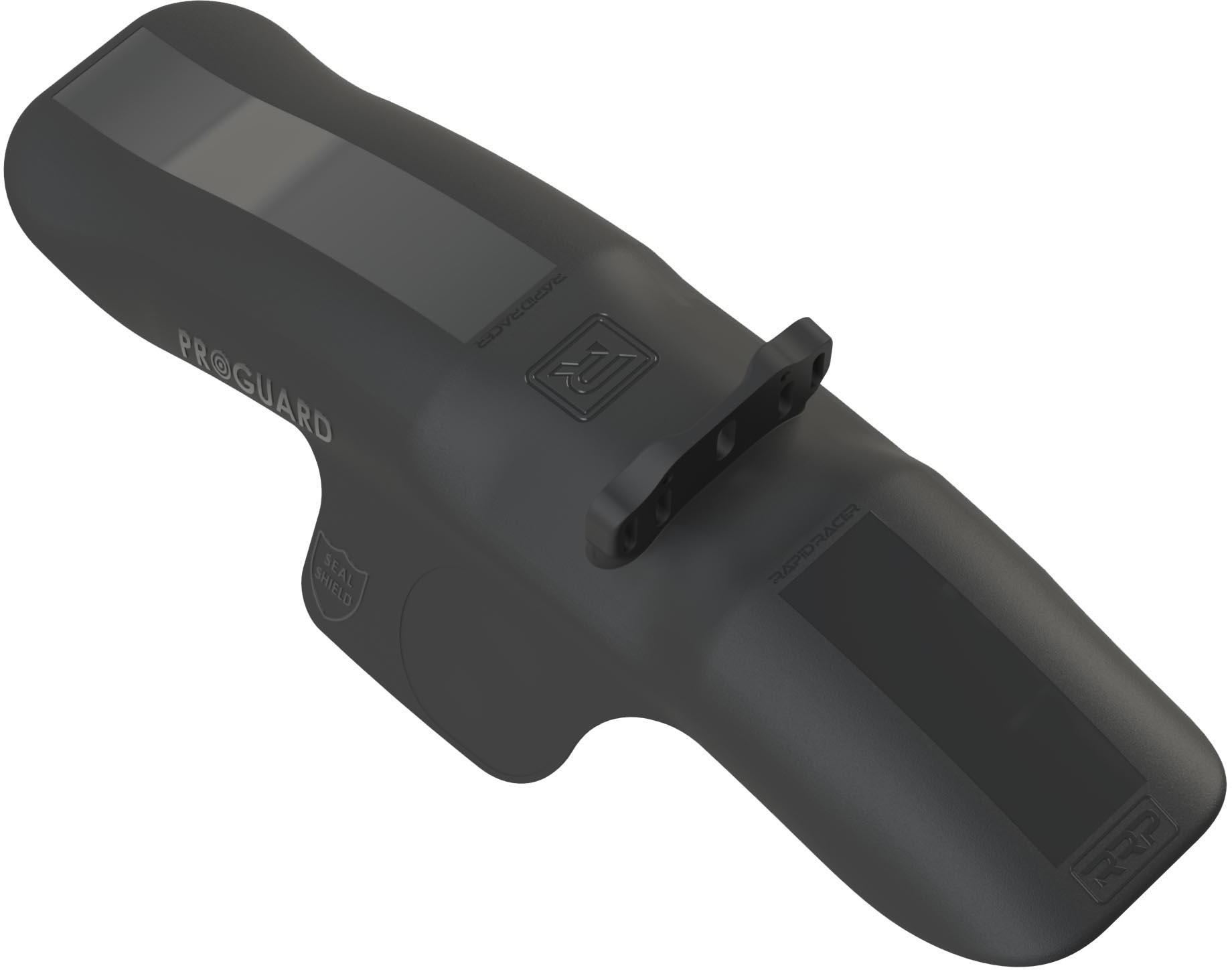

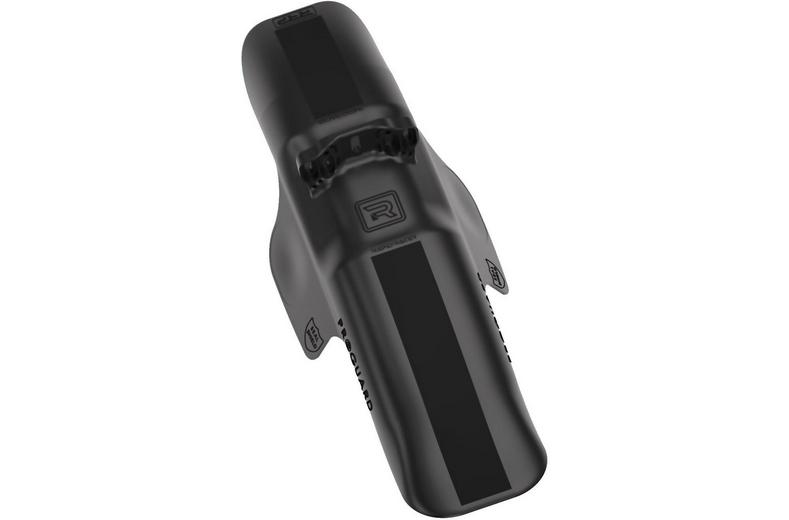

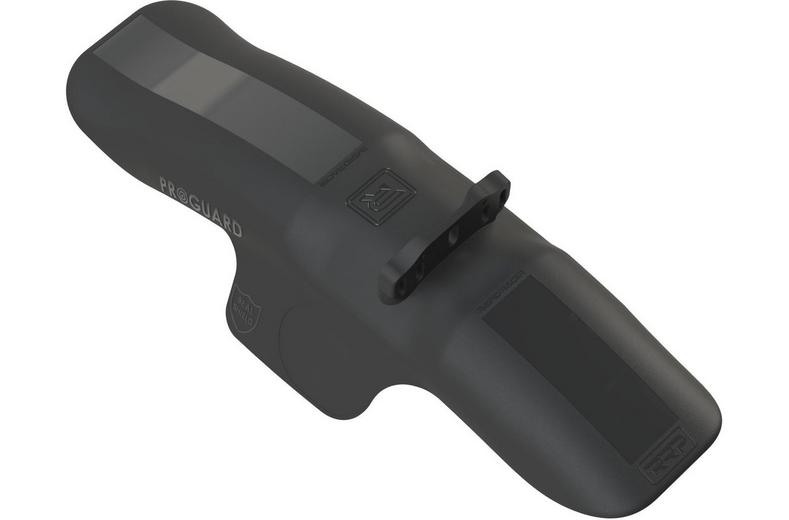

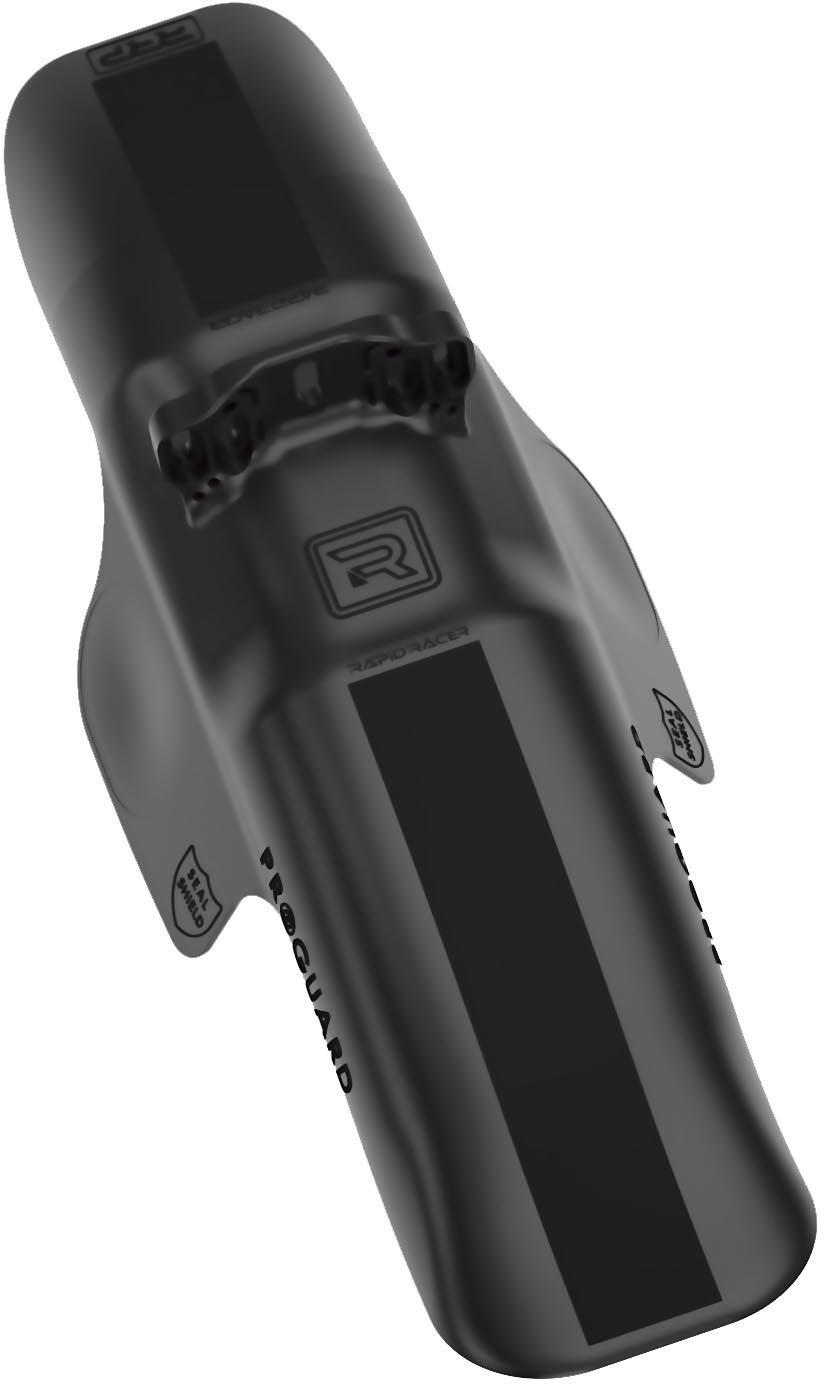

RRP ProGuard V2 Bolt On Front Mudguard

RRP ProGuard V2 Bolt On Front Mudguard

• First large direct mount mudguard of its kind.

• No zip ties or hook and loop straps for clean look.

• Easily removed in seconds.

• Height and angle adjustability.

• 2 thick rubber pads for huge stability and fork protection.

• Special proven polypropylene material for maximum durability.

• 3 size options to choose from.

• Proven seal shield protect is for seals and extends service intervals.

The ProGuard - Bolt On v2 is the evolution of our highly acclaimed bolt on v1 offering outstanding protection with the slickest most factory look available. We have increased fork compatibility, improved bottom out clearance, and added a Max Protection size so that the v2 is the best most compatible mudguard of its type on the market. Max Protection size is not recommended for aggressive downhill due to its size.

Click here - opens in a new tab for the latest list of compatible forks.

Rubber Pads

The sides of the mudguard are flared out to contact and hold onto the fork to create massive stability and protect you forks (clean regularly).

Bolts

All our bolts are custom designed by us for maximum clamping stability, uniformity, and the most secure fit (only one 3mm Allen key needed), this is extremely expensive but necessary as off the shelf options did not meet our standards. The following bolts come supplied in the packaging:

• M3 x 2 (FOX / MARZOCCHI)

• M4 x 3 (OHLINS)

• M6 x 1 (SR SUNTOUR)

The following bolts come with some adapter brackets listed below (purchased separately):

• M3 EXTRA LONG x 1 (ZEB / DOMAIN / LYRIK / PIKE ADAPTER BRACKETS)

• M4 LONG x 1 (RXF34 FITTING KIT and DVO DIAMOND)

• M5 x 2 (EXT ERA / XFUSION)

Tilt Brackets:

We have included two Tilt Brackets that just clip onto the front of the bracket allowing you to raise or lower the front for a better angle if needed.

Allen Keys:

Only one long 3mm Allen Key is needed for all our custom bolts and self-tappers which is provided in the v2 packaging.

Sticker Indent:

The centre indent is a nice easy reference to apply our coloured stickers to, this indent also prevents the sticker from sitting proud on the surface of the guard which would leave it vulnerable to durability issues. The adhesive used is very special and super strong and can be jet washed.

Seal Shield:

Our widely acclaimed Seal Shield offers greater protection for your fork seals from high velocity mud and spray lengthening service intervals.

Material:

We make our mudguard material thicker than the competition out there which together with our unique polypropylene mix allows massive impact protection, flexibility, and importantly cold weather durability and strength.

Technical specifications:

• Length: 389mm - Mini; 503mm - Standard; 600mm - Max Protection.

• Weight: 94g - Mini; 121g - Standard; 137g - Max Protection (weight does not include bolts).

• Compatible wheel sizes: 26", 27.5", 29".

• Maximum tyre width: Up to 3" tyre.

• Brake type: Disc Brake only.

• Fork offset: Minimum 44mm.

*Fork bridge must have threaded holes.
