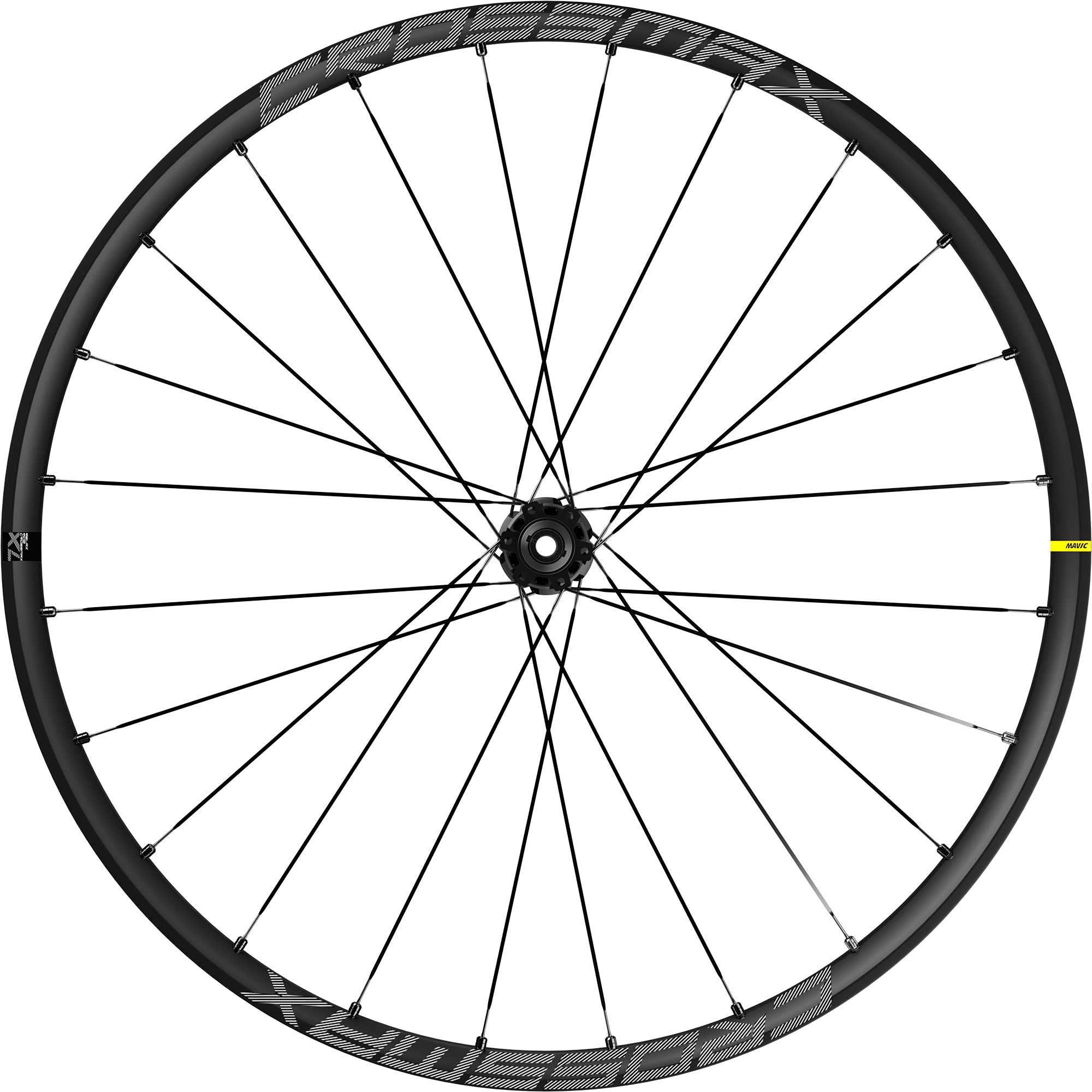

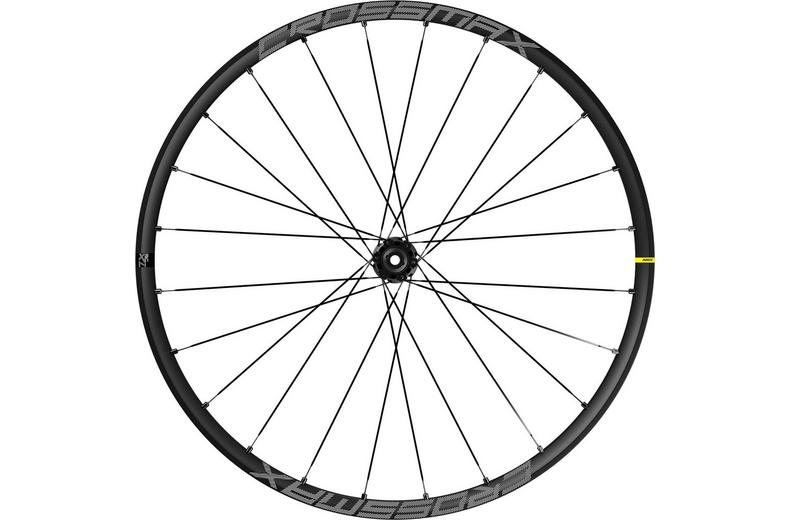

Mavic Crossmax XL 29" Centre Lock Rear Wheel, 12x148mm Shimano Micro Spline

• Wide, strong rim profile with Black Shield treatment protects your rim against impacts and scratches.
• New lighter, stiffer Infinity hubs with ultra-reliable ID360 freewheel system for instant acceleration.
• 30mm wide rim is optimised for lower tyre pressure, giving you a smoother ride with more traction and control.
• Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.
• Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tyres.
• Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.
• Weight rear: 1030g.

Trail riding is all about adventures, thrills and fun. Exploring wild places and flowy trails. To get the most out of your ride, you need to have confidence in your gear. This is especially true with your wheels, which play a critical role in the overall ride experience. That’s where the new Crossmax XL comes in. It represents the highest quality aluminium trail wheel we’ve ever built.

The rims are made with our patented Fore technology, which features a fully sealed upper bridge that eliminates the need for rim tape. That saves 30 grams per wheel and does away with the hassle of using tape to set up tubeless tyres. The rim has a 30mm internal width, perfect for optimising the performance of any modern trail tyre. It’s engineered with a super strong triangular shape, designed specifically to absorb impacts from the trail. Our Black Shield technology gives them a distinctive finish that protects against scratches and abrasions.

We use 24 straight-pull spokes to further dial in the sweet spot between lateral stiffness and vertical compliance. The Infinity hubs feature a stiffer and lighter construction that’s enhanced by the ultra-reliable ID360 double ratchet system for fast engagement.

Key Technology:

• Maxtal aluminium alloy – Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.
• ISM light rim technology – Inter Spoke Milling is an exclusive Mavic patented concept. The ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.
• Fore tapeless tubeless technology – Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.
• Instant Drive 360 freewheel technology – The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
• UST tubeless technology – Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
• SUP welding technology – Factory Welded Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
• Black Shield treatment – This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.
• Infinity hub design – Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.
• QRM Auto bearing preload technology – The cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

• Diameter: 29"
• Weight (rear): 1030g
• Rim material: Maxtal
• Rim height: 22mm
• Internal rim width: 30mm
• Drilling: 24 holes
• Tyre compatibility: Tubeless Ready
• Spoke material: Steel
• Nipples: Brass, black
• Spoke lacing: Crossed 2
• Hub body material: Aluminium
• Brake type: Disc brake
• Disc standard: Centre Lock
• Freehub: Shimano Micro Spline
• Axle size: 12x148mm
• Minimum tyre width and pressure: 52mm (43 PSI)
• Maximum tyre width and pressure: 76mm (36 PSI)
• Maximum supported weight: 150kg (bike weight included)

What's included with the wheel?

• User guide
• UST tubeless valve
• 2 replacement spokes
• Multifunction adjustment wrench

Compatibility:

• Shimano Micro Spline freehub is compatible with 1x12-speed Shimano Micro Spline Mountain Bike and Gravel cassettes only. Freehub conversion kits can be purchased separately for Shimano HG or SRAM XD cassettes.
• Rear wheel is configured for frames with 12x148mm (boost) rear thru axle spacing. Adapter conversion kits are available separately for boost quick release.
• Centre Lock disc brake interface for compatibility with Centre Lock disc rotors.
