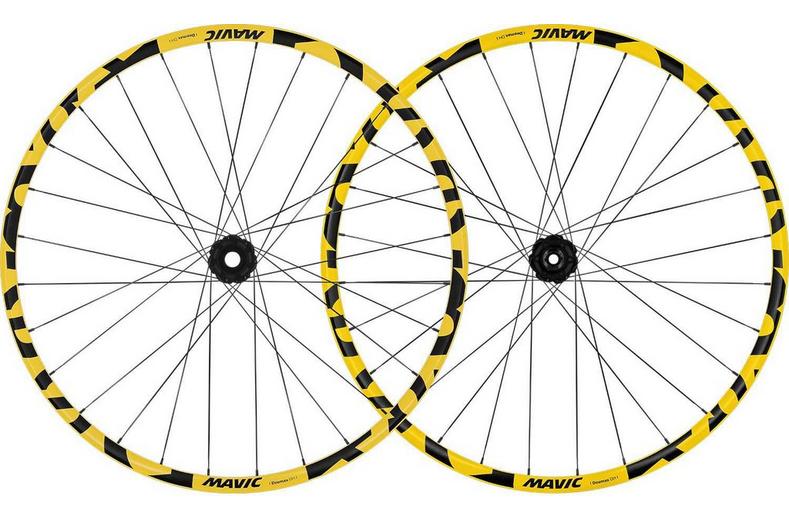

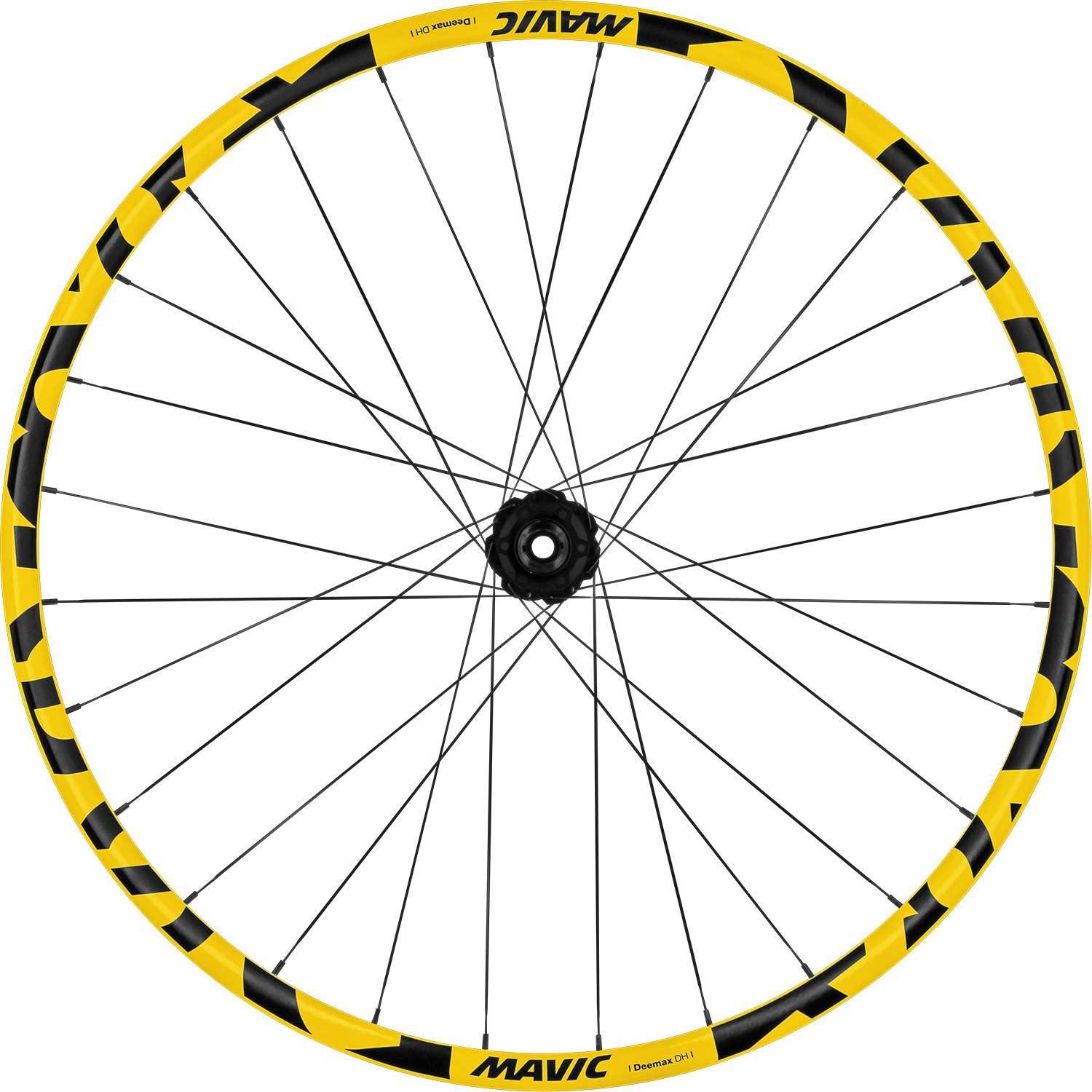

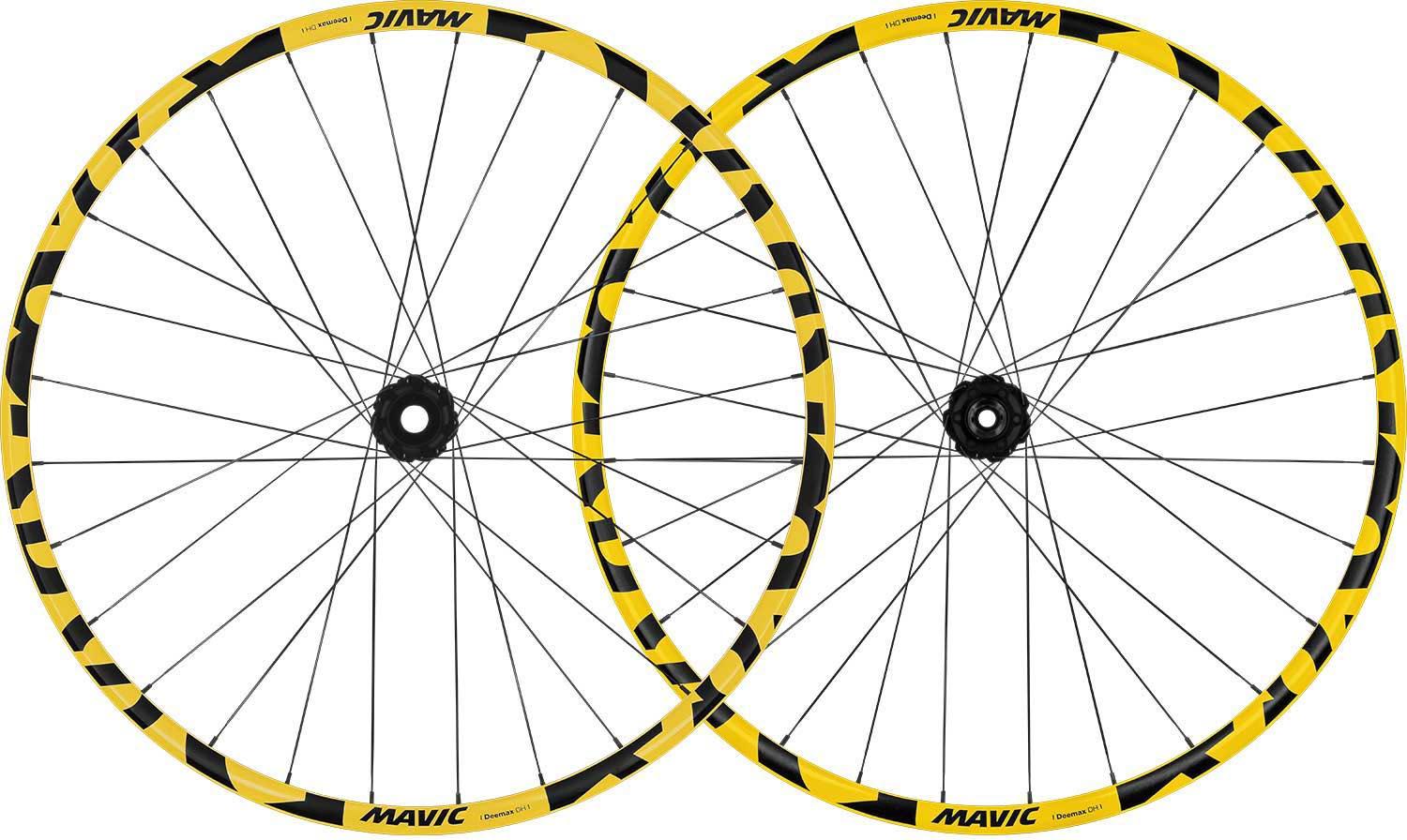

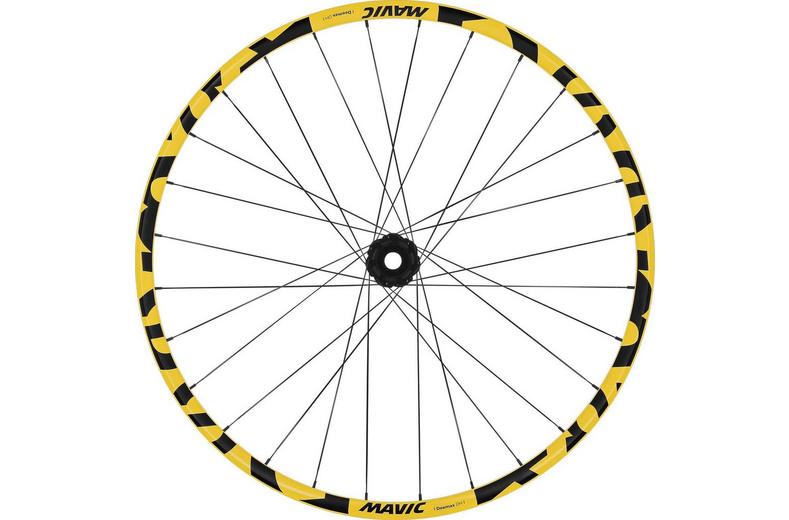

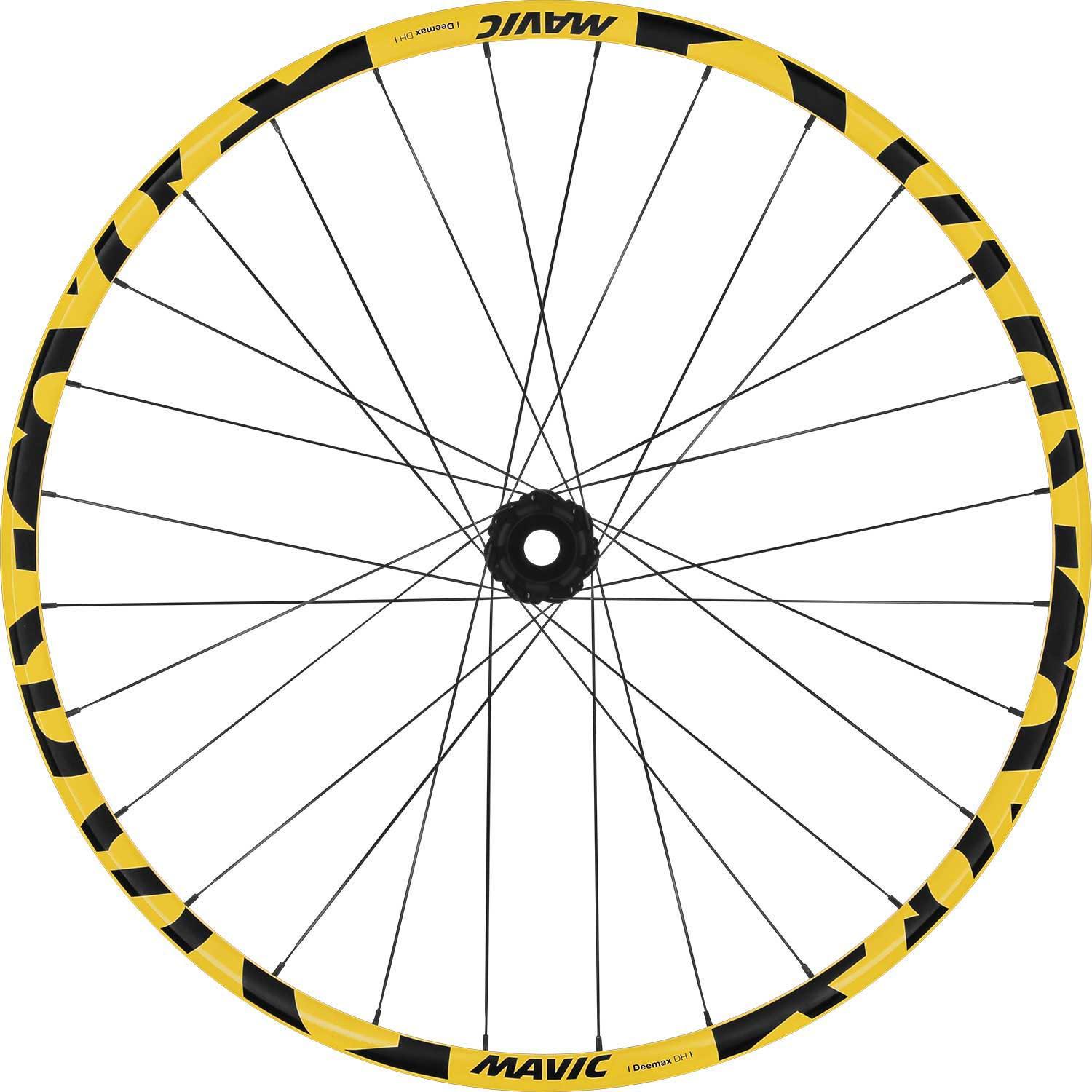

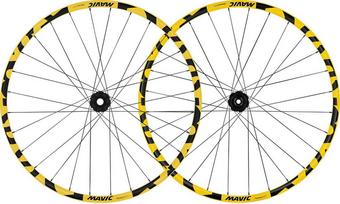

Mavic Deemax DH Yellow 29" 6 Bolt Wheelset

A tribute to the numerous victories of Nicolas Vouilloz, Greg Minaar, Sam Hill…Mavic's signature yellow rim painting rejuvenated.
Wider welded rim (30mm width) is designed to absorb heavy impacts.
The 28 double-butted J-Bend spokes offer the best compromise between strength and dynamism.
Quick and easy to fix thanks to J-Bend spokes.
Two replacement spokes delivered with each wheel.
Wide rim shape facilitates DH casing tyre between 2.0’’ and 3.0’’ set-up, which allows pilots to choose their favourite set-up.
Front wheel ships with 20x110mm (boost) thru axle spacing (can be converted to 15x110mm with included adapters).
Rear wheel is available with either 12x148mm (boost) thru axle spacing or 12x157mm (super boost) thru axle spacing.
6-bolt rotor interface for compatibility with 6-bolt disc rotors.
Wheelset weight: 2080g (front - 990g / rear - 1090g).

The limited-edition Deemax DH YLW 29 wheel celebrates the 25th anniversary of the iconic Deemax DH in style. Featuring its legendary design in an even brighter yellow, this tribute wheel pays homage to the legends who have written the greatest pages in its history, including Nicolas Vouilloz, Greg Minaar and Sam Hill.

This exceptional wheel was designed at the foot of the French Alps and developed, tested and approved by the riders in the Mavic DH team. It features a 30mm wide welded rim specifically designed to absorb the most violent impacts and to smooth out the vibrations of riding, providing maximum confidence and active relaxation on aggressive terrain.

The Deemax DH YLW is fitted with 28 J-Bend spokes in swaged steel, creating the best possible balance between robustness and compliance for maximum efficiency on the most demanding descents. Designed to be quick and easy to repair in the event of a failure, these spokes don’t require a tedious pit stop to get back on the track quickly. Each wheel comes with two replacement spokes for even greater peace of mind.

The Deemax DH YLW 29’s wide rim shape makes it easy to fit DH tyres with cross-sections between 2.0" and 3.0", offering riders exceptional versatility to adapt their tyre setup to any condition.

The ultimate downhill wheel, the Deemax DH YLW 29 celebrates Mavic’s heritage and innovation and has a proven track record for providing top performance on the roughest descents... Choose total confidence in demanding terrain, with ease of maintenance and versatility as bonuses.

Key Technology:

Maxtal aluminium alloy – Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.
ISM light rim technology – Inter Spoke Milling is an exclusive Mavic patented concept. The ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.
Instant Drive 360 freewheel technology – The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
UST tubeless technology – Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
SUP welding technology – Factory Welded Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
QRM Auto bearing preload technology – The cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

Diameter: 29"
Weight (pair): 2080g
Rim material: Maxtal
Rim height: 22mm
Internal rim width: 30mm
Drilling: 28 holes (front and rear)
Tyre compatibility: Tubeless Ready
Spoke material: Steel
Nipples: Steel, ABS, black
Spoke lacing: Crossed 3 (front and rear)
Hub body material: Aluminium
Brake type: Disc brake
Disc standard: 6 bolt
Freehub: SRAM XD
Axle size: Front 20x110mm / rear 12x148mm or 12x157mm
Minimum tyre width and pressure: 52mm (43 PSI)
Maximum tyre width and pressure: 76mm (36 PSI)
Maximum supported weight: 150kg (bike weight included)

What's included with the wheelset?

User guide
Rim tape (pre-installed)
UST tubeless valves
2 replacement spokes for each wheel
Multifunction adjustment wrench for the rear wheel
Front axle adapter: 20x110 convertible to 15x110

Compatibility:

SRAM XD driver body (freehub body) is compatible with SRAM XD Mountain Bike cassettes only. Freehub conversion kits can be purchased separately for Shimano Micro Spline or Shimano HG cassettes.
Front wheel is configured for forks with 20x110mm thru axle spacing but can be converted to 15x110mm thru axle with included adapter kit. Torque cap adapter kit is also available separately to convert the front wheel hub ends to 20x31mm.
Rear wheel is available with either 12x148mm (boost) thru axle spacing or 12x157mm (super boost) thru axle spacing. Rear 12x148mm (boost) option can be converted to 9x141mm boost quick release with adapter kit available separately. Rear 12x157mm (super boost) option can be converted to 12x150mm thru axle rear spacing with adapter kit available separately.
6-bolt disc brake interface for compatibility with 6-bolt disc rotors.

Size	29"
Diameter	29"
Type	Wheel Sets
Discipline	Mountain Bikes
Weight	2080g
Spokes	28H
Brake Type	Disc Brake
Tubeless Ready	Yes
Spokes Material	Steel
SKU	357843
