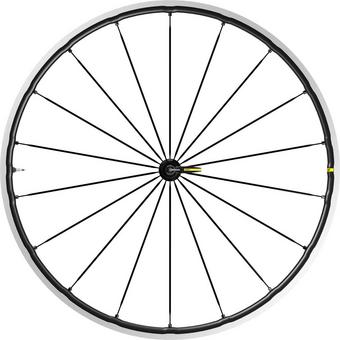

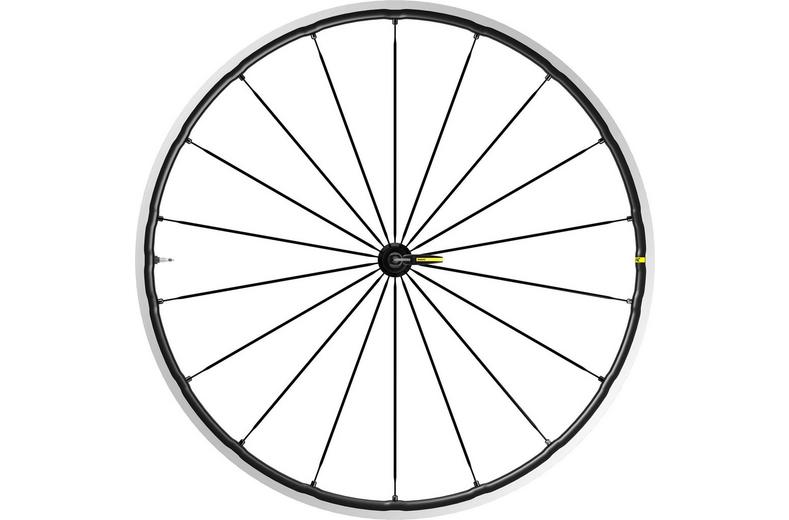

Mavic Kysrium SL Rim Brake Front Wheel

Mavic Kysrium SL Rim Brake Front Wheel

• ISM4D rim weighs only 400g.

• Patented lightweight aero spokes and 22mm deep/19mm wide rims keep inertia low and control high

• Solid upper rim bridge eliminates the need for rim tape, saves 30g

• Fore technology keeps the rim upper bridge solid to make the rim stiffer

• New Infinity hub platform: stiff axle, durable bearings and new hub design guarantees wheel stability

• ID360 freewheel technology for improved power transfer

• No tubes mean less friction, better efficiency and grip, a reduced risk of punctures

• New rim bed shape makes it easier to mount and change tyres

• Fore drilling technology doesn't require the use of rim tape

• Weight front: 645g

Ksyrium has always represented the best of aluminium wheel technology. Following in the footsteps of the venerable Ksyrium Elite and Ksyrium Pro, the all-new Ksyrium SL takes it to the next level. It’s the perfect all-rounder for those seeking a wheel that delivers reliable everyday performance on the road.

This new wheel is lightweight (100g lighter than the former Ksyrium Elite despite its wider rim) and durable as ever thanks to our patented ISM4D technology. This manufacturing process removes all excess material between each spoke hole while keeping the rim wall thick enough where spoke tension and stress is the highest. Those rims are made in France, in our aluminium rim factory. The double-butted spokes further reduce weight while making the wheel more responsive. These spokes also have a patented elliptical shape that can save 5 watts for added efficiency.

Stiffness is optimized using Fore technology. The upper bridge is not drilled, so it remains strong and rigid and doesn’t require the use of a rim tape (another 30g saved per rim). The rim bed’s new shape makes it easier than ever to mount and remove tyres, and our UST Tubeless technology improves rolling resistance and grip while reducing the risk of punctures. Our new Infinity hub platform optimizes stiffness and power transfer with highly controlled spoke tension, while the Instant Drive 360 freewheel coupled with our automatic bearing preload adjustment (QRM Auto) delivers fast engagement and durability.

Key Technology:

• Maxtal aluminium alloy: Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.

• ISM 4D light rim technology: Inter Spoke Milling 4 Dimensions is an exclusive Mavic patented concept. The ISM 4D significantly reduces the weight and inertia without compromising durability. Quicker accelerations, better handling and more resistance; the right mix to make the most of any ride the smooth profile also helps reducing aerodynamic drag.

• Fore tapeless tubeless technology: Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.

• UST tubeless technology: Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

• Isopulse lacing design: Optimum energy transfer. The spokes are laced radially on the drive side and crossed 2 on the non-drive side to maximise drive side dish, thus providing a better spoke tension balance between left and right flanges.

• SUP welding technology: Stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

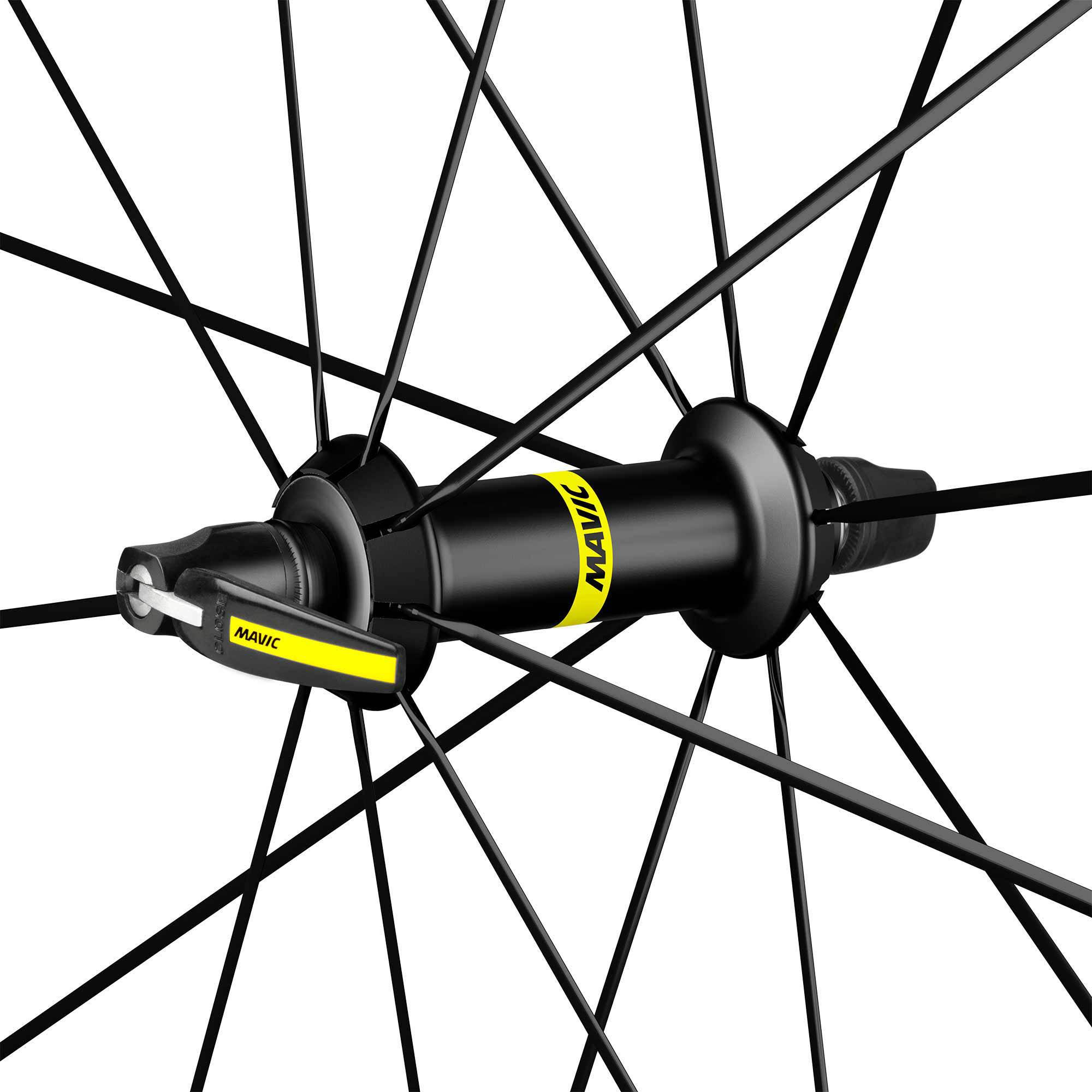

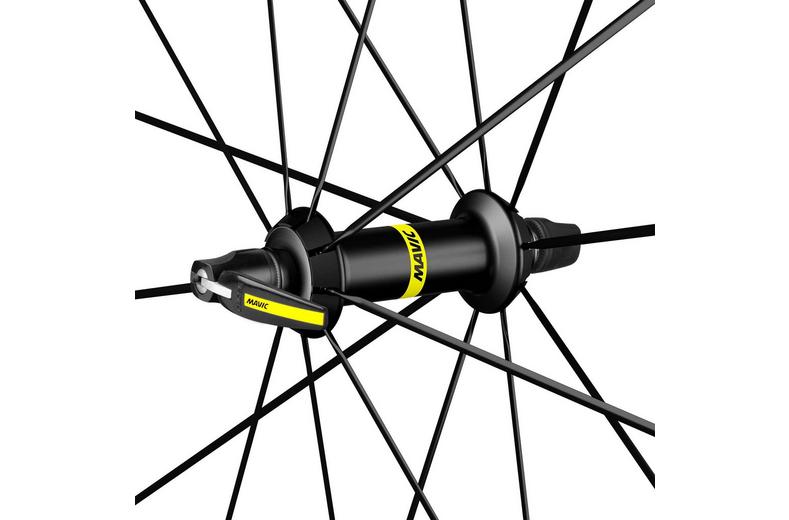

• Infinity hub design: Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

• QRM Auto bearing preload technology: The cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

• Diameter: 700c

• Weight (front): 645g

• Material (rim): Maxtal

• Rim height: 22mm

• Tyre compatibility: UST Tubeless Ready (can also be used with inner tubes)

• Internal rim width: 19mm

• Drilling: 18 holes

• Brake type: Rim brake

• Material (spokes): Steel

• Nipples: Brass, black

• Lacing: Radial

• Hub material: Aluminium

• Axle size: 9x100 Quick Release

• Minimum tyre width and pressure: 23mm (97 PSI)

• Maximum tyre width and pressure: 62mm (55 PSI)

• Maximum supported weight: 120kg (bike weight included)

What's included with the wheel?

• User guide

• Quick Release skewers

• UST tubeless valves
