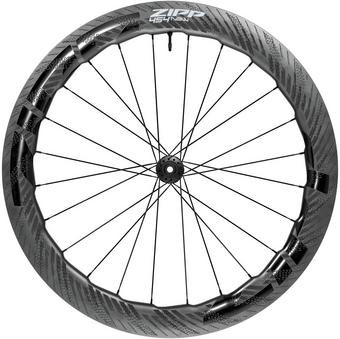

Zipp 454 NSW Tubeless Disc Brake Wheel

Zipp 454 NSW Tubeless Disc Brake Wheel

• 30g Lighter than the previous model for improved performance and weight savings.

• ZR1 SL Hubset with ceramic bearings for smoother, faster rolling.

• Total System Efficiency (TSE) Technology for optimized efficiency and reduced rolling resistance.

• Sawtooth Rim Design featuring Hyperfoil nodes and HexFin ABLC dimples, offering exceptional aerodynamics and stability in crosswinds with an undulating 53/58mm rim depth.

• ImPress Direct-Print Graphics for a sleek, durable finish that resists fading.

• Ships with 12mm front and rear end caps, ensuring compatibility with most modern setups.

• Centre-locking rotor interface with lockring included for easy setup.

• Available with XDR and SRAM/Shimano driver bodies.

• Campagnolo driver body is available separately.

• Backed by a Lifetime Warranty for peace of mind on every ride.

• Weight - 1400 grams in the lightest configuration.

The Zipp 454 NSW Tubeless Disc Brake Wheelset is the ultimate choice for competitive road cyclists. Engineered to meet the demands of performance, it delivers superior aerodynamics, unmatched stability in all wind conditions, and a smooth, responsive ride.

The wider rim profile is optimized for tubeless tyres, allowing for lower tyre pressure. This not only reduces rolling resistance but also provides better vibration damping, ensuring maximum energy efficiency on every ride. For optimal aerodynamics and rolling resistance, a 28mm tyre is recommended.

Zipp's signature 58mm Sawtooth rim shape, with integrated Hyperfoils, offers our most aerodynamic and stable design yet. The 454 NSW is also built around Zipp's Total System Efficiency (TSE), a holistic approach to reducing the four primary speed inhibitors: wind resistance, gravity, rolling resistance, and vibration losses.

A standout feature of the 454 NSW is its hookless rims. This innovative design creates a seamless tyre-to-rim transition, improving aerodynamics and contributing to the wheel's overall efficiency. The hookless construction also enables better resin distribution, resulting in a lighter and stronger wheel.

Equipped with the ZR1 SL hub set, the 454 NSW features ceramic bearings and a quick 66-point engagement system, providing exceptional responsiveness. The new hub set is 30g lighter than its predecessor, further enhancing the wheel's performance.

Whether you're racing or pushing the limits of performance, the Zipp 454 NSW ensures you lose as little energy as possible and stay ahead of the competition.

Technical specification:

• Diameter: 700c

• Rim construction: Carbon - Hookless

• Tyre compatibility: ISO/TSS Compatible tubeless tyres (28-35c) tube or sealant

• Rim depth: 58mm

• Brake compatibility: Disc

• Disc interface: Centre Lock

• Internal rim width: 23mm

• Rim profile: Symmetrical

• Rim finish: UD fiber, Impress technology

• Hub: ZR1 SL

• Axle size: Front - 12x100mm / rear - 12x142mm

• Freehub options: SRAM XDR or Shimano HG

• Bearings: Custom Hybrid Ceramic - 61803, Custom Hybrid Ceramic - 61803/61903

• Max tyre pressure: 73psi/5.0bar

• Max recommended system weight: 250lbs/114kg

• Spoke Length (drive side): 252mm, 254mm

• Spoke Length (non-drive side): 256mm

• Weight (pair): 1400 grams

Rear wheel freehub compatibility:

• Shimano HG option is compatible with Shimano Road 9, 10, 11 and 12 speed cassettes and SRAM splined 9, 10 and 11 speed cassettes.

• SRAM XDR option is compatible with SRAM 11,12 and 13-speed XDR cassettes only.

*Please note hookless rims are only compatible with tubeless tyres approved for use on hookless rims. Click here - opens in a new tab for the latest Zipp tyre compatibility guide.

Optimal tyre pressure is a vital factor in making you go faster. The Zipp tyre pressure calculator - opens in a new tab provides recommended tyre pressure for Zipp wheels.
