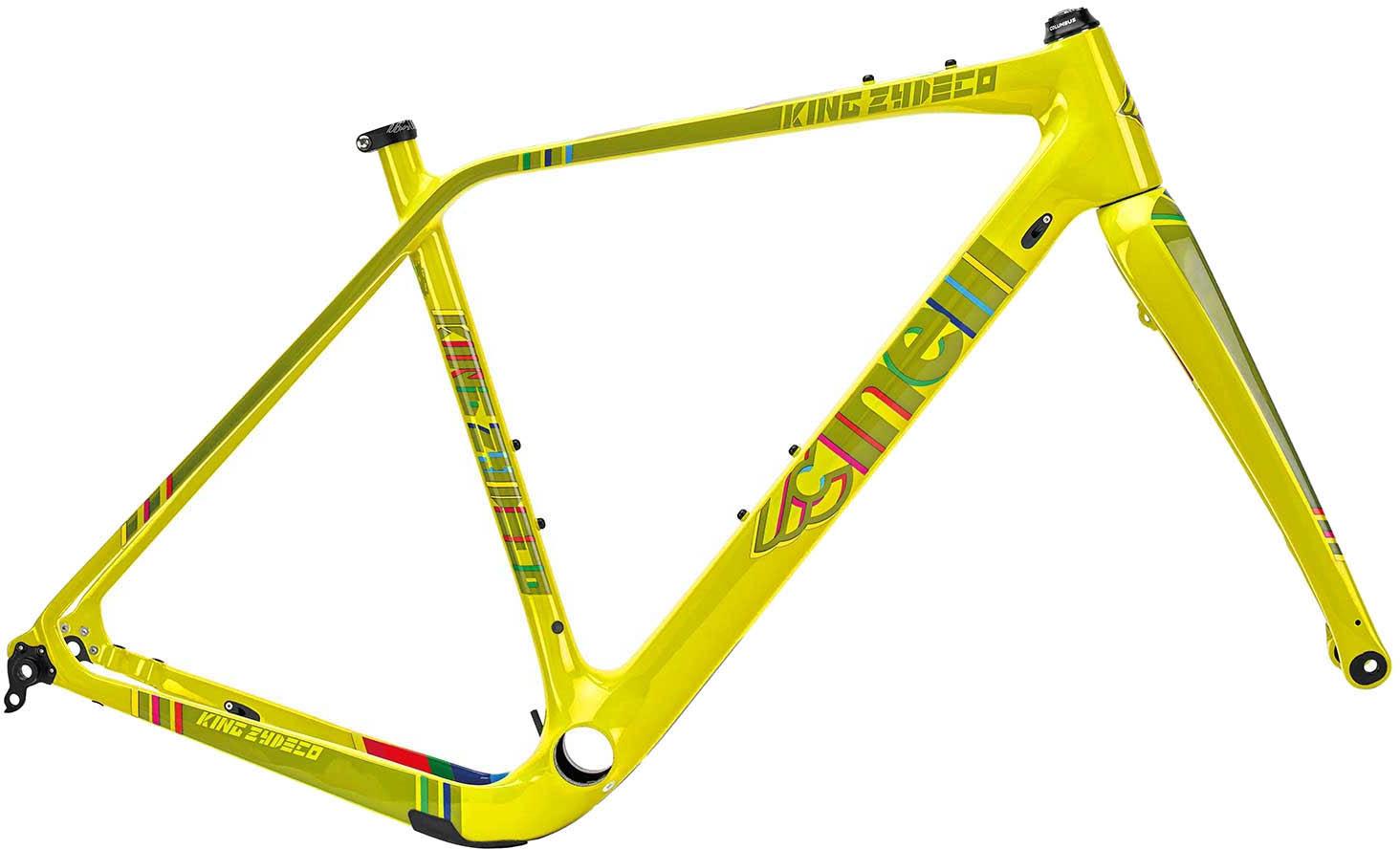

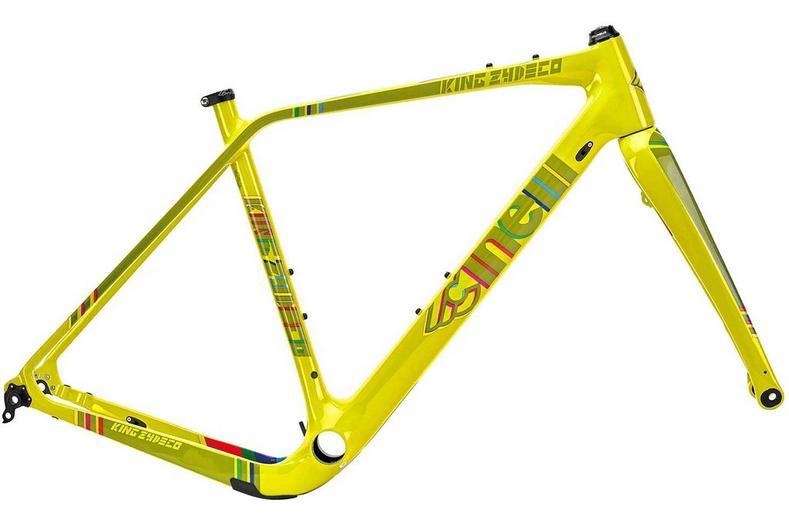

Cinelli King Zydeco Disc Gumbo Carbon Gravel Frameset Medium

Cinelli King Zydeco Disc Gumbo Carbon Gravel Frameset

HIGHLIGHTS:

• Performance gravel geometry

• Tyre clearance up to 700x47c or 650x2.1"

• Adaptive geometry thanks to dual rake Columbus fork

• Double response stiffness/compliance frame design for best off-road riding experience

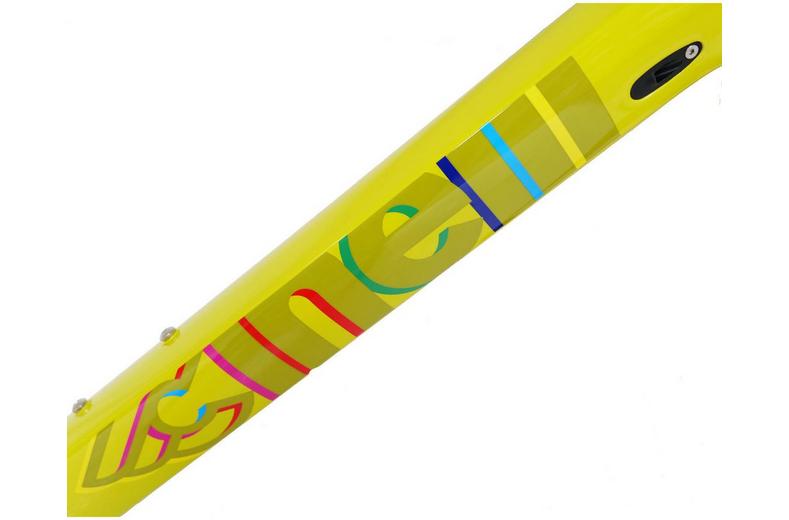

• Downtube kevlar shield

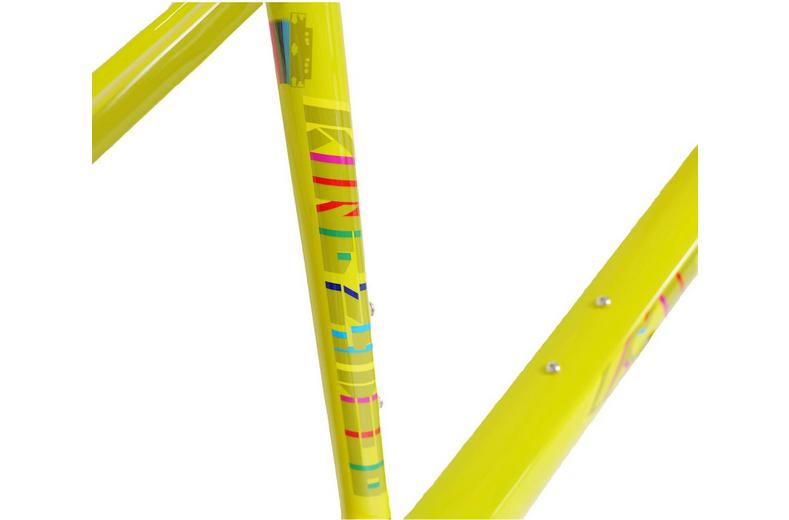

• Bike packing ready rivet system

• Compatible with double or single ring groupsets

A pioneer of the European gravel riding movement, the king zydeco is a go-fast-everywhere monocoque carbon fiber frame, perfect for competitive gravel riding and fast touring/endurance racing.

The engineering heart of the frame lies in the mould's transition between top tube and seat stays, specifically developed to allow for fibers to be continuously aligned allowing for significant weight reduction, optimization of the layup and above all superior distribution of vibration arriving from the rear wheel. Working in tandem with the oversized tube sections of the down and head tube a "double response system" of finely tuned stiffness and compliance is created.

The emotional heart of the frame lies in exploring new attitudes and emotions on adventures you didn't previously think were possible!

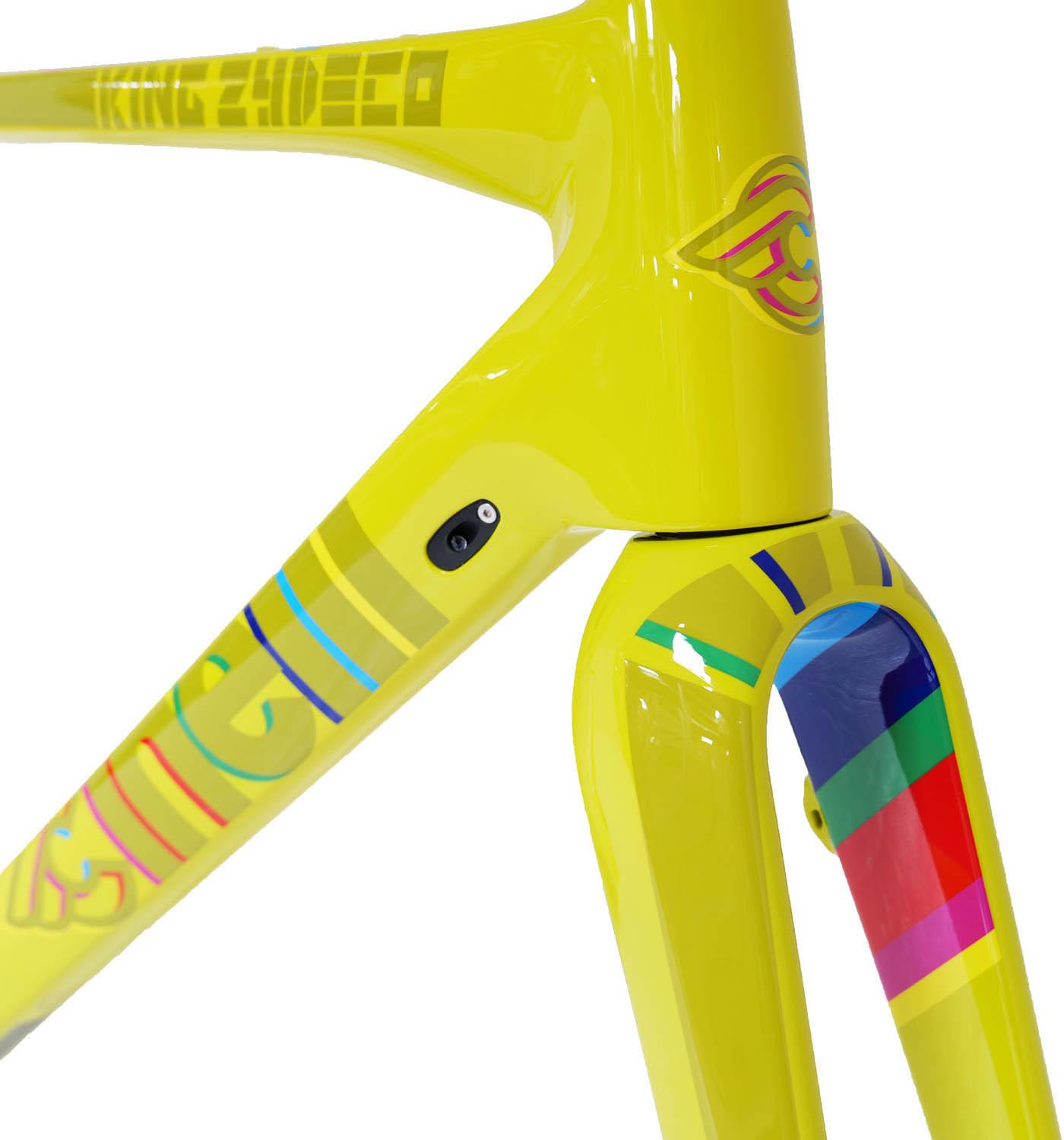

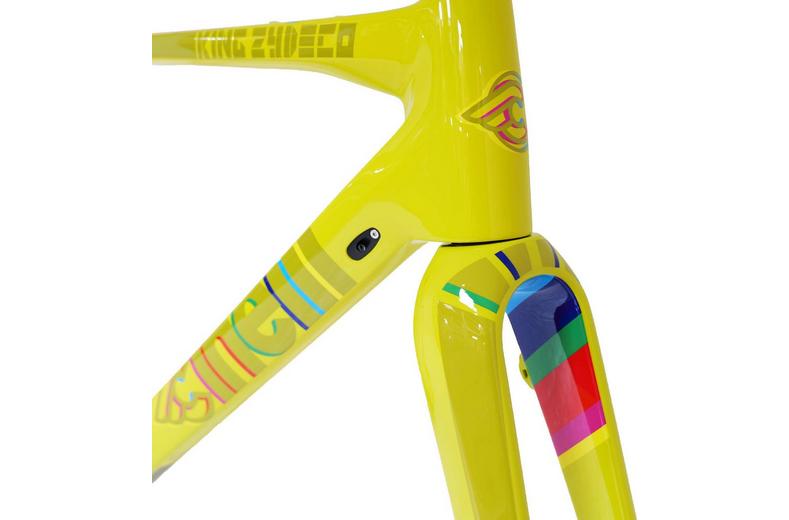

The fork can be swapped between 47 to 52mm rake by the use of an innovative flip-chip in the fork dropout.

TECHNICAL SPECIFICATIONS:

• Sizes: S (48) - M (51) - L (53)

• Frame material: Columbus Carbon Monocoque

• Fork: Columbus Futura Cross 1-1/8" - 1-1/2" Carbon Monoc.

• Frame weight: 1000g (size M)

• Fork weight: 550g (uncut)

• Headset: IS 42/28,6 | IS 52/40 Columbus Compass 1-1/2" (Included)

• Seatpost size: 27.2 mm

• Seat clamp: 31.8 mm (Included)

• Bottom bracket shell: BB386EVO (86.5 x 46mm)

• Front derailleur mounting: Band on (31.8mm clamp)

• Routing: Internal: Di2/EPS Compatible

• Colour: Gumbo

• Max tyre clearance: 700x47c / 650x2.1"

• Brake: Flat Mount Disc Brake, rotor size up to 160 mm

• Axles: 12x100mm / 12x142mm

What's in the box?

• Frame

• Fork

• Headset

• Seat clamp

• Mech hanger

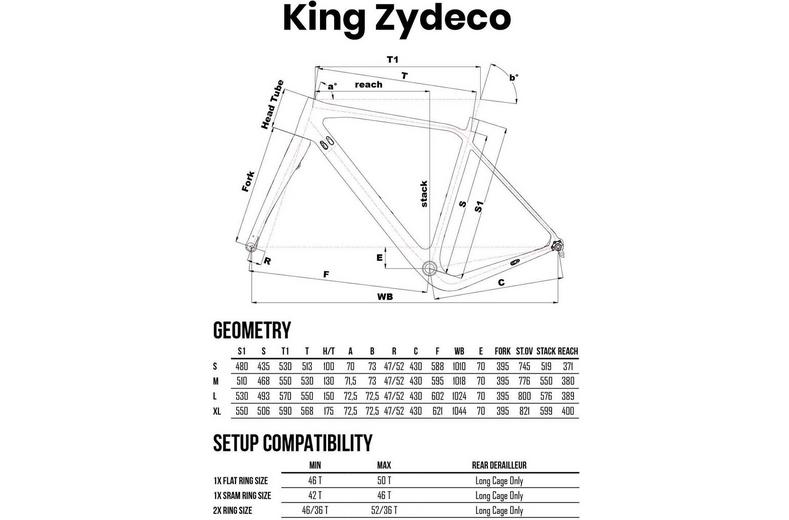

*Please see images for sizing and geometry information.
