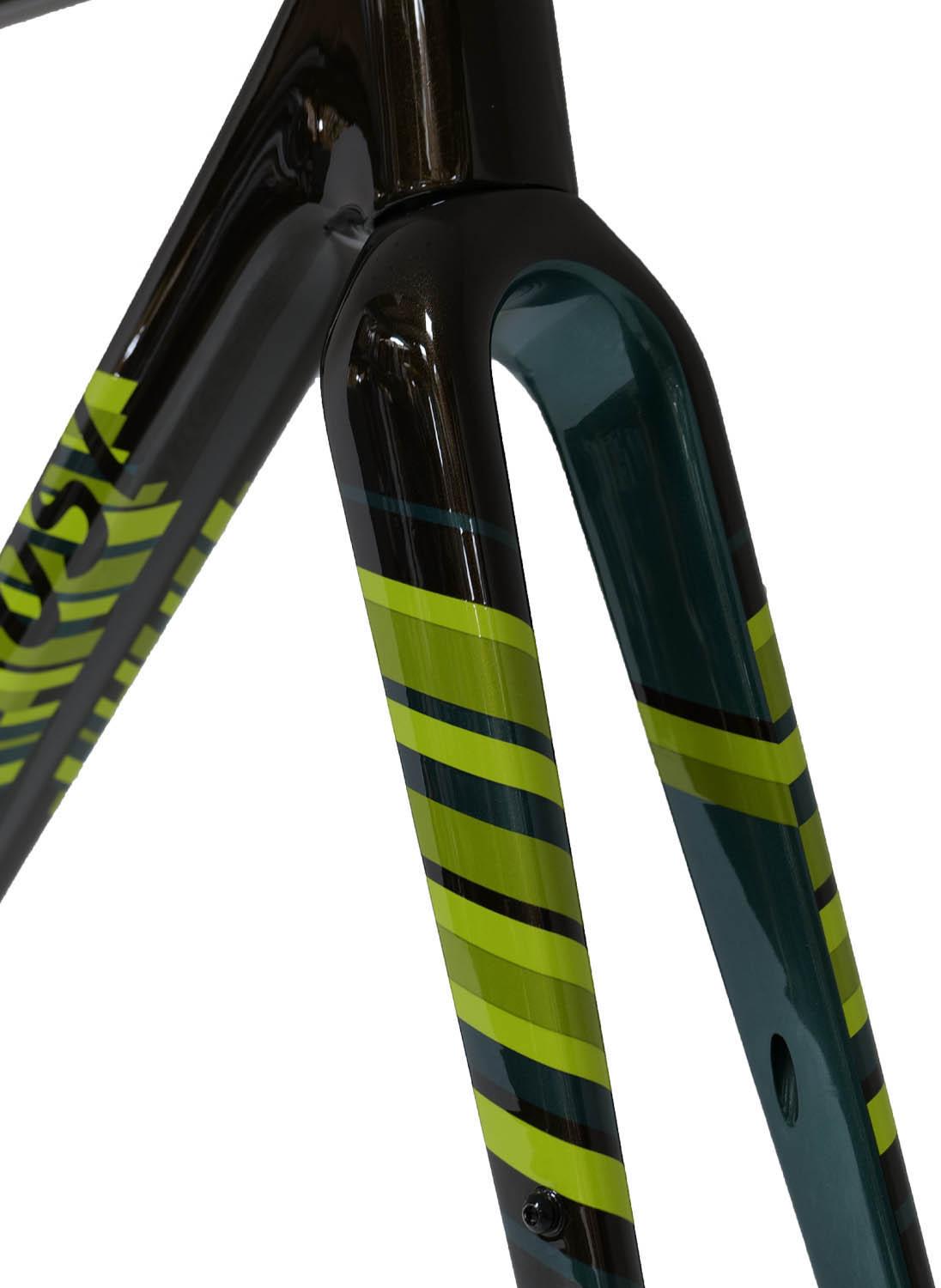

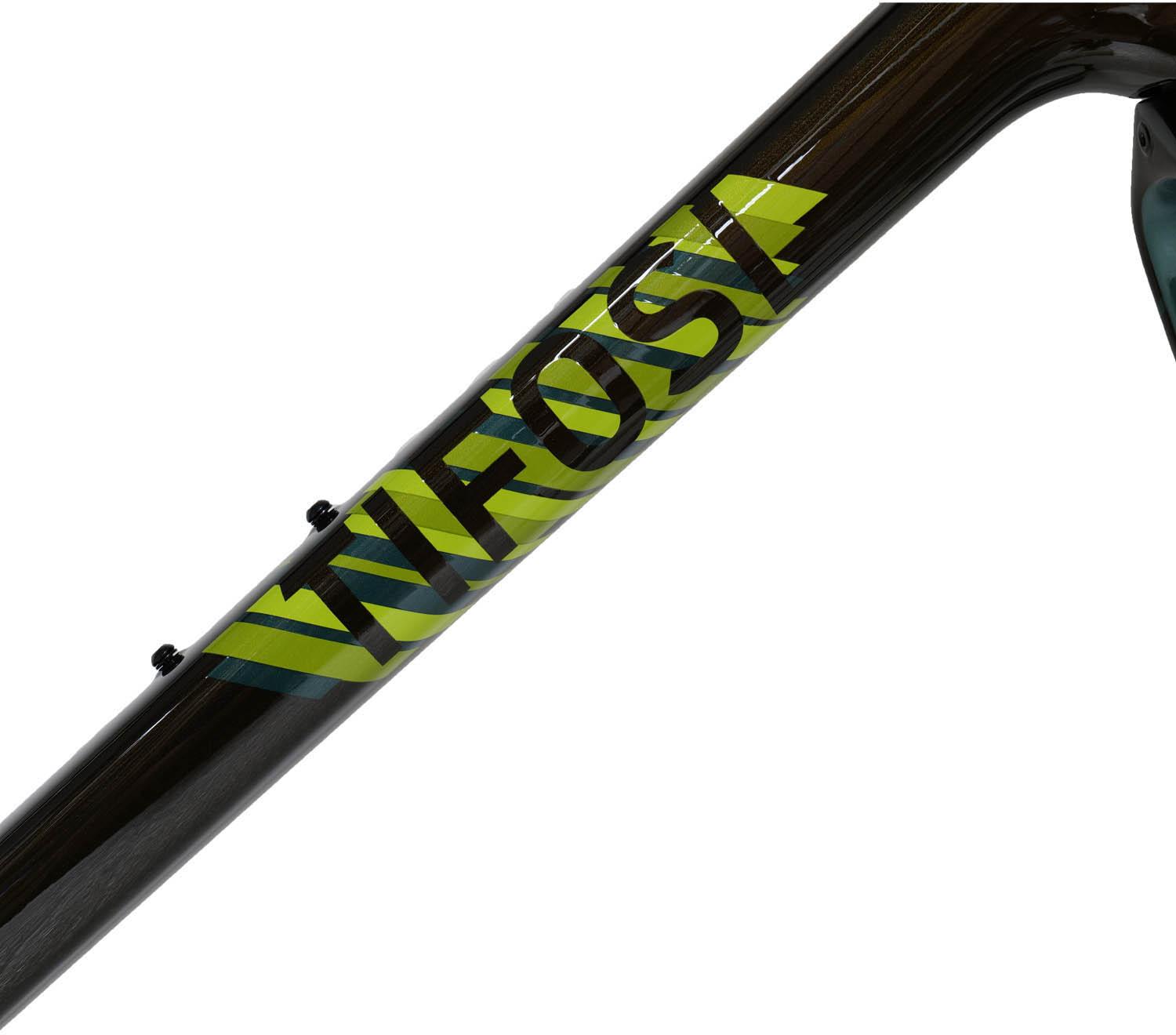

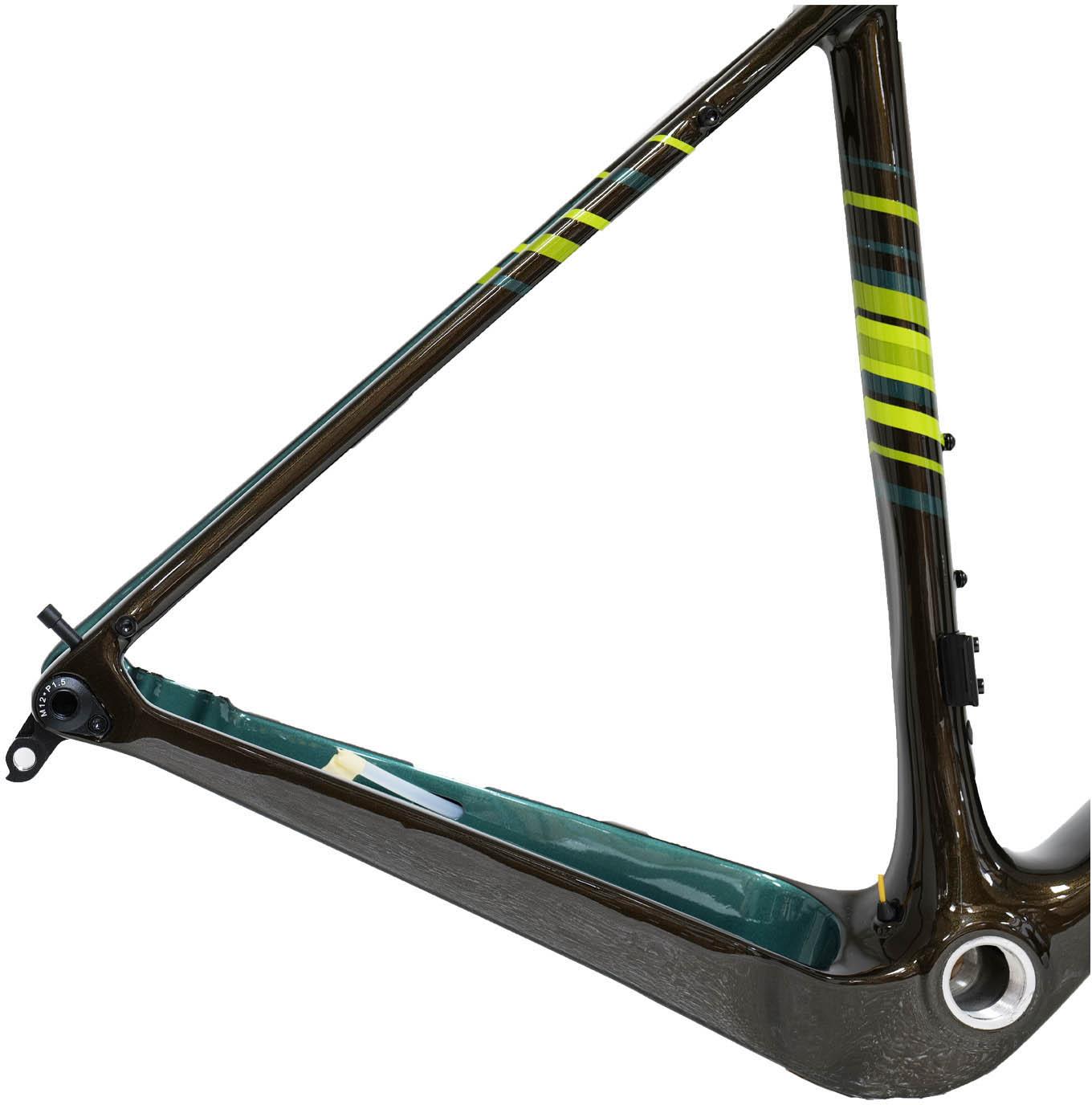

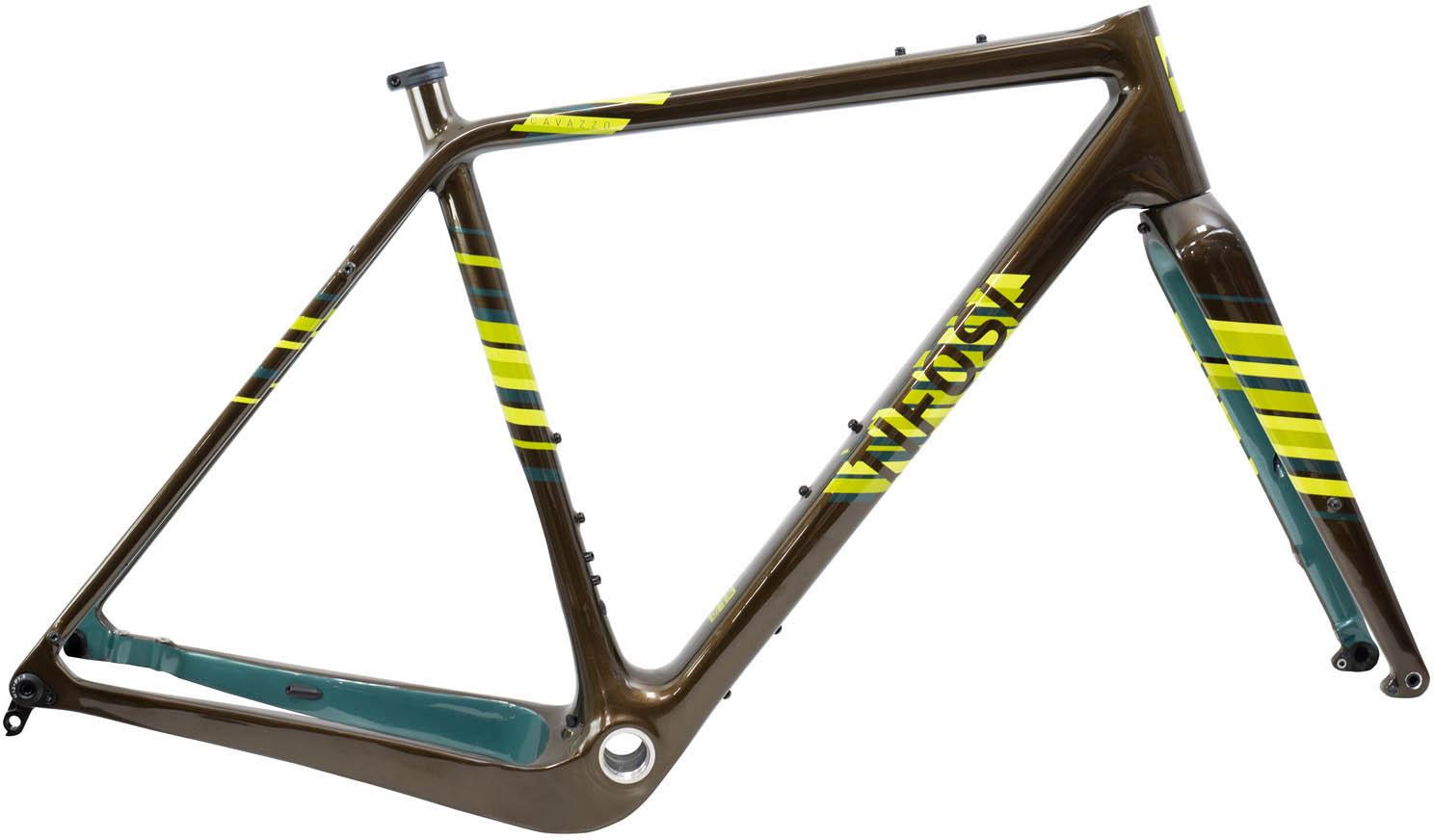

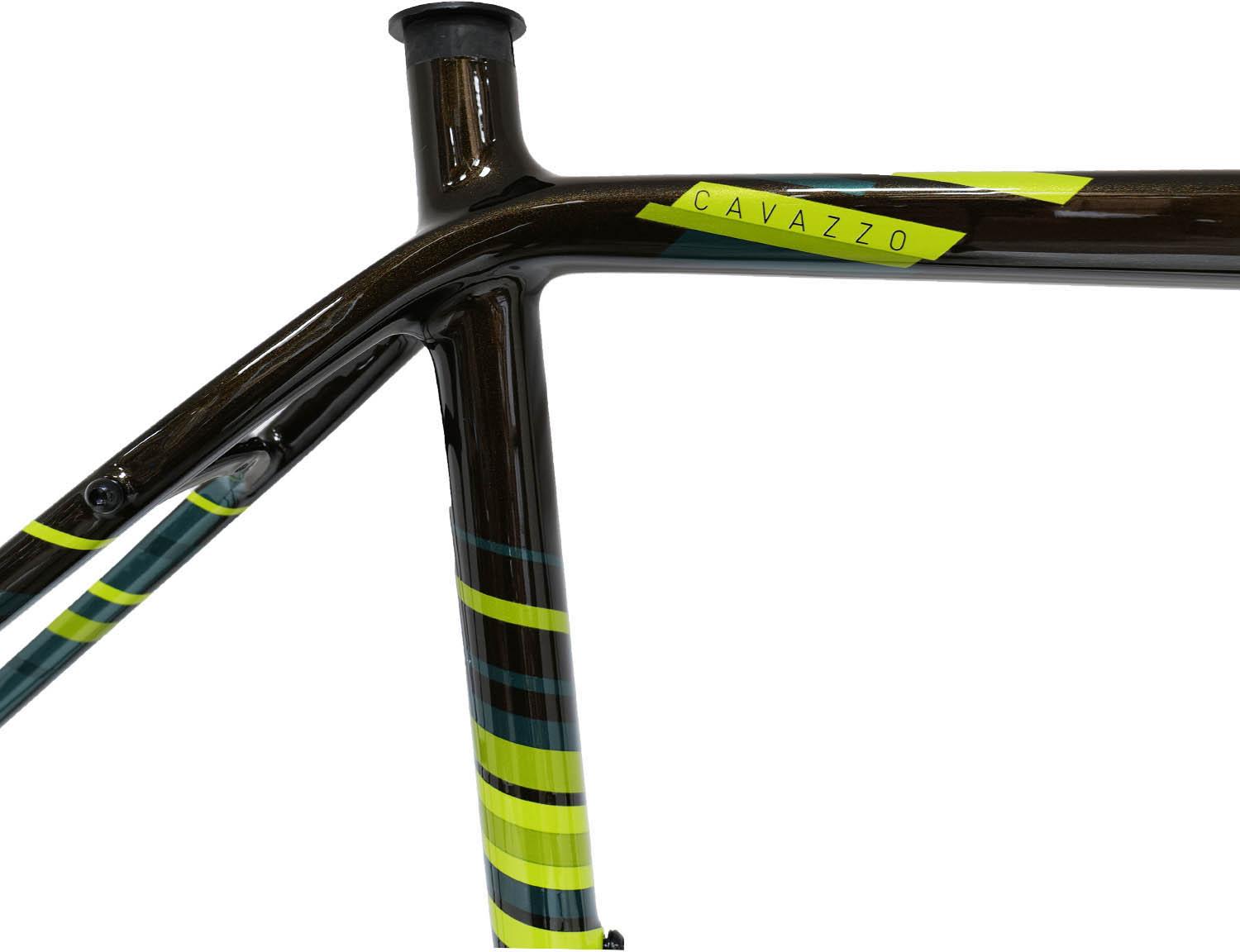

Tifosi Cavazzo Disc Carbon Gravel Frameset

HIGHLIGHTS:

Full carbon frameset
Clearance for up to 700x45c / 650bx2.1" / 29x1.85" tyres
Compatible with single ring and double ring groupsets
Suitable for all mechanical & electronic groupsets
Mudguard bosses with space for up to 50mm mudguards
Front and rear rack mounts
3x bottle bosses
Internal cable routing including compatibility with dropper seatpost

The Cavazzo is Tifosi's full carbon do-it-all frameset, one Cavazzo, limitless possibilities. Find your own path and the Cavazzo will excel no matter what the terrain.

The Cavazzo's frame design utilises a mix of Toray T500 and T700 carbon fibre to provide the perfect balance of strength, stiffness and weight. The dropped rear stays are designed to suit 1x or 2x drivetrains and the short chainstay length is perfect for agile handling. To suit the Cavazzo's go anywhere design, the frame has mudguards bosses with clearance for up to 50mm guards and tyre clearance for 700c x 45mm or 650b x 2.1" tyres.

Also fitted with mounts for racks with weight limits up to 15kgs for the front and 25kgs for the rear, for all your touring or bike-packing equipment needs.
3 x bottle bosses for extra hydration or equipment, with additional fast fuel eyelets on the top tube. Suitable for all electronic and mechanical groupsets with full Internal dropper post routing. Flat mount standard for hydraulic or mechanical disc brakes and 12mm thru-axles to keep everything stiff and secure.

TECHNICAL SPECIFICATIONS:

Sizes: XS, S, M, L, XL
Frame: UD Toray T500 and T700 Carbon with mudguard, rack and 3 bottle cage mounts
Fork: Carbon UD 1-1/8" to 1-1/2" with mudguard eyelets and front rack mounts
Frame weight: 1300g
Fork weight: 500g
Colour: Bronze
Brake Type: Flat Mount Disc Brakes
Cable Routing: Internal
Bottom Bracket shell: EnglishThreaded (BSA)
Max Tyre Clearance: 700x45c, 650b x 2.1" or 29x1.85"
Axle sizes: 12x100mm front / 12x142mm rear

What's in the box?

Frame
Fork
Headset
Seat clamp
Mech hanger

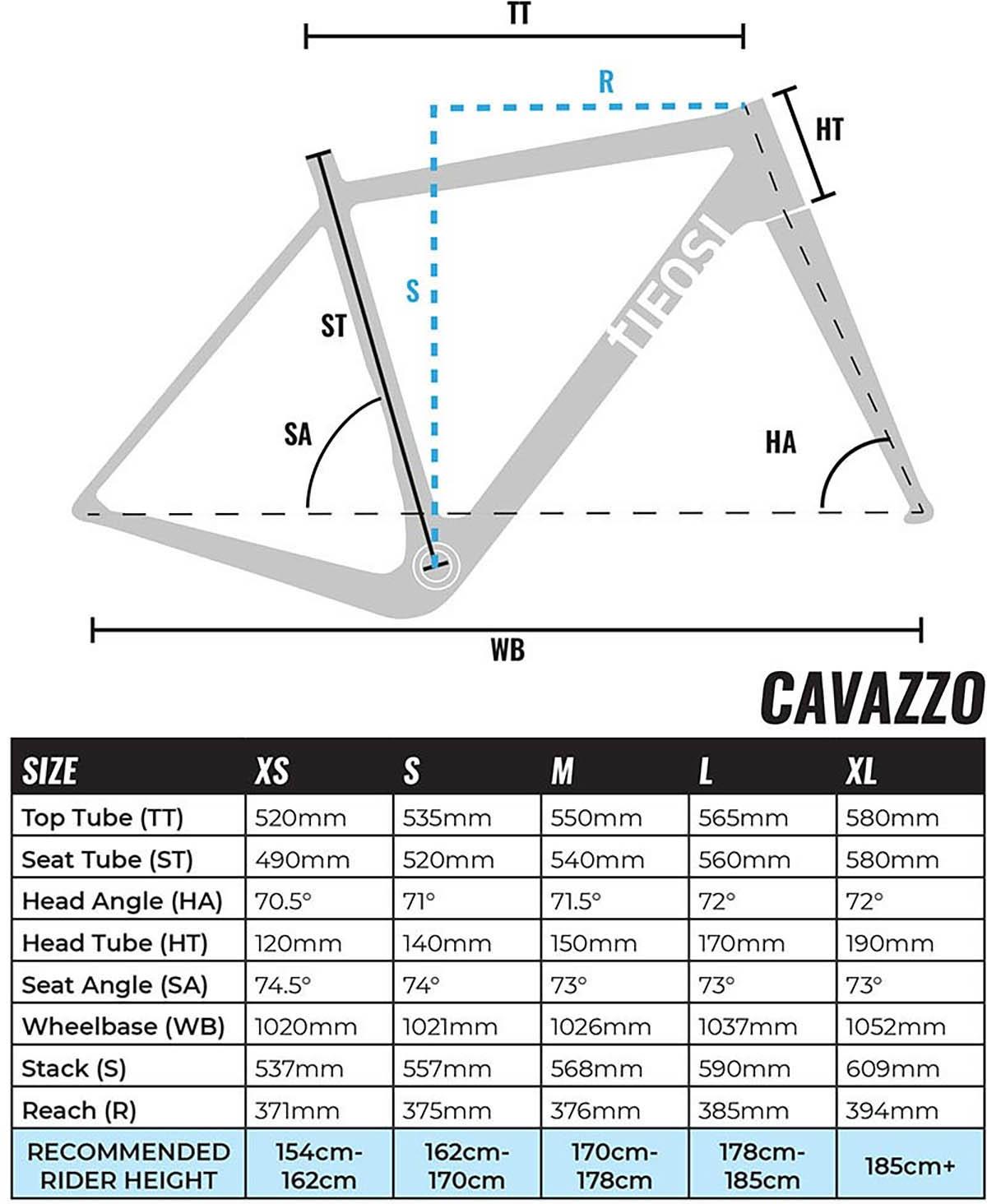

*Please see images for sizing and geometry information.

Type	Bike Frames
Discipline	Gravel
SKU	177683
