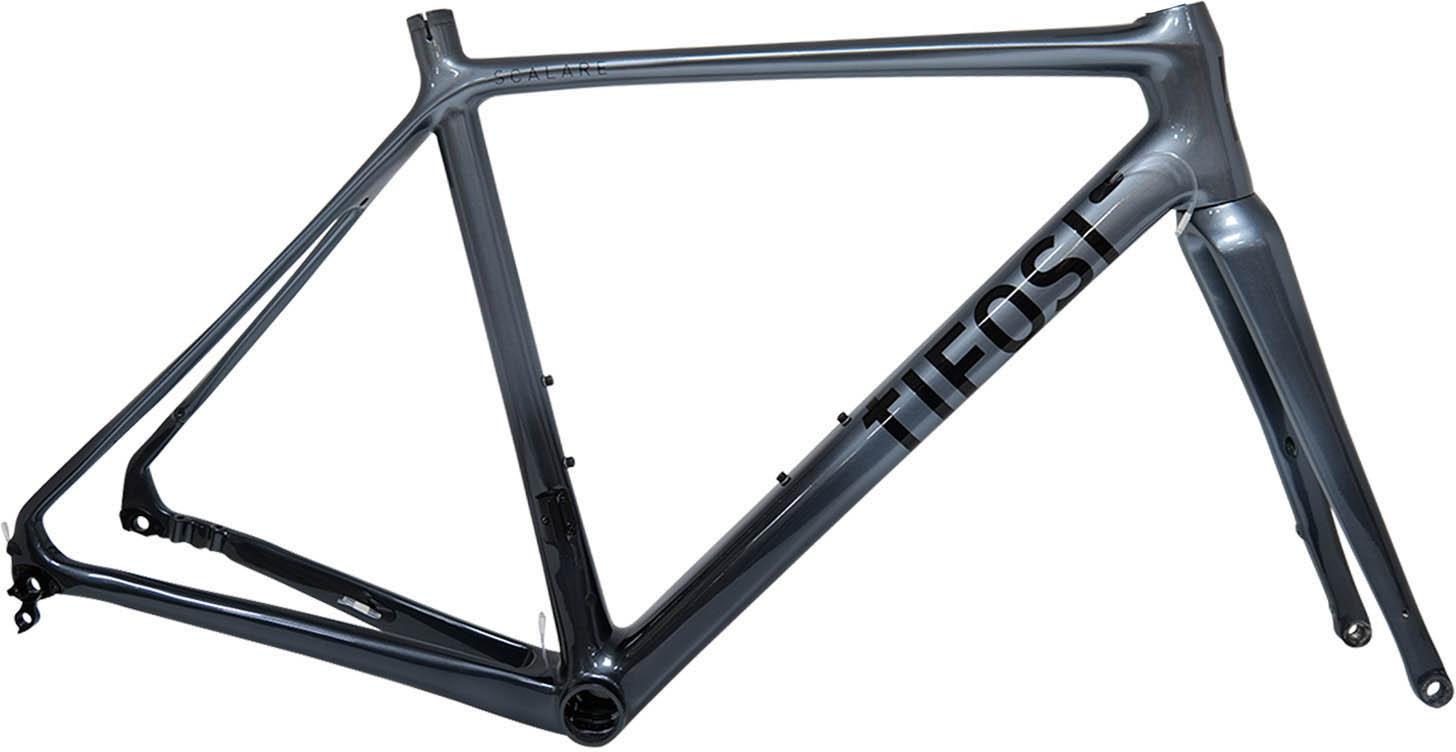

Tifosi Scalare Disc Grey Fade Carbon Road Frameset

HIGHLIGHTS:

Full carbon frameset
Fully compatible with mechanical & electronic groupsets
Clearance for up to 700x28c tyres
Hidden mudguard mounts
Internal cable routing
Designed in the UK

The Scalare is an entry level carbon fibre road bike but with the feel and benefits normally only associated with much higher end models. Whether you are an all-day sportive rider or entering your first amateur race, the Scalare will be your perfect partner.

The frame is produced from Toray T500 and T700 carbon fibre, these two different grades of carbon are used in key areas to give the perfect balance between strength, stiffness, weight and responsiveness. 200g lighter than the original Scalare model and now fully compatible with mechanical and electronic groupsets, the frame and fork are designed with clearance for up to 28mm tyres.

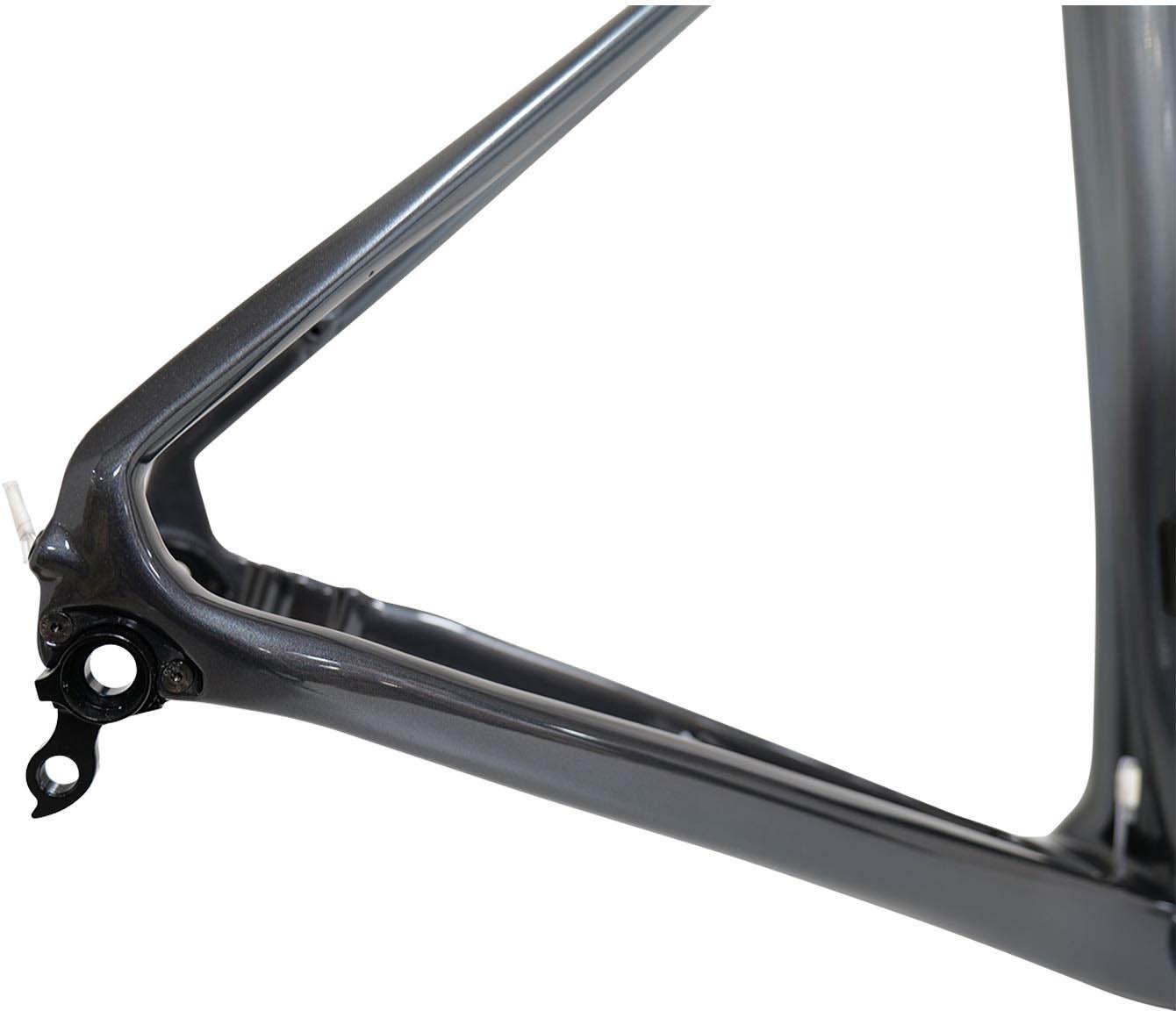

The Scalare's Disc brake mounts are the new flat mount standard for hydraulic or mechanical calipers. Thru-axles keep everything stiff and secure. Tifosi's R&D department has also focused on improving ride comfort with updated rear stays to dampen shock and road buzz without compromising it's excellent road feel. Mudguards can be mounted using the hidden mudguard eyelets in the frame and fork.

TECHNICAL SPECIFICATIONS:

Sizes: XS, S, M, L, XL
Frame: UD Toray T500 and T700 carbon
Fork: Carbon UD 1-1/8" to 1-1/2"
Frame weight: 1220g
Fork weight: 400g
Colour: Grey Fade
Brake type: Disc Brake
Cable routing: Internal
Bottom bracket shell: 86.5x41mm (BB86)
Max tyre clearance: 700x28c
Axle sizes: 12x100mm front / 12x142mm rear

What's in the box?

Frame
Fork
Headset
Seat clamp
Mech hanger

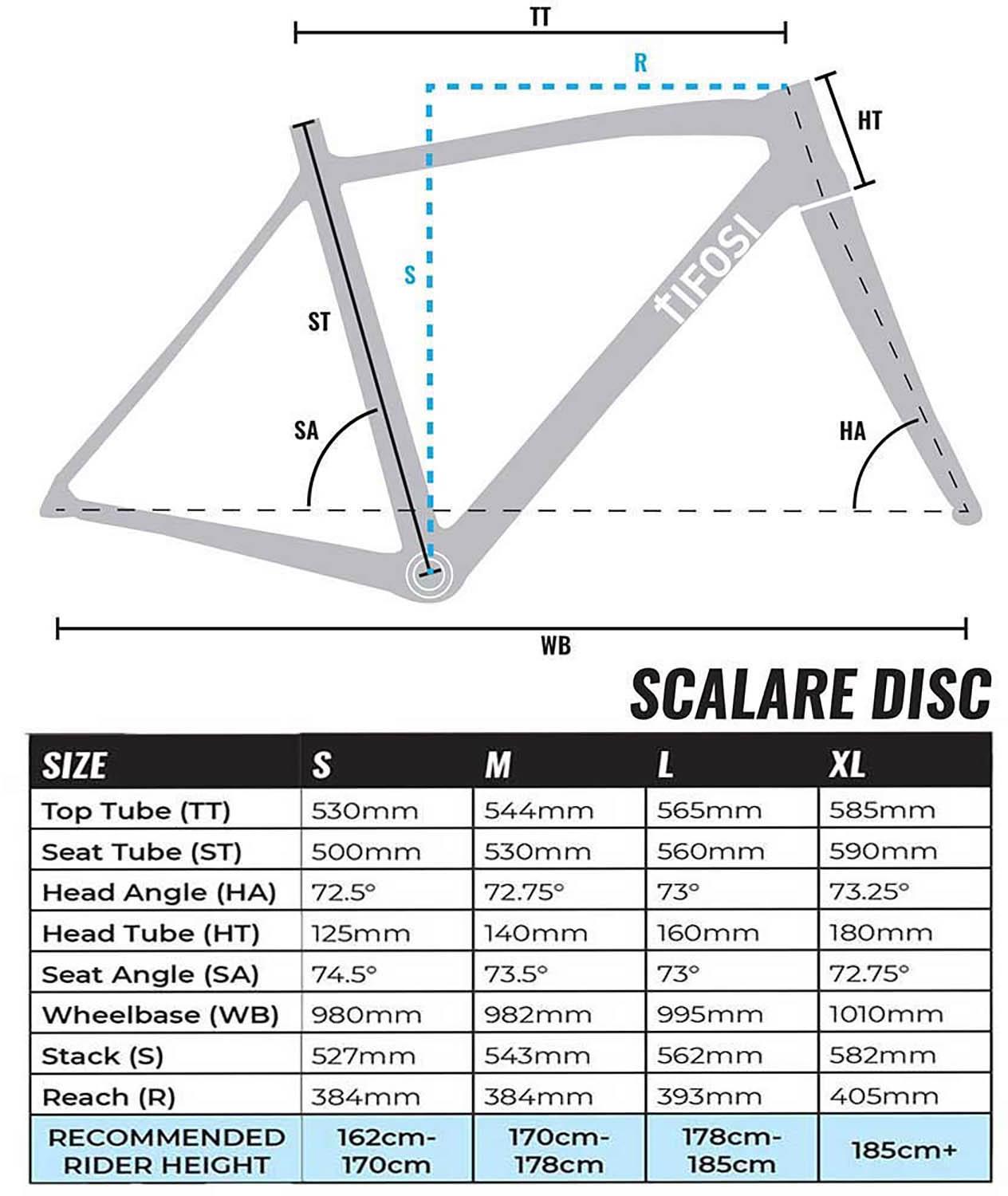

*Please see images for sizing and geometry information.

Type	Bike Frames
Discipline	Road
SKU	179019
