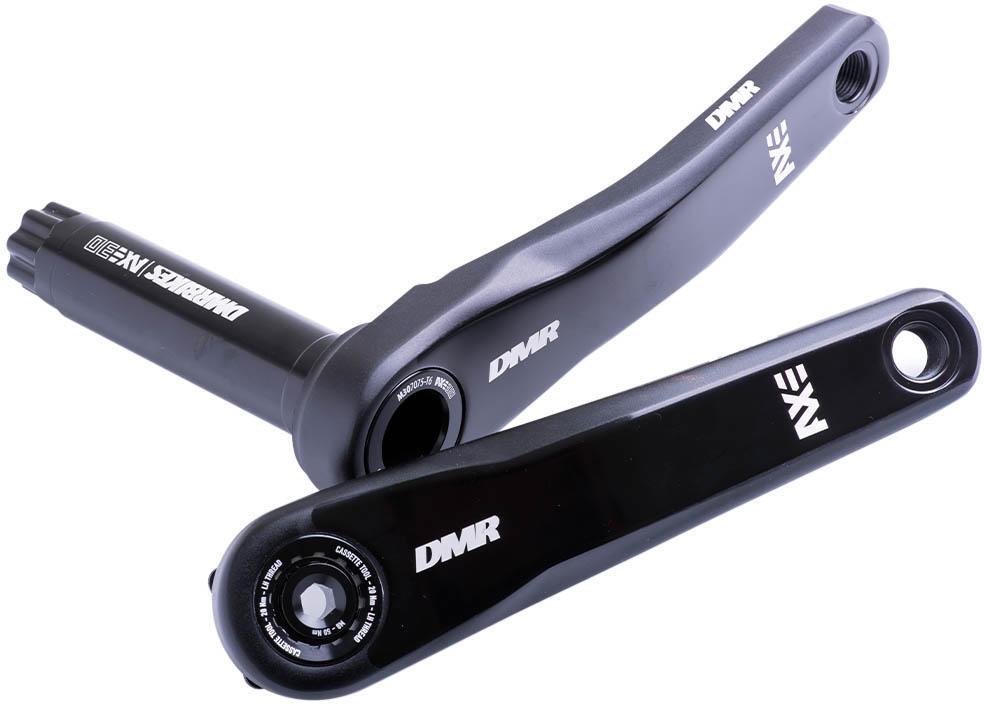

DMR AXE Crankset, Black 165 / 83mm

DMR AXE Crankset

• Constructed from aircraft-grade aluminium for the optimal balance of stiffness and strength.

• Hollow forged crank arms deliver an exceptional stiffness-to-weight ratio.

• Sturdy 30mm axle eliminates flex and maximises power transfer.

• Compatible with 3-bolt direct mount chainrings.

• Recommended for use with the DMR blade chainring (chainring not included).

• Choice of 165, 170 or 175mm crank arm lengths.

• Available with a longer axle to fit Downhill Bikes with a wider 83mm bottom bracket shell (165mm crank length only).

• Only to be used in conjunction with DMR AXE bottom bracket.

• A direct mount spider is available separately to allow compatibility with 2x set ups.

• Black anodized or polished silver finish.

DMR Axe cranks have the strength needed for the biggest downhill hits combined with the weight of a race-ready enduro crank. As a result, we have created what we believe to be the best crank out there for mountain bikes. Using aircraft-grade aluminium Hollowform arms and a 30mm axle we have achieved unrivalled stiffness and strength without a weight penalty.

DMR Axe cranks feature Hollowform technology in the forged crank arms achieving unrivalled stiffness without a weight penalty. The DMR Axe LE is strong and versatile enough to fit any all-mountain, enduro or DH set up.

The DMR Axe features a sturdy 30mm axle to ensure there is no flex between your crank arms. The DMR Axe cranks are supplied as crank arms only so that you can assemble your cranks to your specification. We recommended DMR Blade Rings which are available in all common sizes, along with Boost and Standard chain line options. The DMR Axe crank is also available for DH spec frames with a longer axle.

Technical specification:

• Crank arm length: 165mm, 170mm, 175mm / plus additional 165 / 83mm DH spec

• Axle size: 30mm

• Q-factor: 176mm

• Chainring mounting: SRAM 3-bolt direct mount fitment

• Bottom bracket compatibility: DMR AXE

• Weight: 790g (weight based on DMR AXE cranks, BB and Blade 34T chainring)

• Colour: Black anodized or polished silver
