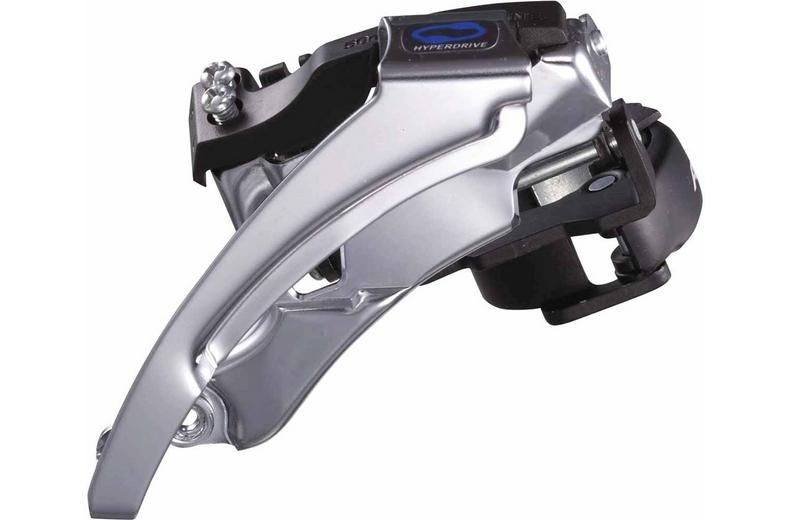

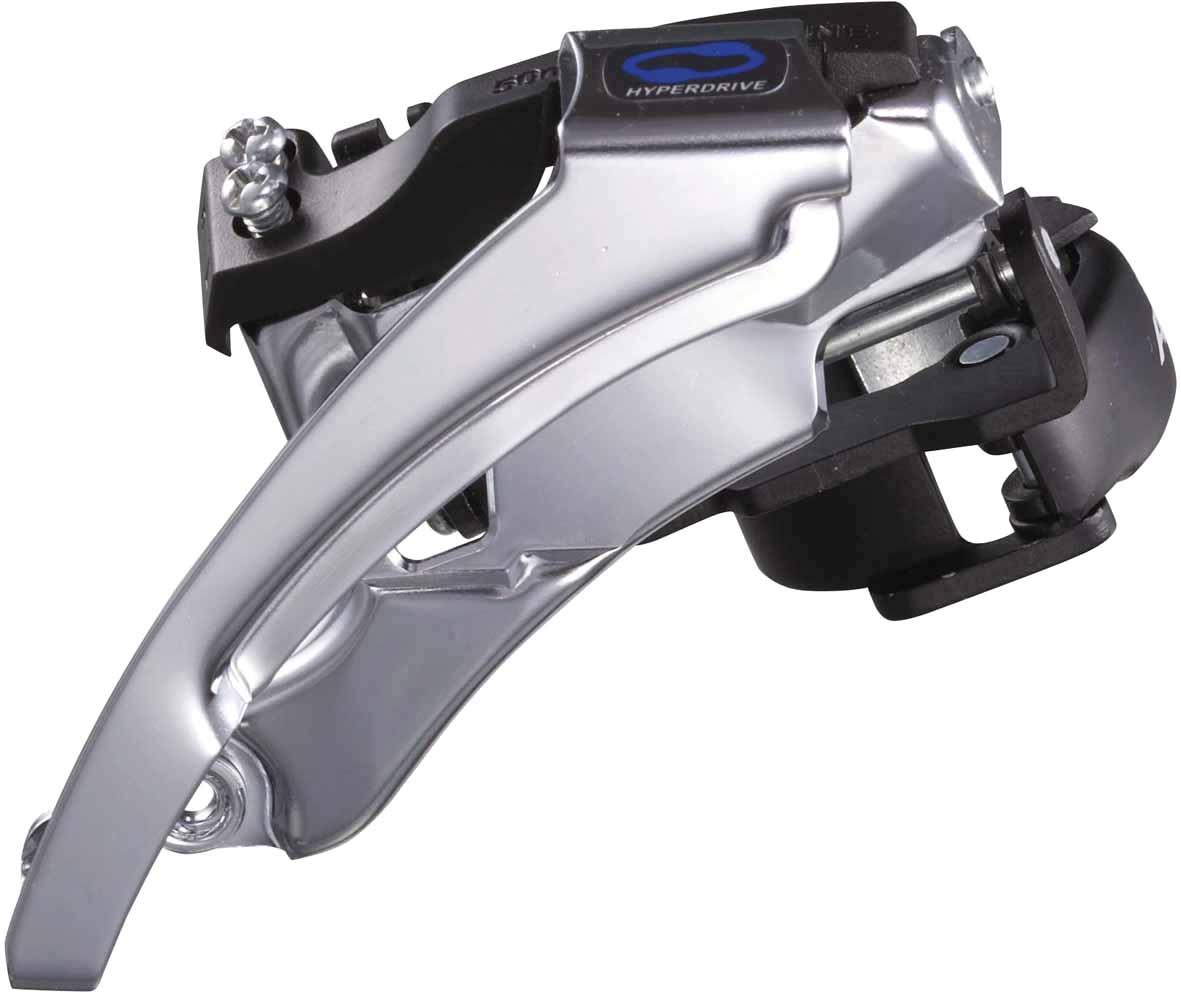

Shimano Altus FD-M310 3 Speed Front Derailleur, Conventional Swing

Shimano Altus FD-M310 3 Speed Front Derailleur

• Low-friction wide linkage reduces shifting effort and increases rigidity

• Dual pull design allows it to be used with top or bottom cable routing

• Available in either conventional swing or top swing

• Multi clamp band is compatible with all seat tube diameters including 34.9mm , 31.8mm and 28.6mm (Adapters are included for 31.8 and 28.6mm)

• 66-69 degree chainstay to seat tube angle range

• For outer chainring size from 42 to 48 tooth, total capacity 20 teeth

• Compatible with 7- or 8-speed drivetrains

Altus wide link 7/8-speed compatible dual pull multi-fit front derailleur for recreational off-road use

The FD-M310 3 speed front derailleur is available in either conventional swing or top swing designs, this is with reference to where the clamp band is positioned relative to the derailleur cage, with a conventional swing derailleur the clamp band is above the cage where as a top swing design has the clamp band located under the cage.

The FD-M310 derailleur is compatible with the below models of shifters:

Acera SL-M360-L

Altus SL-M310-L

Shimano SL-M315-L

Tourney SL-RS47-L

Tourney SL-RS45-L

Tourney SL-RV400-L

Tourney SL-RV400-LN

Altus ST-M310-L2

Altus ST-M310-L4

Tourney ST-TX800-L

Acera ST-EF65-L2

Acera PLUS ST-EF65-L4

Acera ST-EF500-L2A

Acera ST-EF500-L4A

Altus ST-EF510-L2A

Altus ST-EF510-L4A

Acera ST-EF505-L

Tourney SL-RS36-L

Tourney SL-RS35-L

Revoshift SL-RV300-L

Revoshift SL-RV200-L

Tourney SL-TX50-L
