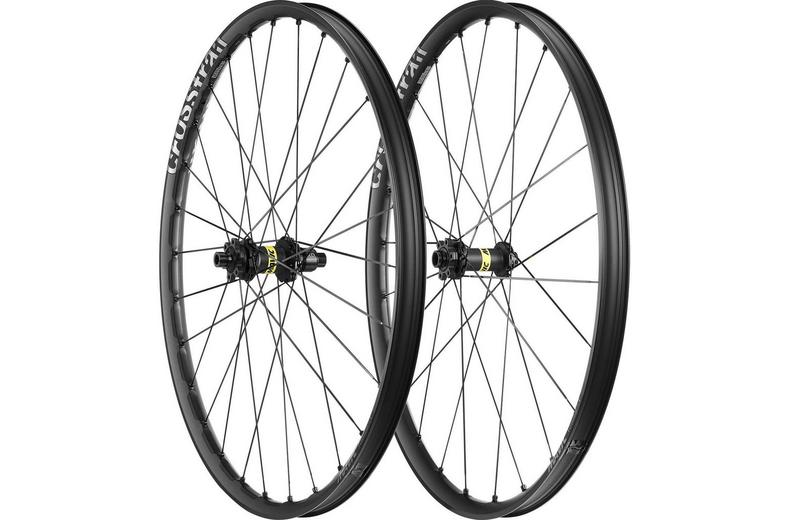

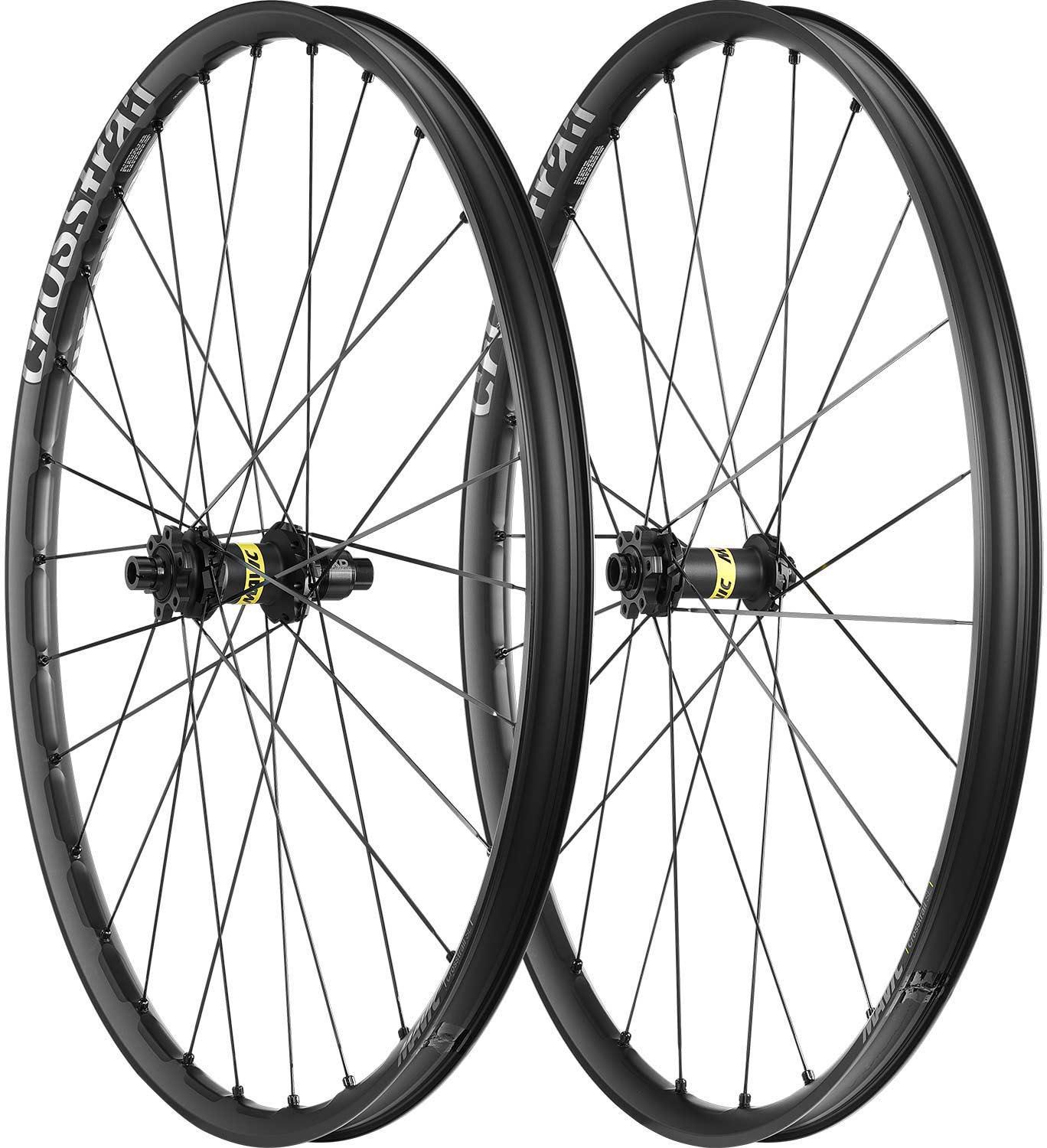

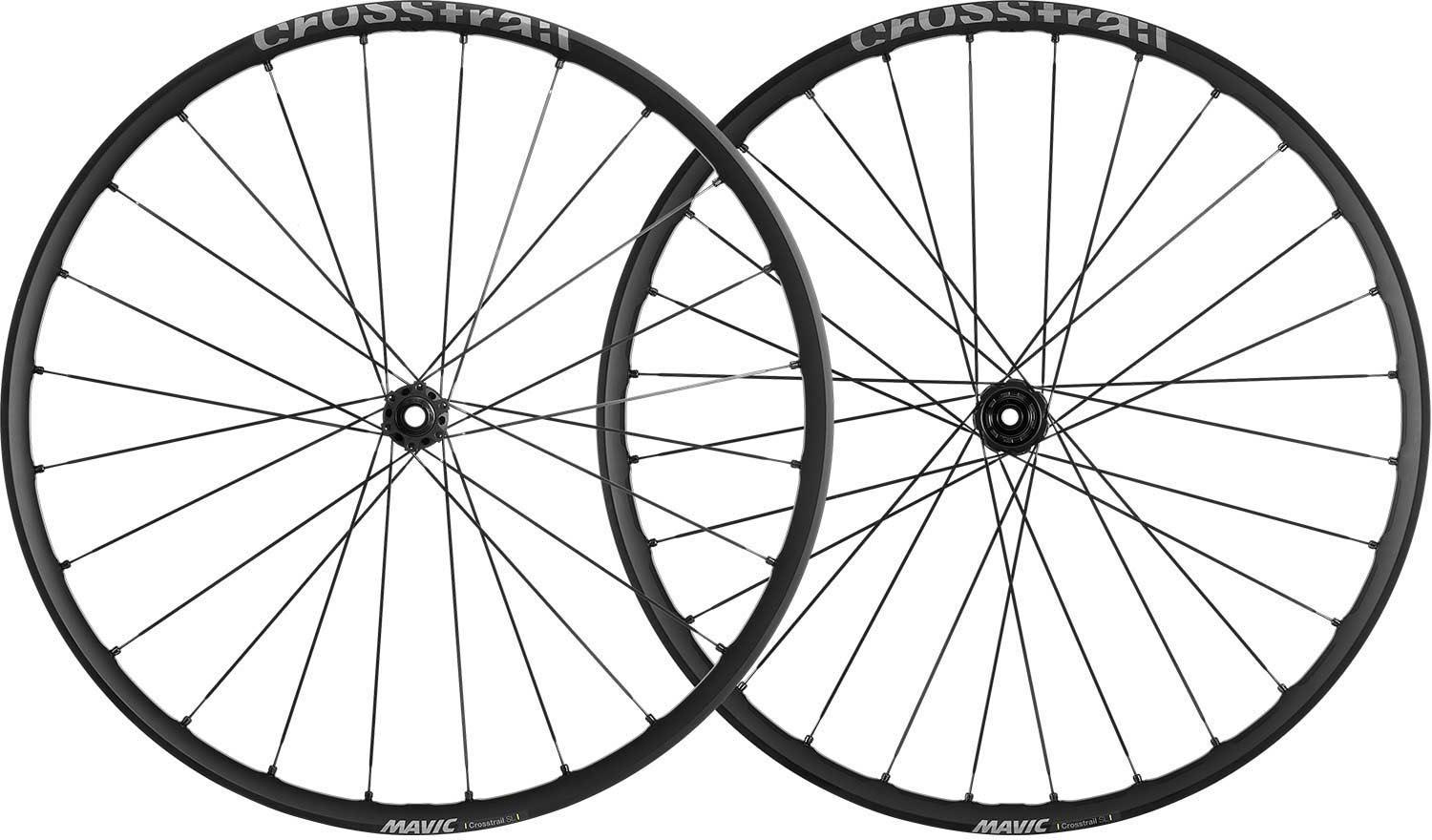

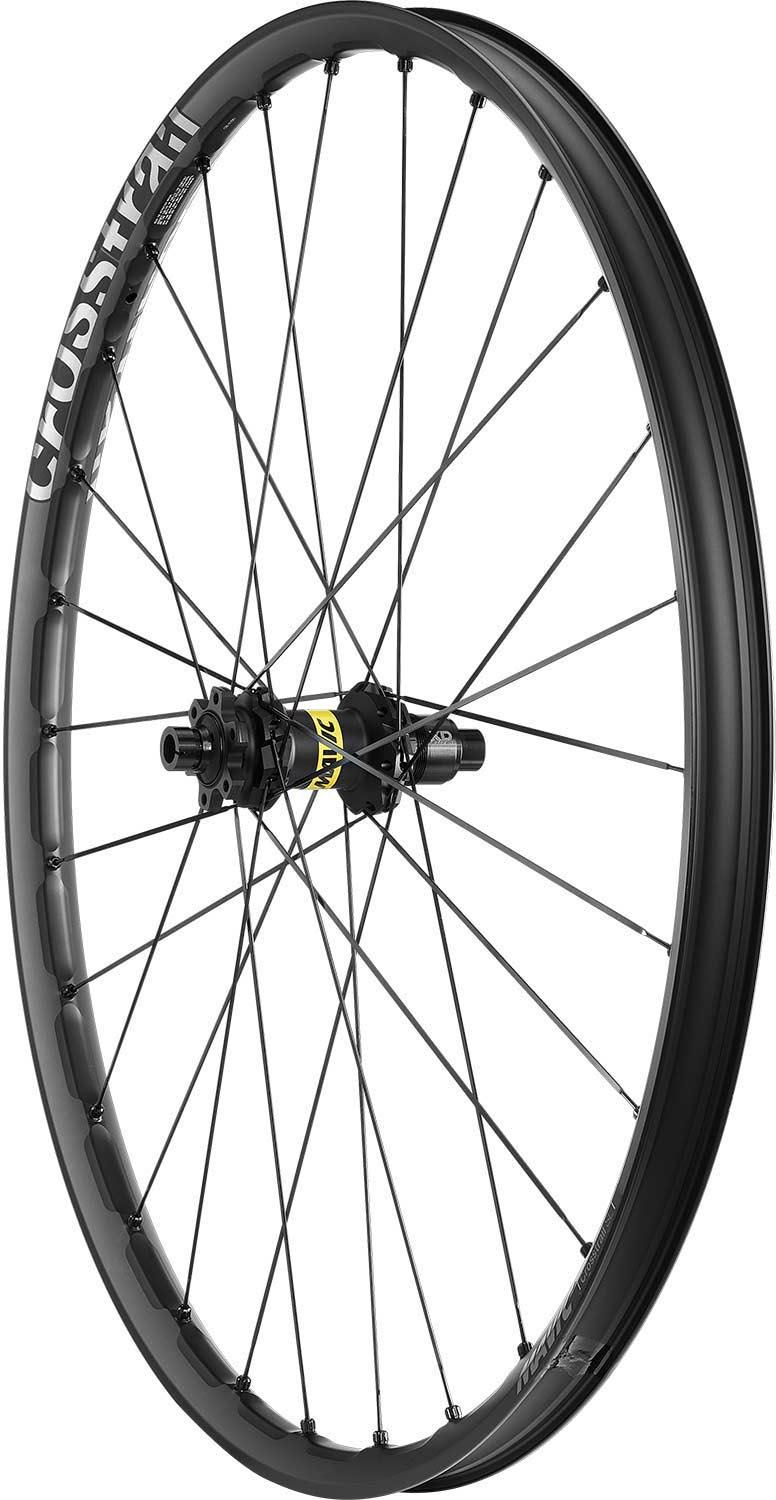

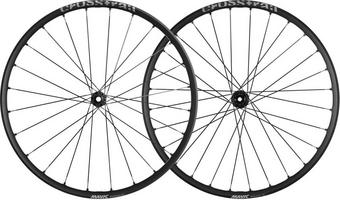

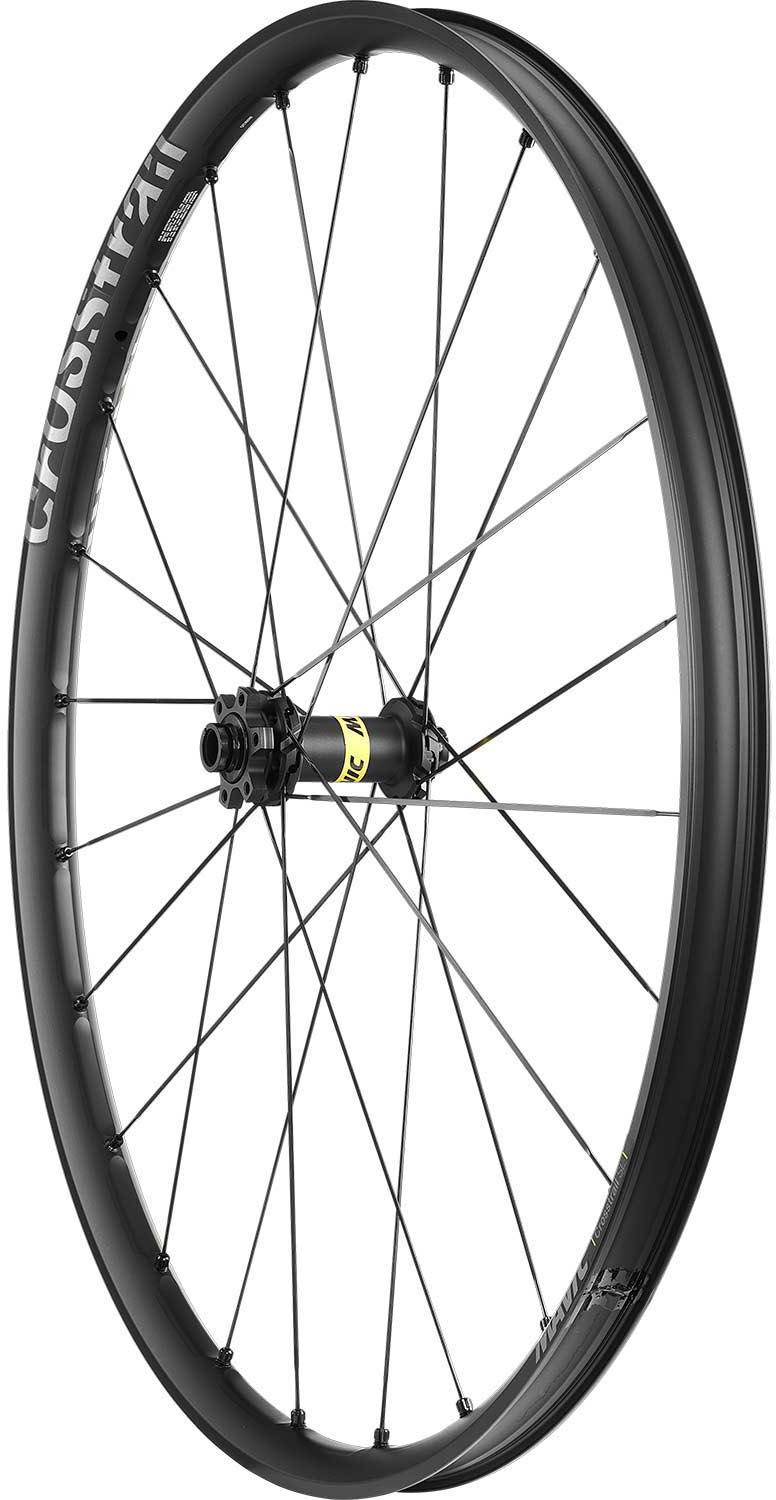

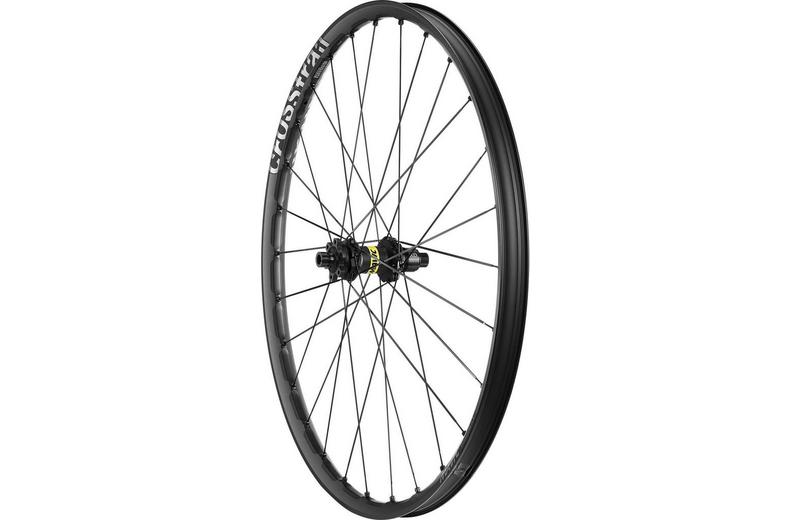

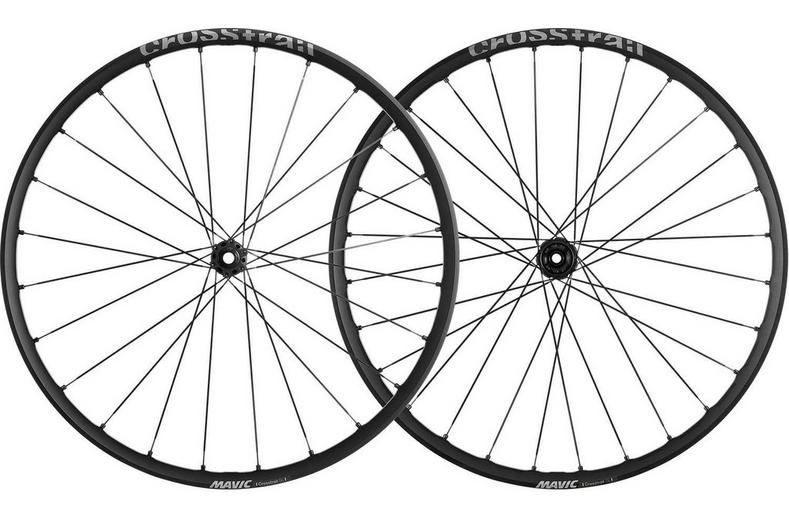

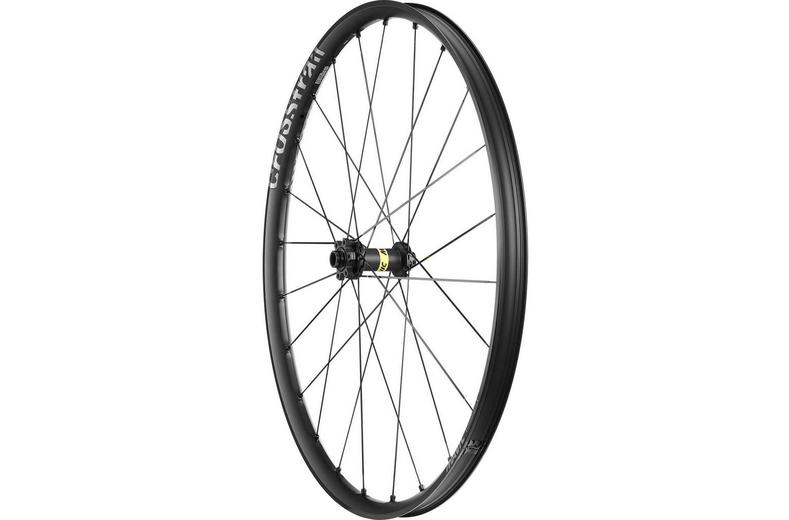

Mavic Crosstrail SL 29" Centre Lock Wheelset, 15x110/12x148mm Shimano Micro Spline

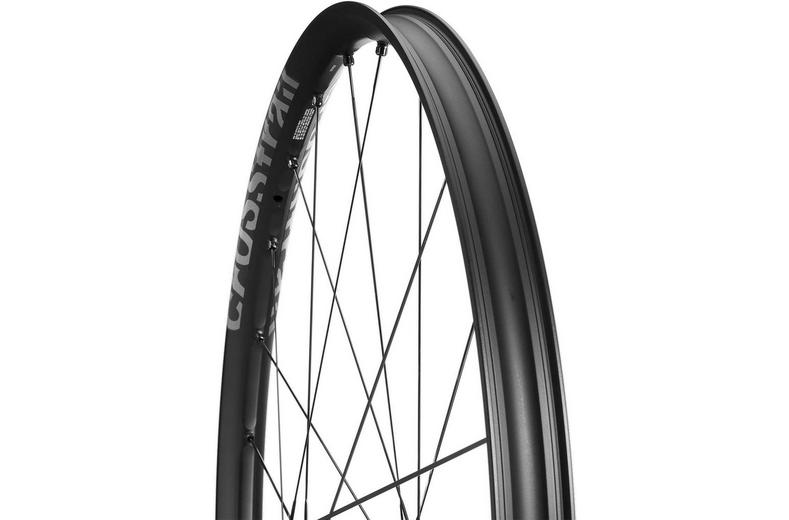

• The 30mm aluminium rim with FORE & PFP technologies make the Crosstrail SL an indestructible trail wheel.
• The reduced inertia of the rim combined with INFINITY hub technology means instant acceleration.
• Our ISM4D rim lightening and spoke technology make the Crosstrail SL one of the most versatile trail wheels in its class.
• Wheelset weight: 1980g (front - 888g / rear - 1092g).

Robust, agile and lightweight, the Crosstrail SL combines the best of Mavic’s technologies, making it your best ally to tackle any trail.

Key Technology:

• Maxtal aluminium alloy – Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.

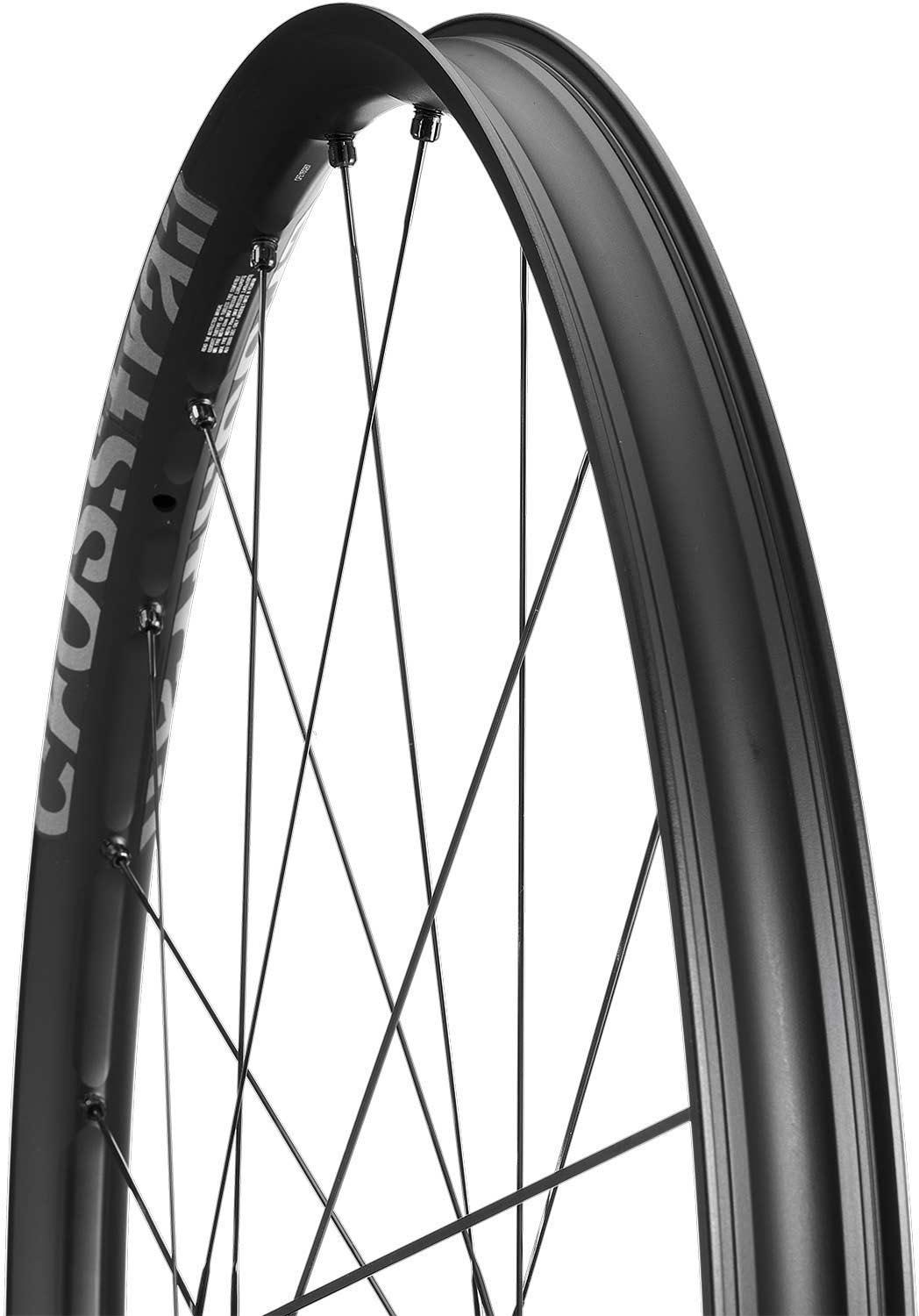

• ISM light rim technology – Inter Spoke Milling is an exclusive Mavic patented concept. The ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.
• Fore tapeless tubeless technology – Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.
• Instant Drive 360 freewheel technology – The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
• UST tubeless technology – Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
• SUP welding technology – Factory Welded Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
• Black Shield treatment – This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.
• Infinity hub design – Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.
• QRM Auto bearing preload technology – The cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Technical Specification:

• Diameter: 29"
• Weight (pair): 1980g
• Rim material: Maxtal
• Rim height: 25mm
• Internal rim width: 30mm
• Drilling: Front - 24 holes / rear - 28 holes
• Tyre compatibility: Tubeless Ready (can also be used with tubes)
• Spoke material: Steel
• Nipples: Brass, black
• Spoke lacing: Front - crossed 2 / rear - crossed 3
• Hub body material: Aluminium
• Brake type: Disc brake
• Disc standard: Centre Lock
• Freehub: Shimano Micro Spline
• Axle size: Front 15x110mm / rear 12x148mm
• Minimum tyre width and pressure: 52mm (43 PSI)
• Maximum tyre width and pressure: 76mm (36 PSI)
• Maximum supported weight: 135kg (bike weight included)

What's included with the wheelset?

• User guide
• UST tubeless valves
• 2 replacement spokes for each wheel
• Multifunction adjustment wrench for the rear wheel

Compatibility:

• Shimano Micro Spline freehub is compatible with 1x12-speed Shimano Micro Spline Mountain Bike and Gravel cassettes only. Freehub conversion kits can be purchased separately for Shimano HG or SRAM XD cassettes.
• Front wheel is configured for forks with 15x110mm (boost) thru axle spacing. Rear wheel is configured for frames with 12x148mm (boost) rear thru axle spacing. Adapter conversion kits are available separately for boost quick release. Torque cap adapter kit is also available separately to convert the front wheel hub ends to 31mm.
• Centre Lock disc brake interface for compatibility with Centre Lock disc rotors.
